[Technical parameters of the vehicle] |
|||||
|
product name |

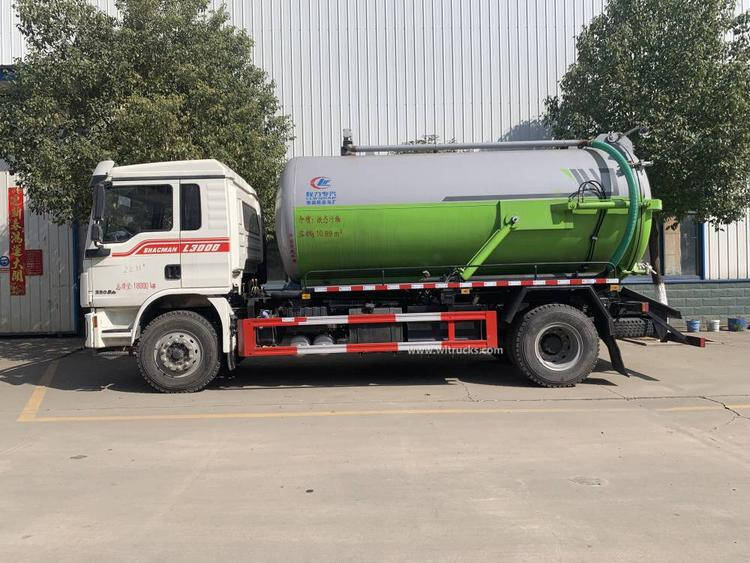

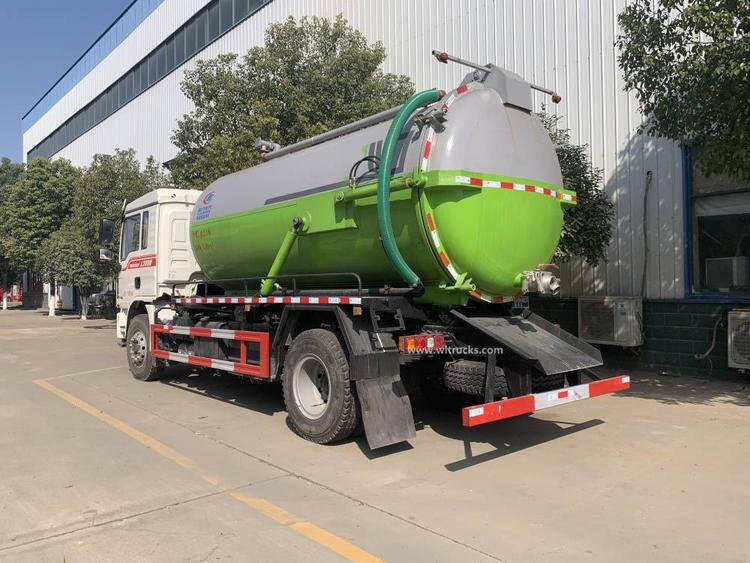

CLW5180GXWS6 vacuum tank truck |
||||
|
Total mass (kg) |
18000 |
Tank volume (m3) |
12 |
||
|
Rated mass (kg) |
8440,8375 |
Dimensions (mm) |
7140, 7340, 7540, 7740, 8040X2530X3500 |
||
|
Curb weight (kg) |
9430 |
Cargo compartment size (mm) |
XX |
||
|
Rated passengers (person) |
Total mass of semi-trailer (kg) |
||||
|
The number of passengers in the cab (person) |
2,3 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
21/15 |
Front suspension/rear suspension (mm) |
1340/2000 |
||
|
Axle load (kg) |
6500/11500 |
Maximum speed (km/h) |
89 |
||
|
Remarks: |
Remarks: The special device for this vehicle is a sewage suction tank, which is mainly used for sewage sludge suction, cleaning and loading and unloading; a cab is optional with the chassis; transportation medium: liquid sewage, medium density: 800 kg/m3, tank body effective volume: 12cubic meters of tank dimensions (length × straight section diameter) (mm): 4400 × 1850; wheelbase selection 3800,4000,4200,4500,4700mm Chassis modification, the corresponding relationship of vehicle length/wheelbase is (mm): 7140/3800, 7340/4000, 7540/4200, 7840/4500, 8040/4700; protective material: Q235A carbon steel, both left and right sides and rear lower parts are protected Welding connection is adopted, the cross-sectional size of the rear protective device (width × height) is 50×120 (mm), and the ground clearance of the rear protective device (mm): 450; the manufacturer and model of the ABS system are: Xi’an Zhengchang Electronics Co., Ltd. (Model: ZQFB-V). |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
SX1189LA1F1C |
Chassis name |
Chassis |
||
|
Trade name |
Shaanxi Automobile |
manufacturer |
Shaanxi Automobile Group Co., Ltd. |
||
|
Number of axes |
2 |
Number of tires |
6 |
||
|
Wheelbase (mm) |
4500, 3800, 4200, 4700, 5100, 5300, 4000, 5600 |
||||
|
Tire specifications |
10.00R20 18PR,11R22.5 18PR,295/80R22.5 18PR |
||||
|
Number of leaf spring |
10/9+6,3/4+3,3/- |
Front track (mm) |
1935,1960 |
||
|
Fuel type |
Diesel oil |
Rear track (mm) |
1860 |
||
|
Emission standard |
GB3847-2005, GB17691-2018 National Ⅵ |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
B6.2NS6B230 B6.2NS6B210 YCS06270-60 YCS06245-60 WP6H270E61 WP6H245E61 YCK05240-60 YCK05210-60 YCK05190-60 WP4.6NQ220E61 B6.2NS6B260 B6.2NS6B245 YCS04200-68 |
Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Weichai Power Co., Ltd. Weichai Power Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Weichai Power Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. |
6200 6200 6234 6234 6220 6220 5132 5132 5132 4580 6200 6200 4156 |
169 154 199 180 199 180 176 157 140 162 191 180 147 |
||
