[Technical parameters of the vehicle] |
|||||
|
product name |

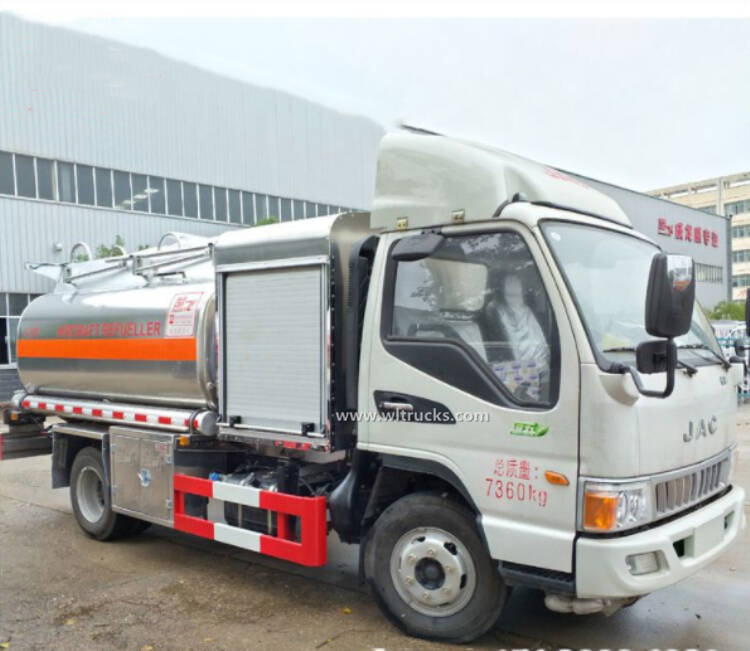

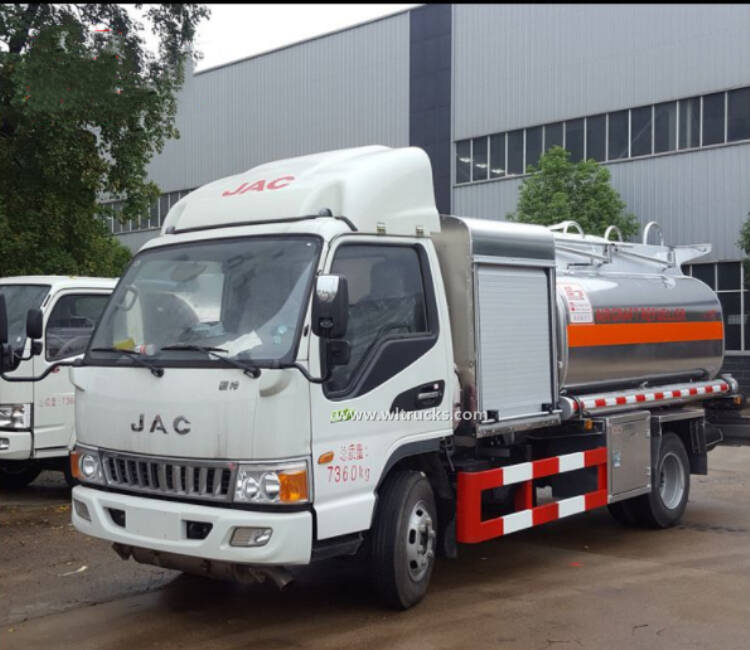

CLW5070GJY5HFCF aircraft refueling truck |
||||
|
Total mass (kg) |
7360 |
Tank volume (m3) |
4.0 |
||
|
Rated mass (kg) |
3050 |
Dimensions (mm) |
6040X2000X2600 |
||
|
Curb weight (kg) |
4115 |
Cargo compartment size (mm) |
XX |
||
|
Rated passengers (person) |
Total mass of semi-trailer (kg) |
||||
|
The number of passengers in the cab (person) |
3 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
18/20 |
Front suspension/rear suspension (mm) |
1085/1647 |
||
|
Axle load (kg) |
2640/4720 |
Maximum speed (km/h) |
80 |
||
|
Remarks: |

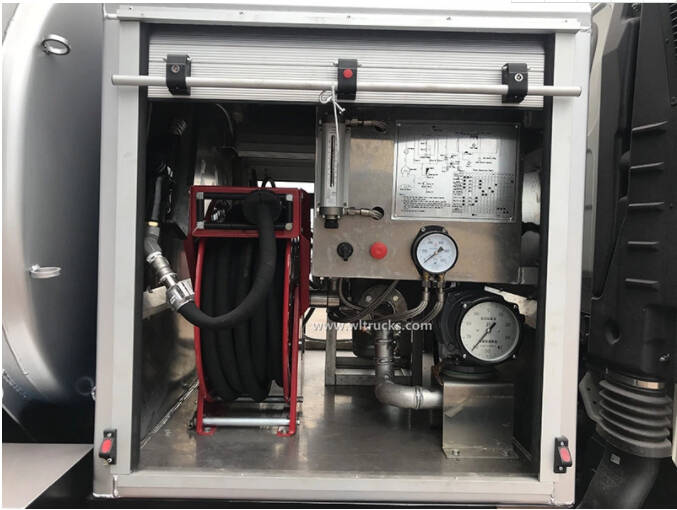

Remarks: Effective tank volume: 4.0 cubic meters, this model is FL, tank body dimensions (length×width×height) (mm): 3000×1 760×1160, optional curved fender, tool box can be installed on the left or right side of the frame and the installation position can be changed back and forth; side defense and rear defense are adopted Q235 material is bolted to the beam, the rear protective section size (mm): 320×50, the rear protective ground height (mm) :460; Install a driving recorder with satellite positioning function. Only the chassis equipped with disc brakes and speed limit device are optional, and the speed limit is 80km/ h and radial tires, front exhaust pipe; fuel dispenser model and manufacturer: model: HS1812B manufacturer: Token Hengshan Technology ( Guangzhou) Co., Ltd. Model: CS20D1110F Manufacturer: Zhengxing Technology Co., Ltd. Model: SK22QF222 A Manufacturer: Beijing Sanying United Petroleum Technology Co., Ltd.; ABS controller model and manufacturer: CM4XL-4S/4M, Guangzhou Comet Automobile Electronic Control Technology Co., Ltd. Only adopts the tire model 7.00R16 14PR, and optional guardrails. Install a tire burst emergency protection device to the wheel. |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
HFC1071P92K5C2ZV |
Chassis name |
Truck chassis |
||
|
Trade name |
JAC |
manufacturer |
Anhui Jianghuai Automobile Group Co., Ltd. |
||
|
Number of axes |
2 |
Number of tires |
6 |
||
|
Wheelbase (mm) |
3308 |
||||
|
Tire specifications |
7.00R16LT 14PR |
||||
|
Number of leaf spring |
4/9+7,3/9+7,5/9+7 |
Front track (mm) |
1620 |
||
|
Fuel type |
Diesel oil |
Rear track (mm) |
1395 |
||
|
Emission standard |
GB17691-2005 National V, GB3847-2005 |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
WP3Q130E50 D25TCIE1 |
Weichai Power Yangzhou Diesel Engine Co., Ltd. Kunming Yunnei Power Co., Ltd. |
2970 2499 |
96 105 |
||
