[Technical parameters of the vehicle] |
|||||
|
product name |

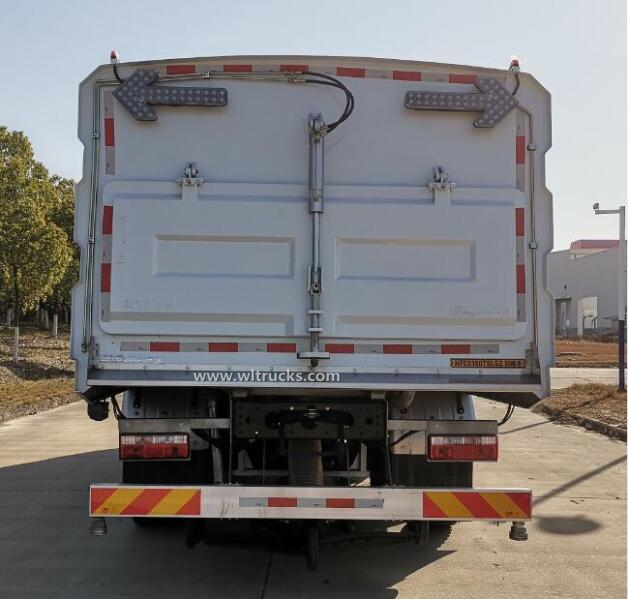

CLW5180TSLSZ outdoor sweeper |
||||
|
Total mass (kg) |
18000 |
Tank volume (m3) |
|||
|
Rated mass (kg) |
7355,7420 |
Dimensions (mm) |
8185X2470X3100 |
||
|
Curb weight (kg) |
10450 |
Cargo compartment size (mm) |
XX |
||
|
The number of passengers in the cab (person) |
3,2 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
20/10 |
Front suspension/rear suspension (mm) |
1400/2285 |
||
|
Axle load (kg) |
6500/11500 |
Maximum speed (km/h) |
89 |
||
|
Remarks: |
Remarks: The vehicle is equipped with a cleaning device for road cleaning operations. |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
HFC1181P3K2A45YS |
Chassis name |
Truck chassis |
||
|
Trade name |
JAC |
manufacturer |
Anhui Jianghuai A utomobile Group Co., Ltd. |
||
|
Number of axes |
2 |
Number of tires |
6 |
||
|
Wheelbase (mm) |
4500,5300 |
||||
|
Tire specifications |
10.00R20 18PR |
||||
|
Number of leaf spring |
3/9+7 |
Front track (mm) |
1920 |
||
|
Fuel type |
Diesel oil |
Rear track (mm) |
1800 |
||
|
Emission standard |
GB17691-2018 National VI, GB3847-2005 |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
YCS06245-60 D45TCIF1 |
Guangxi Yuchai Machinery Co., Ltd. Kunming Yunnei Power Co., Ltd. |
6234 4461 |
180 162 |
||
