[Technical parameters of the vehicle] |
|||||
|
product name |

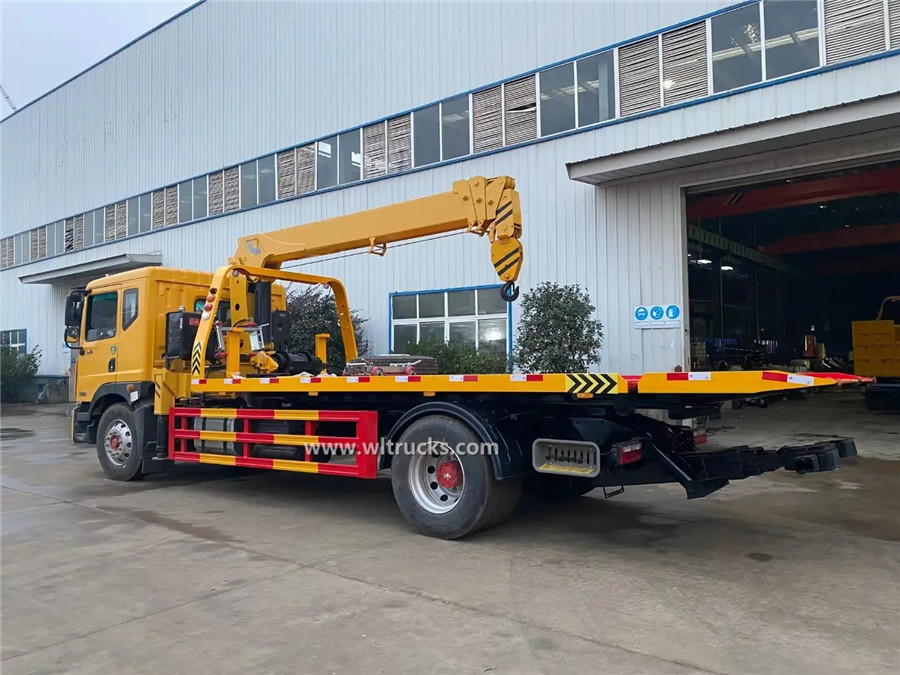

CLW5180TQZE6 tow truck with crane |
||||
|
Total mass (kg) |
18000 |
Tank volume (m3) |
|||
|
Rated mass (kg) |
Dimensions (mm) |
9360, 8960, 8660, 10360X2550X3500 |
|||
|
Curb weight (kg) |
12730,13300 |
Cargo compartment size (mm) |
XX |
||
|
The number of passengers in the cab (person) |
2,3 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
19/10,19/11 |
Front suspension/rear suspension (mm) |
1260/3100 |
||
|
Axle load (kg) |
6500/11500 |
Maximum speed (km/h) |
89,105 |
||
|
Remarks: |
Special functions and devices: The truck is equipped with a hoisting crane, a plate mechanism, a supporting arm device, and a traction winch. Road breakdown vehicles, hauling of illegal vehicles in the city and emergency rescue, etc .; lifting weight (kg): lifting weight (kg): 5140 |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
EQ1185LJ9CDE |
Chassis name |
Truck chassis |
||
|
Trade name |
Dongfeng |
manufacturer |
Dongfeng Motor Co., Ltd. |
||
|
Number of axes |
2 |
Number of tires |
6 |
||
|
Wheelbase (mm) |
3600, 3950, 4500, 4700, 5000, 5300, 5600 |
||||
|
Tire specifications |
295/80R22.5 18PR, 10.00R20 18PR, 275/80R22.5 18PR |
||||
|
Number of leaf spring |
8/10+7,8/- |
Front track (mm) |
1862 |
||
|
Fuel type |
Diesel oil |
Rear track (mm) |
1806 |
||
|
Emission standard |
GB3847-2005, GB17691-2018 National Ⅵ |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
B6.2NS6B210 D4.5NS6B220 D4.0NS6B195 YCS04200-68 CY4SK761 B6.2NS6B230 YCY30165-60 |
Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Dongfeng Chaoyang Chaochai Power Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. |
6200 4500 4000 4156 4087 6200 2970 |
154 162 143 147 145 169 121 |
||
