[Technical parameters of the vehicle] |
|||||
|
product name |

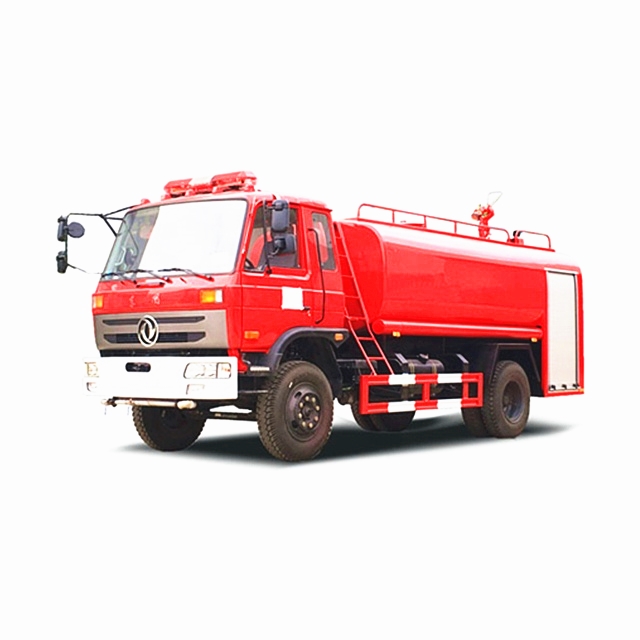

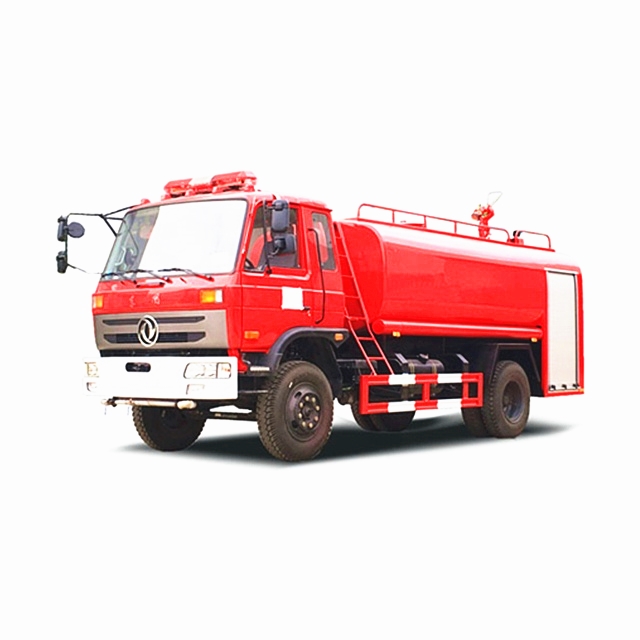

CL5165GSS4 10000 liter water tank fire truck |
||||
|
Total mass (kg) |
16000 |
Tank volume (m3) |
10-12 |
||
|
Rated mass (kg) |
10000 |
Dimensions (mm) |
8600X2495X3050 |
||
|
Curb weight (kg) |
5805 |
Cargo compartment size (mm) |
XX |
||
|
The number of passengers in the cab (person) |
3 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
30/24 |
Front suspension/rear suspension (mm) |
1250/2650 |
||
|
Axle load (kg) |
6000/10000 |
Maximum speed (km/h) |
90 |
||
|
Remarks: |
Notes: Tank effective volume: 12cubic meters; tank dimensions (length / long / short axis) (mm): 5200 × 2100 × 1350. |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
EQ1168GLJ3 |
Chassis name |
Truck chassis |
||
|
Trade name |
Dongfeng |
manufacturer |
Dongfeng Motor Corporation |
||
|
Number of axes |
2 |
Number of tires |
6 |
||
|
Wheelbase (mm) |
4500 |
||||
|
Tire specifications |
10.00-20 16PR,10.00R20 16PR |
||||
|
Number of leaf spring |
9/11+8 |
Front track (mm) |
1900 |
||
|
Fuel type |
Diesel oil |
Rear track (mm) |
1800 |
||
|
Emission standard |
GB17691-2005 National IV, GB3847-2005 |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
YC6J180-42 ISDe180 40 ISDe185 40 ISB180 40 ISB210 40 YC6J180-46 YC4EG180-40 YC4E160-42 CA4DF4-15E4 ISB170 40 ISDE245 40 YC4E160-45 |
Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Factory Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. |
6500 4500 6700 5900 5900 6494 4730 4260 4750 5900 6700 4260 |
132 136 136 132 155 132 132 118 112 125 180 118 |
||
