[Technical parameters of the vehicle] |
|||||
|
product name |

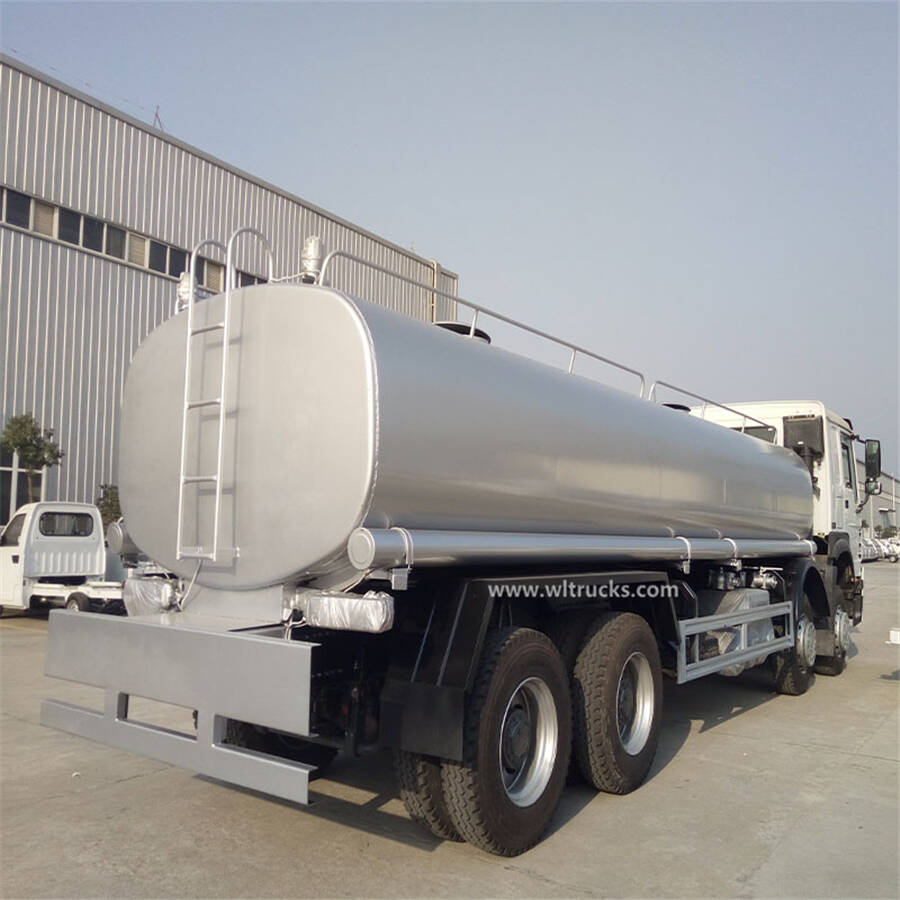

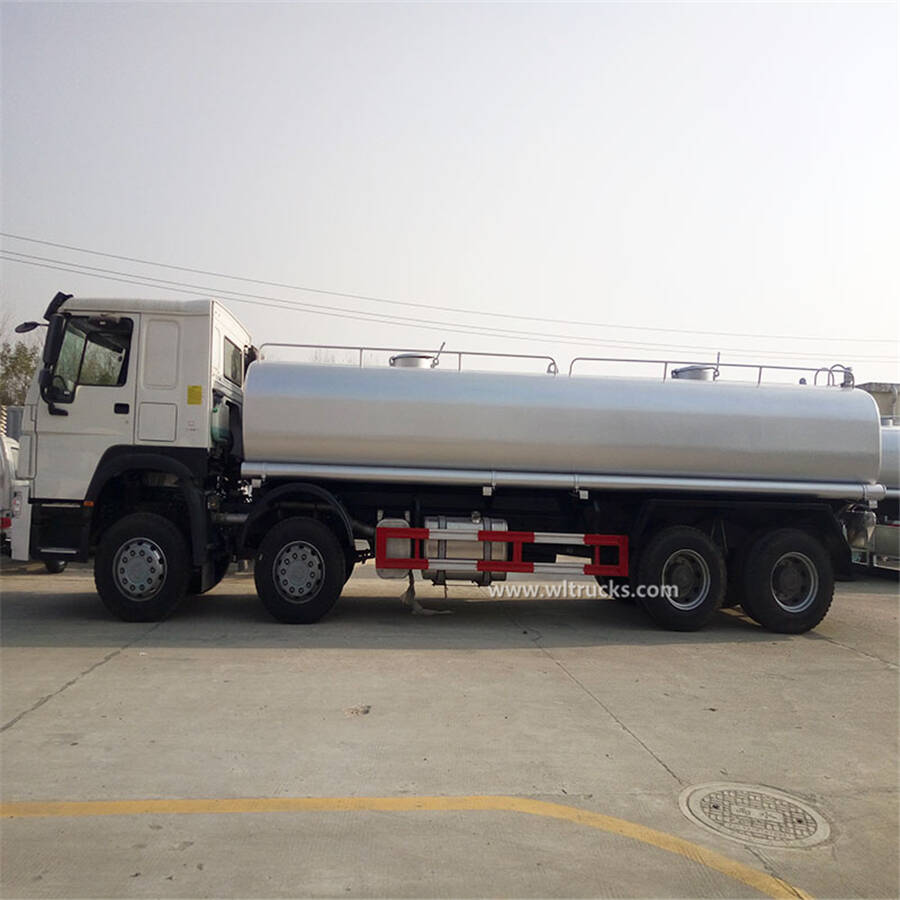

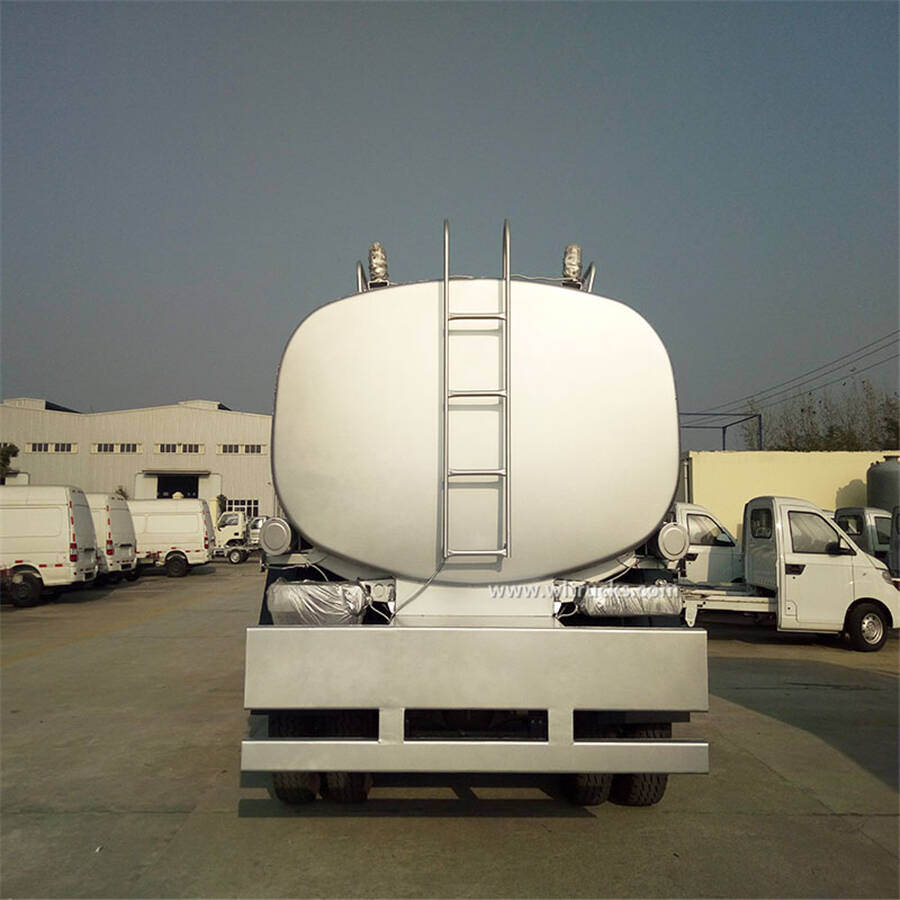

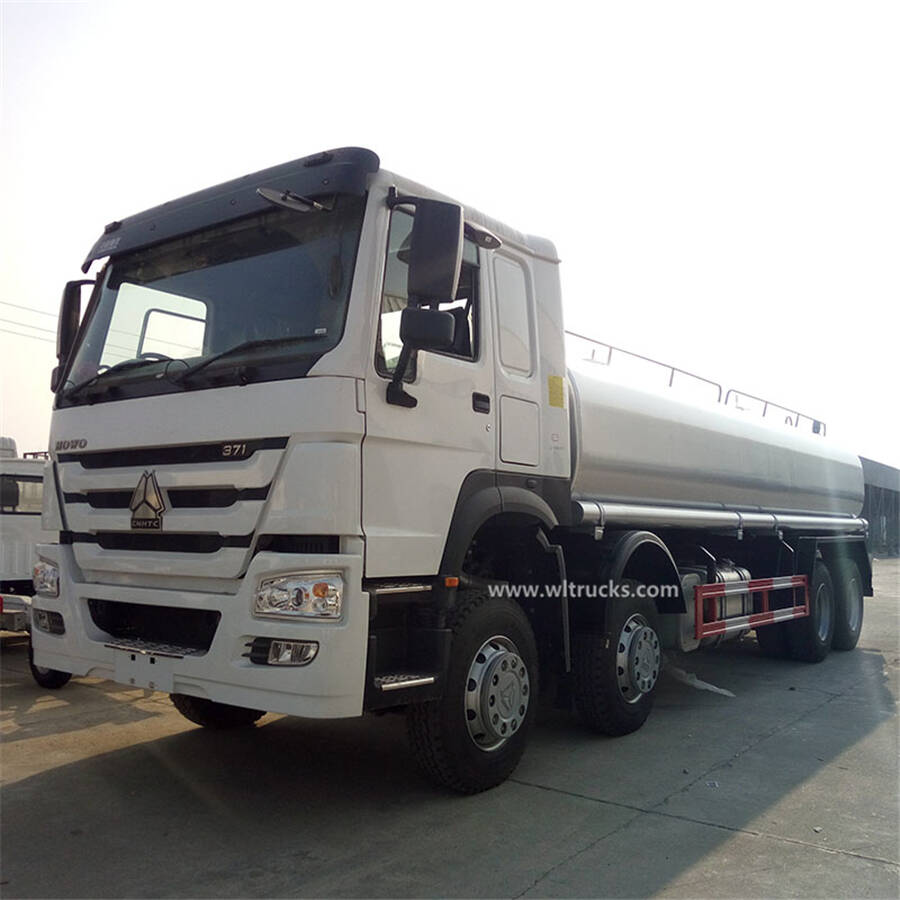

CLW5311GJYZZE oil truck |
||||
|
Total mass (kg) |
31000 |
Tank volume (m3) |
30 |
||
|
Rated mass (kg) |
18020 |
Dimensions (mm) |
11850X2496X3250,3630 |
||
|
Curb weight (kg) |
12850 |
Cargo compartment size (mm) |
XX |
||
|
Rated passengers (person) |
Total mass of semi-trailer (kg) |
||||
|
The number of passengers in the cab (person) |
2 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
16/12 |
Front suspension/rear suspension (mm) |
1500/2600 |
||
|
Axle load (kg) |
6900/6900/17200(Parallel with double shaft) |
Maximum speed (km/h) |
80 |
||
|
Remarks: |
Remarks: The overall dimensions of the tank: the length of the tank is 9.16 meters, the long axis is 2.39 meters, the short axis is 1.53 meters, and the effective volume of the tank is30cubic meters. The transportation medium is gasoline, the category number: 3, and the density is 0.7 tons/m3. The cab is optional with the chassis. The side rear guards are made of steel. The rear guard and the chassis stringer are connected by bolts. The cross-sectional size of the lower cross member of the rear guard is 100×50 (height x width) mm, and the lower plane of the lower cross member is away from the ground The size is 530 mm. Only WD615.97C and WD615.97E engines are optional, and the speed limit is 80km/h. The car is equipped with a driving recorder with satellite positioning function. |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
ZZ5317M4667C |
Chassis name |
Fuel tanker chassis |
||
|
Trade name |
Hao Lo |
manufacturer |
China National Heavy Duty Truck Group Jinan Truck Co., Ltd. |
||
|
Number of axes |
4 |
Number of tires |
12 |
||
|
Wheelbase (mm) |
1800+4600+1350,1800+4575+1400 |
||||
|
Tire specifications |
11.00R20,12.00R20 16PR |
||||
|
Number of leaf spring |
Left 14 Right 13/Left 14 Right 13/12, 4/4/-, 11/11/12, 11/11/- |
Front track (mm) |
2022/2022,2041/2041 |
||
|
Fuel type |
Diesel oil |
Rear track (mm) |
1830/1830 |
||
|
Emission standard |
GB17691-2005 National III, GB3847-2005 |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
WD615.92 WD615.93 WD615.93E WD615.92C WD615.93C WD615.97C WD615.97E |
China National Heavy Duty Truck Group Co., Ltd. China National Heavy Duty Truck Group Co., Ltd. China National Heavy Duty Truck Group Co., Ltd. China National Heavy Duty Truck Group Co., Ltd. China National Heavy Duty Truck Group Co., Ltd. China National Heavy Duty Truck Group Co., Ltd. China National Heavy Duty Truck Group Co., Ltd. |
9726 9726 9726 9726 9726 9726 9726 |
196 213 213 198 213 221 221 |
||
