[Technical parameters of the vehicle] |
|||||
|
product name |

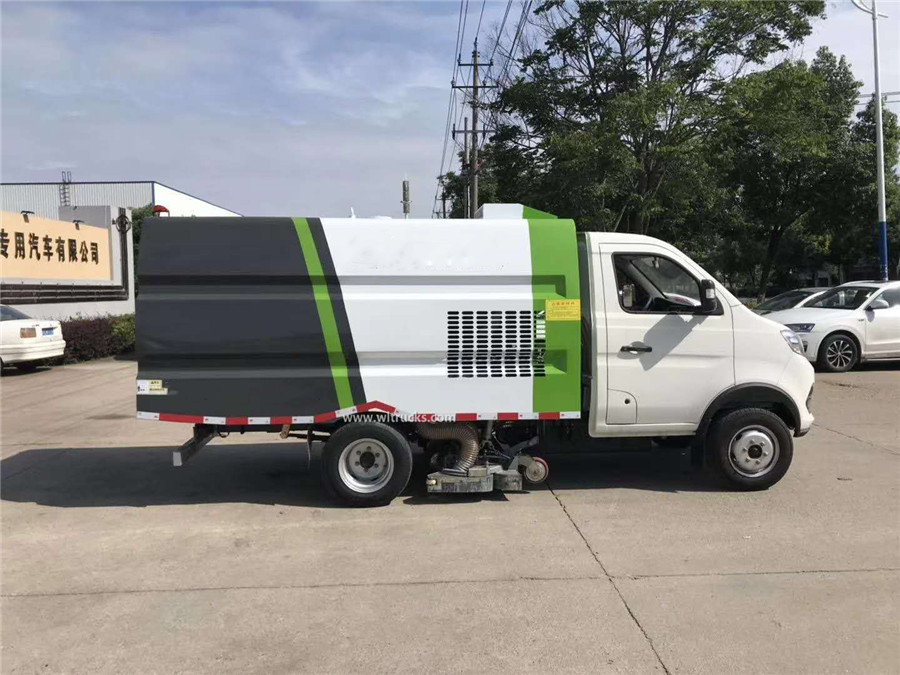

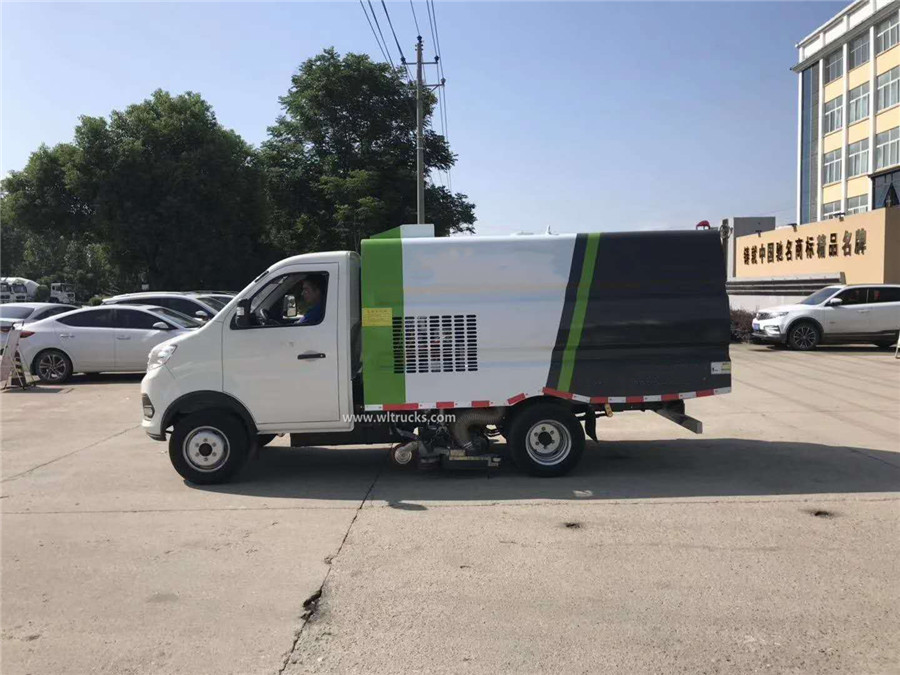

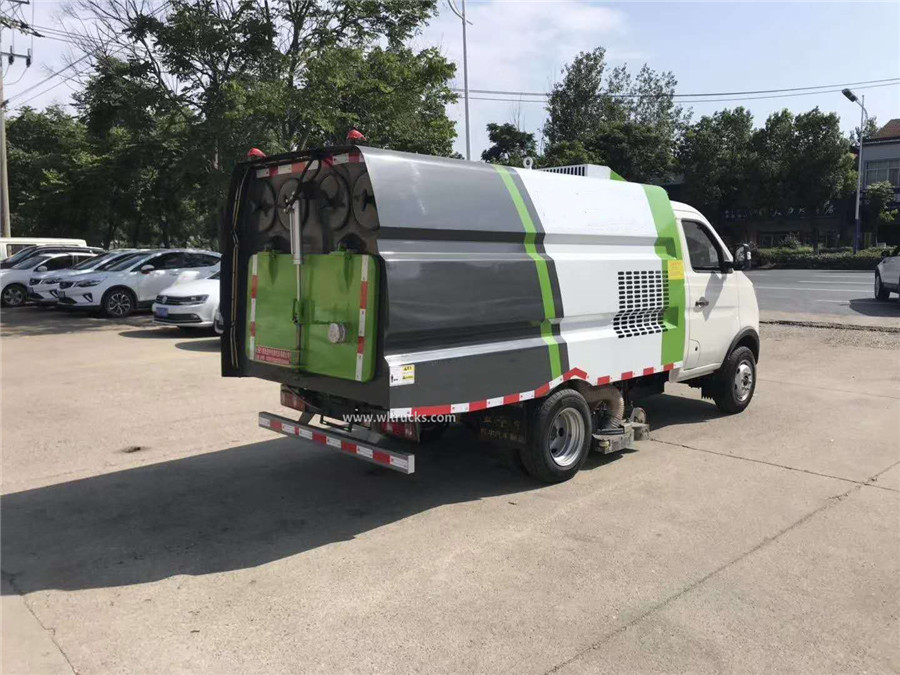

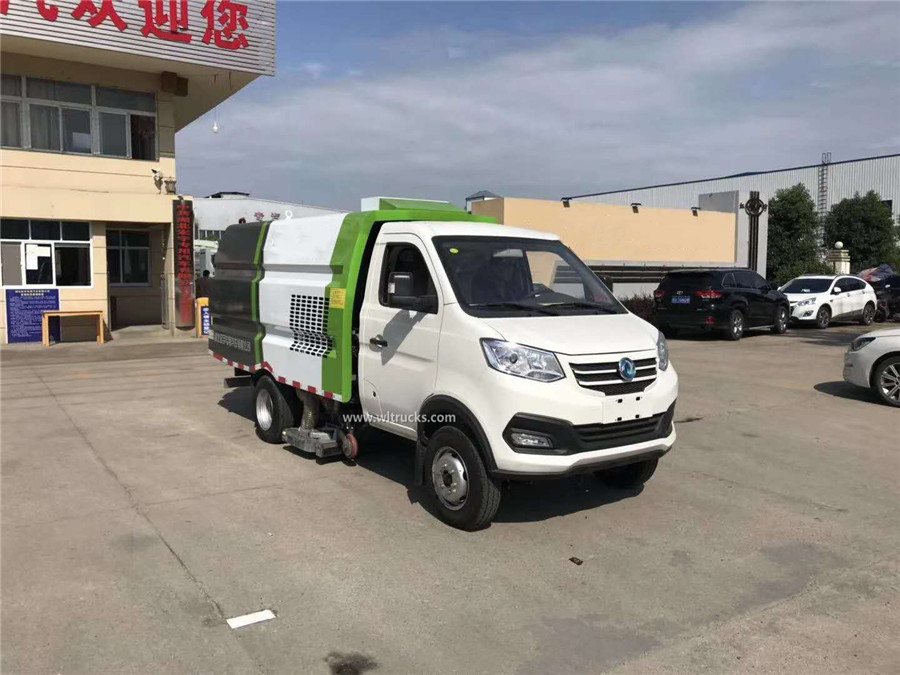

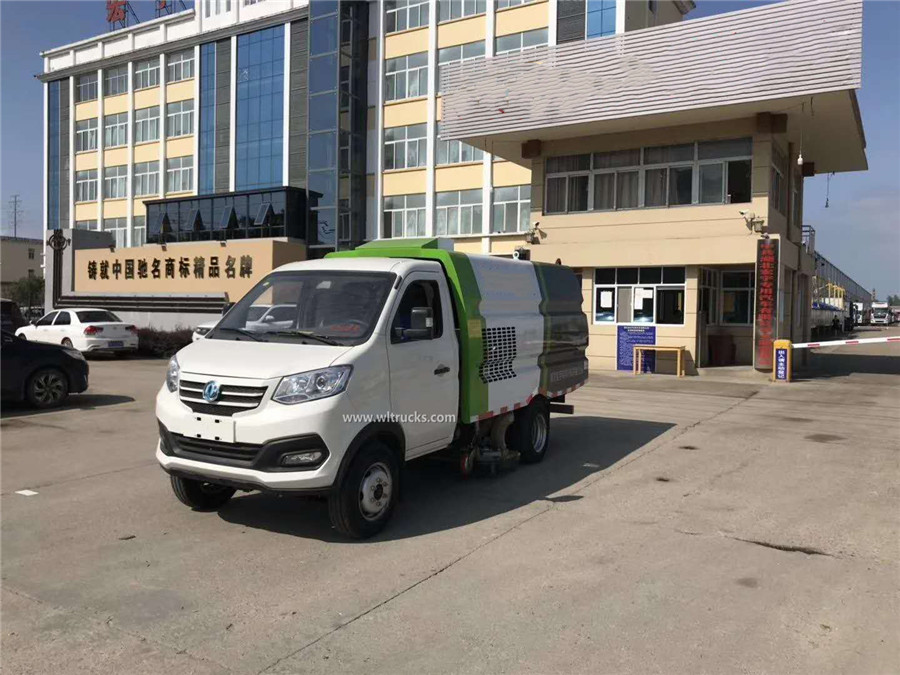

CL5030TXCE6 mini vacuum street sweeper |
||||
|
Total mass (kg) |
3495 |
Tank volume (m3) |
|||
|
Rated mass (kg) |
165 |
Dimensions (mm) |
5200X1760X2300 |
||
|
Curb weight (kg) |
3200 |
Cargo compartment size (mm) |
XX |
||
|
The number of passengers in the cab (person) |
2 |
Maximum load of saddle (kg) |
|||
|
Approach angle/departure angle (°) |
21/15 |
Front suspension/rear suspension (mm) |
1120/1380 |
||
|
Axle load (kg) |
1300/2195 |
Maximum speed (km/h) |
100 |
||
|
Remarks: |
Remarks: The main special devices of this car are the box body and the dust suction device, which are mainly used for dust collection on the road. |
||||
|
【Chassis technical parameters】 |
|||||
|
Chassis model |
EQ1035SJ16QC |
Chassis name |
Light truck chassis |
||
|
Trade name |
Dongfeng |
manufacturer |
Dongfeng Motor Co., Ltd. |
||
|
Number of axes |
2 |
Number of tires |
6,4 |
||
|
Wheelbase (mm) |
2600 |
||||
|
Tire specifications |
175R14LT 8PR |
||||
|
Number of leaf spring |
3/5, 6/7 |
Front track (mm) |
1369 |
||
|
Fuel type |
gasoline |
Rear track (mm) |
1214 |
||
|
Emission standard |
GB18352.6-2016 National Ⅵ |
||||
|
engine model |
Engine manufacturer |
engine capacity |
Engine power |
||
|
LJ4A15Q6 DAM16KLQ |
Liuzhou Wuling Liuji Power Co., Ltd. Harbin Dongan Automobile Power Co., Ltd. |
1499 1597 |
83 90 |
||
