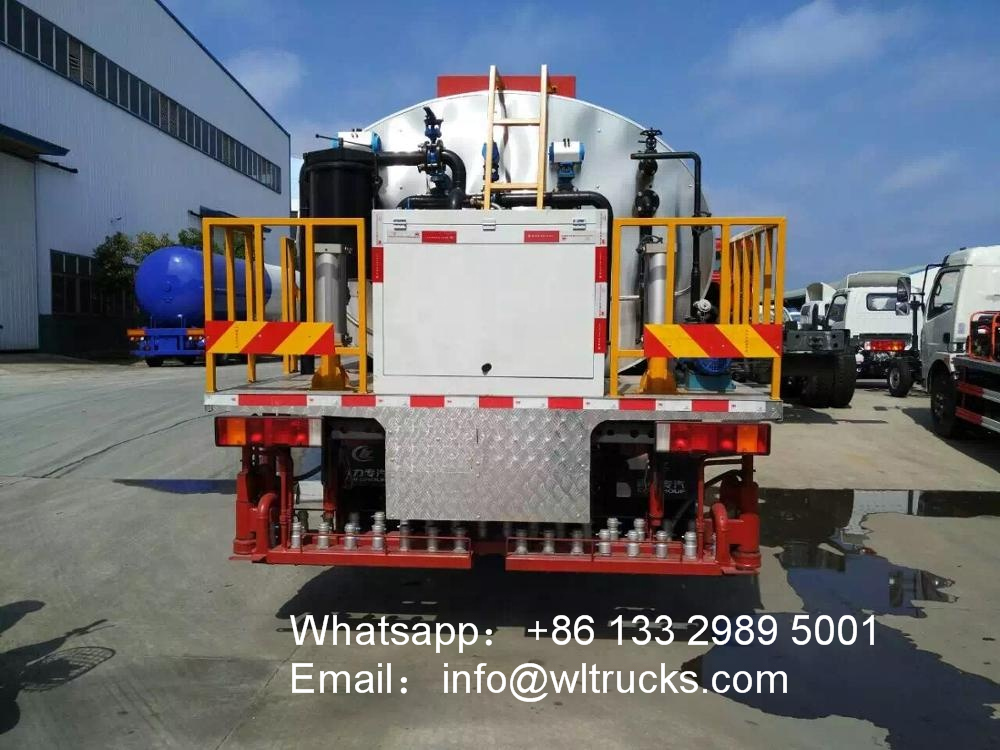

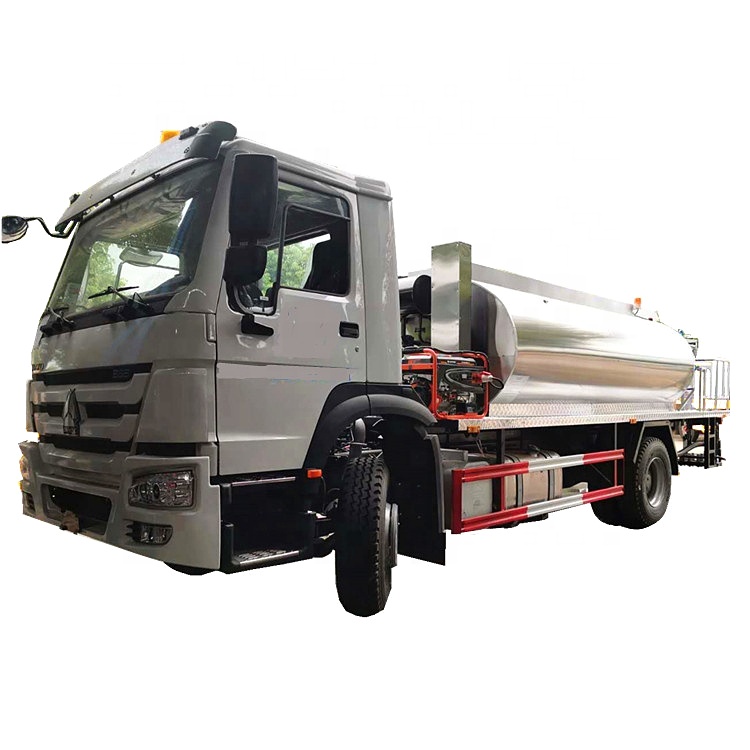

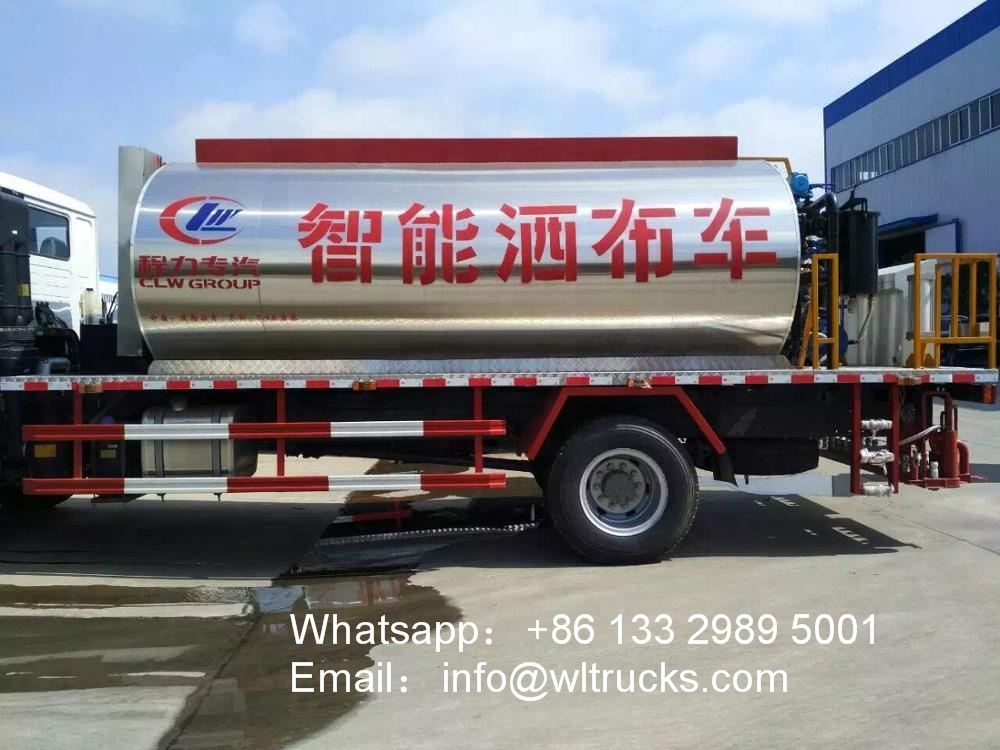

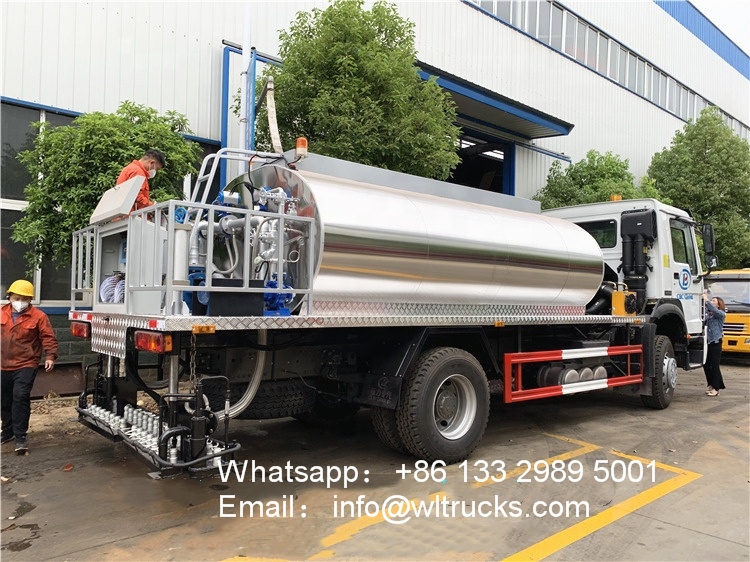

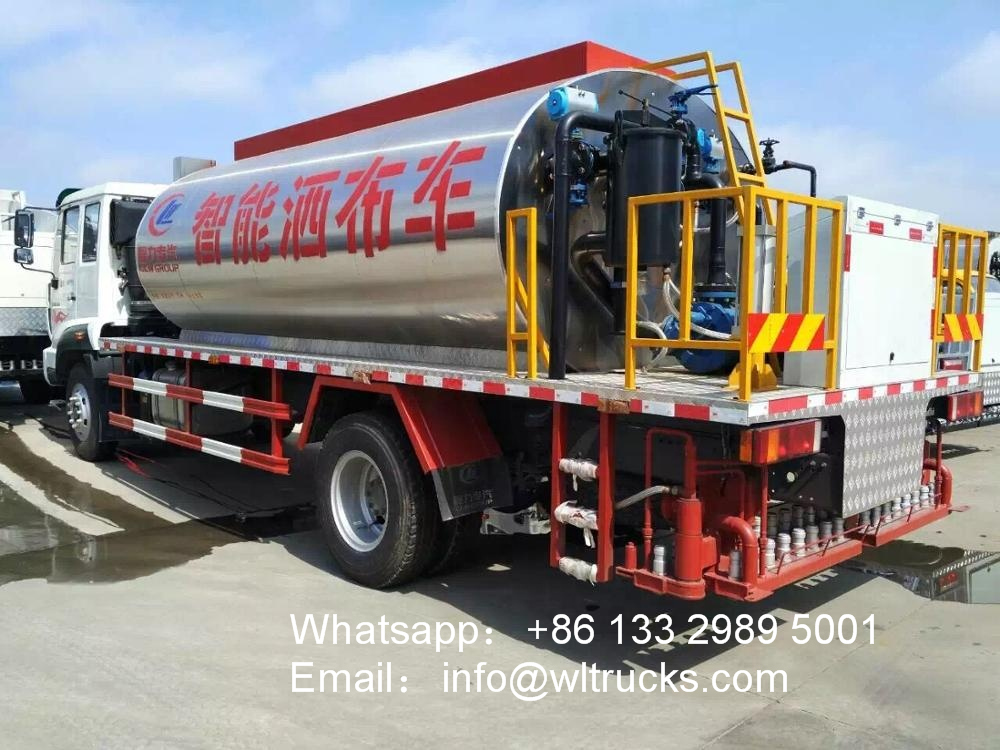

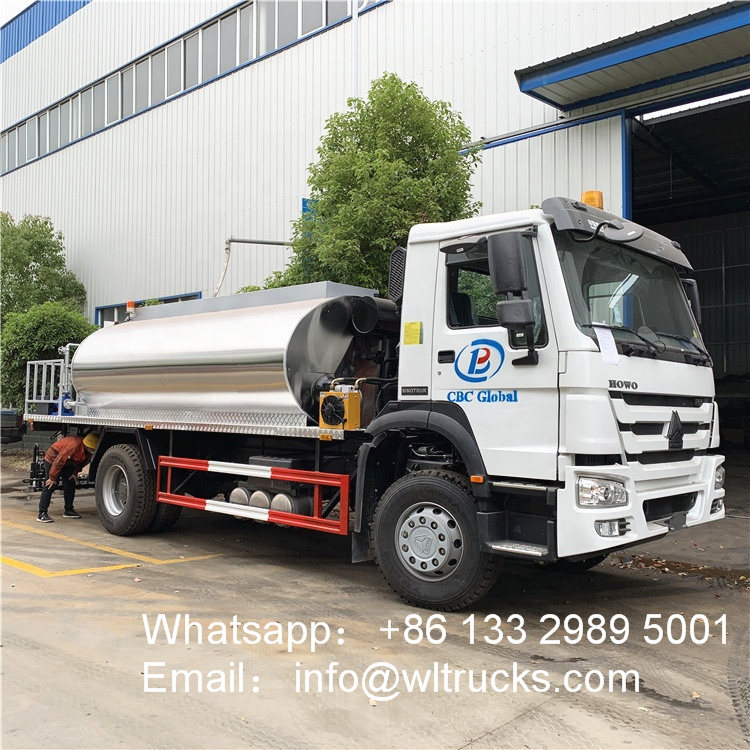

HOWO 15m3 intelligent asphalt/bitumen distributor truck
HOWO 15m3 intelligent asphalt/bitumen distributor truck Adopt Sinotruk howo A7 Cab, Sinotruc 290hp Euro 3 engine in the cloud, eight-speed gearbox, a wheelbase of 4500mm, tires 1000R20, and a vehicle size of 8900×2500×3563mm.
Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank
specification:
|
HOWO bitumen distributor truck Vehicle Description
|
|||||
|
Vehicle model
|
Asphalt Distributor
|
Overall dimensions (mm)
|
8900*2480*3050
|
||
|
GVW (kg)
|
Appro×16000
|
Fact loading capacity (L)
|
6000
|
||
|
Mass in working order (kg)
|
Appro×10160
|
Max. Speed (km/h)
|
95
|
||
|
Chassis Description
|
|||||
|
Chassis Model
|
ZZ1167K501GE
|
||||
|
Cab
|
Standard cabin with Left hand drive
|
||||
|
Color
|
Optional
|
||||
|
Allowable person in cab
|
2
|
||||
|
Wheel base (mm)
|
4500
|
||||
|
Front/Rear track base (mm)
|
1506/1466
|
||||
|
Front/Rear overhang (mm)
|
1032/2068
|
||||
|
Number of axles
|
2
|
||||
|
Axle
|
Front axle
|
2320
|
|||
|
Rear axle
|
3480
|
||||
|
Traction system
|
4×2
|
||||
|
Operation control system
|
Power steering
|
||||
|
Braking system
|
Full air
|
||||
|
Electric system
|
24V
|
||||
|
Transmission
|
Mechanical gear box 5 speeds + one rear
|
||||
|
Spring plate
|
6/8+4
|
||||
|
Tire specification
|
275/80R22.5,10.00R20,10.00-20
|
||||
|
Tire quantity
|
6+1
|
||||
|
Engine Description
|
|||||
|
Engine model
|
MC05.16-50
|
||||
|
Emission standard
|
Euro 2
|
||||
|
Exhaust/output
|
4580/118
|
||||
|
Horse power
|
160
|
||||
|
Up-parts Description
|
|||||
|
Asphalt tank Outline Dimension (mm)
|
4350/2410/1710
|
||||
|
Asphalt tank Inner Dimension(mm)
|
3980/1950/1250
|
||||
|
Insulating layer thickness (mm)
|
50
|
||||
|
Asphalt tank Total Volume(L)
|
6000
|
||||
|
Hydraulic pump
|
CBQ550-L
|
||||
|
Proportional valve
|
Taiwan EFBG-03-160-HF
|
||||
|
Asphalt pump
|
QGB680
|
||||
|
Hydraulic motor for asphalt pump
|
05-110-BD31
|
||||
|
Heating System
|
Italian burner Riello
|
||||
|
Heat-transfer oil pump
|
25-25-160
|
||||
|
Control System
|
SIEMENS CLW-39-01
|
||||
|
Generator
|
5.5KW gasoline engine generator
|
||||
|
Number of nozzle
|
30-39
|
||||
|
Spray medium
|
Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt
|
||||
|
Spray width(m)
|
4.5-6
|
||||
|
Spray amount(L/m2)
|
0.2-2
|
||||
|
Working Condition:
|
1,Altitude: 0-4500m
2,Temperature: -350C~+450C 3,Relative humidity: 80% 4,Wind force: ≤8 degree |
||||
