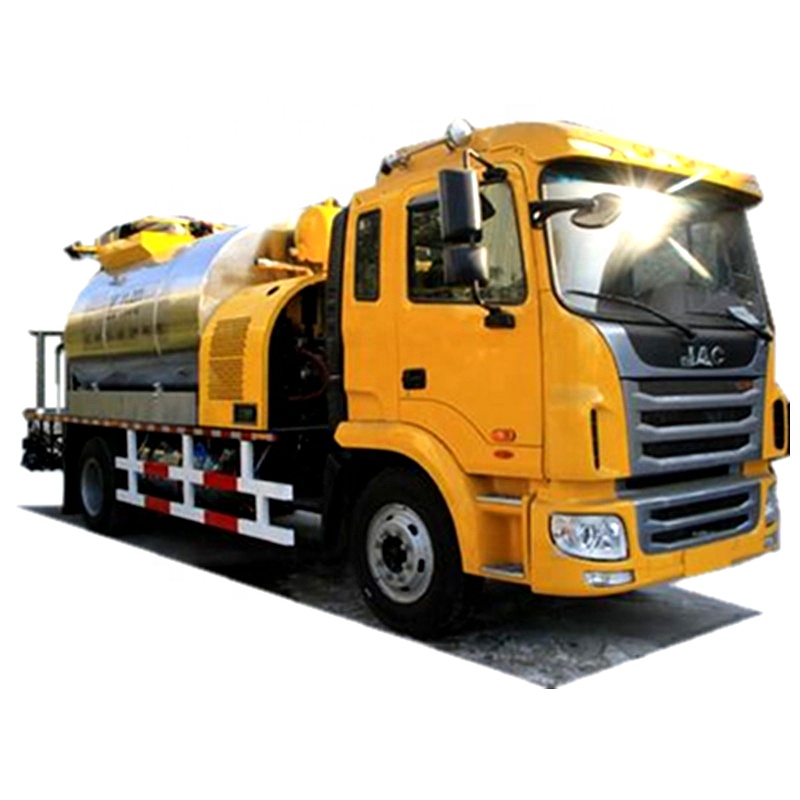

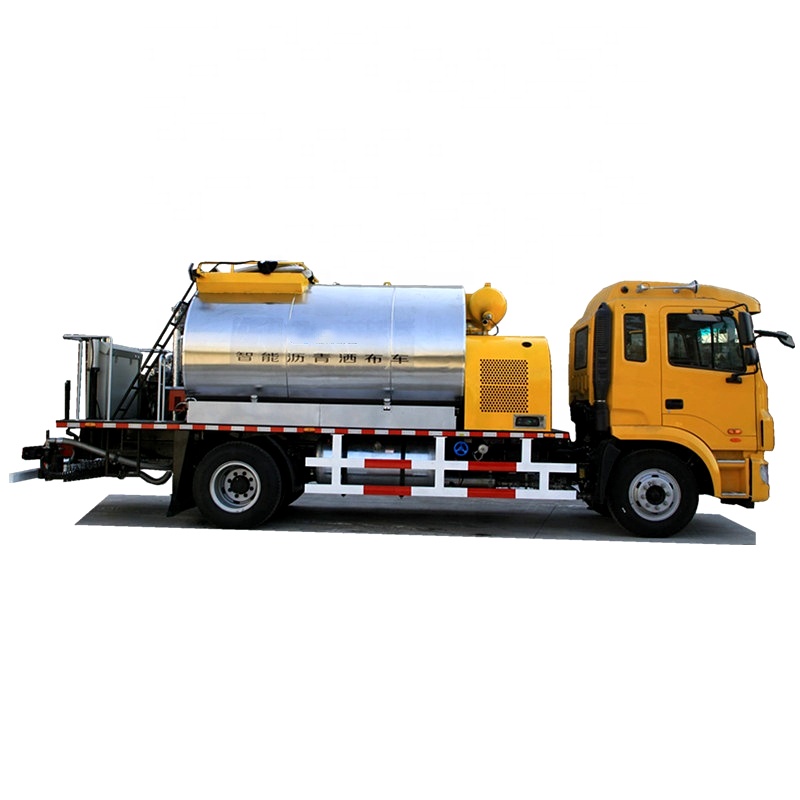

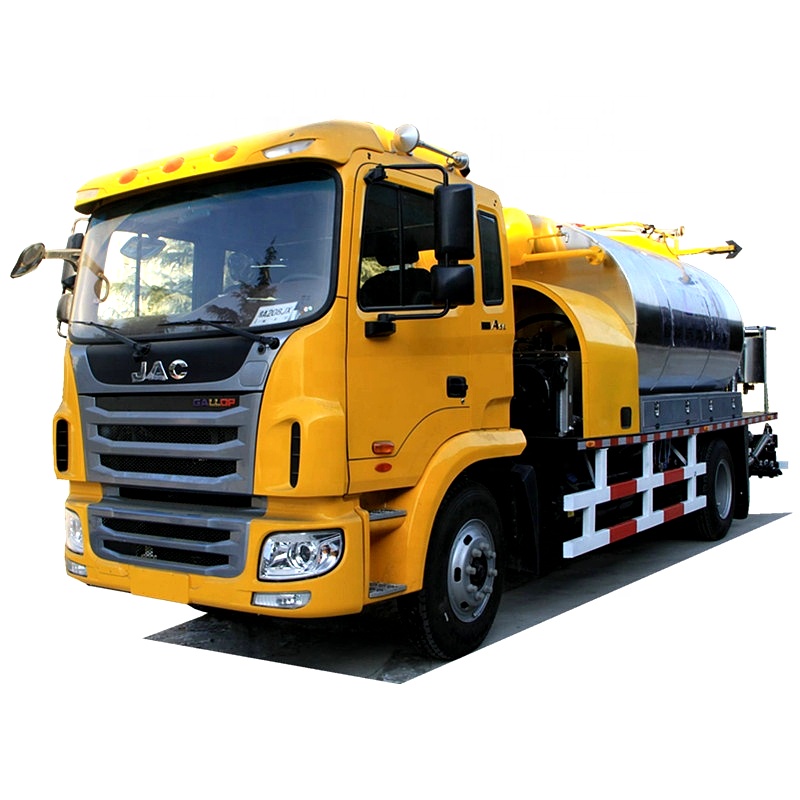

JAC 15 ton asphalt distributor/ bitumen spray truck
JAC 15 ton asphalt distributor/ bitumen spray truck Adopt JAC Cab with sleeper, Weichai 190hp Euro 5 engine in the cloud, eight-speed gearbox, a wheelbase of 4500mm, tires 1000R20, and a vehicle size of 8900×2500×3563mm.
Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.

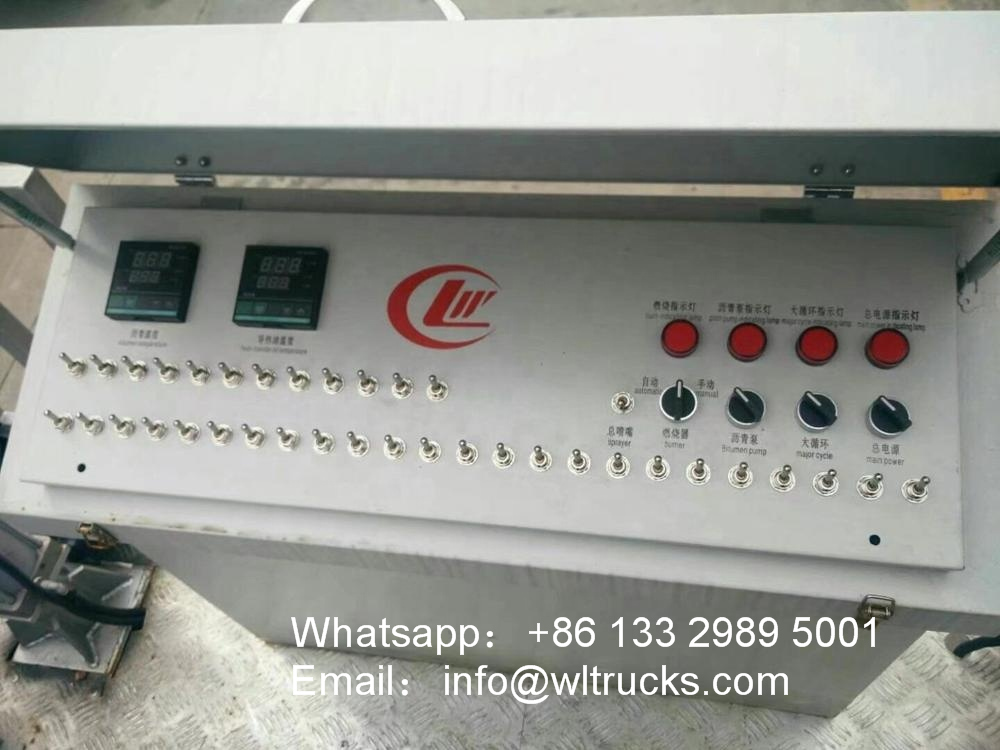

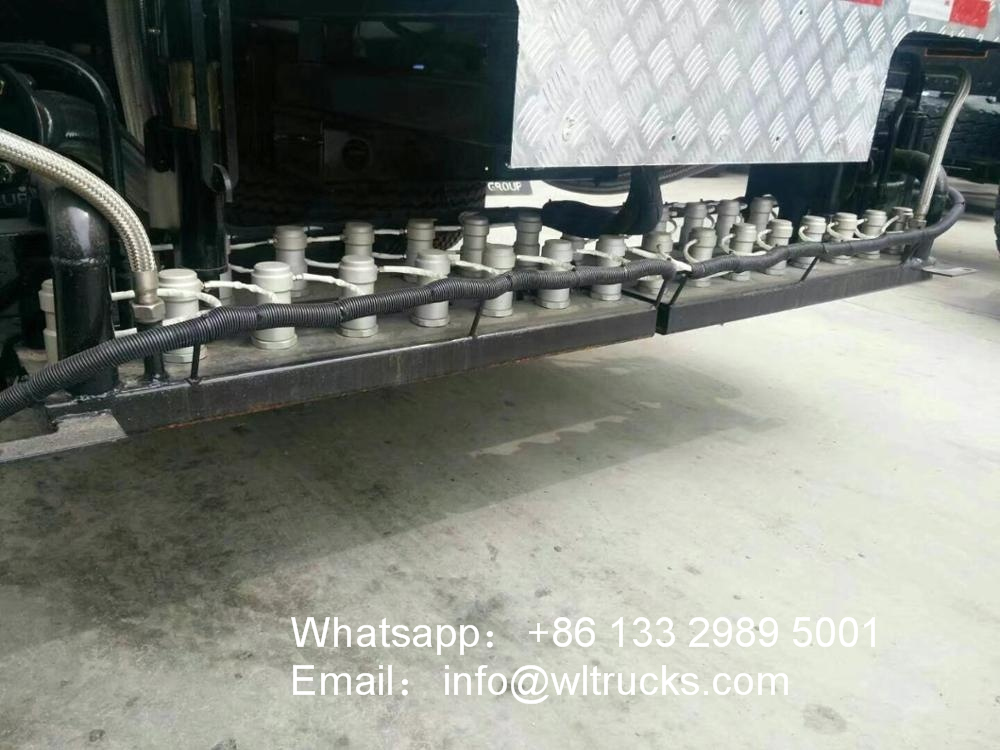

3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank
specification:
| JAC bitumen spray truck | ||||
| Model Name | CLW5250TFCZ | |||
| Driving Type | 4×2 left hand drive(can choose right hand drive) | |||
| Weights | ||||
| GVW(kg) | 15000 | |||
| Payload weight(kg) | 12000 | |||
| Curb weight(kg) | 8730 | |||
| Dimensions | ||||
| Wheelbase(mm) | 4600 | |||
| Overall Dimension(mm) | 8900×2500×3563 | |||
| Front /Rear tread (mm) | 2022,1830/1830 | |||
| Front/rear overhang(mm) | 1500/2750 | |||
| Approach/Depature angle(°) | 16/14 | |||
| Engine | ||||
| Engine model | WD615.97E | |||
| Engine type | 6 cylinder in line, water-cooled ,Intercooling engine | |||
| Displacement(L) | 9.726L | |||
| Max.output/rated speed | 221kw(300hp) | |||
| Drive Line | ||||
| Cluth description | Dry single plate, hydraulic control booster,mechnical operation | |||
| Transmission | HW13710CL.(10 forwarder,2 reverse gear,Manual operation) | |||
| Steering system | ZF8098 | |||
| Axles | ||||
| Rear Axle(drive axle)-Model | HF7 | |||
| Front Axle-Model | MCY13 | |||
| Tire specification | ||||
| Tire specification | 11.00-20,12.00-20 16PR11.00R20 16PR,12.00R20 14PR | |||
| Special function of asphalt distribution truck | ||||
| Asphalt tank | Material: | 4mm steel plate.80mm insulation layer,stainless steel outside .it can prevent the heating losing | ||
