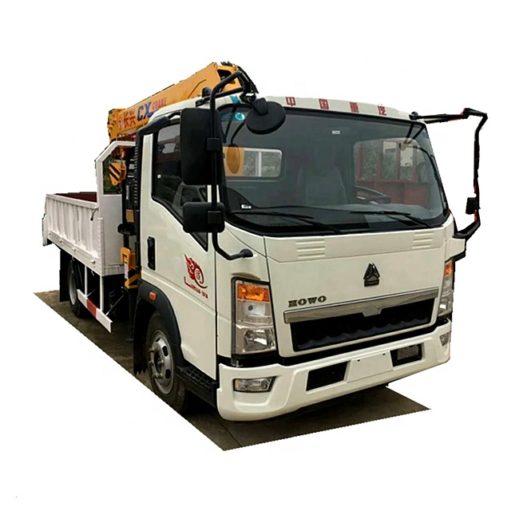

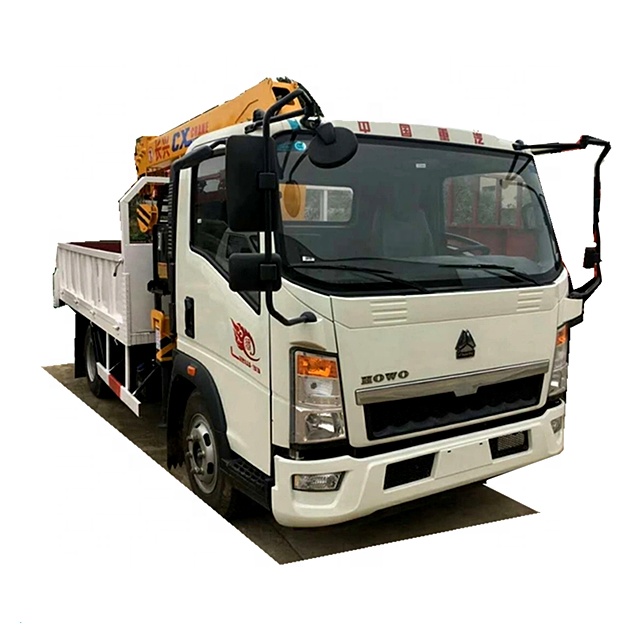

Sinotruk HOWO 3 ton mini truck crane
Sinotruk HOWO 3 ton mini truck crane adopts Howo single-row driver’s building, wheelbase 3360mm, 110 horsepower in the cloud, Wanliyang 5-speed gearbox, 200mm through beam, 7.00 tires, suitable for 2 tons and 3 tons of straight folding arm cranes of various varieties. The cargo box uses a 4mm pattern bottom plate, the thickness of the wall plates on both sides is 2mm, and the columns are encrypted. The beams below the bottom plate are 5mm rear channel steel, and the channel steel spacing is less than or equal to 20 cm. The cargo box has a clearance length of 3.4 meters, an inner space of 2.16 meters, and a wall panel height of 400 mm.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
Sinotruk HOWO 3 ton mini truck crane specification:
| Vehicle model | HOWO type truck-mounted crane truck with truck lifting truck |
| Dimensions | 5995×2165×2850 |
| Cargo length | 3.5 meters |
| Wheelbase | 3.36 |
| Engine manufacturer | Yuchai, Chaochai, Cummins, Si Da, Yunnei, Xichai, Quanchai, Weichai, Dachai, Jiangling, I-suzu, Jianghuai, Yangchai, Revo |
| Engine power | |
| engine model | 110 horsepower in the cloud |
| Curb quality | 2Ton |
| Rated contained mass | 1.5 tons |
| Emission Standards | Eruo 3 |
| Tire model | 7.00-16 |
| Crane tonnage | 2.5 tons |
| Crane model | SQ2.5SA1 (2.5 tons two straight arms) | |||
| Maximum lifting mass kg | 2500 | |||
| Maximum lifting torque nm | 60000 | |||
| Sectional form | hexagon |
turn around
mechanism
|
Rotation speed r/min | 2.5 |
| Section number | 2 (extended section) | Swing range | 360 (°) | |
| Length m | 3.5-5.38 |
support
leg
|
Type | Upright leg |
| Maximum working radius m | 5.38 | Span m | 1.85-3.1 | |
| Extending speed m/s | 3/30 |
Hydraulic
system
|
System pressure mpa | 16 |
| Range of amplitude | 0-73° | Tank volume L | 40 | |
| Arm speed | 73/14°/s | safety equipment | Overturn alarm | |
| Maximum lifting height m | 7.3 | Self weight kg | 950 | |
| Single rope allowed tension N | 6250 | Match truck | Loading trucks with a mass of more than 1 ton | |
| Maximum single rope speed m/min | 36 | Note: The above table parameters are rated parameters when the engine speed is 1500r/min. | ||
Sinotruk HOWO 3 ton mini truck crane Working parameter:
