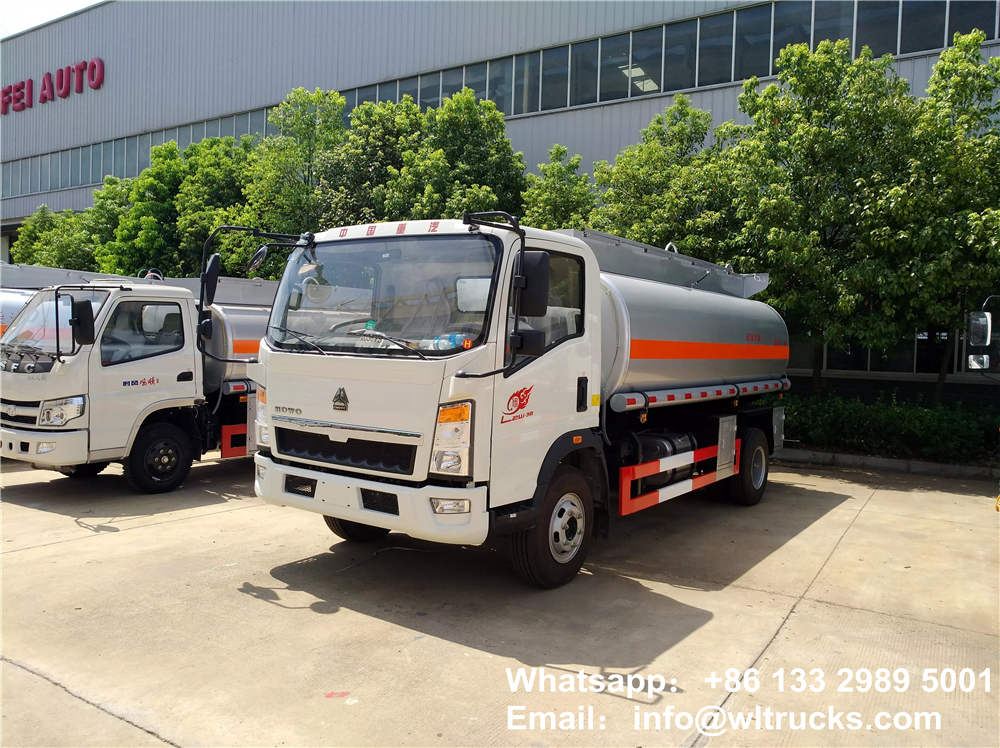

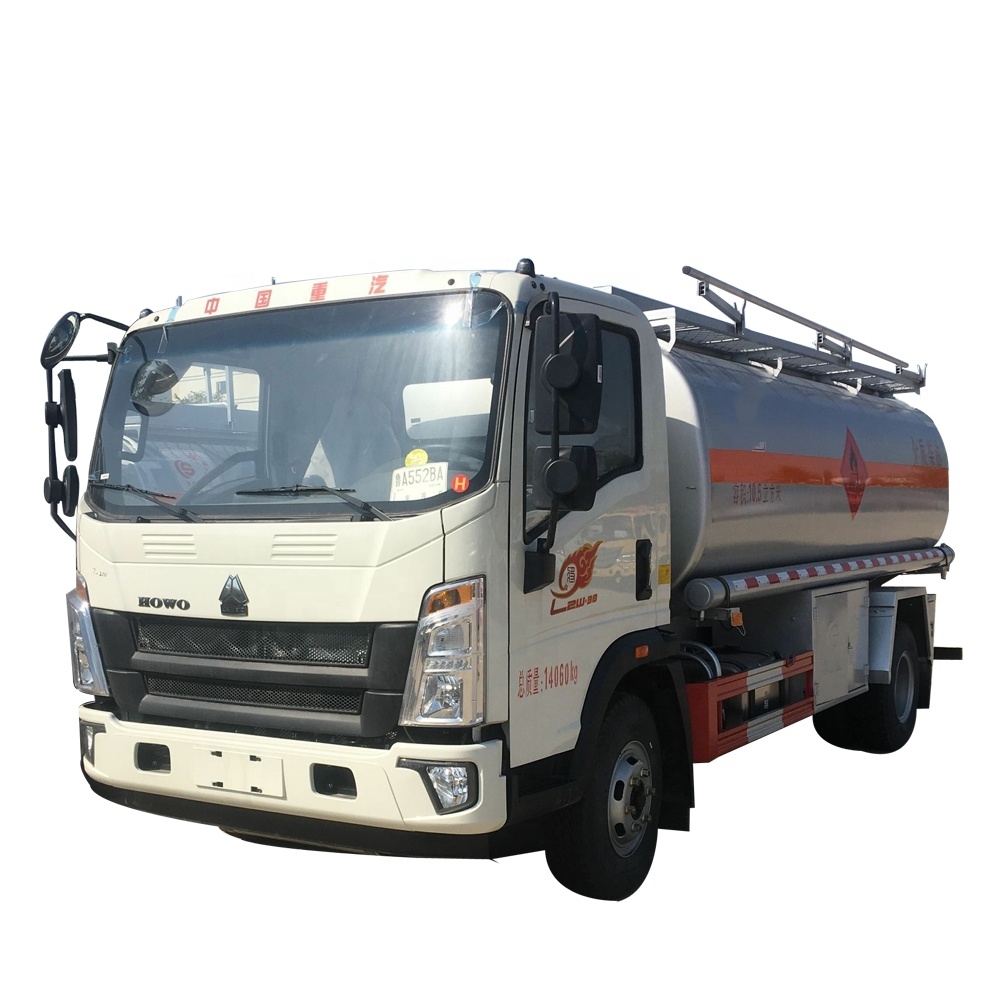

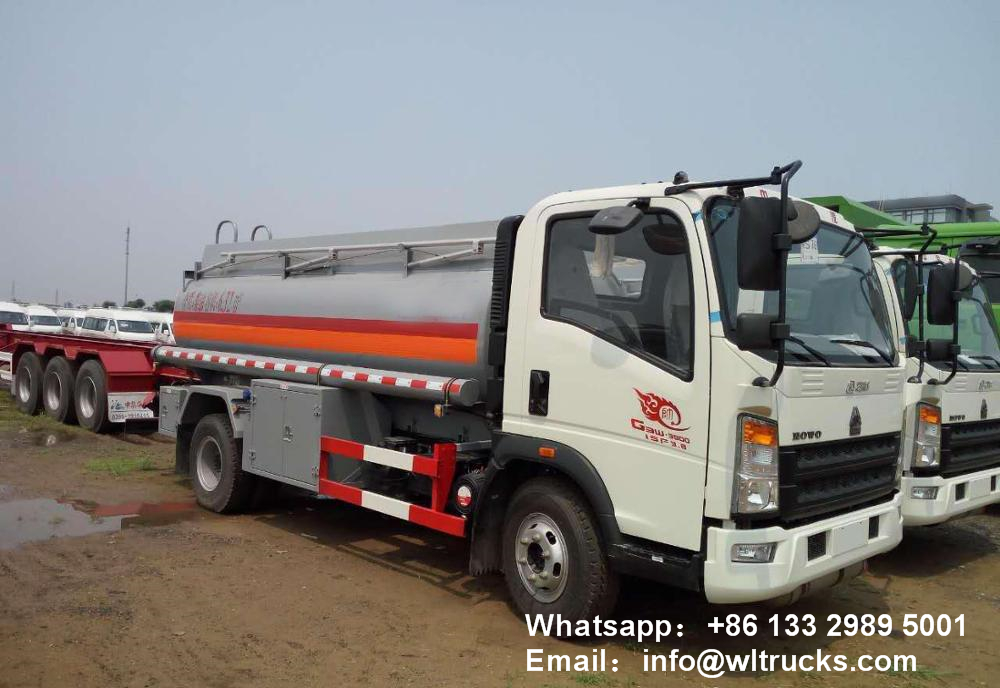

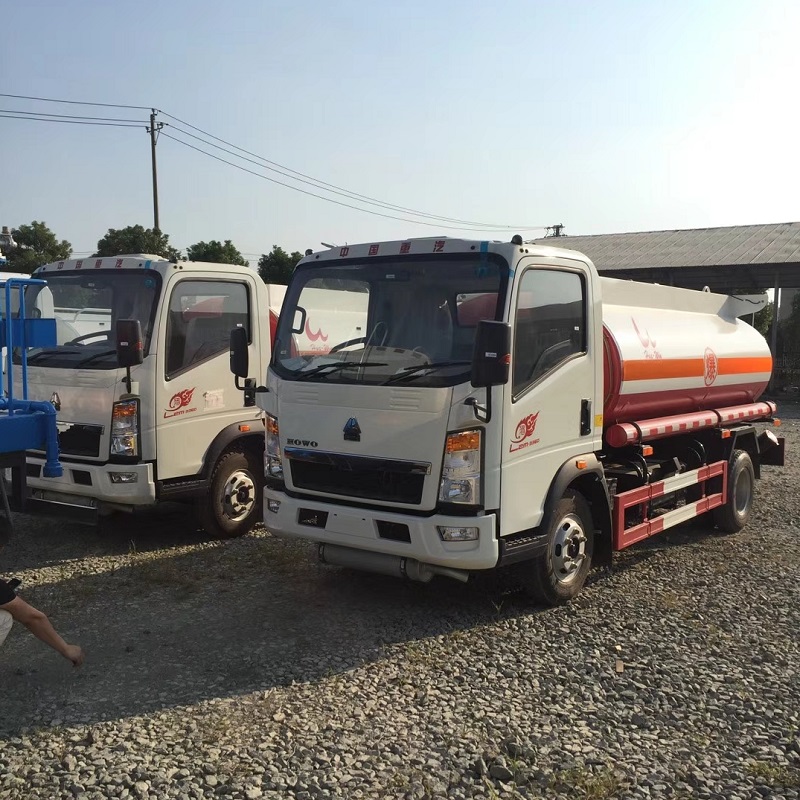

HOWO 5000L fuel truck
HOWO 5000L fuel truck Bodywork configuration:
It has a volume of 5.2 cubic meters, full load of 4 tons of diesel, a single tank in the tank with a pump in and pump out, with a large flow tanker, automatic hoisting reel and fuel gun, European standard tank mouth, emergency cut-off device, automatic shutdown when the speed is> 5KM, Fire extinguisher, infusion tube, electrostatic belt are standard, fireproof cap, folding railing, rear ladder, carbon steel production, built-in wave-proof corrugated board in the tank body, maintenance manhole, the tank body meets the requirements of the upper household, and a tank test report is issued. Optional flow meter, oil depot oil filling system, optional sub-bin, tanker brand, etc., liquid level gauge.
HOWO 5000L fuel truck Chassis configuration:
Heavy-duty light truck single-row cab, 3280mm wheelbase, 115-horsepower engine in the cloud, 6-speed gearbox, 4.5 tons rear axle, electric glass, air brake, aluminum alloy fuel tank, original dangerous goods chassis with front disc brakes, ABS , Speed limit device.
HOWO 5000L fuel truck Vehicle description:
◇ The tank body material is made of high-quality 5-6mm thick carbon steel. The national standard plate can be carbon steel, stainless steel, and aluminum alloy, pure aluminum can, rubber lined, rotomolded, plastic can, FRP can;
◇ The tank has square, ellipse, and round shapes, and is equipped with subsea valves, European standard tank openings, oil and gas recovery devices;
◇ Oil pumps include self-priming pumps, gear pumps, and double pumps; ◇ Can be designed to be a special chemical transportation vehicle;
◇ Separate warehouses and different oil products. It can realize pump in and pump out, self-flow, optional flow meter, computer tax control refueling machine, 15-meter refueling reel (automatic return), multiple anti-wave barriers in the tank body, so that the tank has high strength and center of gravity Stable, safe and stable vehicle transportation and other characteristics.
| Vehicle name | Tank volume | 5.2 cubic meters | |
| Appearance parameters | Vehicle size (L × W × H) (mm) | 5990 × 2200 × 2600 | |
| Tank size (length × width × height) (mm) |
3800 × 1600 × 1100
|
||
| Engine parameters | Engine manufacturer | Kunming Yunnei Power Co., Ltd. | |
| engine model | YN38CRE1 | ||
| Engine power (kw) | 95 (130 hp) | ||
| Engine displacement (ml) | 3760 | ||
| Emission Standards | National Five Emissions | ||
| Performance parameter | Total mass (kg) | 8280 | |
| Curb weight (kg) | 4520 | ||
| Rated load mass (kg) | 3630,3565 | ||
| Wheelbase (mm) | 3280 | ||
| Maximum speed (Km / h) | 80 | ||
| Tire specifications | 7.00R16 steel tire | ||
| Number of tires | 6 (distribution spare tires) | ||
