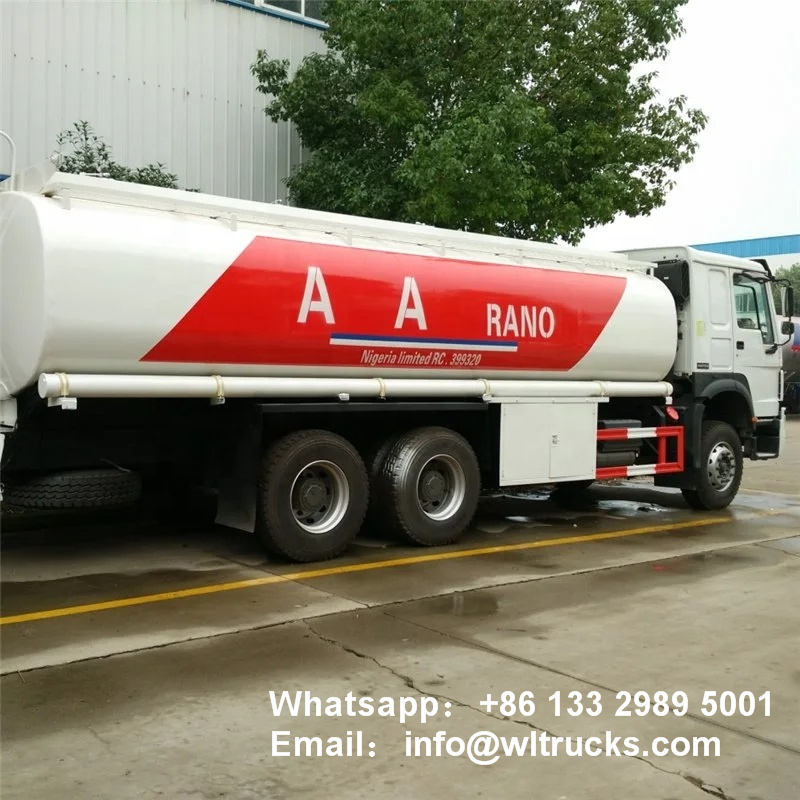

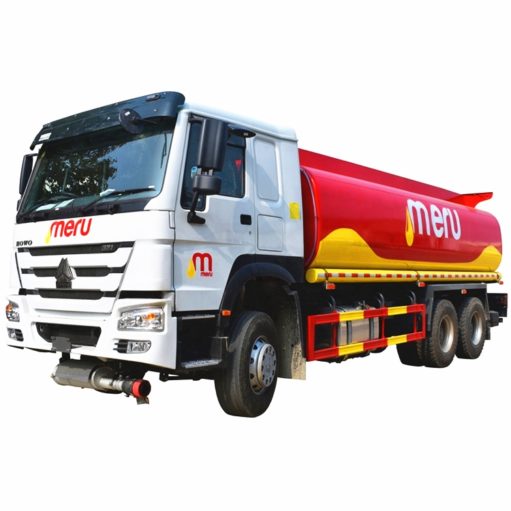

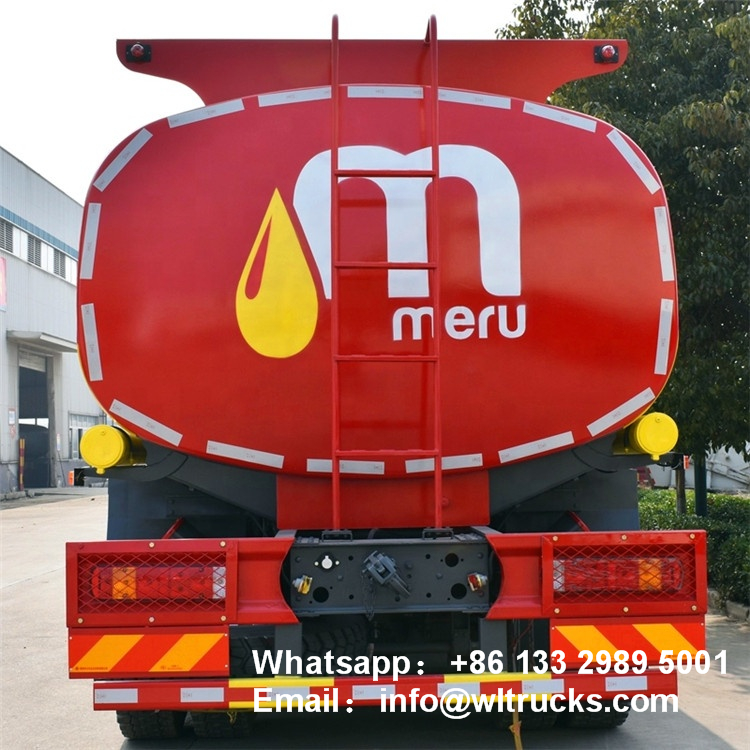

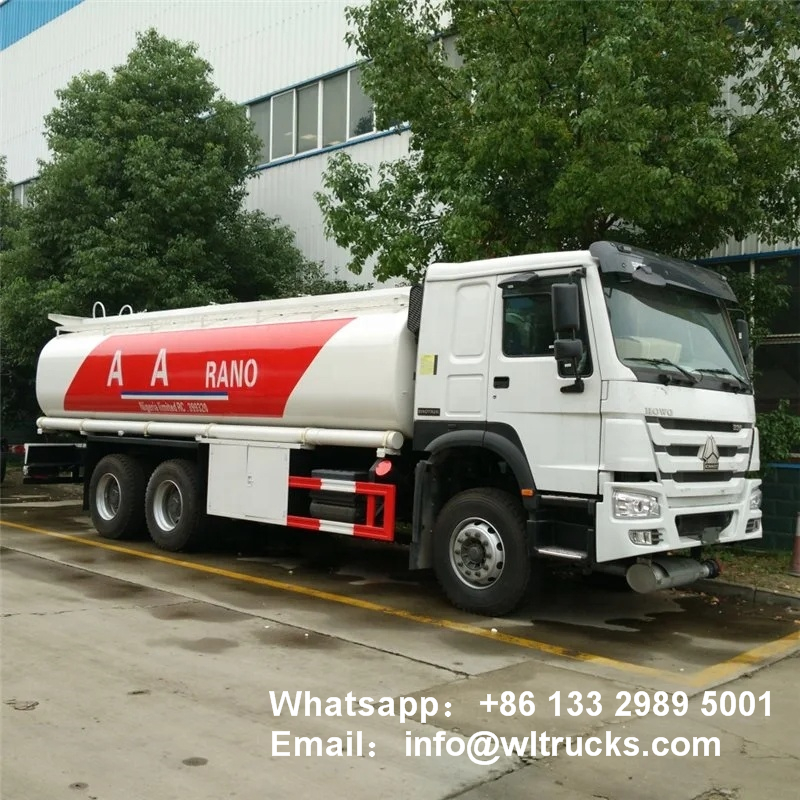

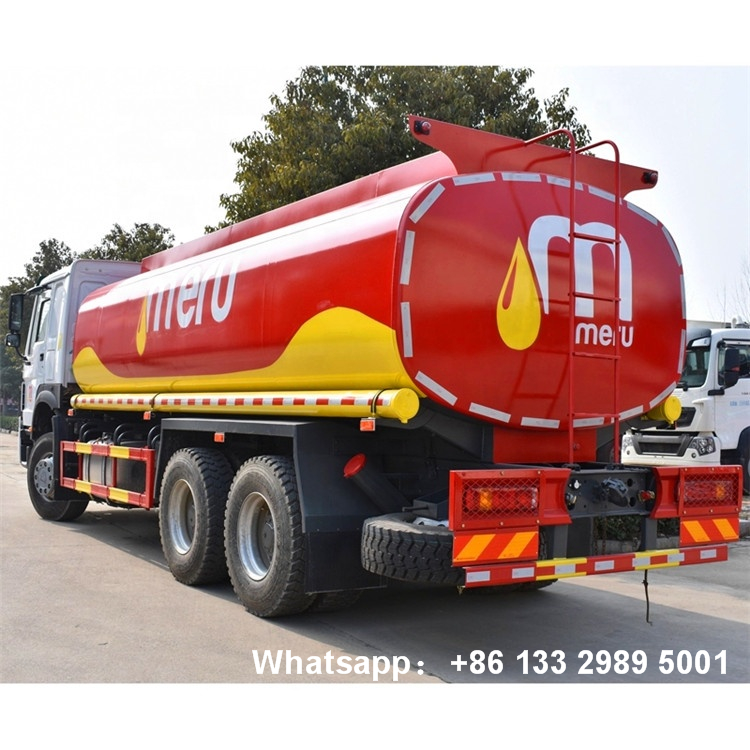

Sinotruk howo 20m3 to 25m3 fuel oil tanker truck
Sinotruk howo 20m3 to 25m3 fuel oil tanker truck is one of our main and competitive products. We can provide you product with high quality and at reasonable price according to your requirements. The tank material could be carbon steel, stainless steel, aluminum alloy, etc. Fuel tank can be chosen with oil pump, flow meter, tanker piston, and bobbin disk. Fuel tank can be separated to several compartments to fill different kinds of fuel. Our tankers are seamless welding and has gone through strict anti-leakage inspection. And the interior tank body has gone through anti-corrosion treatment.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
|
ITEM
|
UNIT
|
PARAMETER
|
|
|
Vehicle
|
HOWO oil tank truck
|
||
|
Overall dimensions
|
mm
|
9600x2500x3200 | |
|
Fuel tank dimensions
|
6900×2370×1570
|
||
|
GVW
|
kg
|
Appro×25000
|
|
|
Curb weight
|
Appro×10805
|
||
|
Loading capacity
|
Appro×14000
|
||
|
Wheel base
|
mm
|
4600+1350
|
|
|
F/R track base
|
1610/1450
|
||
|
Approach/departure angle
|
°
|
25/12
|
|
|
Exhaust/Power
|
ml/kw/hp
|
9726/247/336
|
|
|
Max speed
|
km/h
|
90
|
|
|
Axle Load
|
kg
|
7000/16000/16000
|
|
|
Tire specification
|
12.00R20
|
Engine type
|
WD615.69
|
|
Traction system
|
6×4
|
transmission
|
Manual , 9-speed
|
|
Number of axles
|
3
|
Emission standard
|
Euro 2
|
|
Operation control system
|
Electrically hydraulic control
|
Allowable passengers in cab
|
3
|
|
Engine
|
diesel engine
|
||
|
Production cycle
|
30-35 working days
|
||
|
Warranty
|
12 month,from the date of supply
|
||
|
Standard configuration
|
1. With power steering.
2. With computer fueling machine, pump, hose reel, european standard bottom valve.
3. Transportation of the goods: gasoline, diesel density of 0.7 t/m3 to 0.8 t/m3.
4. Air condition in the cabin.
|
||
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
