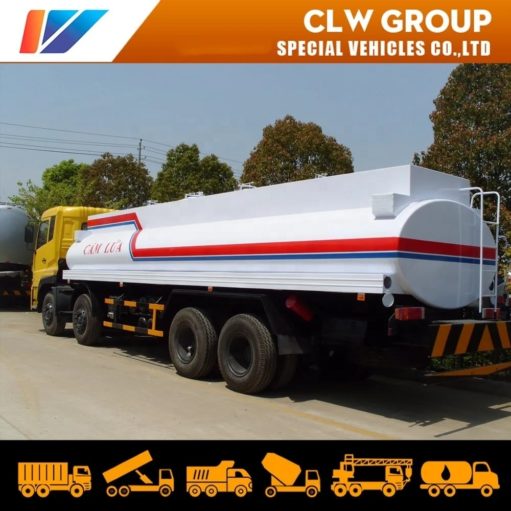

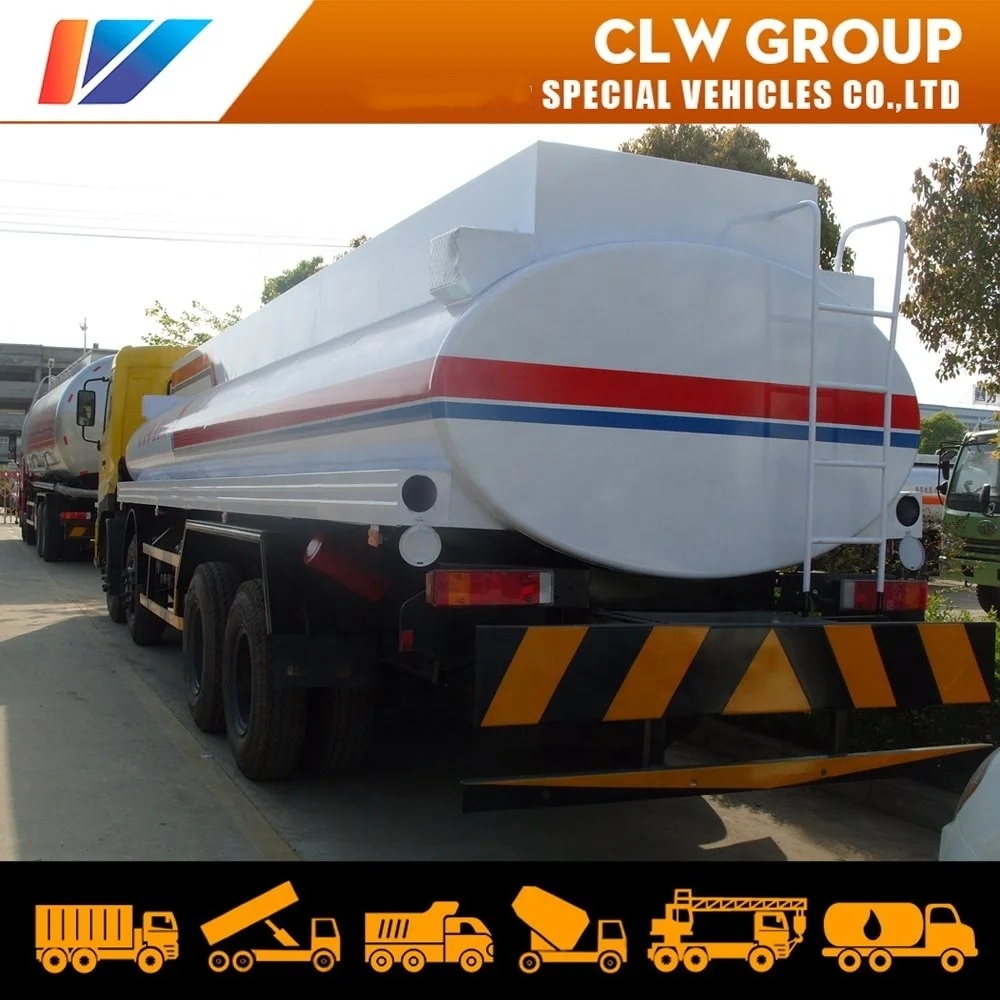

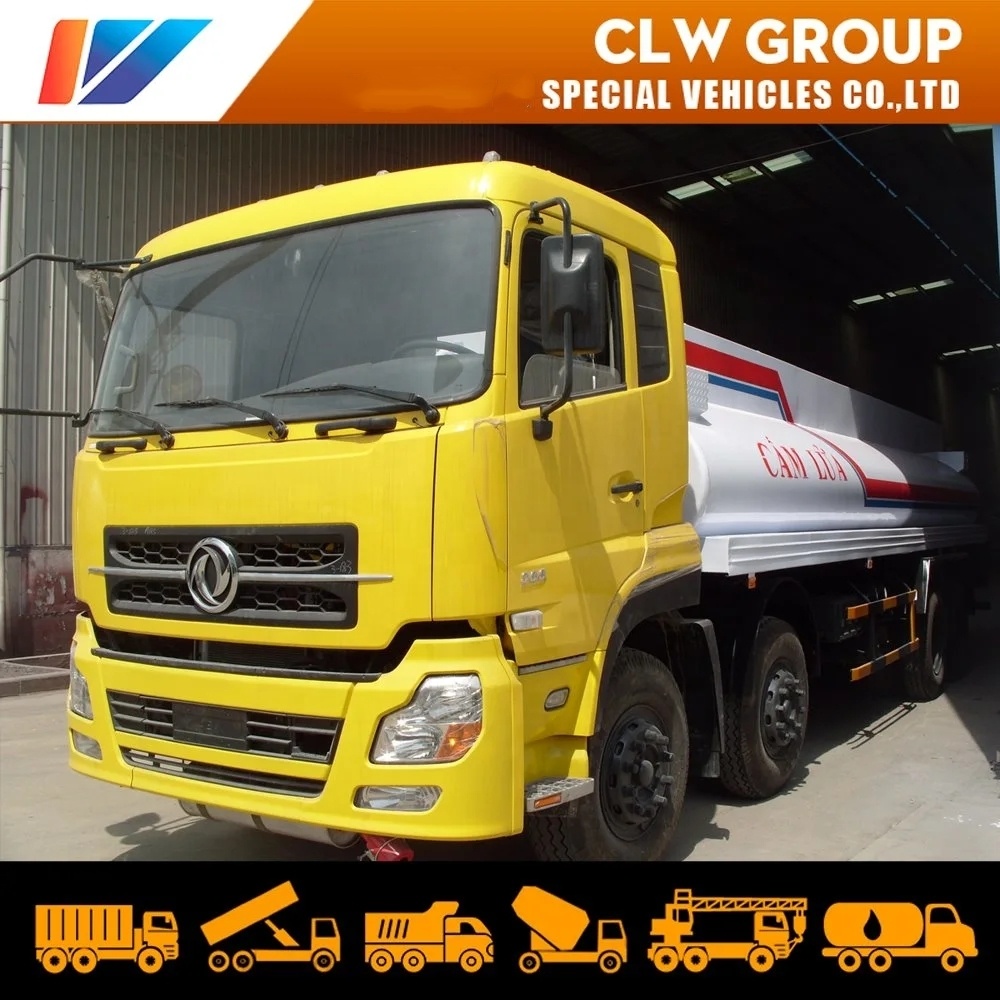

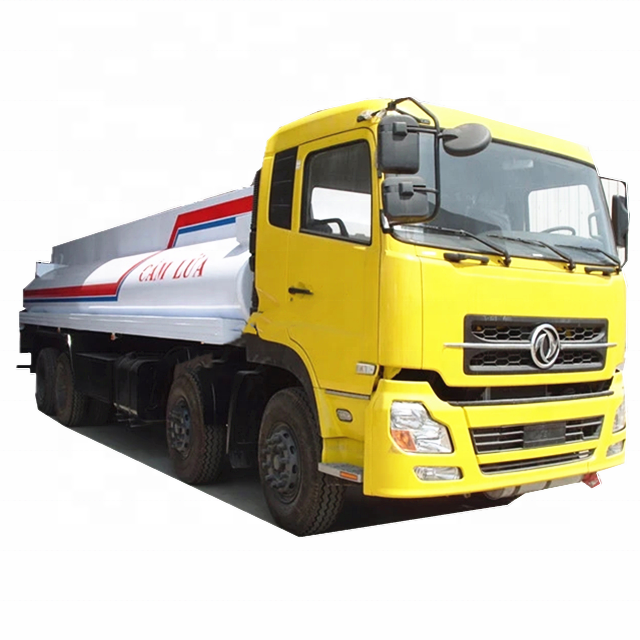

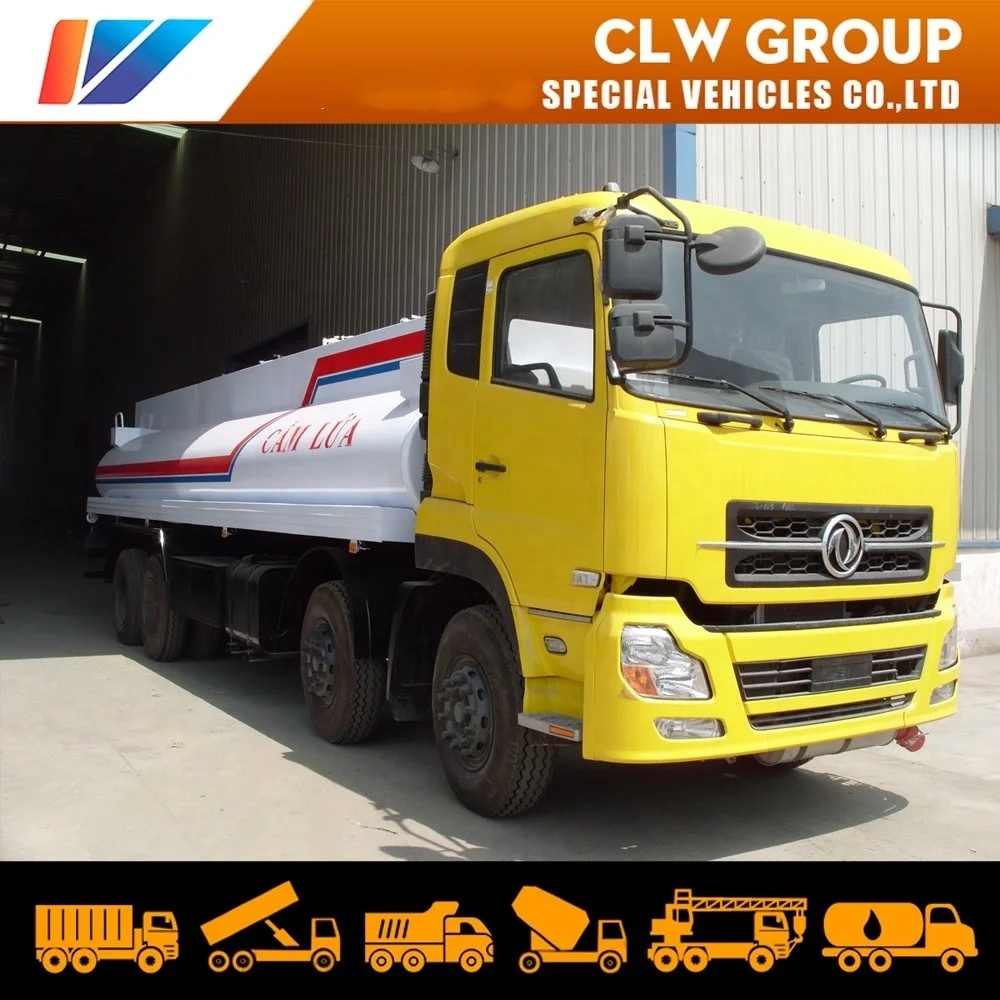

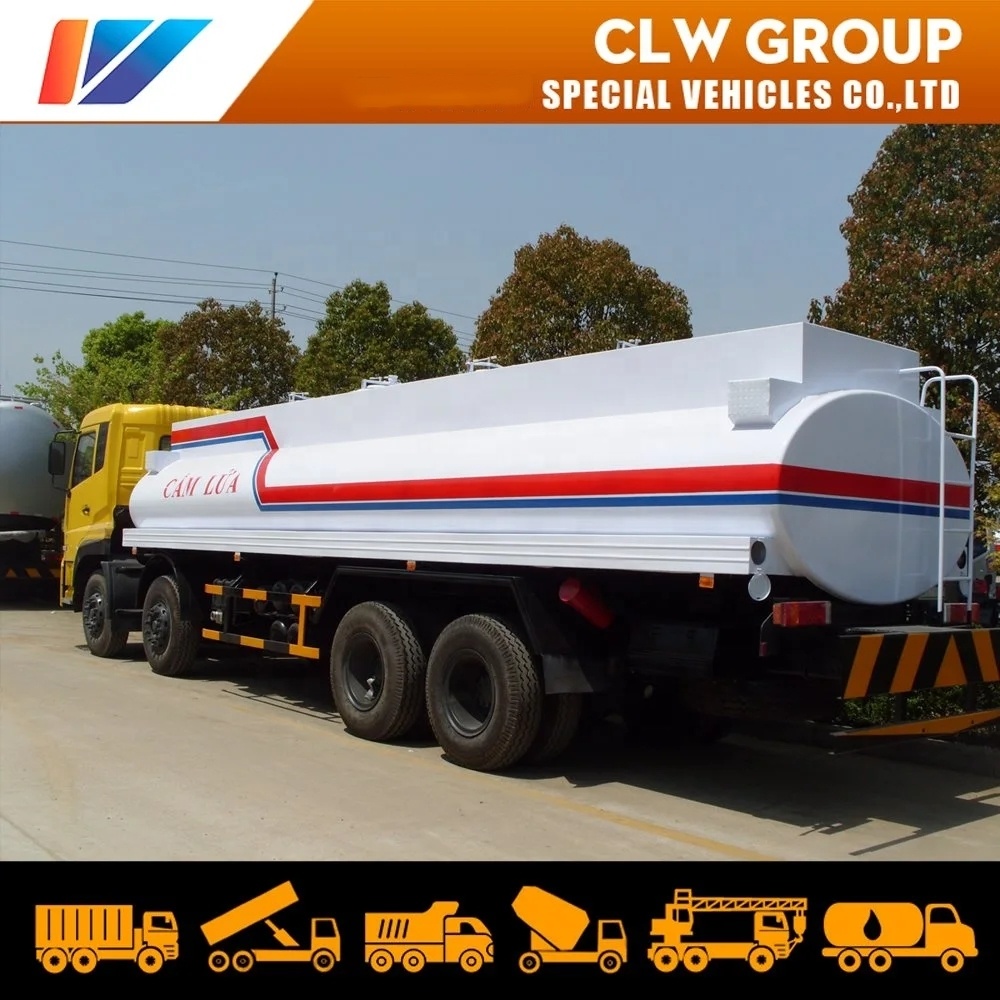

8×4 Dongfeng 30000liters fuel tank truck
8×4 Dongfeng 30000liters fuel tank truck comes standard with Cummins 315 horsepower engine, wheelbase 2050 + 4400 + 1350, 295 vacuum tires, 9-speed gearbox, 5 tons front axle, 10 tons rear axle, front disc brakes, speed limiter, ABS ,air conditioning.
The tank body is made of 6mm thick high-quality large magnesium alloy plate 5083 in one roll forming, completely seamless forming. New design, safety guardrail, pattern walkway, folding guardrail. One tool box and one water tank. With a submarine valve, a European standard tank port, with a dedicated oil pump, two fire extinguishers, fire cap.
Can be installed according to customer requirements (all types of well-known brand fuel dispensers, sub-bins, European standard tank ports, subsea valves, anti-overflow probe probe seats, bottom oil ports, oil and gas recovery, flow meters, etc.)
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| Chassis | |
| Driving model | DONGFENG 8×4 |
| Cabin | LHD, with Air Conditioner |
| Overall dimensions | 11980*2500*3200 (mm) |
| Curb Weight | 11605kg |
| Loading Weight | 20200kg |
| Wheel base | 1950+4250+1300(mm) |
| Engine | Diesel, 6-cylinder in-line with water cooling |
| 270hp, EuroIII | |
| Gearbox | 10 forwards and 2 reverse |
| Axle Load(kg) | 7000/17900 |
| Tire | 11.00R20 tubeless tire, 13pcs |
| Max speed | 90 km/h |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Tank Body | |
| Shape | Square Round Cylinder |
| Tanker Body Material |
Carbon steel
|
| Tank thickness | 5mm |
| Total Volume(m3) | 30m3 |
| Compartment | 5pcs |
| Transport oil type | Diesel/Petrol |
| Manhole cover | Manhole cover with breath valves, 500mm |
| Bottom Valve | 1 set |
| Discharging valve | 1 set |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
| Remarks | Oil pump: self-priming pump,gear pump optional Oil meter:single,double,Fiscal processor optional Fuel Dispenser optional Equipped with a ladder on tank |
