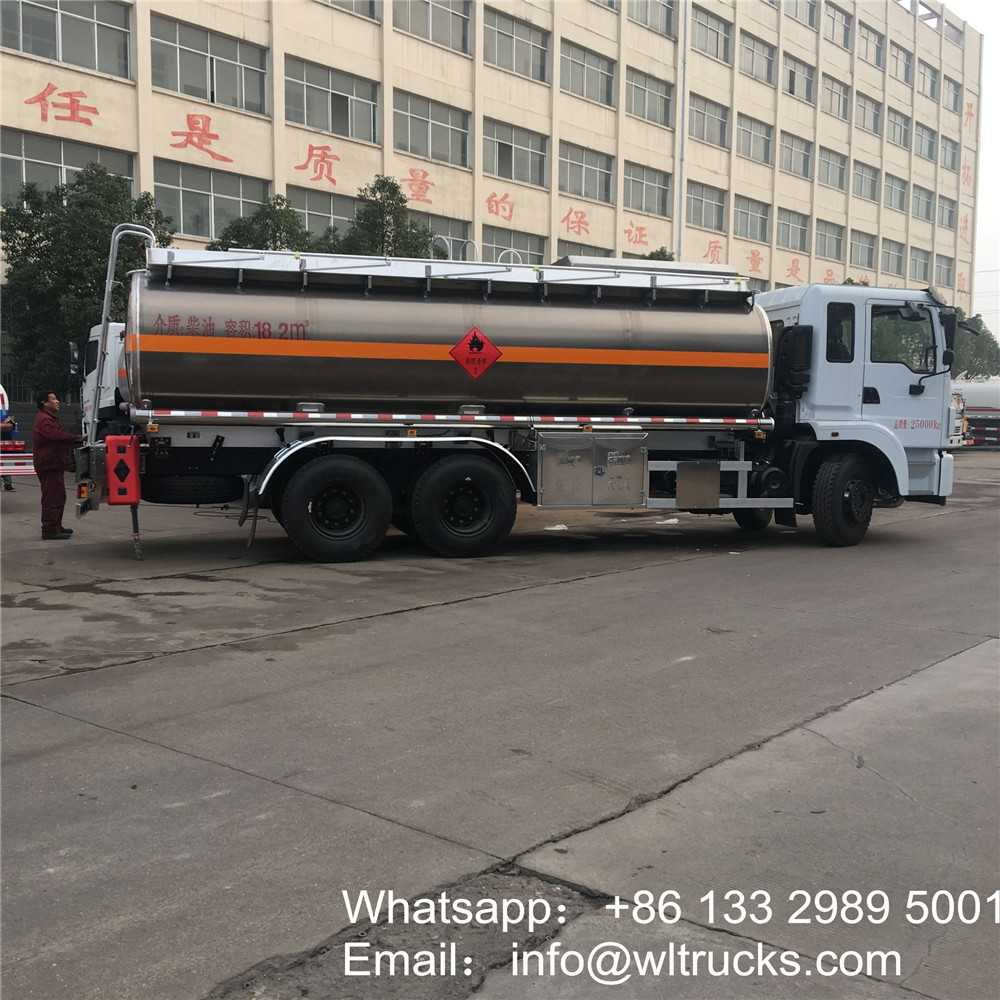

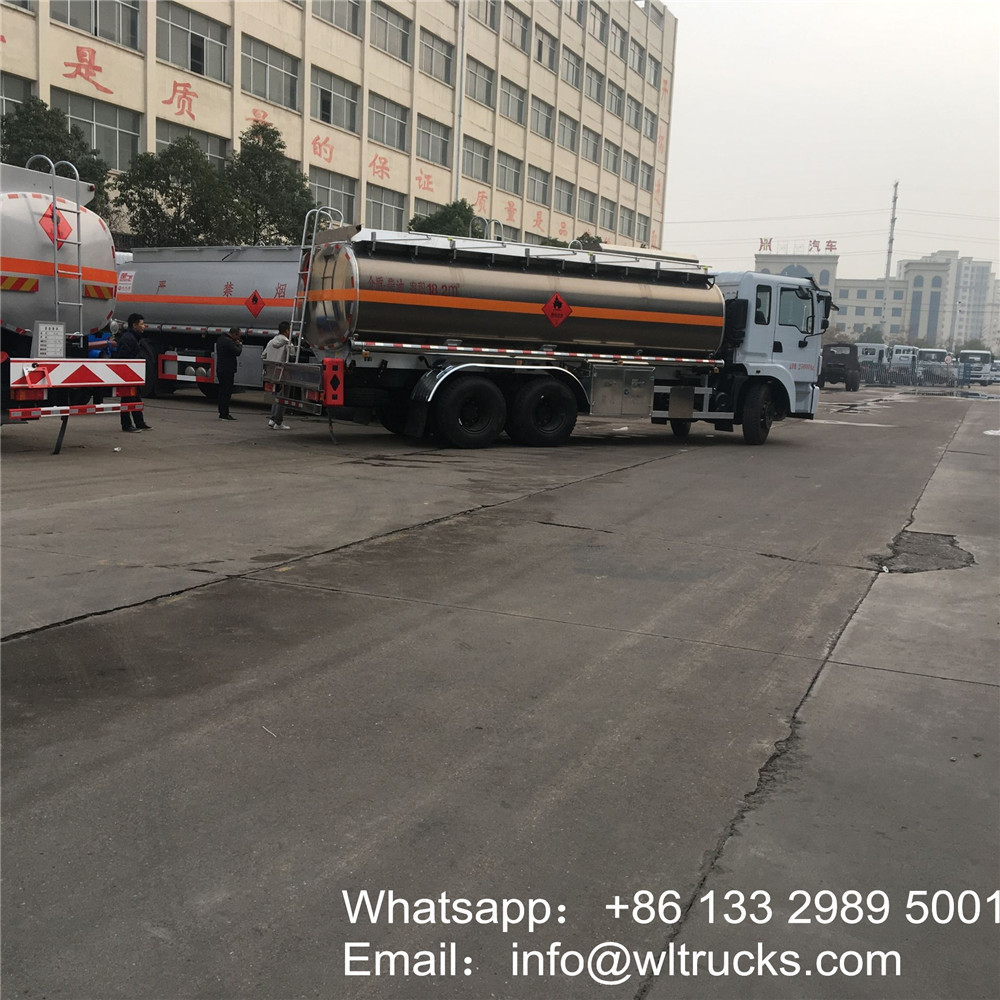

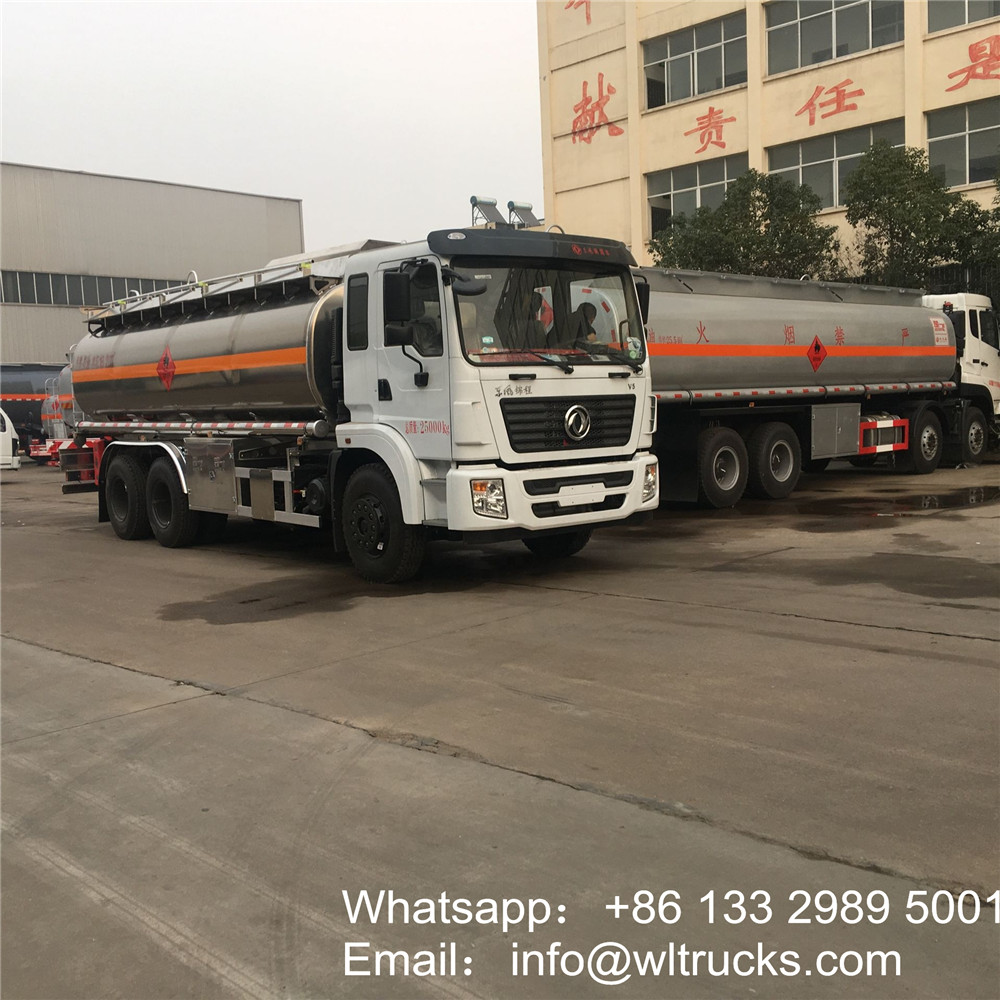

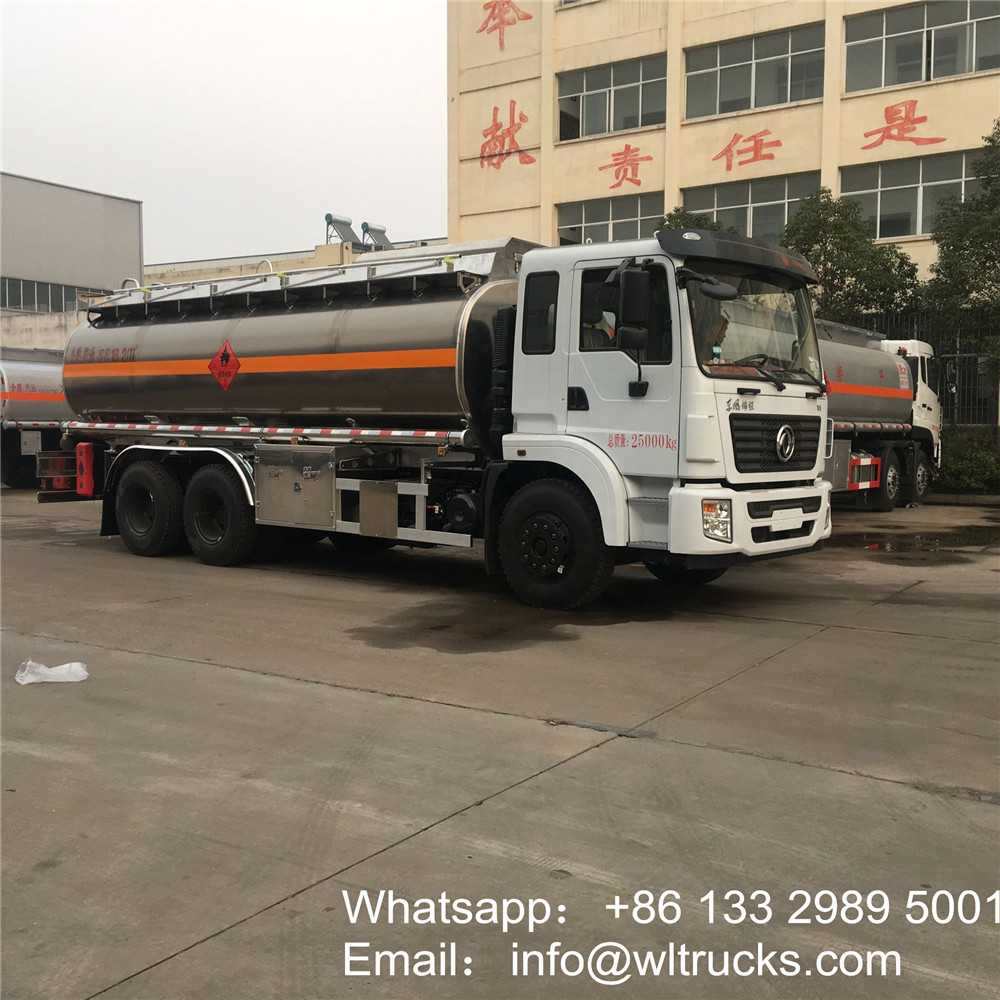

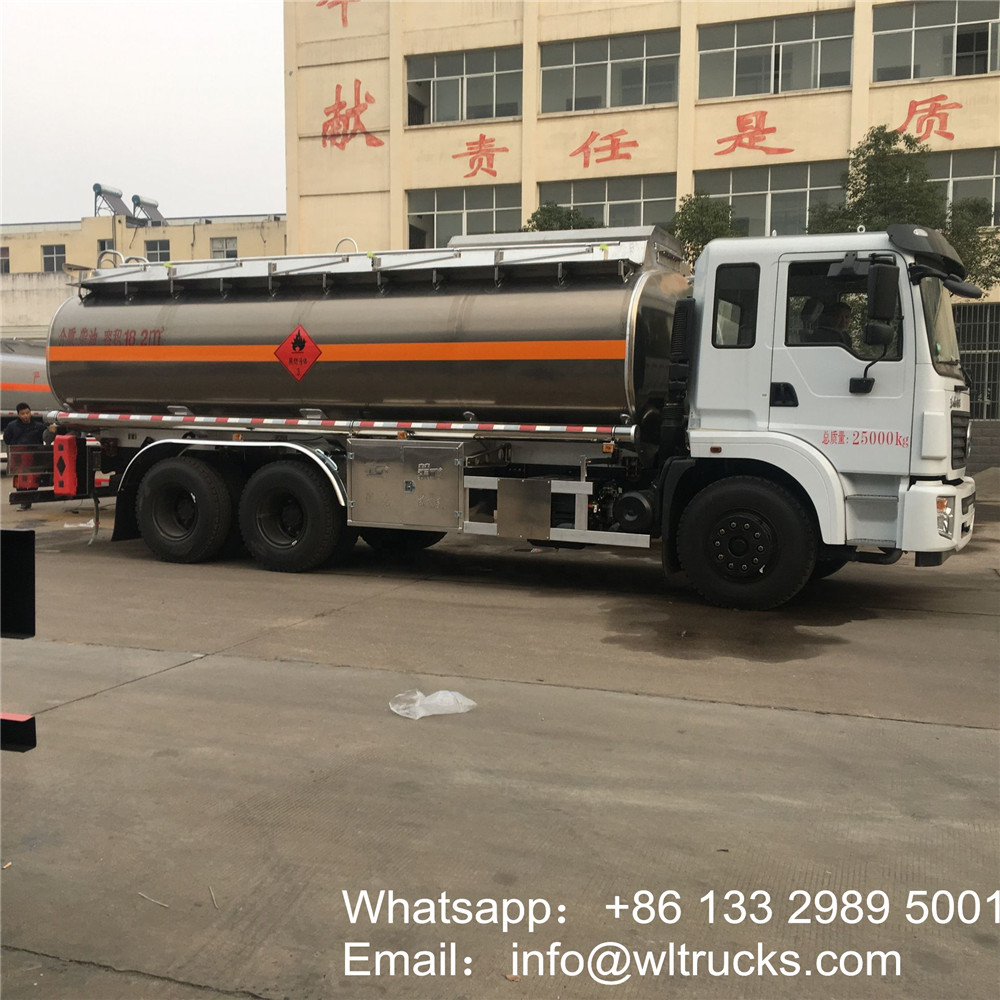

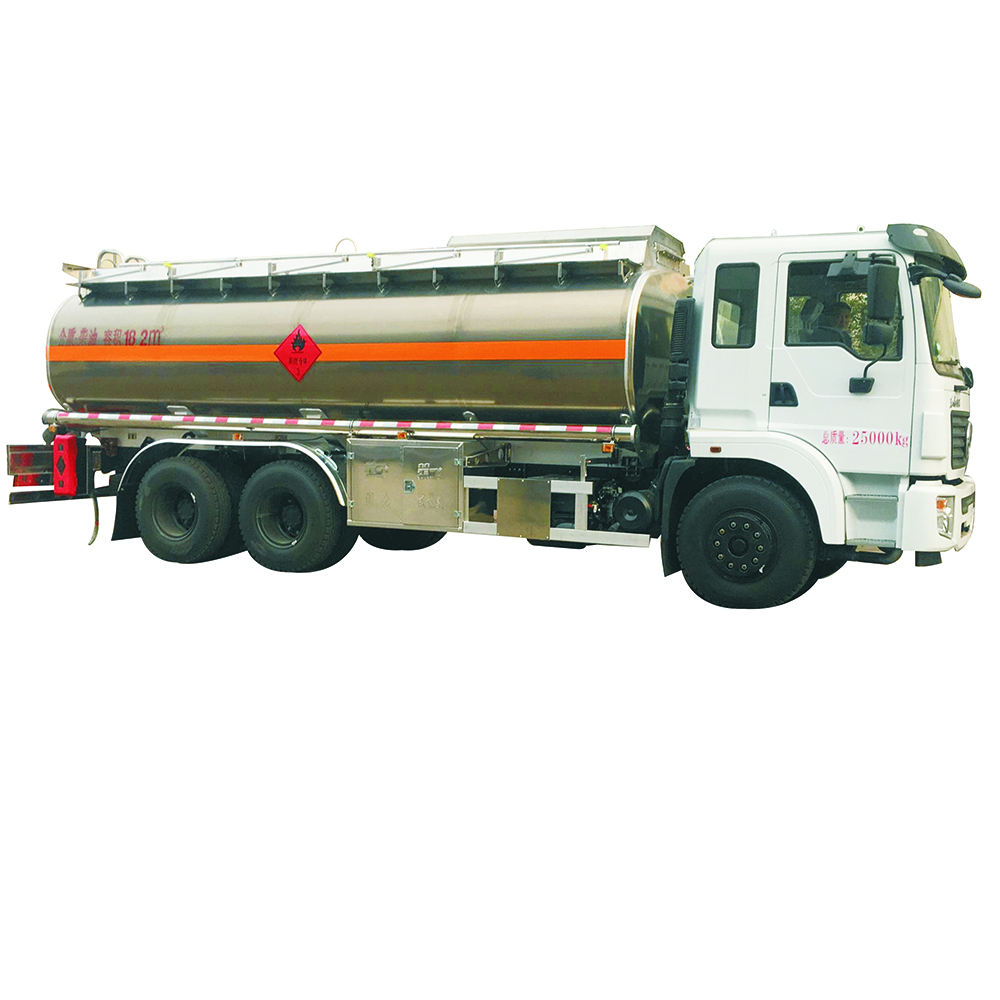

Dongfeng 24000L Aluminum alloy fuel tanker
Dongfeng 24000L Aluminum alloy fuel tanker is made of 5083-6mm aluminum alloy plate, with a pump, divided into two warehouses, the two warehouses are interconnected, the two feed inlets are as close as possible to the user for loading oil at one time, the European standard tank mouth, with two sets of lower Install oil, with oil vapor recovery, with anti-overflow probe, the back of the tube box is closed, a ladder for each of the front left and rear heads, an aluminum alloy tool box as large as possible according to the space position, aluminum alloy accessories and pipes, other according to Standard production of tank trucks.
With armrests, fenders and accessories are made of aluminum alloy. A 500KG side-mounted aluminum alloy water tank and installed sprinkler. Equipped with two oil suction pipes and two fire extinguishers.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| Specification of dongfeng fuel tanker truck | |||
| Item | Specification | Item | Specification |
| General | |||
| Truck Name | fuel tanker truck | Overall Dimension (mm) | 9600×2500×3350 |
| Truck Brand | Gross / Curb Weight (kg) | 25000/9700 | |
| Truck Model | CLQ5250GYY5RA | Rated Loading Weight(kg) | 15105 |
| Cab | Cab Capacity | 3 | |
| Approach / Departure Angle (°) | 29/10,29/11,29/12 | Front / Rear Overhang (mm) | 1250/2700,1450/2500,1515/2435 |
| Front / Rear Axle Load (kg) | 7000/18000 | Wheelbase (mm) | 4350+1300,4750+1300,5900+1300,
4900+1300,5350+1300,4350+1350, 4750+1350,5900+1350,4900+1350,5350+1350 |
| Number of Axles | 3 | Max. Speed (km/h) | 80 |
| Quantity of Tyre | 10 | Tyre Model | 295/80R22.5 18PR,11.00-20 18PR,11.00R20 18PR |
| Front Wheel Tread (mm) | 1940,1960,2010 | Rear Wheel Tread (mm) | 1860/1860 |
| Leaf Spring | 9/10,9/13 | Traction System | steering wheel |
| Chassis | |||
| Chassis Brand | dongfeng | Chassis Model | EQ1258GSZ5DJ |
| Type of Fuel | diesel | Emission Standard | euro 3 |
| Engine (Motor) | |||
| Model | Displacement (ml) | Max. Power (KW/hp) | Brand |
| ISD210 50 | 6700 | 155/210 | Cummins |
