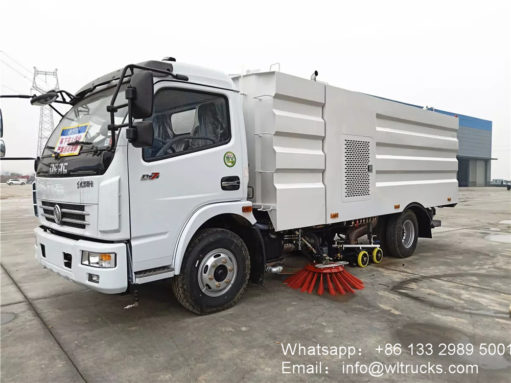

DongFeng 9m3 road washing truck use Chaochai 120hp, wheelbase 3800mm, largest Working width2.3m, front of the vehicle with forward thrust, tail After spraying. 18MHigh pressureCar wash reel. 4 suction nozzle wheels with high degreeadjustable. Stainless steelbin garbageVolume 5 m³, water cleaningBox Volume 4 m³.
DongFeng 9m3 road washing truck is modified with Dongfeng Class II chassis, installed with auxiliary engine, fan, water cleaning bin, garbage bin, right left standing sweep, sweeping dust reduction system, Right and leftHigh pressure side spray height, disc suctionbuilt-in pressure highmain boom, pneumatic system, pressure liquidsystem, dedicated installationelectric control Department and subframe etc. installation modification
DongFeng 9m3 road washing truck Chassis configuration: Dongfeng D7 Dali card chassis, single-row white front turnable cab, 3800mm wheelbase, optional diesel engine 156 horsepower, Yuchai 130 horsepower China V diesel engine, Wanliyang 6-speed gearbox, 7.50 steel tires , Air brake, direction assistance, with original ABS, air conditioning.
DongFeng 9m3 road washing truck Bodywork configuration: 4 cubic stainless steel water tank, 4 cubic stainless steel waste bin, center 2 sweep plate, suction nozzle, Sanyo motor, high pressure water pump imported from Germany (front flush, side spray, middle spray, rear spray, side flush car water gun, garbage Tank self-cleaning device), universal high-pressure roadside cleaning, low-pressure pump forward flushing, stainless steel water tank, garbage bin; stainless steel high-pressure pipeline, Schneider control switch, American sensor, tail LED arrow lamp, motor oil, garbage bin, water tank Overflow or low water level alarm device; monitor in cab in reverse and washing state, 18m high-pressure washing reel, maximum washing width 3.5m; high-pressure washing height ≥ 21m.
| Vehicle technical parameters | |||
| Vehicle name : | DongFeng 9m3 road washing truck | Announcement batch : | 302 |
| Vehicle model : | CLW5110TXSD5 | Catalog number : | ( 17 ) 74 |
| Total quality | 11450 (Kg) | Volume : | 8m 3 |
| Rated contained mass | 4850 (Kg) | Curb quality | 7045 (Kg) |
| Dimensions | 7000 × 2200 × 2700 (mm) | Cargo compartment size | ×× (mm) |
| Rated passenger | ( Person ) | Total mass of quasi-trailer | (kg) |
| Cab : | Front passengers : | 3 ( person ) | |
| Anti-lock brake system : | Have | Load utilization factor | |
| Approach angle / departure angle : | 21 / 11,21 / 12 ( ° ) | Front suspension / rear suspension : | 1130 / 2070,1150 / 2050 (mm) |
| Number of axes : | 2 | Wheelbase : | 3800 (mm) |
| Axle load : | 4360/7090 | Maximum speed : | 103 (km / h) |
| other | Protective Material : Q235A carbon steel , connections : left and right side guard exemption , the lower portion of the rear fender and the sub-beam welded connection , rear underrun protection dimensions : 50 × 100 (mm), height from the ground 400mm . | ||
| Chassis technical parameters | |||
| Chassis model | EQ1110SJ8BDC | Chassis enterprise : | Dongfeng Motor Co., Ltd. |
| Number of tires | 6 | Number of springs : | 8/10 + 7 |
| Tire specifications : | 8.25R20 14PR | Transmission type : | |
| Front track : | 1745 | Rear track : | 1620 |
| Chassis emission standards : | GB17691-2005 National V , GB3847-2005 | ||
| Fuel type : | Diesel | Fuel consumption : | |
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| CY4SK251 YC4S150-50 |
Dongfeng Chaoyang Chaochai Power Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. |
3856 3767 |
115 110 |

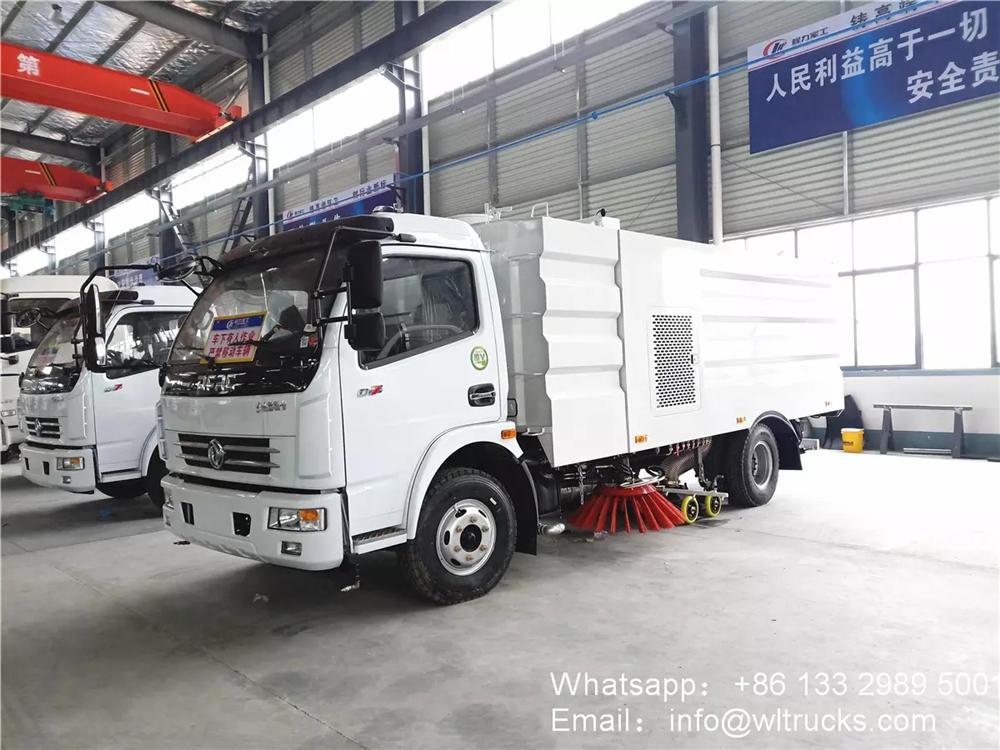

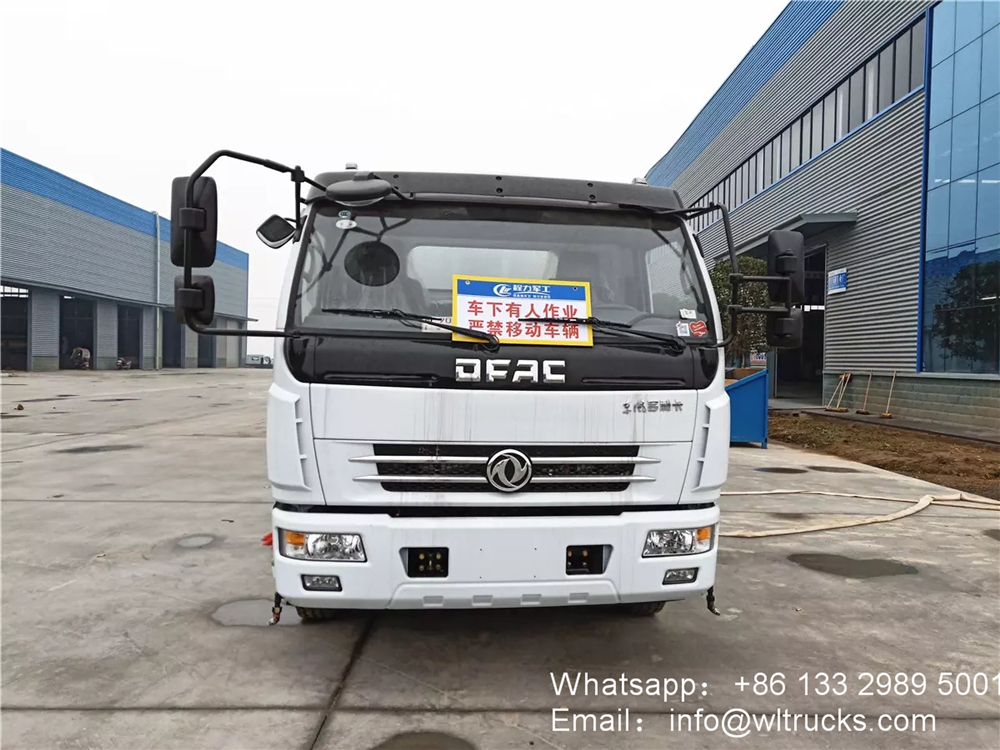

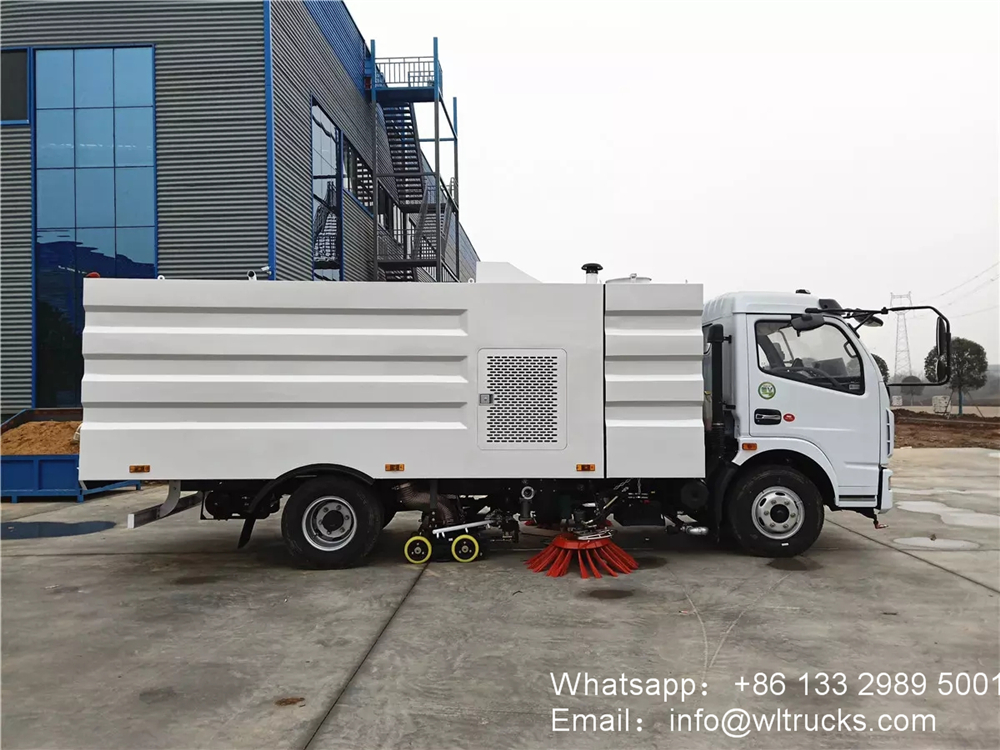

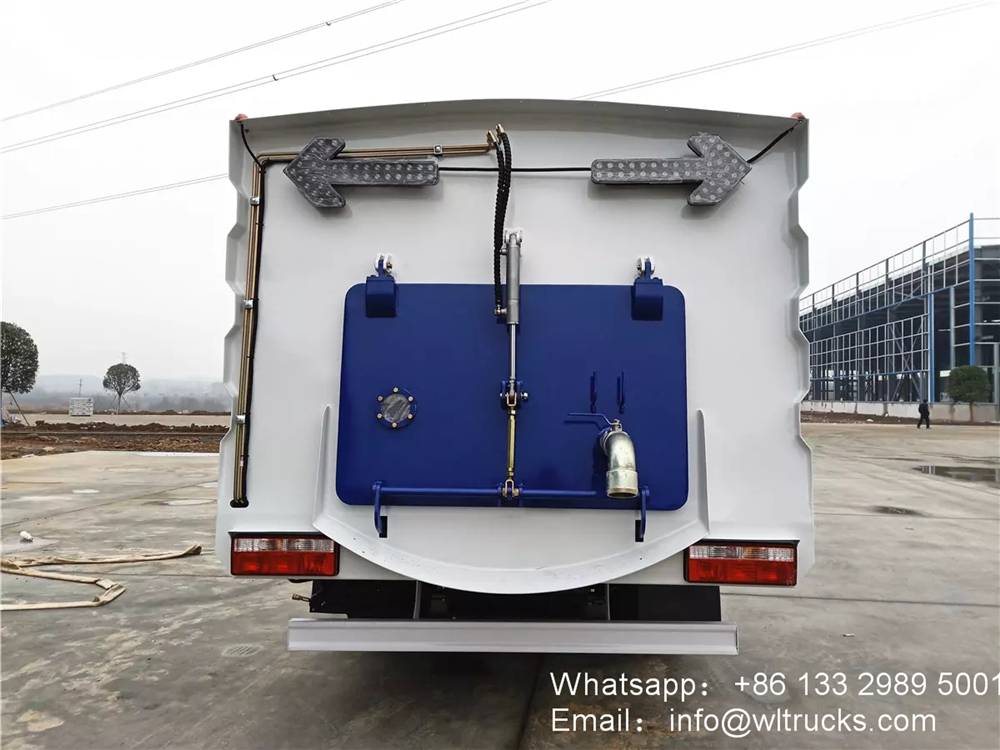

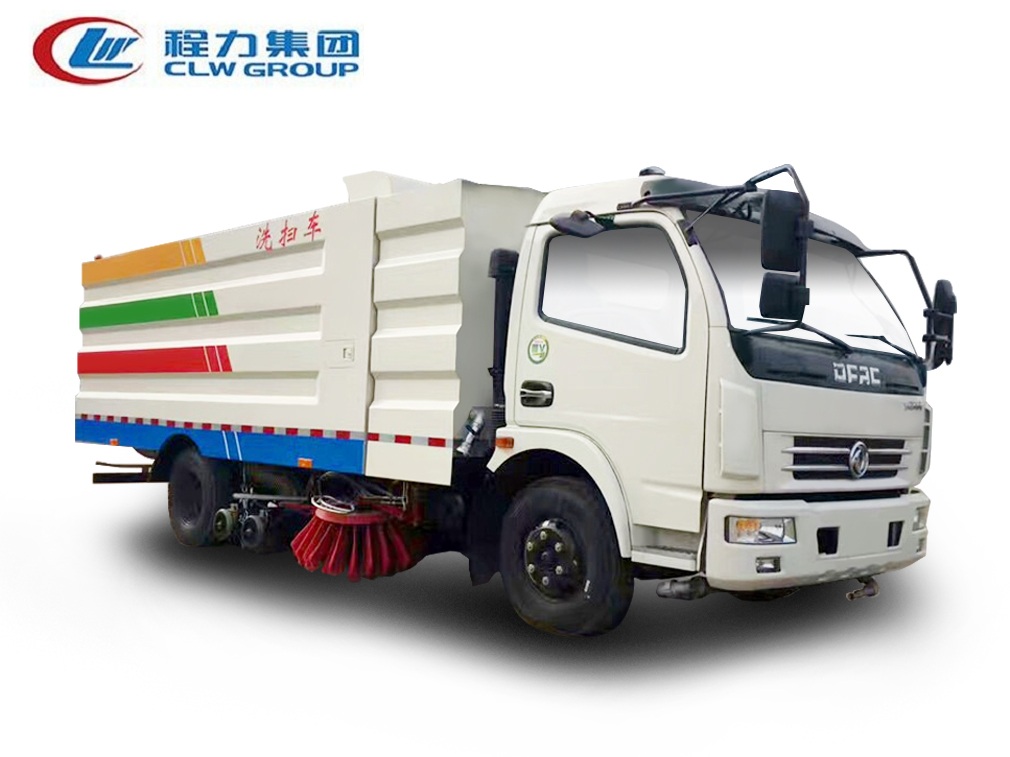

DongFeng 9m3 road washing truck detailed image
