ISUZU 9 ton road washing sweeper truck is suitable for mechanized cleaning, sweeping, spraying and dust reduction of urban roads, highways, squares, airports, docks, tunnels, bridges, partition walls, curbs and curbs. Realize the multi-purpose vehicle, economical, convenient and practical.
ISUZU 9 ton road washing sweeper truck Chassis configuration: using Qingling Isuzu original chassis, single-row white forward-turning cab, 3815mm wheelbase, optional Isuzu 130 horsepower China V diesel engine, 5-speed gearbox, 7.00 steel tires, air brake, power steering, belt Original ABS, air conditioning.
ISUZU 9 ton road washing sweeper truck Bodywork configuration: 4 cubic stainless steel water tank, 4 cubic stainless steel waste bin, center 2 sweep plate, suction nozzle, Sanyo motor, high pressure water pump imported from Germany (front flush, side spray, middle spray, rear spray, side flush car water gun, garbage Tank self-cleaning device), universal high-pressure roadside cleaning, low-pressure pump forward flushing, stainless steel water tank, garbage bin; stainless steel high-pressure pipeline, Schneider control switch, American sensor, tail LED arrow lamp, motor oil, garbage bin, water tank Overflow or low water level alarm device; monitor in cab in reverse and washing state, 18m high-pressure washing reel, maximum washing width 3.5m; high-pressure washing height ≥ 21m.
| Vehicle technical parameters | |||
| Vehicle name : | ISUZU 9 ton road washing sweeper truck | Announcement batch : | 296 |
| Vehicle model : | HCQ5071TXSQL5 | Catalog number : | ( 17 ) 57 |
| Total quality | 7300 (Kg) | Volume : | 8m3 |
| Rated contained mass | 670 (Kg) | Curb quality | 6500 (Kg) |
| Dimensions | 7160 × 2250 × 2750 (mm) | Cargo compartment size | ×× (mm) |
| Rated passenger | ( Person ) | Total mass of quasi-trailer | (kg) |
| Cab : | Front passengers : | 2 ( person ) | |
| Anti-lock brake system : | Have | Load utilization factor | |
| Approach angle / departure angle : | 24/13 ( ° ) | Front suspension / rear suspension : | 1015/2330 (mm) |
| Number of axes : | 2 | Wheelbase : | 3815 (mm) |
| Axle load : | 2580/4720 | Maximum speed : | 110 (km / h) |
| other | The side protection is replaced with a side device , the rear protection material is Q235, and the connection method is : bolt connection , the cross-sectional size is 100 × 50 (mm), and the height of the rear protection device from the ground is 400 (mm) . | ||
| Chassis technical parameters | |||
| Chassis model | QL1070A5KAY | Chassis enterprise : | Qingling Motors Co., Ltd. |
| Number of tires | 6 | Number of springs : | 8/6 + 5 |
| Tire specifications : | 7.00R16 14PR | Transmission type : | |
| Front track : | 1504 | Rear track : | 1425 |
| Chassis emission standards : | GB17691-2005 National V , GB3847-2005 | ||
| Fuel type : | Diesel | Fuel consumption : | |
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| 4KH1CN5HS | Qingling Isuzu ( Chongqing ) Engine Co., Ltd. | 2999 | 90 |

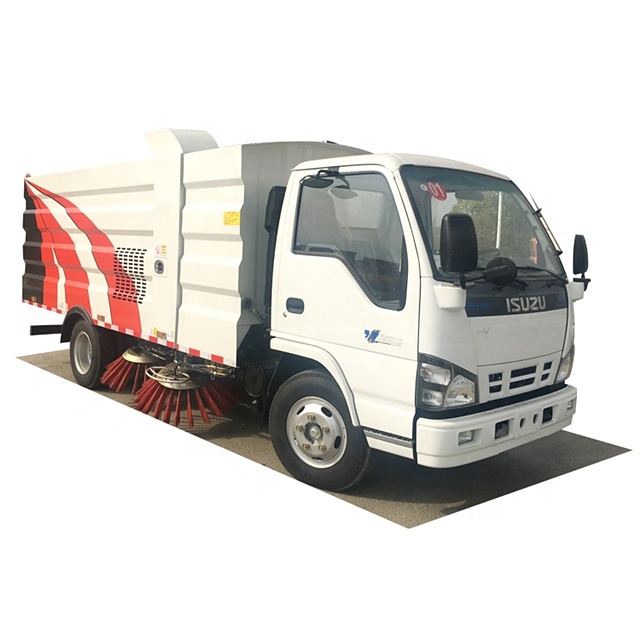

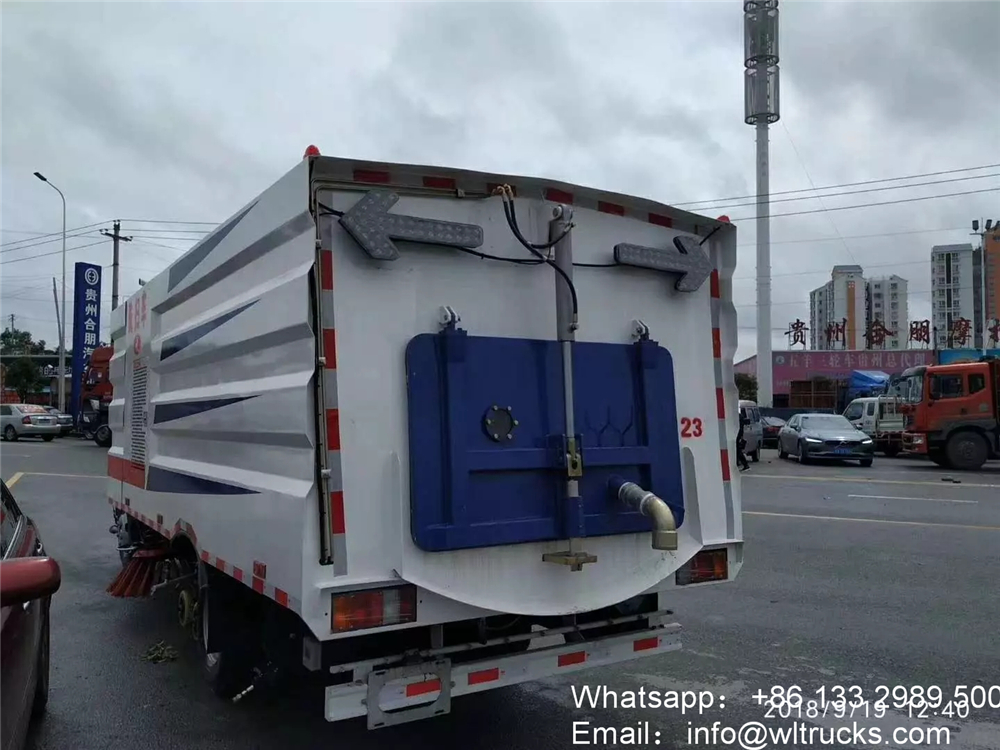

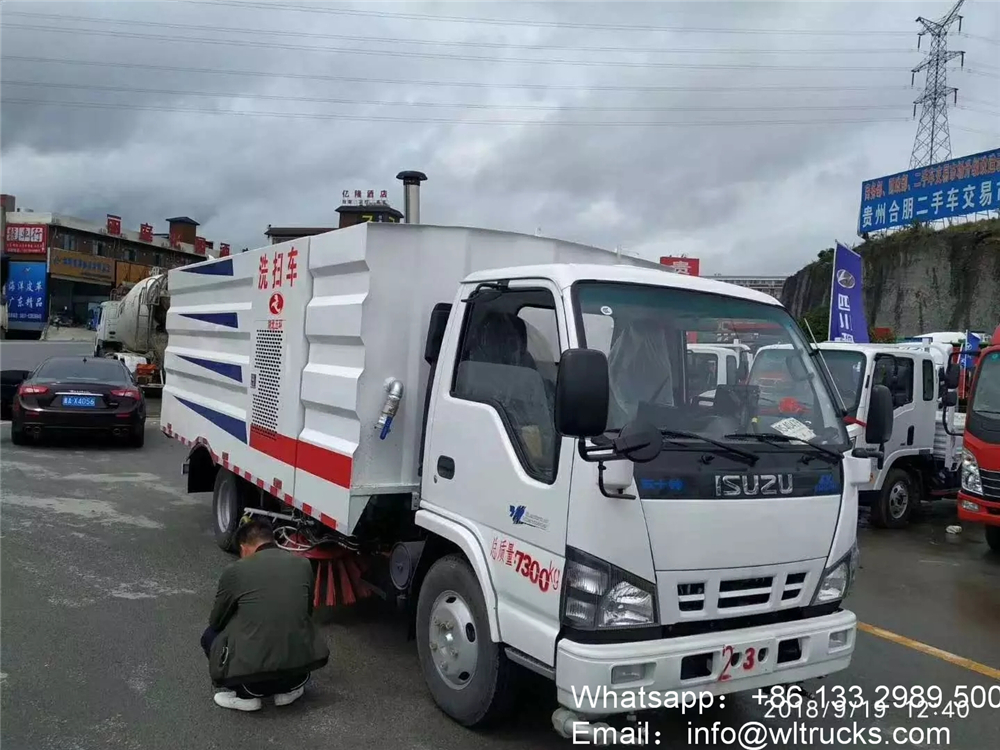

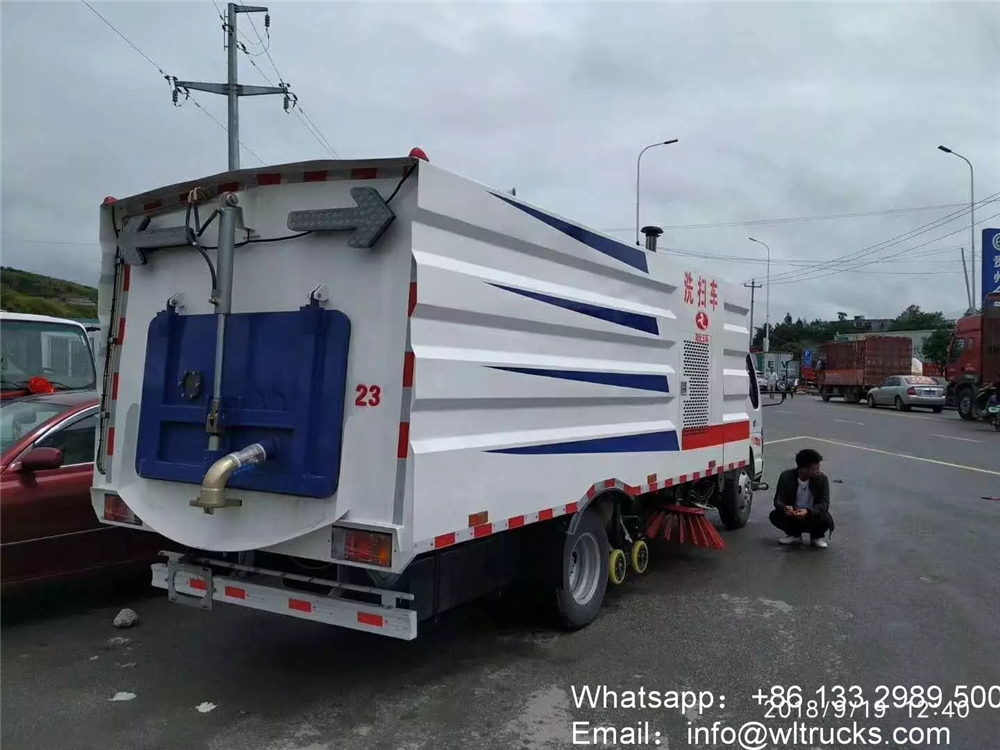

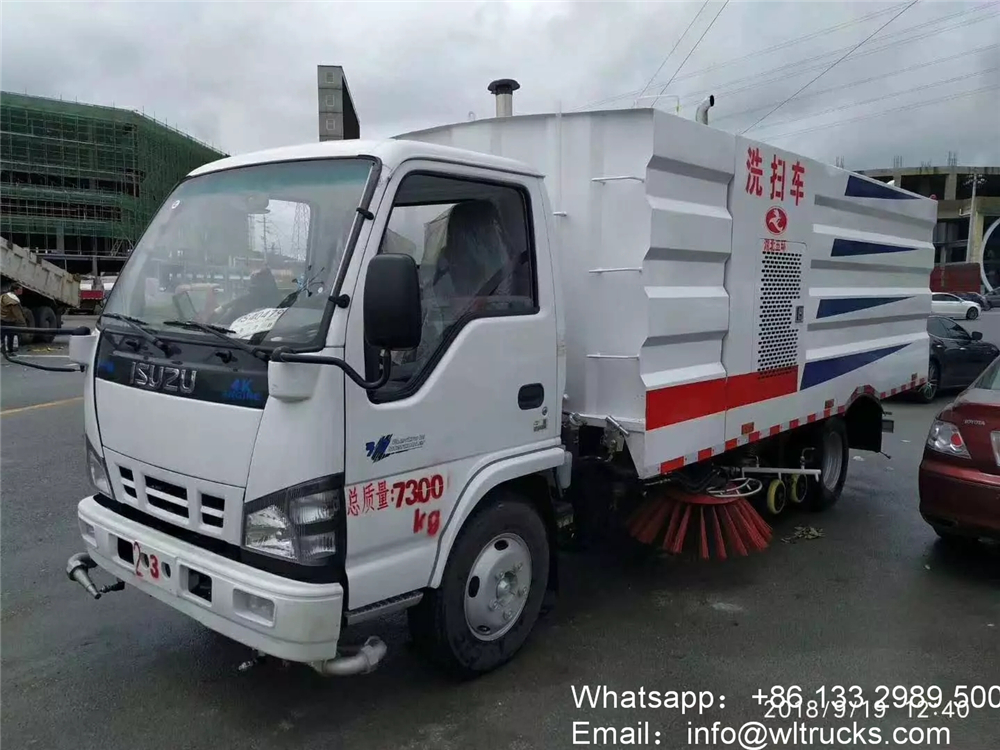

ISUZU 9 ton road washing sweeper truck detailed image
