ISUZU elf 5 ton Vacuum Cleaner Truck uses a single-row white forward-turning cab, with optional Isuzu 130-horsepower China V diesel engine, 5-speed gearbox, wheelbase 3360mm, 7.00 steel tires, air brake, power steering, with original ABS, air conditioning.
Center-mounted suction cup, Schneider control switch, JMC Isuzu auxiliary engine, Hypres solenoid valve group, continuously variable automatic clutch, maintenance-free centrifugal fan, stainless steel waste bin, high-precision waste bin filtration system (up to 0.3 microns), imported Pulse valve, tail LED arrow light, manual pump emergency system; fog spray water wetting function at the rear of the vehicle.

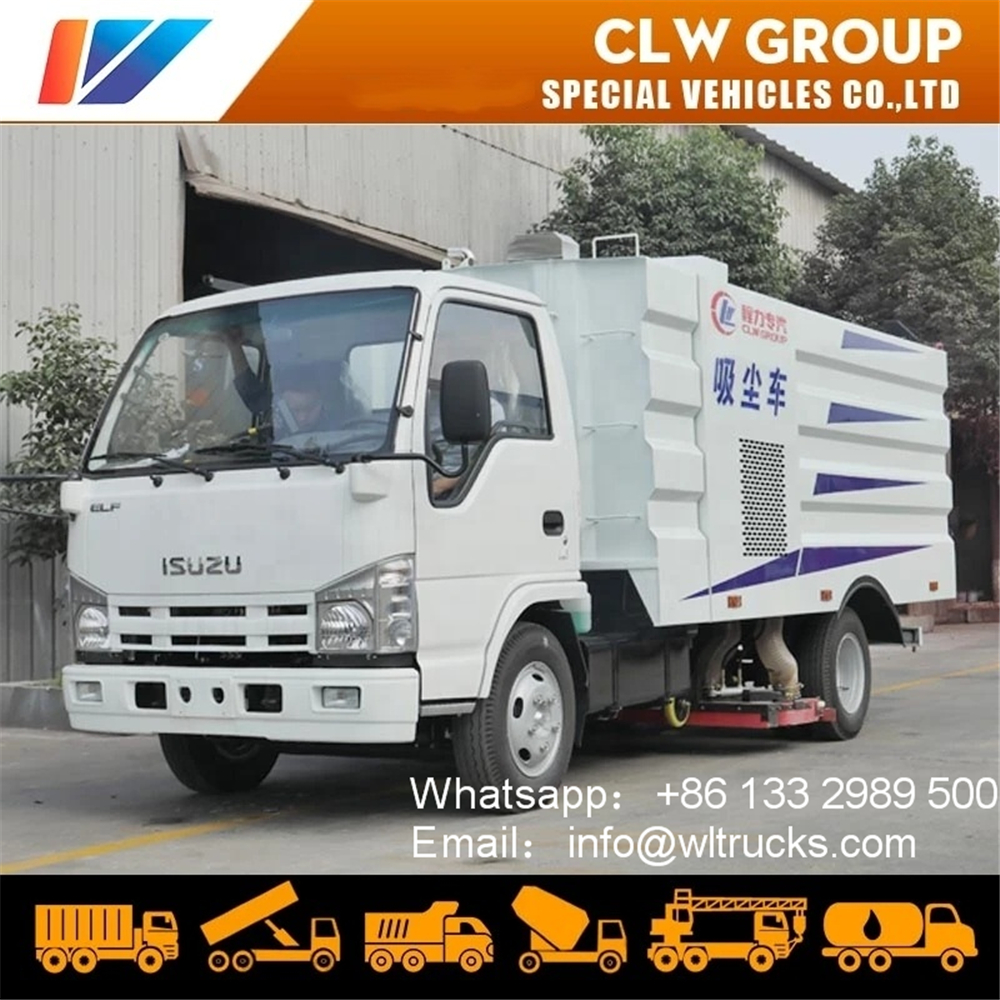

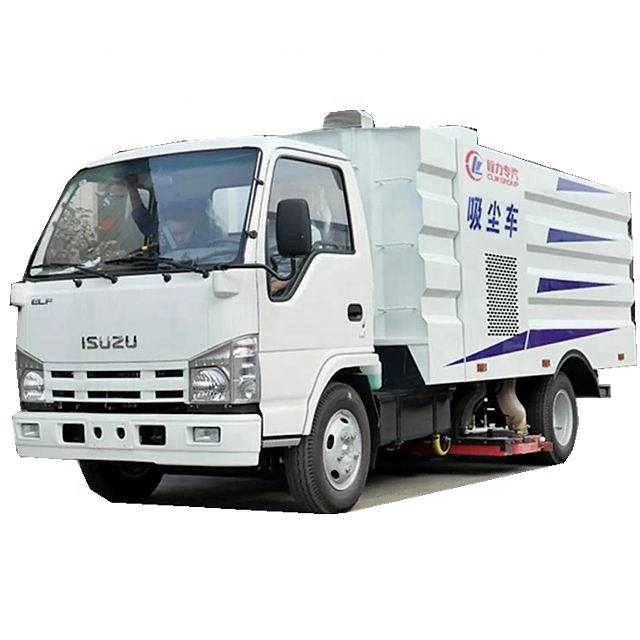

ISUZU elf 5 ton Vacuum Cleaner Truck
Description:
1. We can supply all brands of special trucks, such as Dongfeng, ISUZU, Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
2. The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4.
3. Certification: ASM, ISO, BV, SGS, CCC etc.
Advantage:
1. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
2. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
3. With efficient filtration system
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
5. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
| Chassis | |||||
| Drive Model | 4X2, Left hand drive | ||||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 6300*2000*2500 | |||
| Wheel base (mm) | 3360 | ||||
| Overhang (front/rear) (mm) | 1015/1815 | ||||
| Wheel track (front/rear) (mm) | 1504/1425 | ||||
| Approach/Departure angle(°) | 24/13 | ||||
| Weight in KGS | Curb Weight (kg) | 3880 | |||
| Front/Rear axle loading(kg) | 2000/4000 | ||||
| Max. driving speed(km/h) | 110 | ||||
| Engine | Model | 4KH1CN5LS | |||
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||
| Horse Power(HP) | 98 | ||||
| Displacement (ml) | 2999 | ||||
| Emission standard | Euro V | ||||
| Gearbox | 5 forwards & 1 reverse | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Brakes | Hydraulic oil brake | ||||
| Tire | 700R16 tire , 6 + 1(spare tire) | ||||
| Upper & Equipment | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 4.0 cbm | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 1.0 cbm | ||||
| Auxiliary engine | Model | ISUZU Brand | |||
| Quantity(No.) | 1 | ||||
| Power(kw/HP) | 55 /75 | ||||
| Blower | Quantity(No.) | 1 | |||
| Brand | China famous brand | ||||
| Power(kw) | 18 | ||||
| Speed(r/min) | 2900 | ||||
| Filter barrel | Quantity(No.) | 8 | |||
| Size(mm) | 350*240*900 | ||||
| Vacuum cleaner | Main Vacuum cleaner | Quantity(No.) | 1 | ||
| Width(mm) | 1800 | ||||
| Side Vacuum cleaner | Quantity(No.) | 2 | |||
| Width(mm) | 600 | ||||
| Max. Working width(mm) | 2400 | ||||
| Sucking Nozzle wheel | Quantity(No.) | 4 | |||
| Height | Adjustable | ||||
| Remarks |
|
||||

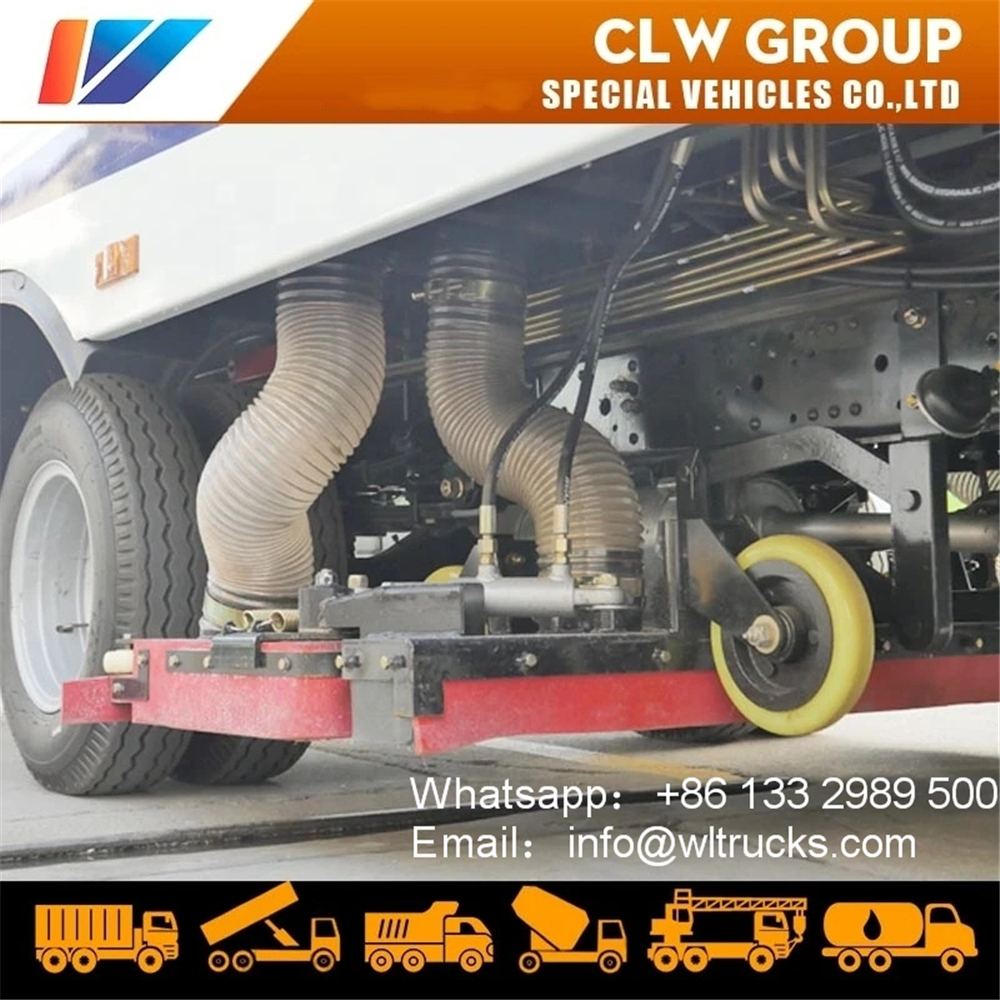

Dongfeng 5m3 Vacuum sweeper truck detailed image
Applicable places for vacuum cleaners
