Dongfeng 5m3 Vacuum sweeper truck
Our company produces brand-new high-tech products that are “no secondary dust pollution and better than traditional road sweeper” It has the advantages of wide dust collection range, high suction rate, no secondary dust at the suction port, no dust discharge at the air outlet, and high working efficiency. It is the preferred product for sanitation cleaning and material recovery.
The vacuum sweeper truck is suitable for dusty, high-concentration and high-density industrial and mining enterprises that are prone to dust pollution. It is suitable for cleaning and cleaning of urban main roads, high-grade roads and highways.
Dongfeng 5m3 Vacuum sweeper truck Specification:
| Chassis | |||||
| Drive Model | 4X2, Left hand drive | ||||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 6200*2000*2590 | |||
| Wheel base (mm) | 3308 | ||||
| Overhang (front/rear) (mm) | 1015/1815 | ||||
| Wheel track (front/rear) (mm) | 1504/1425 | ||||
| Approach/Departure angle(°) | 24/13 | ||||
| Weight in KGS | Curb Weight (kg) | 5040 | |||
| Front/Rear axle loading(kg) | 2000/4000 | ||||
| Max. driving speed(km/h) | 110 | ||||
| Engine | Brand | Chaochai | |||
| Horse Power(HP) | 102 | ||||
| Displacement (ml) | 3860 | ||||
| Emission standard | Euro III | ||||
| Gearbox | 5 forwards & 1 reverse | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Brakes | Air brake | ||||
| Tire | 700R16 tire , 6 + 1(spare tire) | ||||
| Upper & Equipment | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 4.0 cbm | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 1.0 cbm | ||||
| Operation detail | Max. Operation ability(m2/h) | 40000 | |||
| Max. Sucking dimension(mm) | 50 | ||||
| Auxiliary engine | Model | ISUZU Brand | |||
| Quantity(No.) | 1 | ||||
| Power(kw/HP) | 55 /75 | ||||
| Blower | Quantity(No.) | 1 | |||
| Brand | China famous brand | ||||
| Power(kw) | 18 | ||||
| Speed(r/min) | 2900 | ||||
| Vacuum cleaner | Main Vacuum cleaner | Quantity(No.) | 1 | ||
| Width(mm) | 1800 | ||||
| Side Vacuum cleaner | Quantity(No.) | 2 | |||
| Width(mm) | 600 | ||||
| Max. Working width(mm) | 2800 | ||||
| Sucking Nozzle wheel | Quantity(No.) | 4 | |||
| Height | Adjustable | ||||
| Remarks |
|
||||

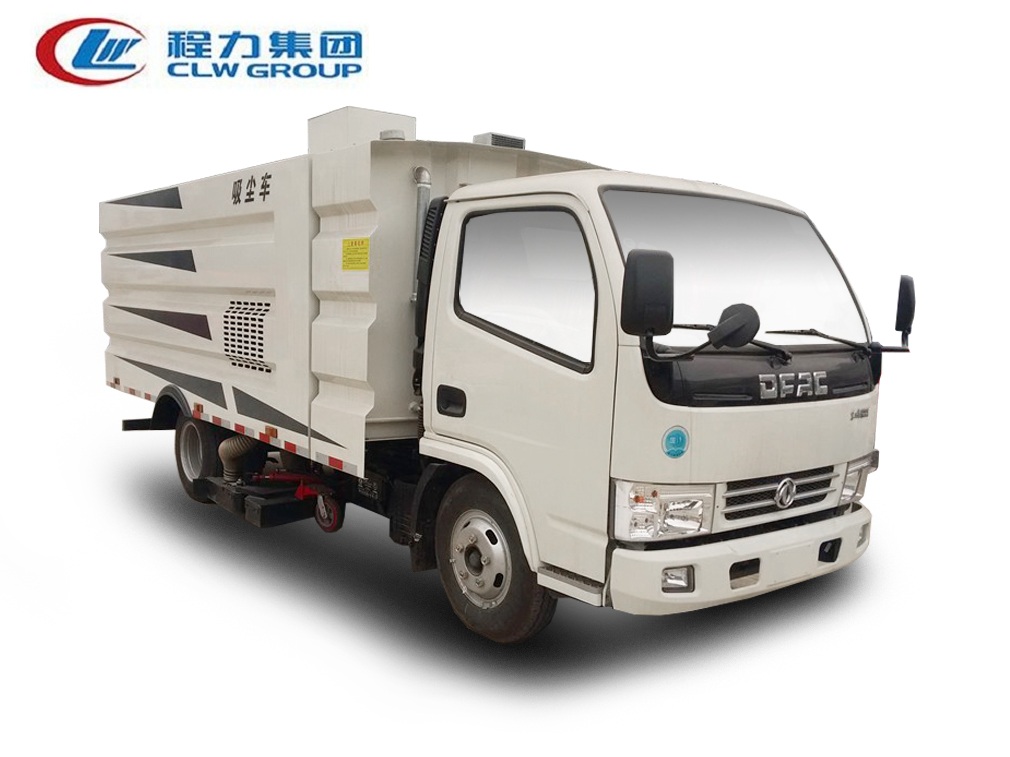

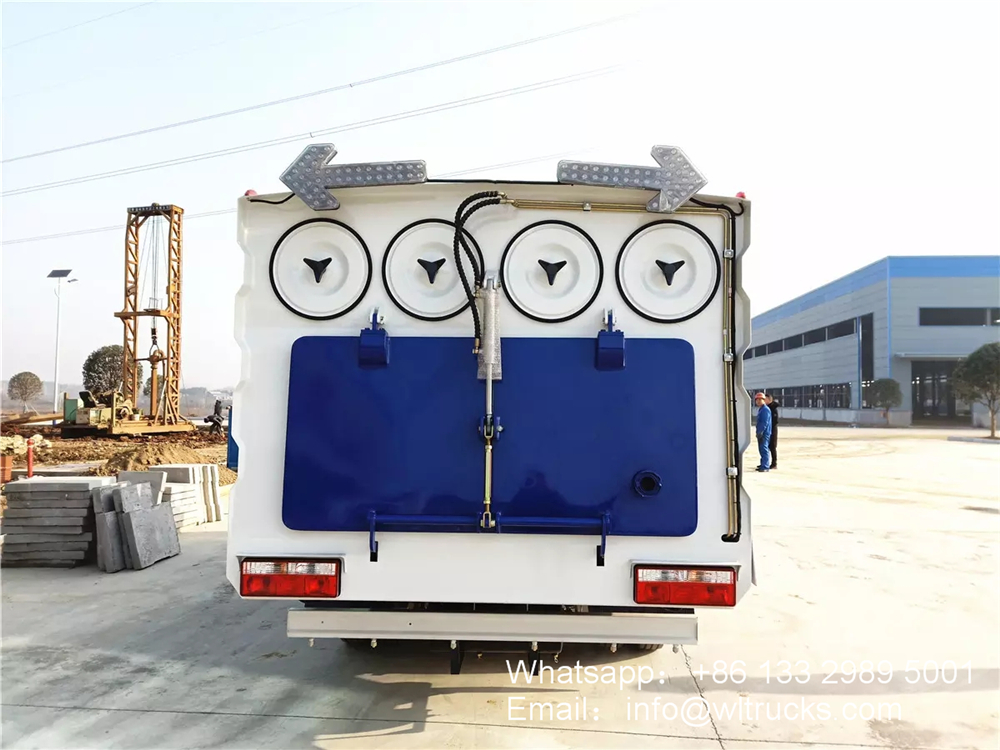

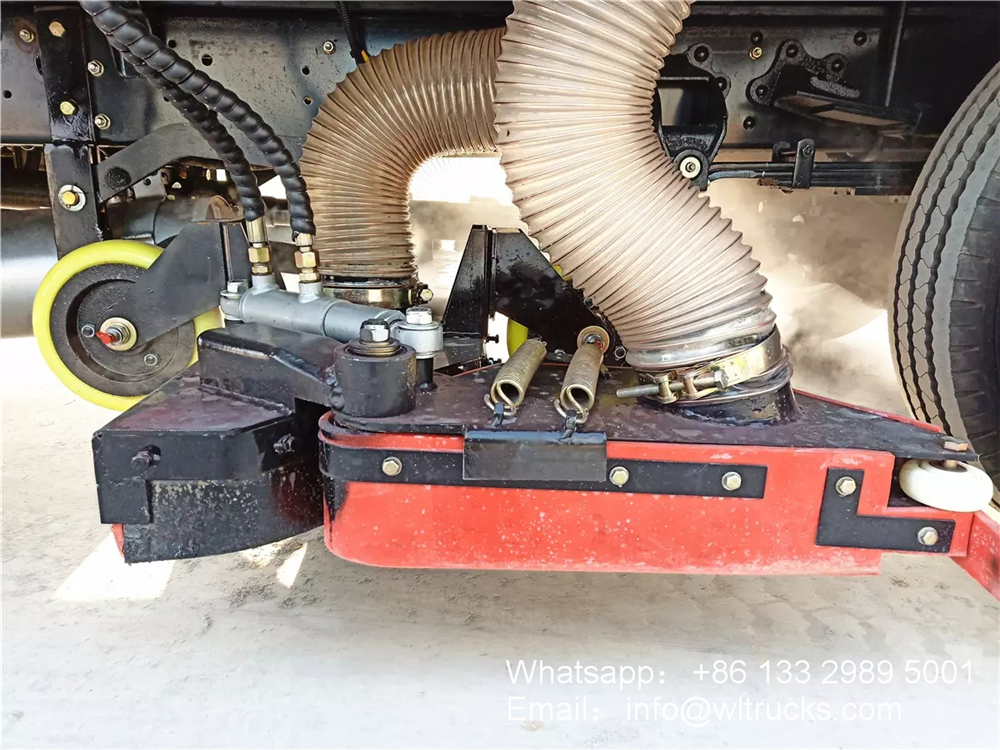

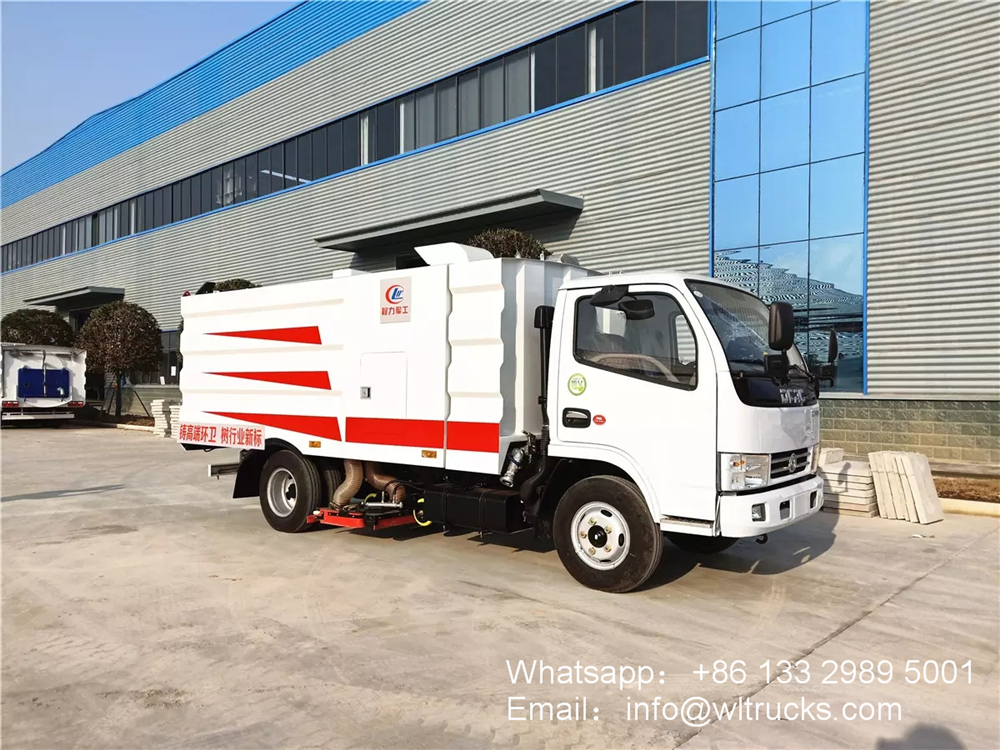

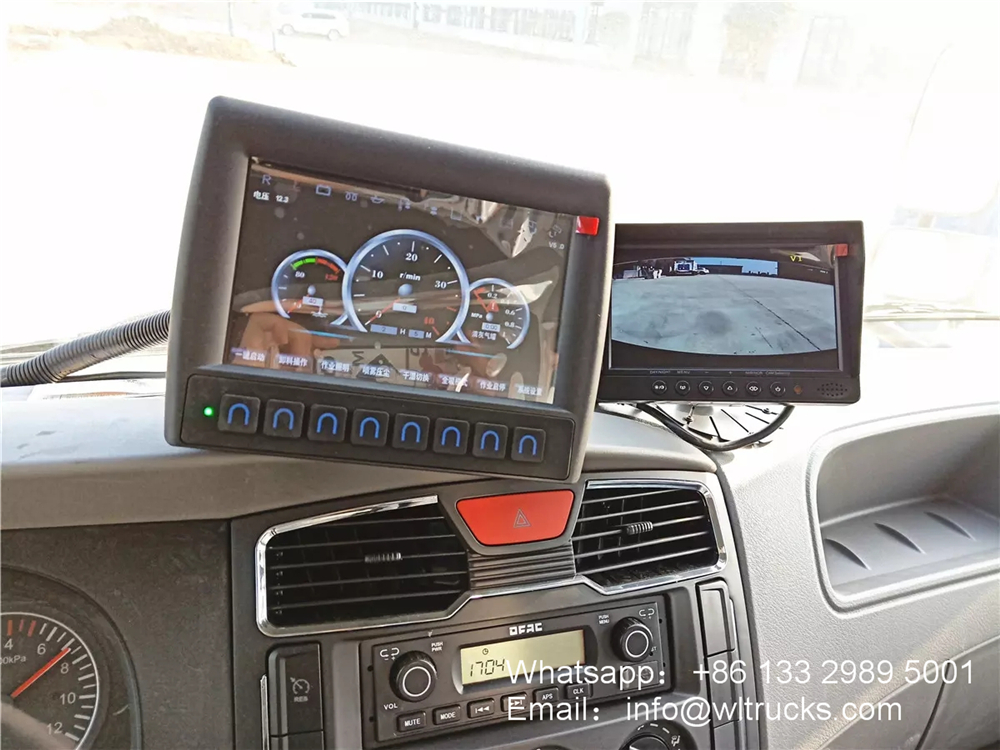

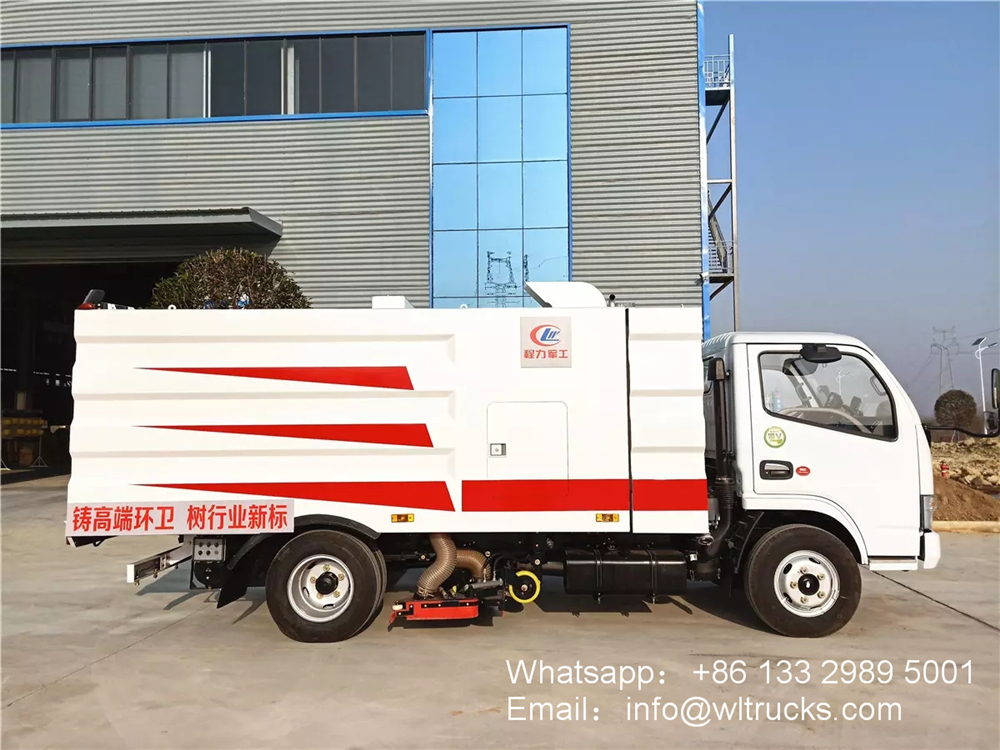

Dongfeng 5m3 Vacuum sweeper truck detailed image
Applicable places for vacuum cleaners
