ISUZU 600P 7m3 vacuum truck uses a single-row white forward-turning cab, with optional 120-horsepower Euro-4 diesel engine, 5-speed gearbox, wheelbase 3800mm, 7.00 steel wire tires, air brake, power steering, with original ABS, air conditioning.
ISUZU 600P 7m3 vacuum truck Bodywork configuration:
1.5 cubic meter water tank, 5 cubic meter stainless steel waste bin, center suction cup, JMC Isuzu auxiliary engine, Schneider control switch, Hypres solenoid valve group, infinitely variable automatic clutch, maintenance-free centrifugal fan, stainless steel trash can Precision dustbin filter system (up to 0.3 microns), imported pulse valve, PLC one-key intelligent control system, tail LED arrow light, manual pump emergency system, fog spray water wetting function at the rear of the vehicle. The vehicle can be equipped with a snow shovel, sweeping brushes, sprinkling forward and then sprinkling, so that the vehicle can be used for multiple purposes.
| Vehicle technical parameters | |||
| Vehicle name : | Qingling Isuzu vacuum truck | Brand name: | Cheng Liwei |
| Vehicle model : | HCQ5070TXCQL5 | Catalog number : | ( 17 ) 57 |
| Total quality | 7200 (Kg) | Volume : | 5m 3 |
| Rated contained mass | 2190 (Kg) | Curb quality | 4880 (Kg) |
| Dimensions | 6190 × 1990 × 2590 (mm) | Cargo compartment size | ×× (mm) |
| Rated passenger | ( Person ) | Total mass of quasi-trailer | (kg) |
| Cab : | Front passengers : | 2 ( person ) | |
| Anti-lock brake system : | Have | Load utilization factor | |
| Approach angle / departure angle : | 24/13 ( ° ) | Front suspension / rear suspension : | 1015/1815 (mm) |
| Number of axes : | 2 | Wheelbase : | 3360 (mm) |
| Axle load : | 2580/4720 | Maximum speed : | 110 (km / h) |
| other | The car is a private job mining vehicles mine field , mainly for oil suction mines mining operations . Vehicle ground clearance on both sides of the housing 520. mm , instead of the side guard , the protective material is made of Q235; Connection : welded connection ; The section size of the rear guard is : 100 × 50 (mm), the height of the rear guard from the ground is : 520 (mm) . | ||
| Chassis technical parameters | |||
| Chassis model | QL1070A5HAY | Chassis enterprise : | Qingling Motors Co., Ltd. |
| Number of tires | 6 | Number of springs : | 8/6 + 5 |
| Tire specifications : | 7.00R16 14PR | Transmission type : | |
| Front track : | 1504 | Rear track : | 1425 |
| Chassis emission standards : | GB17691-2005 National V , GB3847-2005 | ||
| Fuel type : | Diesel | Fuel consumption : | |
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| 4KH1CN5HS | Qingling Isuzu ( Chongqing ) Engine Co., Ltd. | 2999 | 96 |

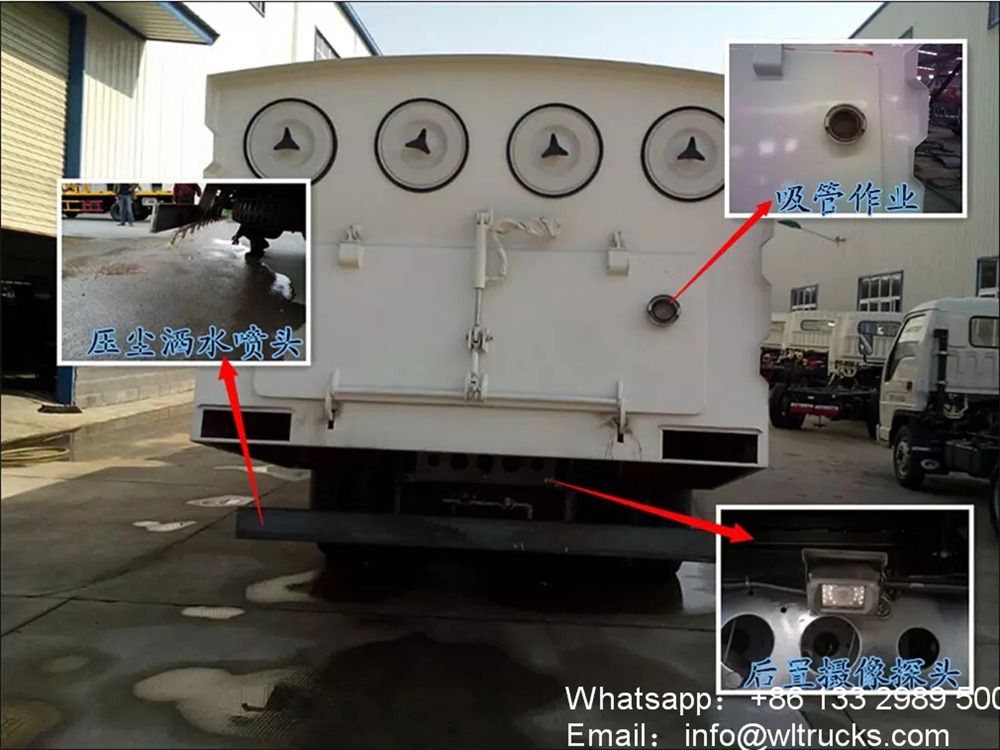

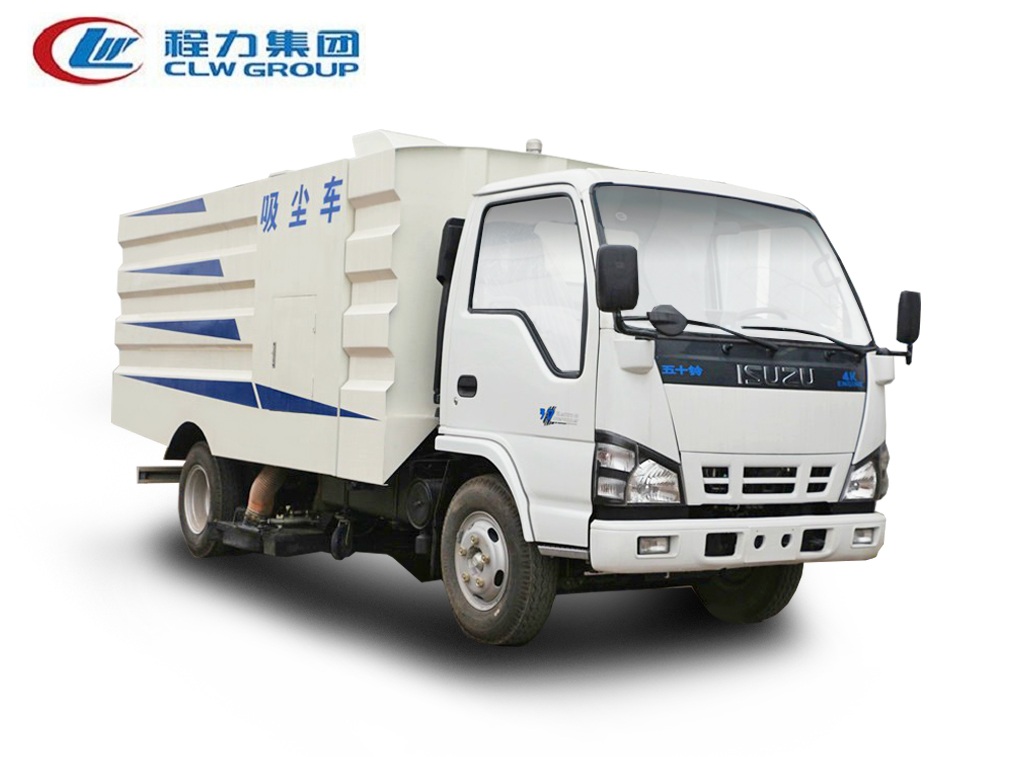

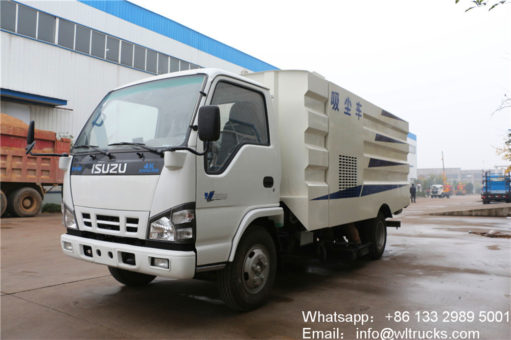

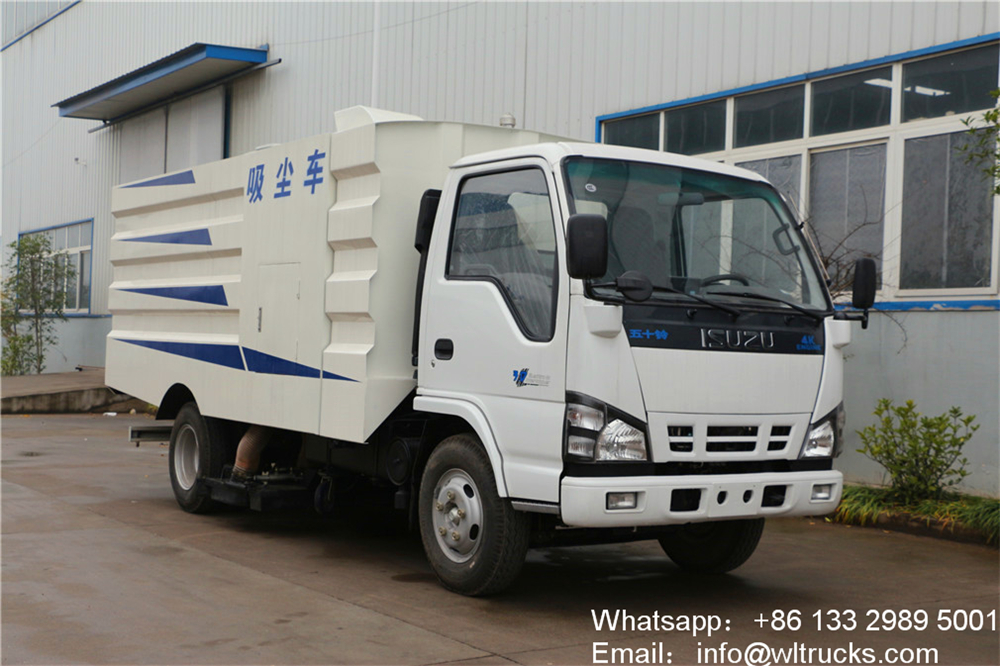

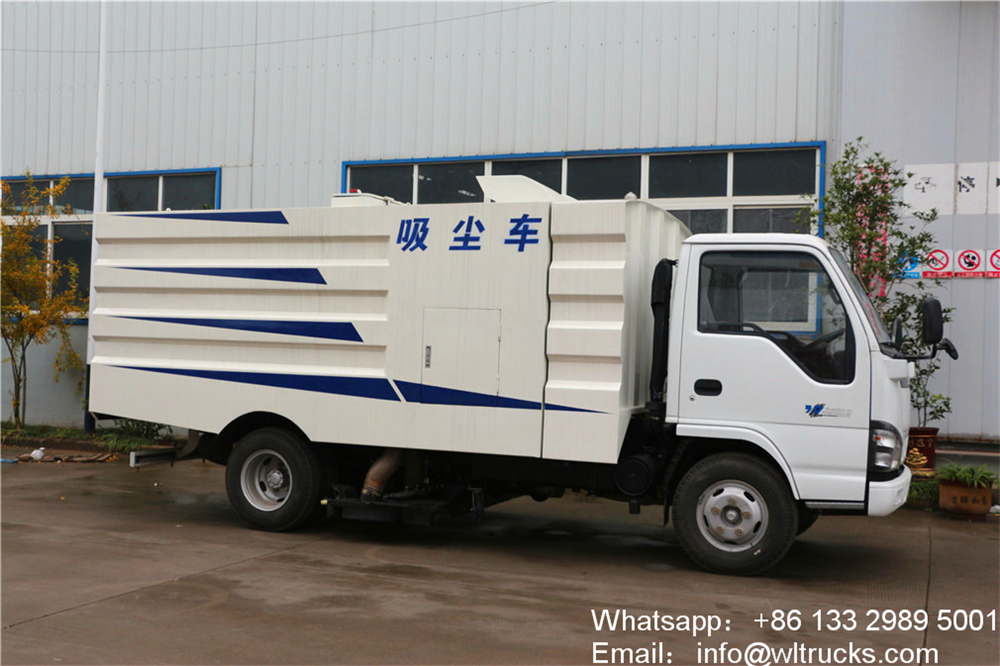

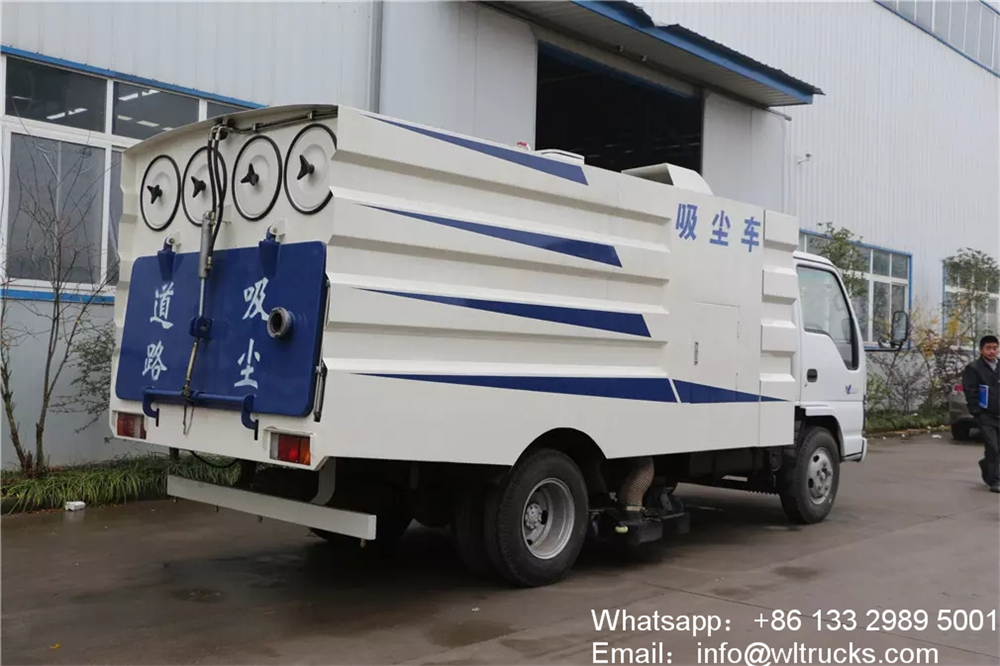

ISUZU 600P 7m3 vacuum truck detailed image
Applicable places for vacuum cleaners
