ISUZU 700P 10m3 12m3 14m3 Garbage compactor truckProduct Description:
ISUZU 700P 10m3 12m3 14m3 Garbage compactor truck, with a volume of 8-14m3; wheelbase 3800-5200mm, equipped with Isuzu 190-horsepower engine 4HK1-TC51, equipped with Isuzu MLD 6-speed transmission, with heating and cooling air conditioning, 4 tons front axle, 7 tons rear axle, 10.00 20 tires, USB interface retractor, with direction assist, central control lock, power window, frame cross section: 216 * 70 * 6 + 3mm, air brake, and the cab can be turned over.
ISUZU 700P 10m3 12m3 14m3 Garbage compactor truck Specifications:
| Chassis parameters | |||||
| Chassis model | QL11009MARY | Chassis brand | ISUZU | ||
| Overall dimensions | 7930*2170*2330mm | Wheel base | 4475mm | ||
|
Front/rear wheel track |
1680/1650mm | Front/rear suspension | 1110/2345mm | ||
| Approach/departure angle | 21/11° | Maximum speed | 110km/h | ||
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | ||||
| Cab | Configuration | 700P,single row cab,allowable 3 passengers,air conditioner, USB radio interface,cab can be flipped. | |||
| Color | White,other color is optional | ||||
| Engine | Model | 4HK1-TCG40 | |||
| Emission | Euro 4 | ||||
| Type | 4 cylinders,4 valve,4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine. | ||||
| Rated power | 190hp | ||||
| Displacement | 5193ml | ||||
| Tire | Size | 8.25-20-14PR nylon tire | |||
| Number | 6+1 nos | ||||
| Frame | 216*70(6+3)mm | ||||
| Front axle | 4.0tons | ||||
| Rear axle | 7.0 tons | ||||
| Drive form | 4*2 | ||||
| Suspension | Multi leaf springs | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | Isuzu MLD six speed transmission,6 speed forward 1 reverse. | ||||
ISUZU 700P 10m3 12m3 14m3 Garbage compactor truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
ISUZU 700P 10m3 12m3 14m3 Garbage compactor truck New craft:

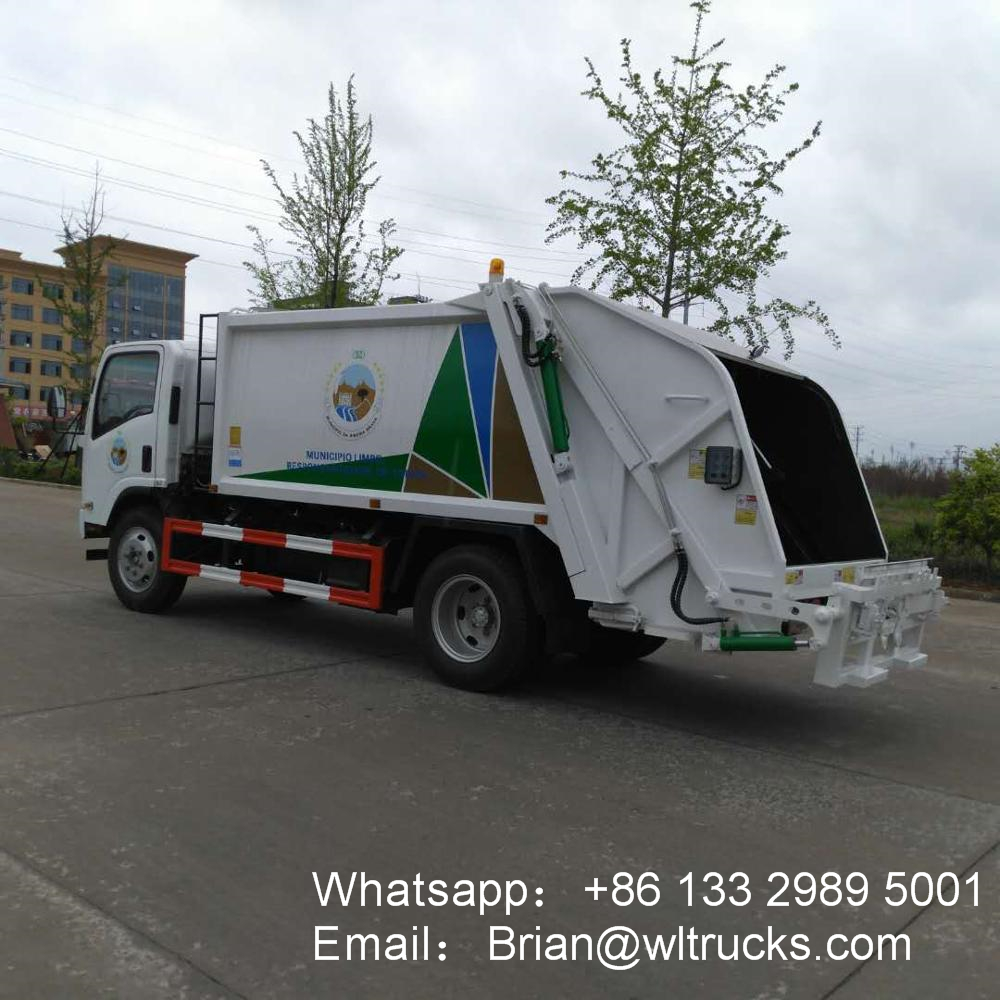

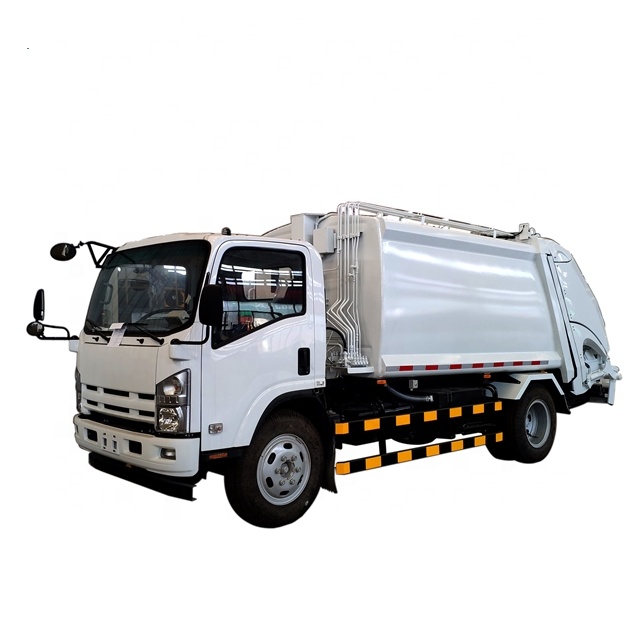

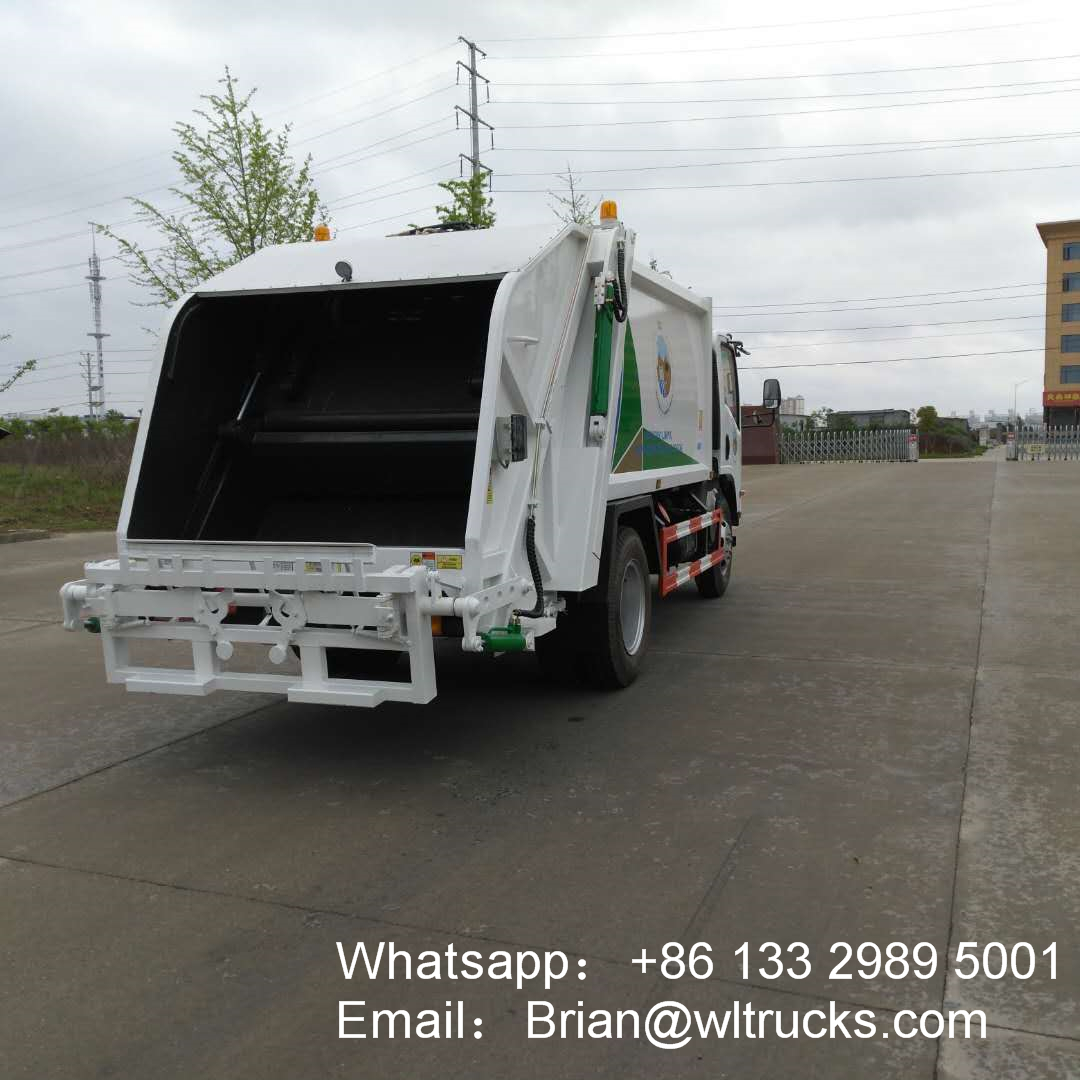

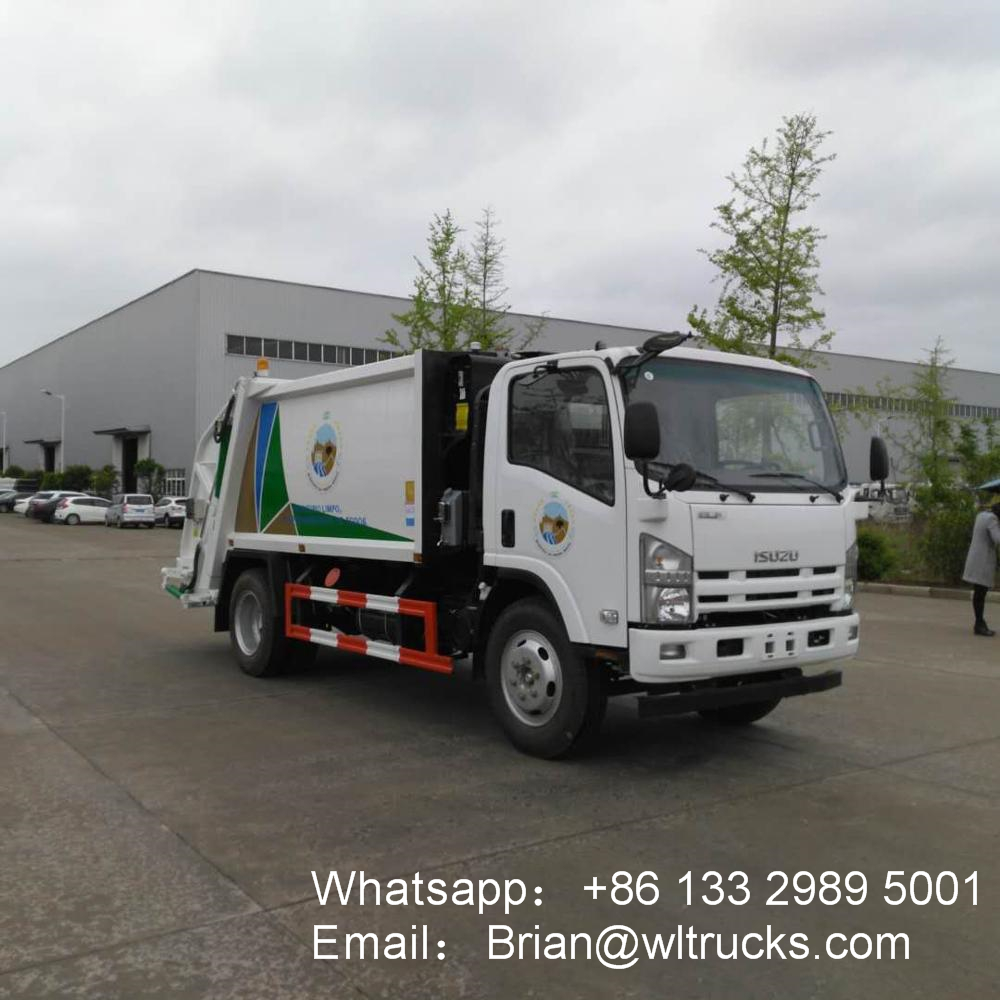

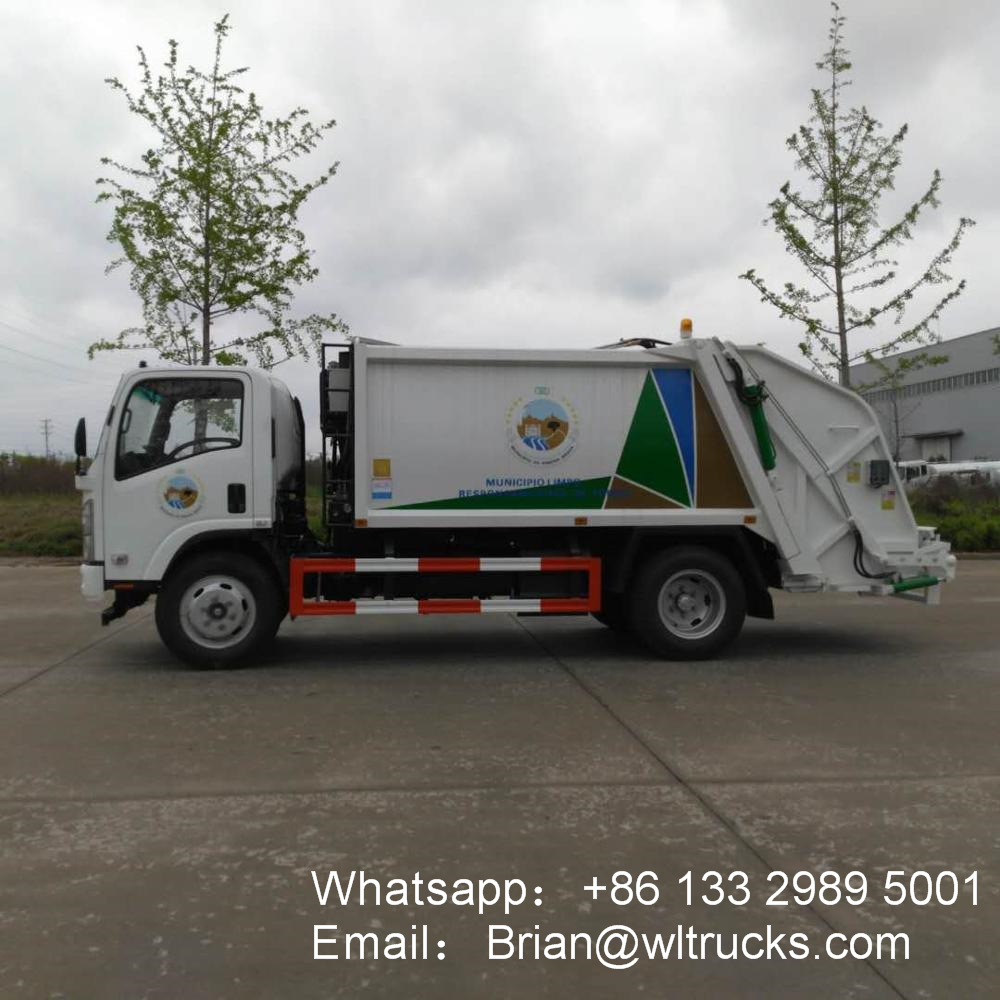

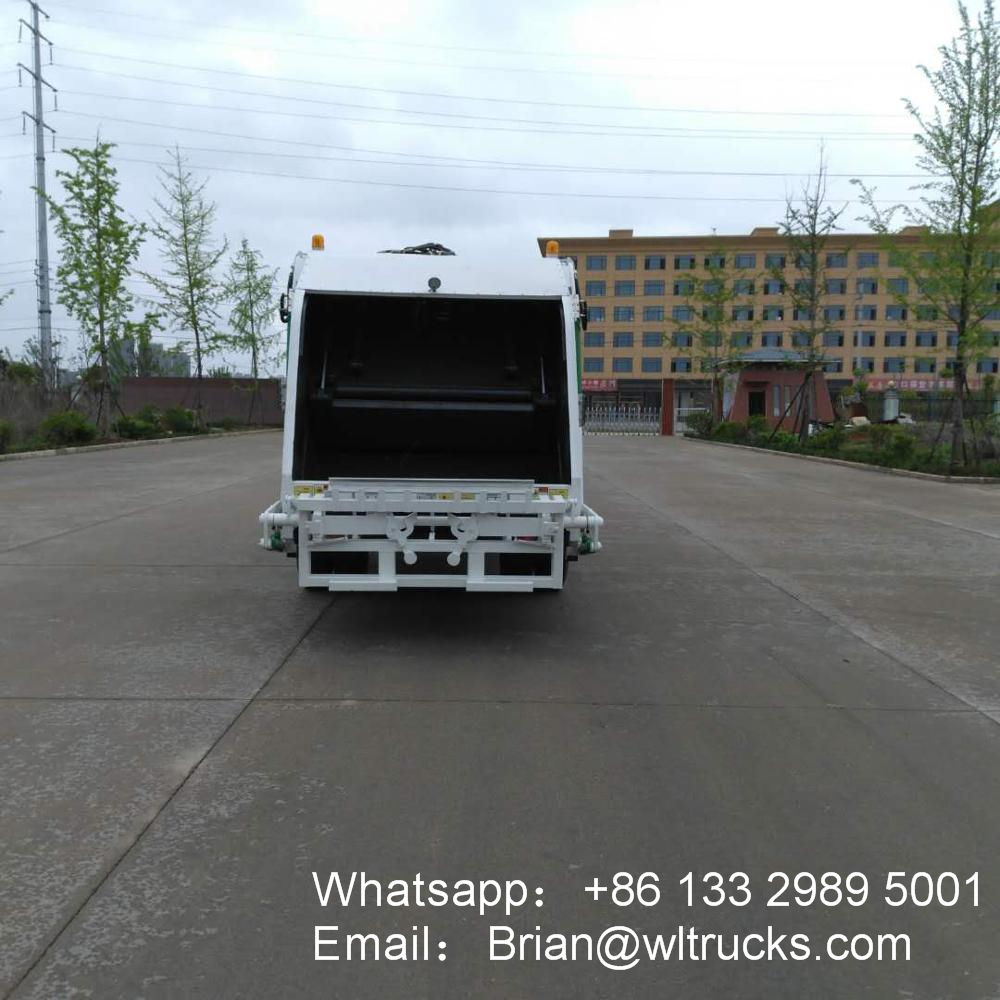

ISUZU 700P 10m3 12m3 14m3 Garbage compactor truck Detailed Images:
ISUZU 700P 10m3 12m3 14m3 Garbage compactor truck Structure diagram：
ISUZU 700P 10m3 12m3 14m3 Garbage compactor truck Detail drawing:
Customizable garbage truck models
