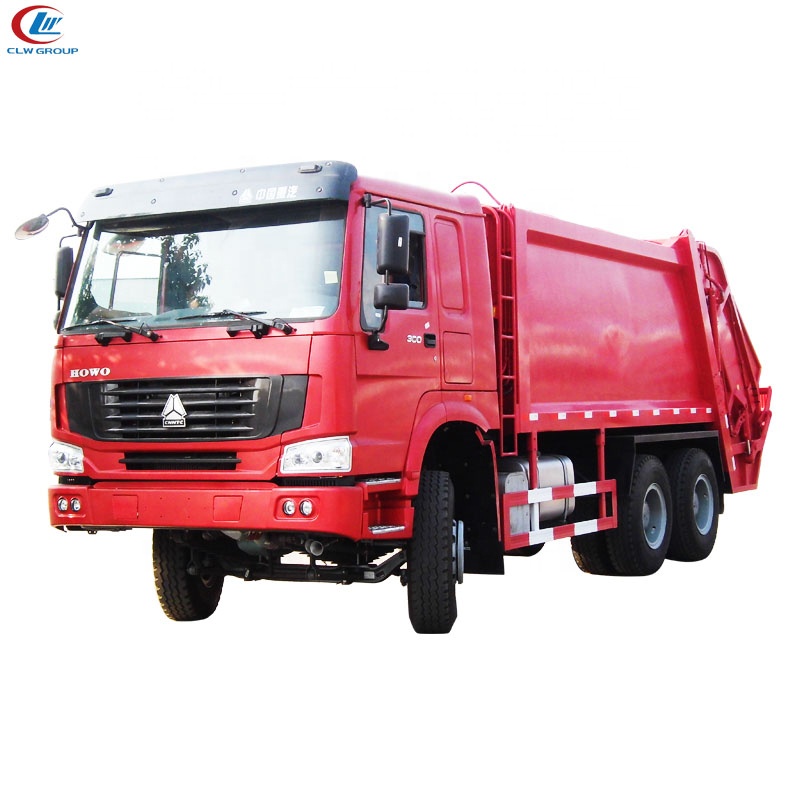

10 wheel HOWO 16ton to 18tons garbage compactor truck Product Description:
10 wheel HOWO 16ton to 18tons garbage compactor truck Chassis configuration: Sinotruk Howo heavy truck white cab, 6 * 4 rear dual-axle drive, Sinotruk 336 horsepower engine, 10-speed gearbox, power steering, air brake, 1000R20 steel tire with spare tire.
10 wheel HOWO 16ton to 18tons garbage compactor truck Bodywork configuration: Compressed volume 16-20m3, made of T420 special steel plate integrally bent, equipped with Xiamen Yinhua hydraulic cylinder oil leakage replacement, double pump confluence + double valve control, Zhongmei multi-way valve, Siemens PLC control, electro-optical switch, 2 sewage collection boxes, 3 operation control boxes, with night lighting, equipped with two-way compression function, the two-way hydraulic lock does not leak water.
Optional configuration: optional bucket rack, triangle bucket, fully sealed bucket, swing arm device.
10 wheel HOWO 16ton to 18tons garbage compactor truck Specifications:
|
Model |
10 wheel HOWO 16ton to 18tons garbage compactor truck |
||||
|
Driving Model |
6×4 |
||||
|
Vehicle Main Dimensions |
(L x W x H)mm |
10300*2500*3410 |
|||
|
Wheel base (mm) |
4500+1350 |
||||
|
Wheel track (front/rear) (mm) |
1205/2595 |
||||
|
Approach/Departure angle(°) |
16/10 |
||||
|
Weight in KGS |
G.V.W. |
25000 |
|||
|
Curb Weight |
15000 |
||||
|
Max. driving speed(km/h) |
80 |
||||
|
Engine |
Brand |
Sinotruk | |||
|
Model |
336hp 370hp |
||||
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||||
|
Horse Power |
336(HP) |
||||
|
Emission standard |
Euro Ⅲ |
||||
|
Displacement |
5.9L |
||||
|
Max. Output Power |
247kw |
||||
|
Gearbox |
10 forwards |
||||
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
||||
|
Tire |
10.00R20 |
||||
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||||
|
Steering Gear |
power steering, hydraulic steering with power assistance |
||||
|
Garbage Truck Body |
|||||
|
Volume(M3) |
5CBM 6CBM 7CBM 8CBM 9CBM 10CBM 11CBM 12CBM 13CBM 15CBM 18CBM 20CBM |
||||
|
Material |
Q235/Q345/610L/Q700 carbon steel, stainless steel, alloy steeel |
||||
|
Equipment |
Hermetic dustbin, hydraulic system and operating system |
||||
|
Thickness |
4mm 6mm 8mm 10mm |
||||
|
Uploding cycling time |
<60s |
||||
|
Loading cycling time |
≤30s |
||||
|
Lifting capacity of turnover machanism |
≥800KG |
||||
10 wheel HOWO 16ton to 18tons garbage compactor truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
10 wheel HOWO 16ton to 18tons garbage compactor truck New craft:

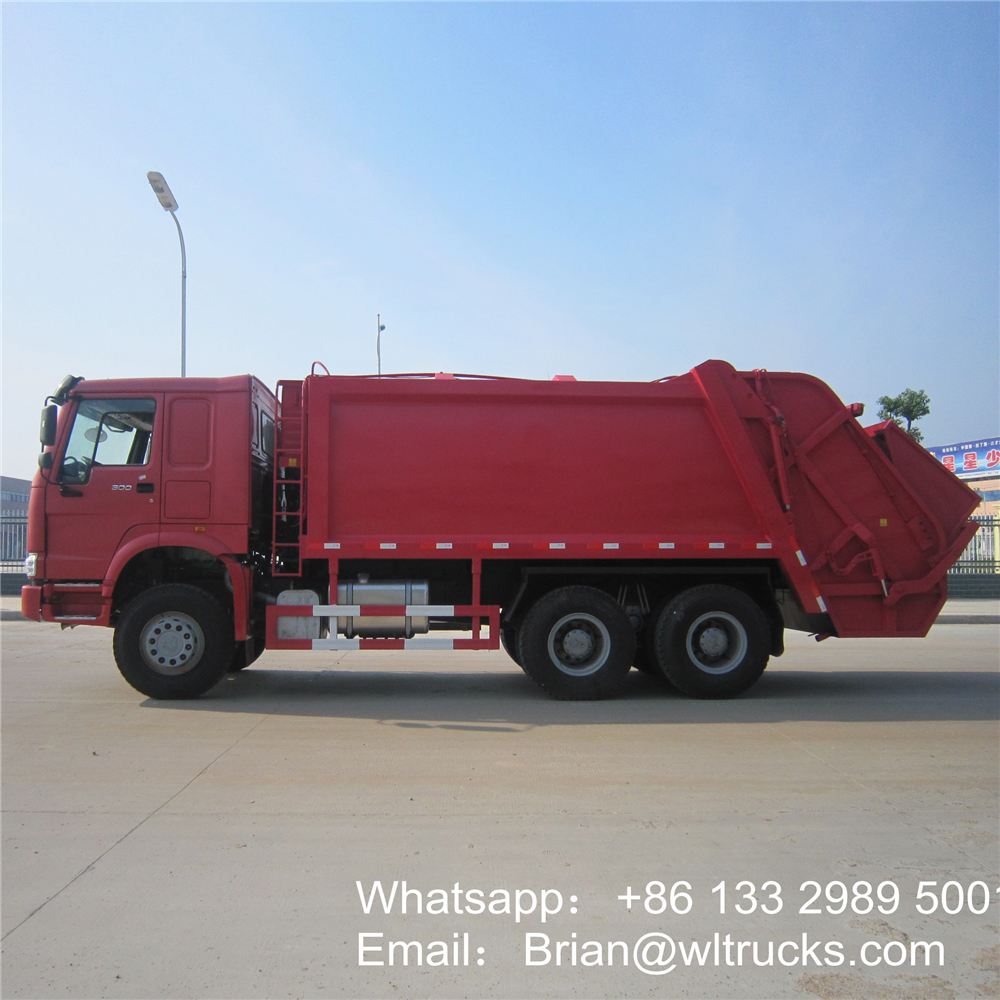

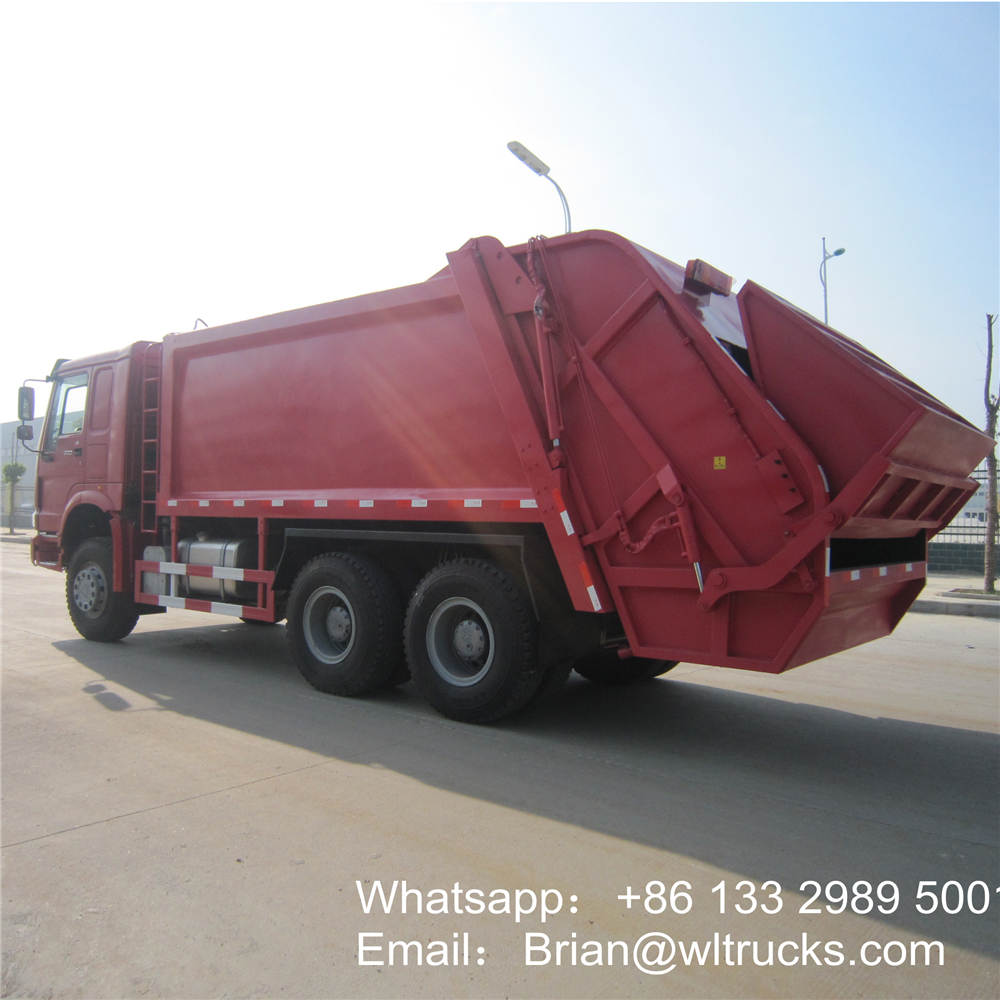

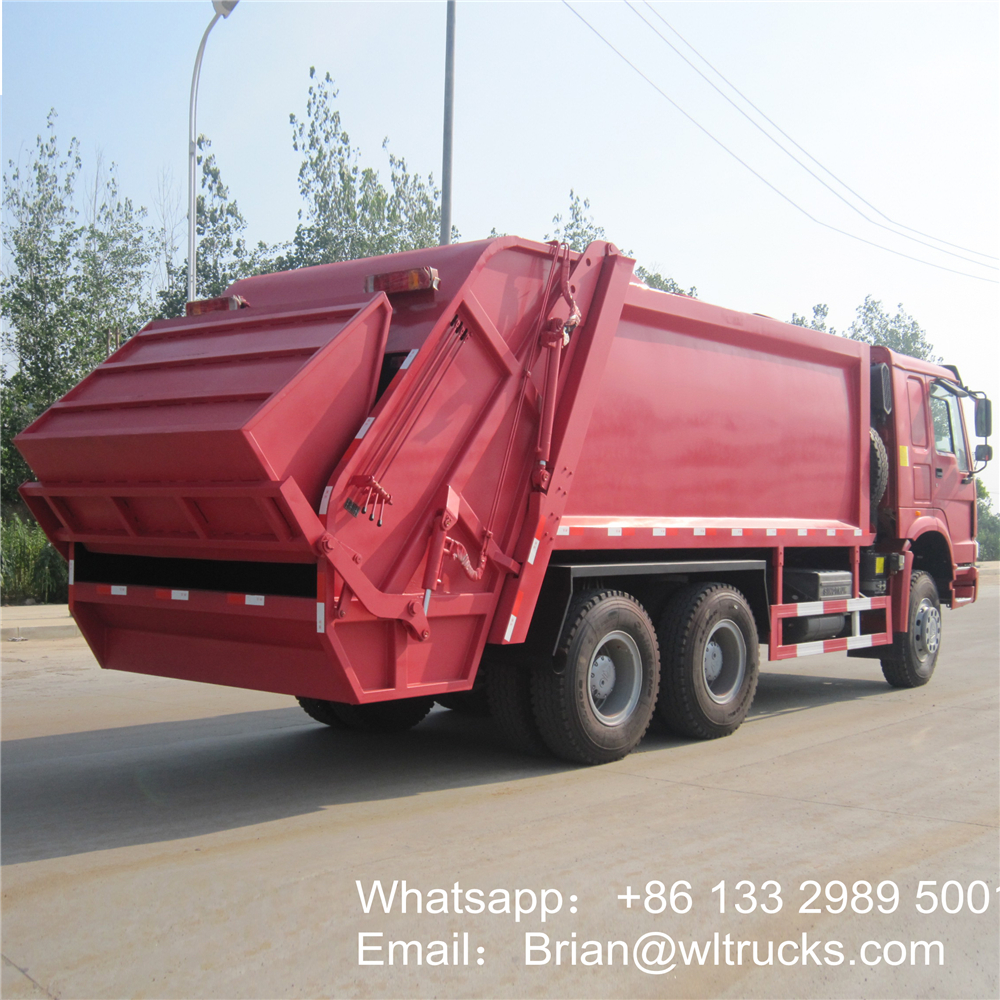

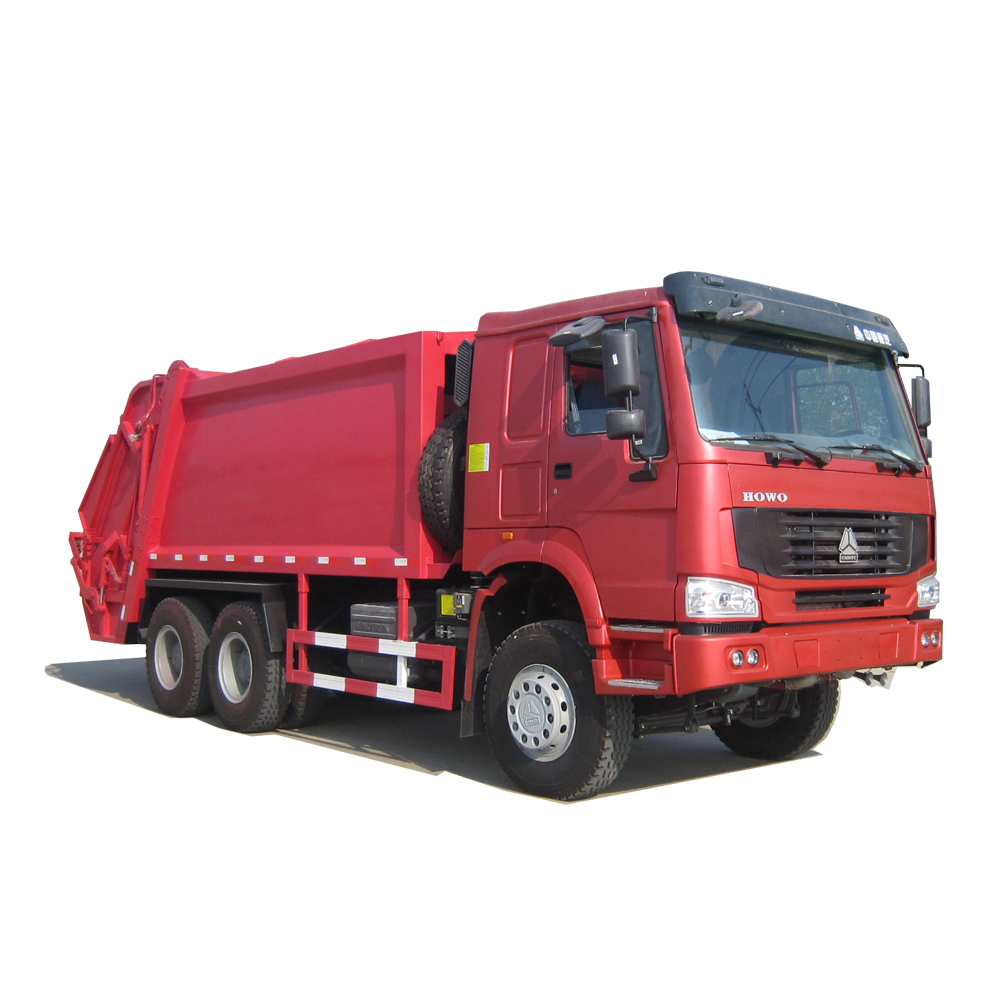

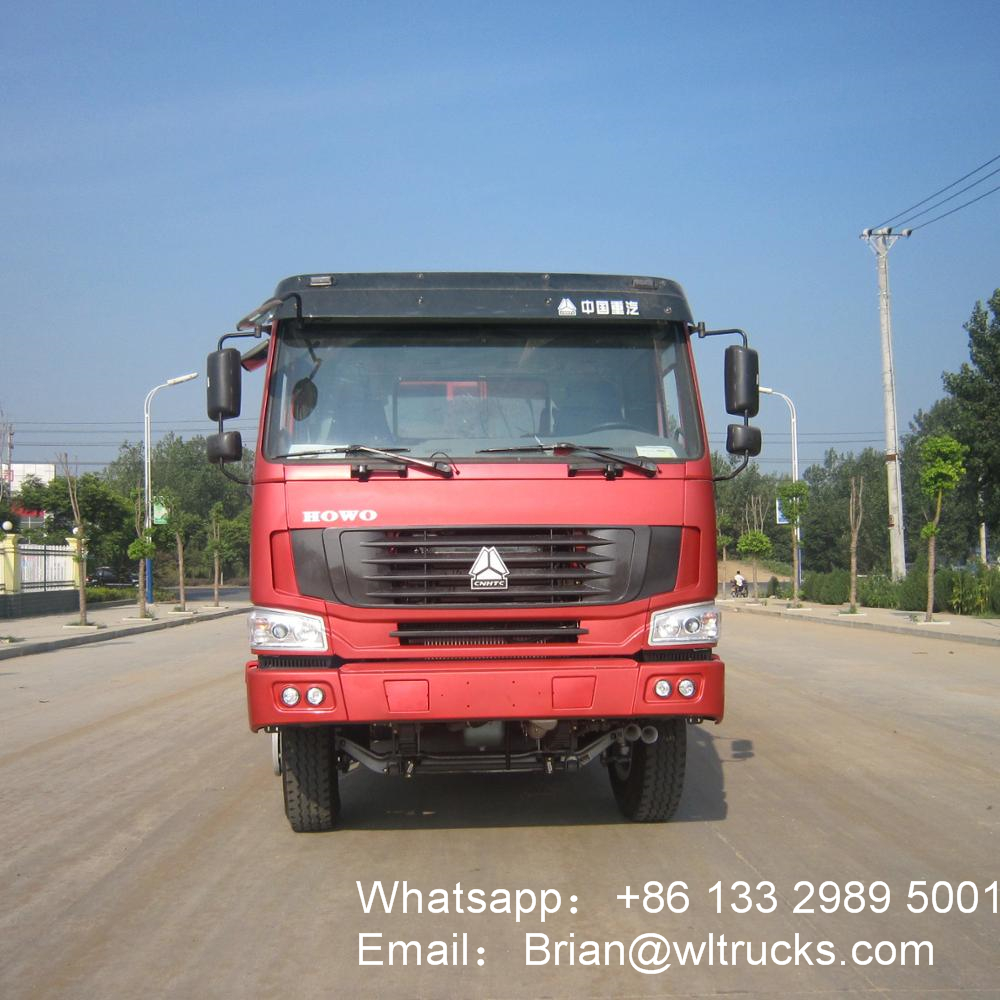

10 wheel HOWO 16ton to 18tons garbage compactor truck Detailed Images:
10 wheel HOWO 16ton to 18tons garbage compactor truck Structure diagram：
10 wheel HOWO 16ton to 18tons garbage compactor truck Detail drawing:
Customizable garbage truck models
