JMC 5m3 garbage compactor truck Product Description:
JMC 5m3 garbage compactor truck adopts Jiangxi Isuzu 80 horsepower high performance diesel engine, Euro III emission standard, strong power, fuel saving and high efficiency, equipped with 5 speed manual transmission, high transmission efficiency.
JMC 5m3 garbage compactor truck is composed of hydraulic mechanism composed of car body, loading mechanism, compression mechanism, discharge mechanism, oil pump, oil cylinder, control valve and so on. The car body material is high-quality carbon steel, thickness (unit: mm): 4 sides 4 bottom, car body volume: 6m³, the charging mechanism is composed of bracket, connecting rod mechanism, cam, hook and so on. Under the action of the oil cylinder, the trash in the trash can is automatically turned over and poured into the hopper.
JMC 5m3 garbage compactor truck Specifications:
| General Technical Parameters | |||
| Overall Dimension | 5995*2200*2600(mm) | ||
| Gross Vehicle Weight | 5880(Kg) | ||
| Curb Weight | 3080(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | JMC | ||
| Drive model | 4*2 | ||
| Cabin | Single Row, LHD, with air condition, audio system, and USB, etc. | ||
| Number of Passengers | 2 | ||
| Engine | Model | Isuzu 116HP, 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, withABS. | |
| Power | 85KW/116HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 3550(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5Forwards & 1Reverse, manual operation, with power steering. | ||
| Brake System | Oil break | ||
| Wheel Base | 3360mm | ||
| Front/Rear Axle Loading | 2000/3500(Kg) | ||
| Approach/Departure Angle | 24/12° | ||
| Tire | 7.00R16, 6pc with 1 spare tire | ||
| Max Driving Speed | 98(km/h) | ||
| Upperstructure Specification | ||
| Compector Box | Box Volume | 5CBM |
| Box Capacity | 3Ton | |
| Dirty Water Tank Volume | 0.2CBM | |
| Hopper Volume | 0.8CBM | |
| Compression density | 0.8-0.9T/CBM | |
| Compression ratio | 3-4 | |
| Compression cycle time | ≤15 s | |
| Unload garbage time | ≤23 s | |
| Body Thickness | Side | 3mm, Carbon Steel-Q345A |
| Bottom | 4mm, Carbon Steel-Q345A | |
| The Electromagnetic Valve | UZCT-115/24V, 2sets | |
| Hydraulic Pressure | 16Mpa | |
| Controlling Way | Manual and electrical control | |
| Other Configuration |
|
|
| Options | Tail feed flip frame or flip bucket, PLC one-button control system, etc. | |

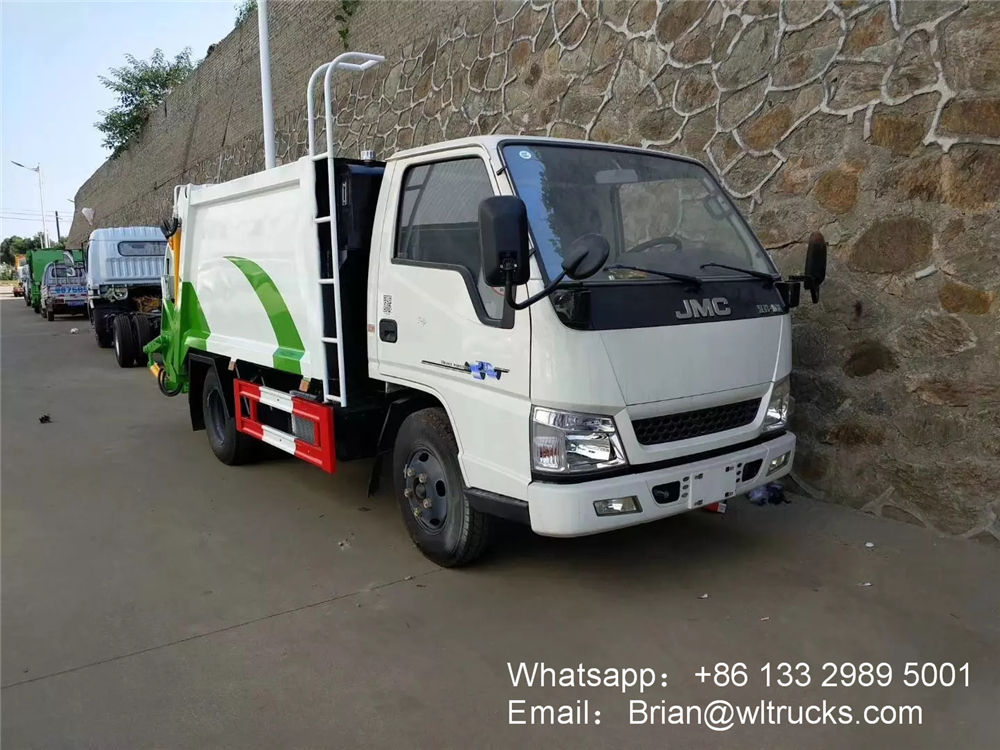

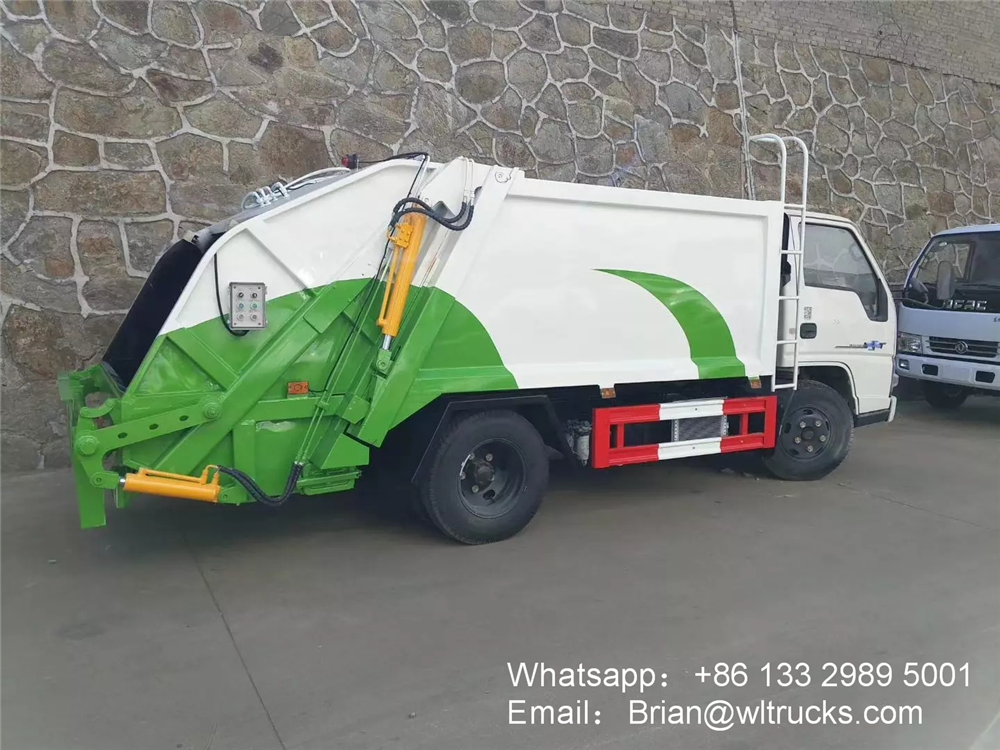

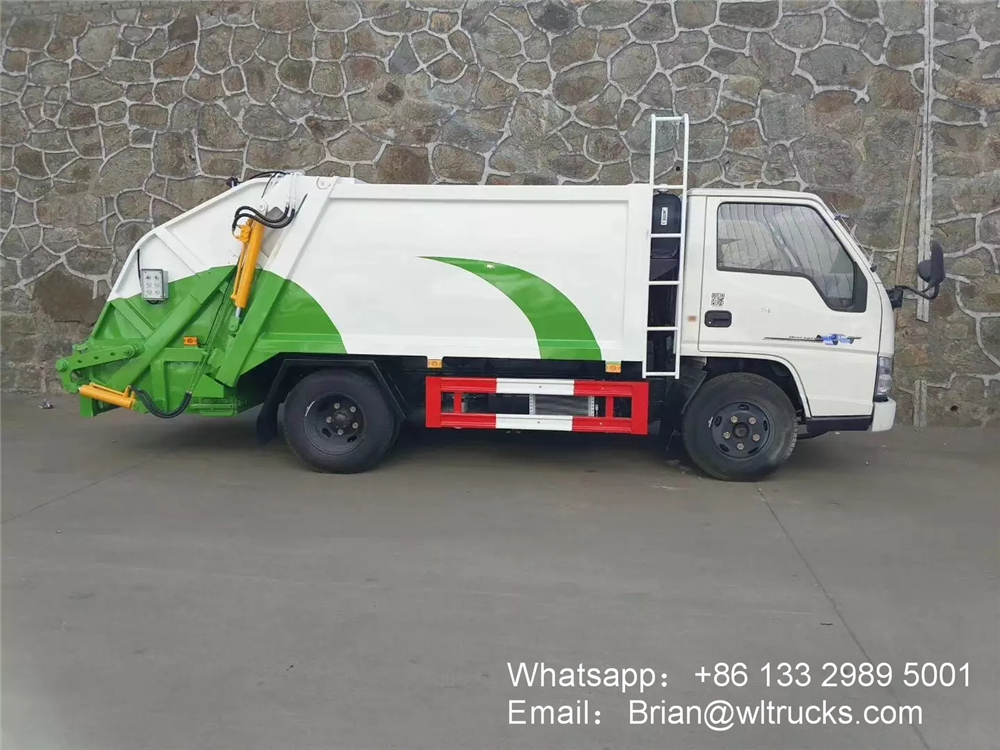

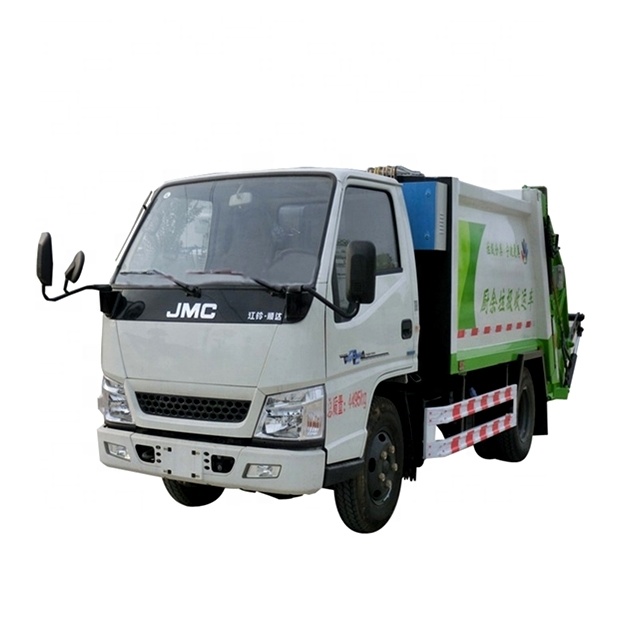

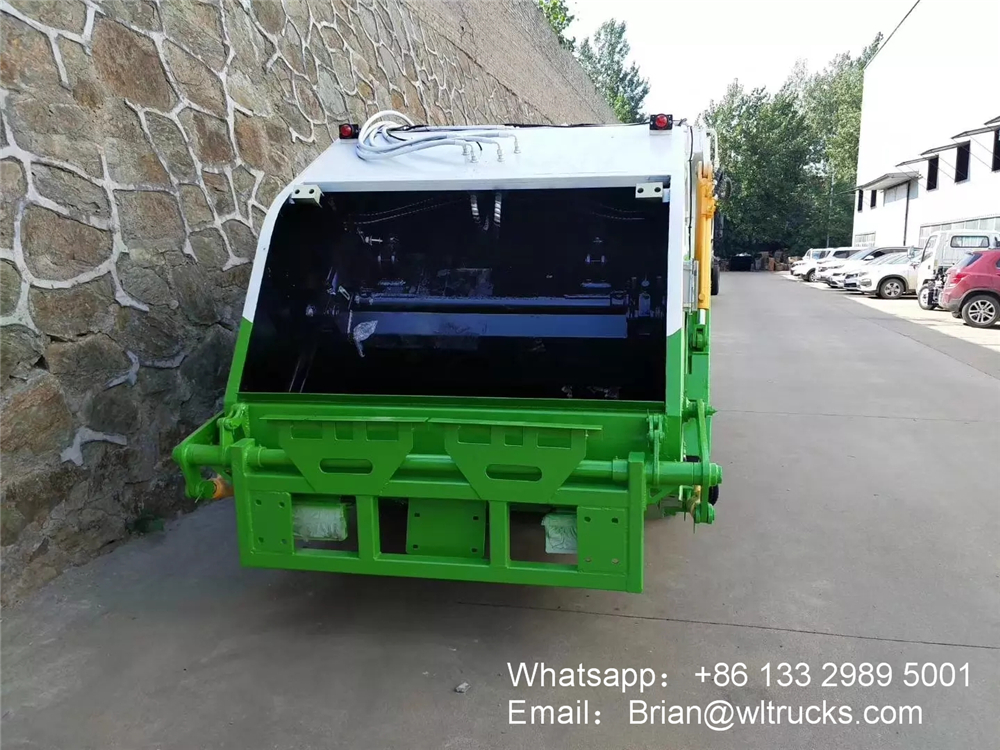

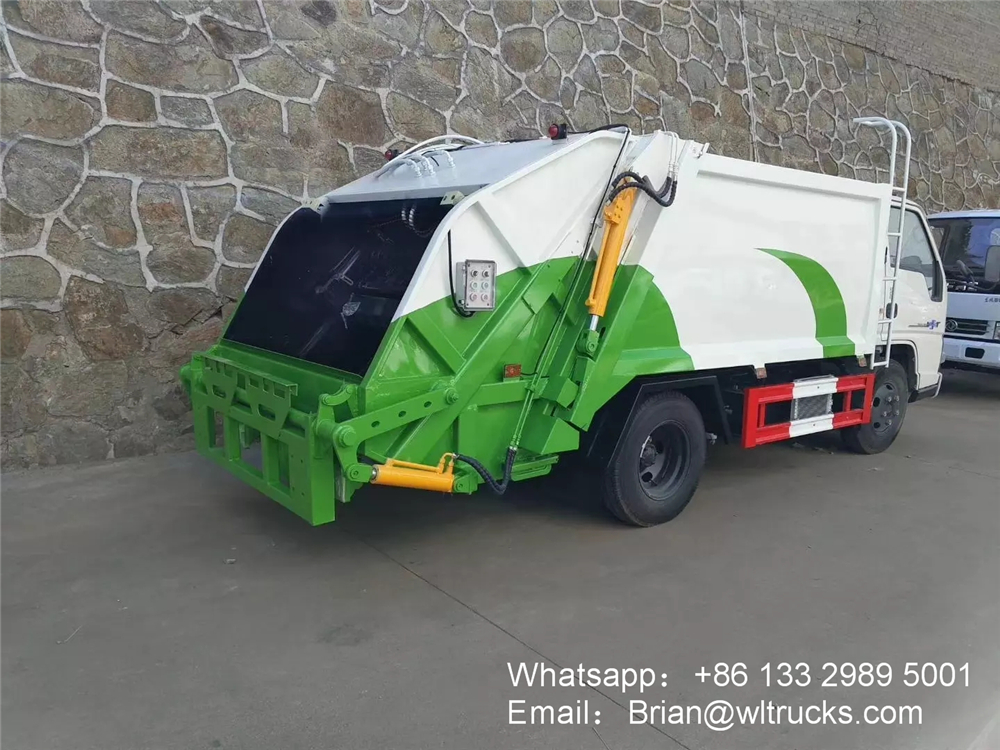

JMC 5m3 garbage compactor truck Detailed Images:
JMC 5m3 garbage compactor truck Structure diagram：
JMC 5m3 garbage compactor truck Detail drawing:
Customizable garbage truck models
