Foton 5 cubic meters compactor garbage truck Product Description:
Foton 5 cubic meters compactor garbage truck Chassis configuration: Futian original chassis with a wheelbase of 3.3 meters, a white cab of Star of the Times, 95-horsepower diesel engine, 5-speed gearbox, power steering, oil brake, 650-16 tires with spare tires.
Foton 5 cubic meters compactor garbage truck Bodywork configuration: Compressed volume of 5 cubic meters, made by T420 special steel plate integral bending, equipped with Xiamen Yinhua hydraulic cylinder oil leakage replacement, Changyuan 40 hydraulic pump, Zhongmei multi-way valve, Siemens PLC control, electro-optical switch, 2 sewage Collection box, 3 operation control boxes, with night light, equipped with two-way compression function, the two-way hydraulic lock does not leak water. Optional bucket rack, triangle bucket, fully sealed bucket, swing arm device.
Foton 5 cubic meters compactor garbage truck Specifications:
|
product name
|
Foton 5 ton compressed garbage truck
|
Chassis model
|
CLW5135GSSD3
|
|
Actual volume ( cubic )
|
3
|
Total mass (kg)
|
5495
|
|
Engine horsepower
|
95PS
|
Rated load mass (Kg)
|
165
|
|
Engine name
|
xichai
|
Emission Standards
|
Euro III
|
|
Dimensions (MM)
|
6250×2150×2400
|
Fuel type
|
Diesel
|
|
Number of tires
|
6
|
Tire specifications
|
700-16 |
|
Wheelbase (MM)
|
2800
|
Maximum speed (km/h)
|
95
|
|
Front track
|
1495
|
Rear track
|
1490
|
|
Performance profile
|
Compressed Garbage Truck Adopts Electromechanical and Hydraulic Integration Technology. With The Combined Automatic Control System of Machine, Electricity and Liquid, Computer Control and Manual Operation System, IT CAN the Realize The dumping, Crushing or pressing of Garbage through Special Devices SUCH AS Filler and Pusher The compressed garbage truck has the functions of automatic repeated compression and Peristaltic Compression, high compression ratio, good sealing performance, large load capacity, convenient operation, good environmental protection, and high power utilization of the whole vehicle. | ||
|
Dedicated configuration
|
New non-ribbed box body, flat arc with beautiful appearance, effective compression volume of 5 cubic meters, tail with reverse feeding mechanism, electronically controlled manual dual control system, double control box for cab and tail, tail belt 3 After the centimeter , the rubber sealing bead has a sewage collection tank, a large-capacity sewage tank, and the cabinet can be printed with patterns and words as required.
|
||
|
Compression ratio
|
3-4 times
|
Compression density
|
0.8-0.9T/M3
|
|
Trash bin volume
|
5 cubic
|
Filling time
|
≤15 seconds
|
|
Lift cycle
|
≤15 seconds
|
Discharge time
|
≤23 seconds
|
|
engine
|
Chaochai 102/Yuchai 115 hp
|
Compression method
|
Bidirectional compression
|
|
Optional configuration
|
Flip bucket, hanging bucket rack, PLC automatic control
|
||
Foton 5 cubic meters compactor garbage truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
Foton 5 cubic meters compactor garbage truck New craft:

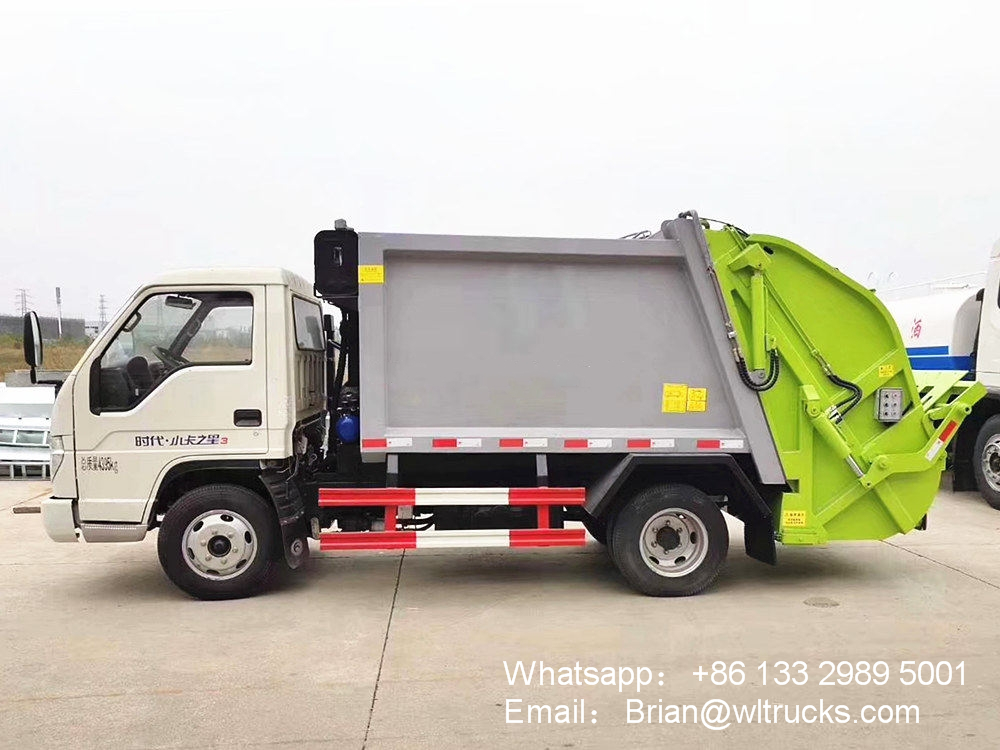

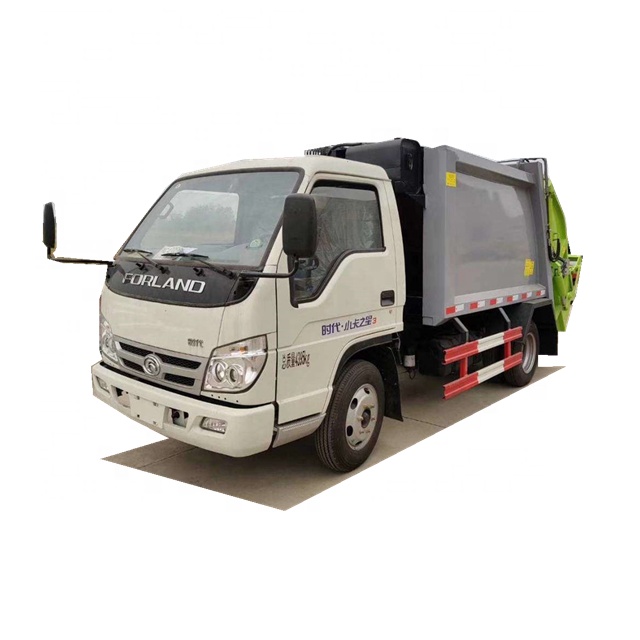

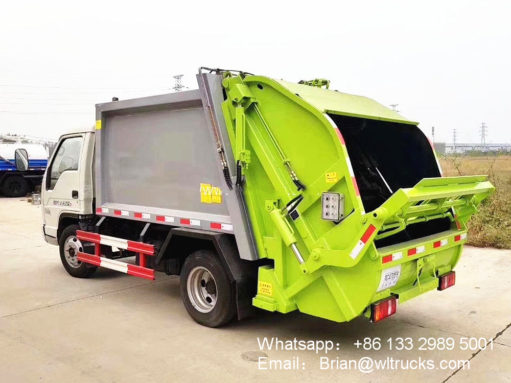

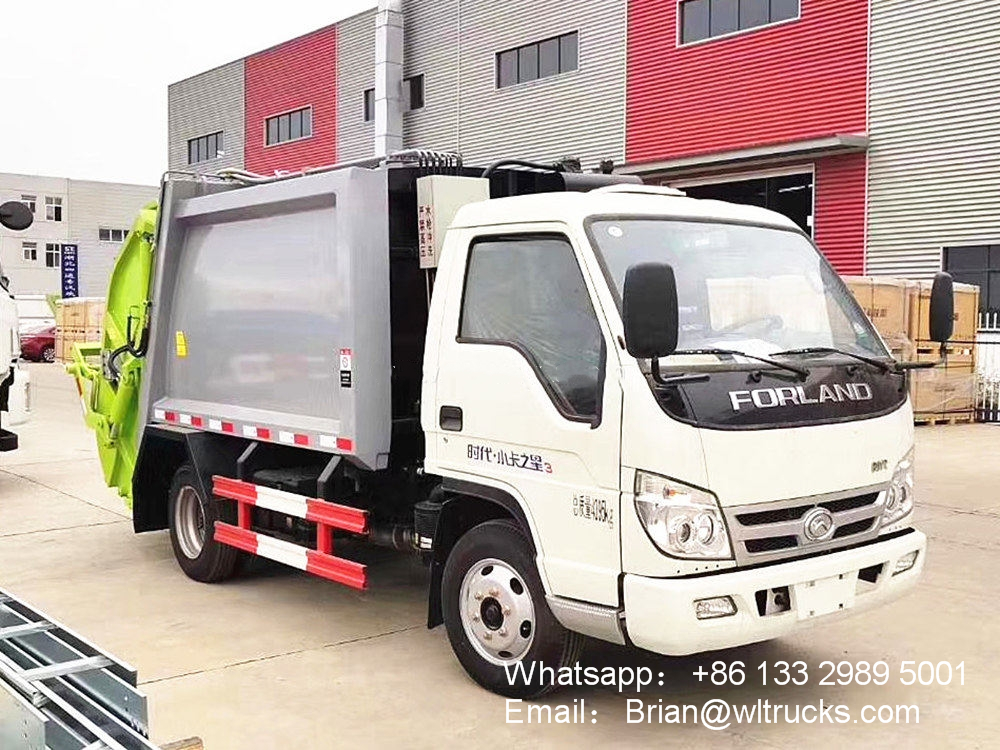

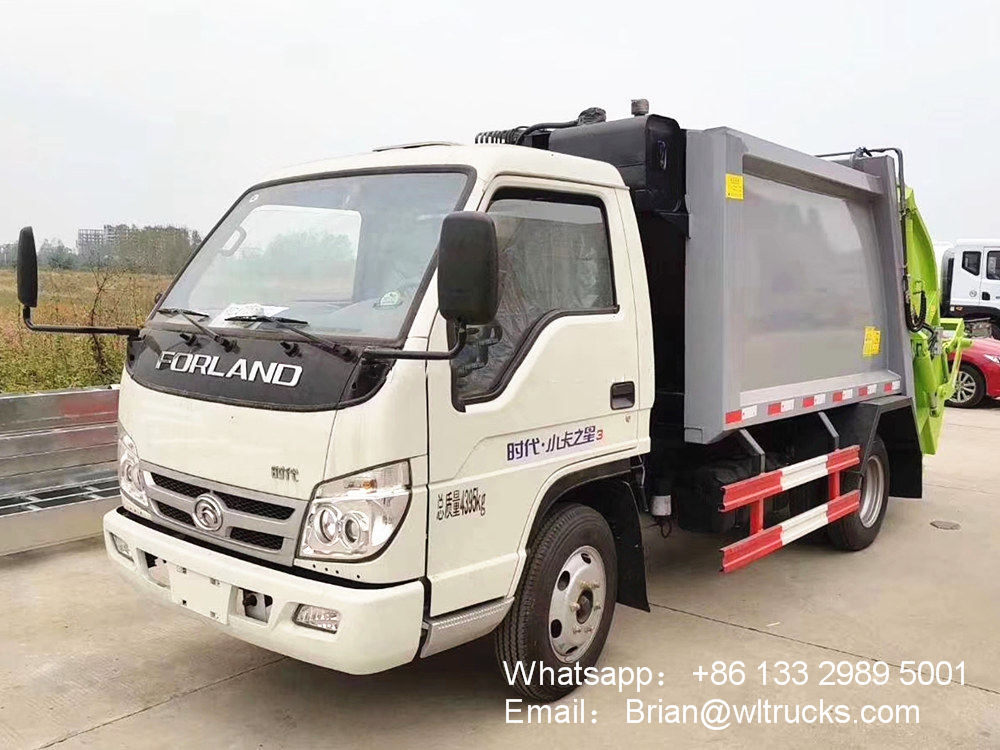

Foton 5 cubic meters compactor garbage truck Detailed Images:
Foton 5 cubic meters compactor garbage truck Structure diagram：
Foton 5 cubic meters compactor garbage truck Detail drawing:
