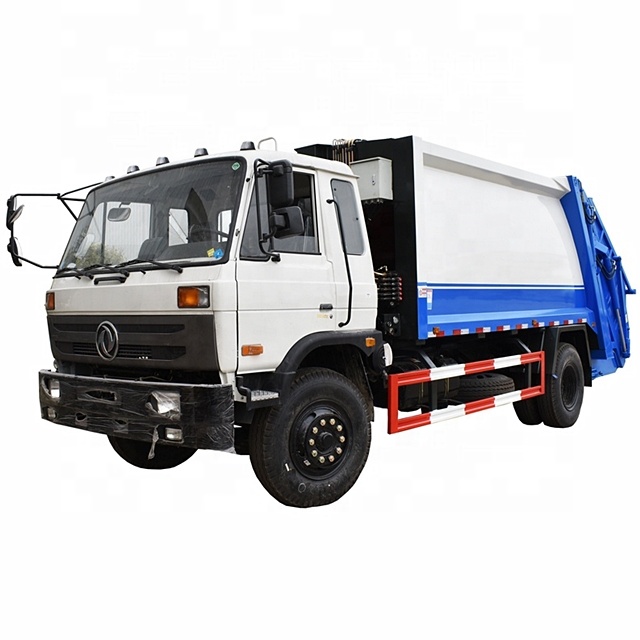

Dongfeng 10cbm to 14cbm Garbage compactor truck Product Description:
Dongfeng 10cbm to 14cbm Garbage compactor truck Chassis configuration: original Dongfeng chassis, 145 reversible cab, engine optional Yuchai 130 horsepower, Cummins 170 horsepower, Cummins 190 horsepower, Euro III emissions, wheelbase 3950mm, 4500mm, air brake, direction assist, 9.00 tire , Air brake.
Dongfeng 10cbm to 14cbm Garbage compactor truck Modification configuration: effective compression volume of 10-14 cubic meters, compression ratio of 3 times, the density of domestic garbage after compression from 0.36 to more than 0.9, new ribless box, flat arc and beautiful, with sewage collection box, with sealing rubber at the end The pad can prevent secondary pollution of sewage dripping.
The tail-turning and feeding mechanism is optional: garbage bin turning frame, dustpan turning, swing arm bucket turning, optional PLC one-key control system, electronically controlled manual dual controller, double control box for the cab and the rear of the car. The box can be sprayed with patterns and lettering as required.
Dongfeng 10cbm to 14cbm Garbage compactor truck Specifications:
| Dongfeng 12 to 14CBM Garbage Compactor Truck | |||||
| Overall Dimension | 8470×2490×3250 mm | Gross Vehicle Weight | 15800 kg | ||
| Curb Weight | 9460 kg | Loading Weight | 6145 kg | ||
| Wheel Base | 4600 mm | Front / Rear Axle | 4500 kg / 9000kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine | |||||
| Engine horsepower | 130HP, 170HP, 190HP,EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 6 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 9.00R20 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 14CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 – 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Dongfeng 10cbm to 14cbm Garbage compactor truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
Dongfeng 10cbm to 14cbm Garbage compactor truck New craft:

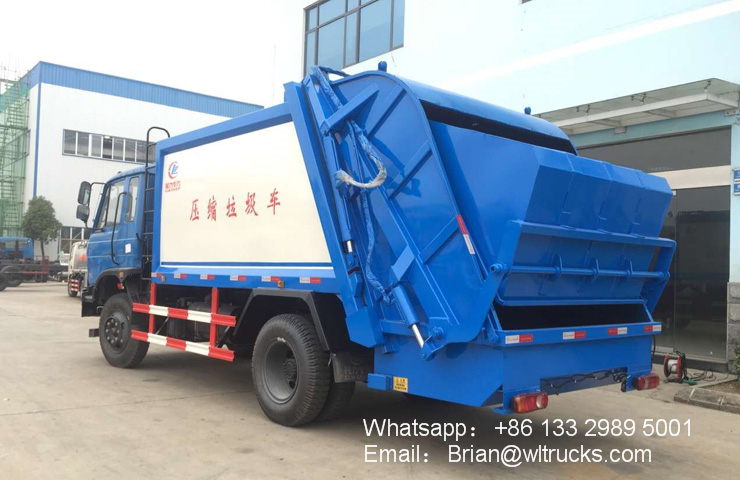

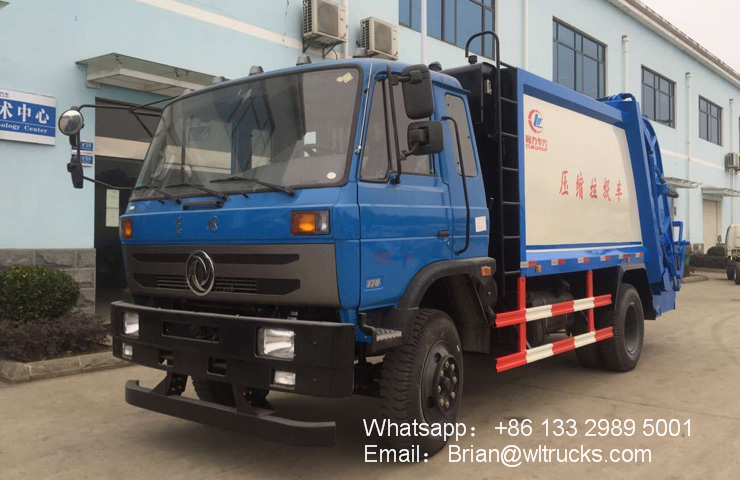

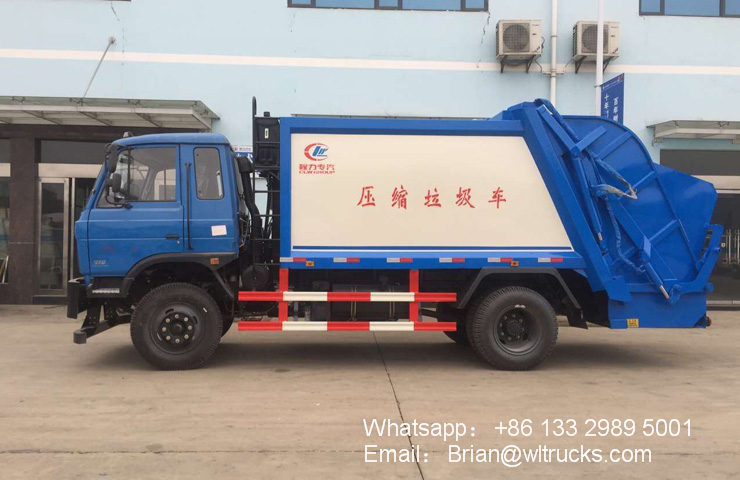

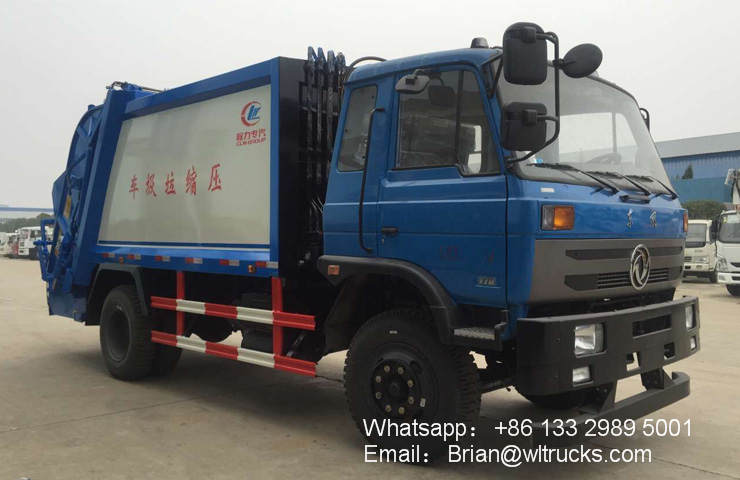

Dongfeng 10cbm to 14cbm Garbage compactor truck Detailed Images:
Dongfeng 10cbm to 14cbm Garbage compactor truck Structure diagram：
Dongfeng 10cbm to 14cbm Garbage compactor truck Detail drawing:
Customizable garbage truck models
