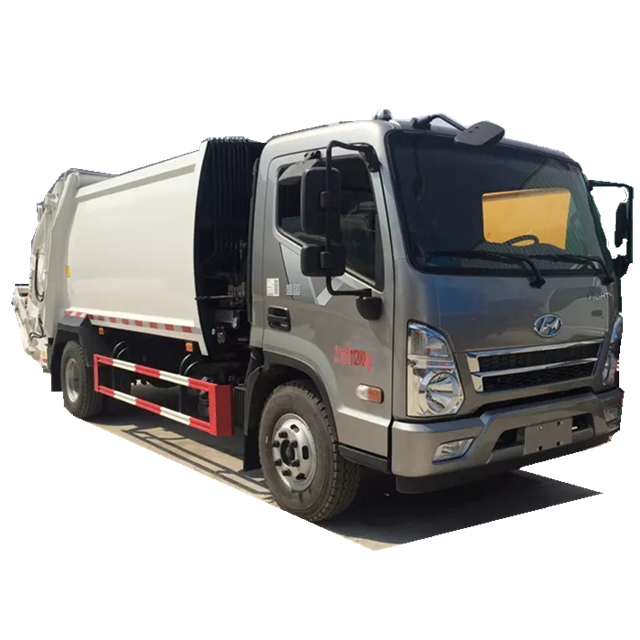

Hyundai 8cubic meters Garbage compactor truck Product Description:
Hyundai 8cubic meters Garbage compactor truck Chassis configuration: Sichuan modern chassis, wheelbase 3.85 meters, new luxury modern white cab, Foton Cummins 154 horsepower engine, 6-speed gearbox, power steering, air brake, 825R16 steel tire with spare tire, ABS.
Hyundai 8cubic meters Garbage compactor truck Bodywork configuration: Compressed volume of 8 cubic meters, made of T420 special steel plate integrally bent, equipped with Xiamen Yinhua hydraulic cylinder oil leakage replacement, Changyuan 50 hydraulic pump, Zhongmei multi-way valve, Siemens PLC control, electro-optical switch, 2 sewage Collection box, 3 operation control boxes, with night light, equipped with two-way compression function, the two-way hydraulic lock does not leak water.
Hyundai 8cubic meters Garbage compactor truck Optional configuration: optional bucket rack, triangle bucket, fully sealed bucket, swing arm device.
Hyundai 8cubic meters Garbage compactor truck Specifications:
| Specifications of CLW5120ZYSX5 Garbage Compactor Truck | |
| Model | CLW5120ZYSS5 garbage compactor truck |
| Chassis brand & Year | SHACMAN X9 |
| Wheel Drive | 4×2, LHD |
| Overall Dimension | 7200*2300*3000mm |
| Volume of Garbage box | 8CBM, 3mm side wall, 4mm floor |
| Gross Weight | 12000kg |
| Curb Weight | 6820kg |
| Rated Weight | 5~8 Tons |
| Engine | WEICHAI WPEQ130E50 130HP Euro V diesel engine |
| Wheelbase | 3800mm |
| Tires: | 6+1,7.50R16 radial tires |
| Cabin | Shacman X9 luxury cabin, 3 seats, power window, A/C |
| Transmission | Manual, 6 front gears and 1 rear gear |
| Brake | Air brake |
| Max Speed | 90km/h |
Hyundai 8cubic meters Garbage compactor truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
Hyundai 8cubic meters Garbage compactor truck New craft:

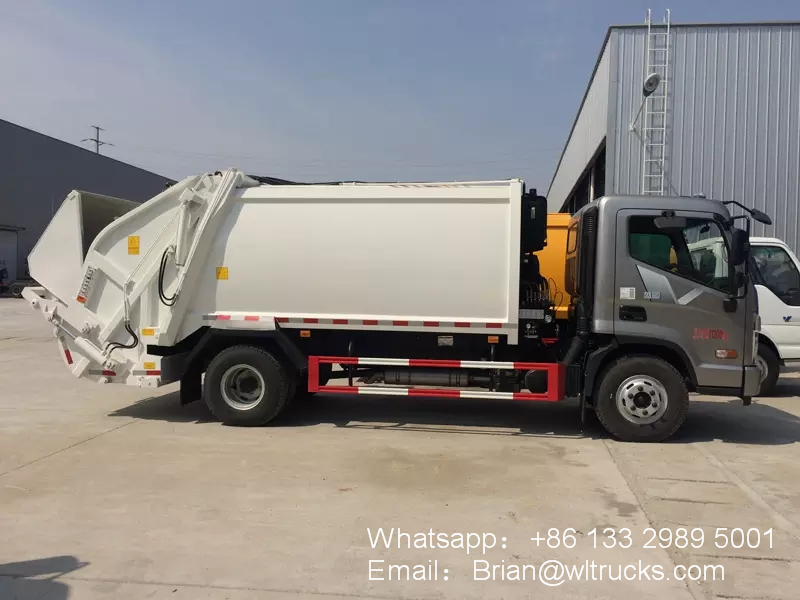

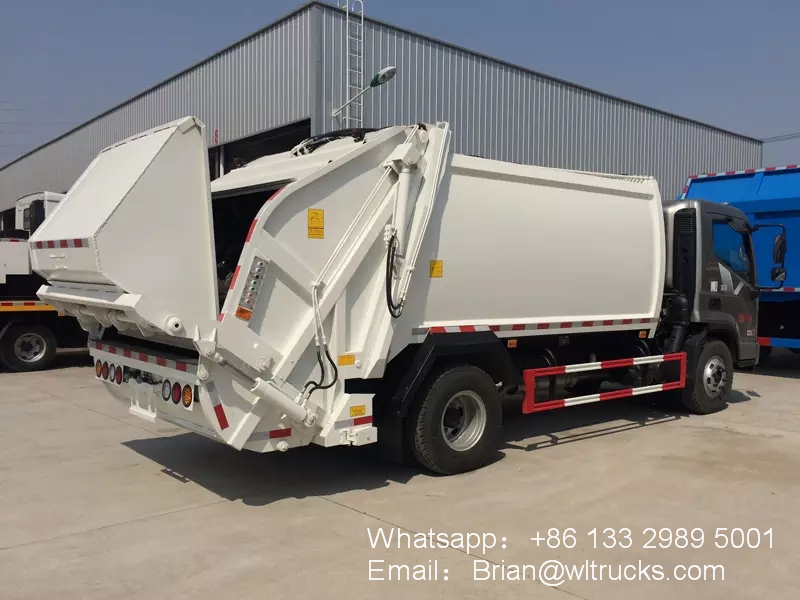

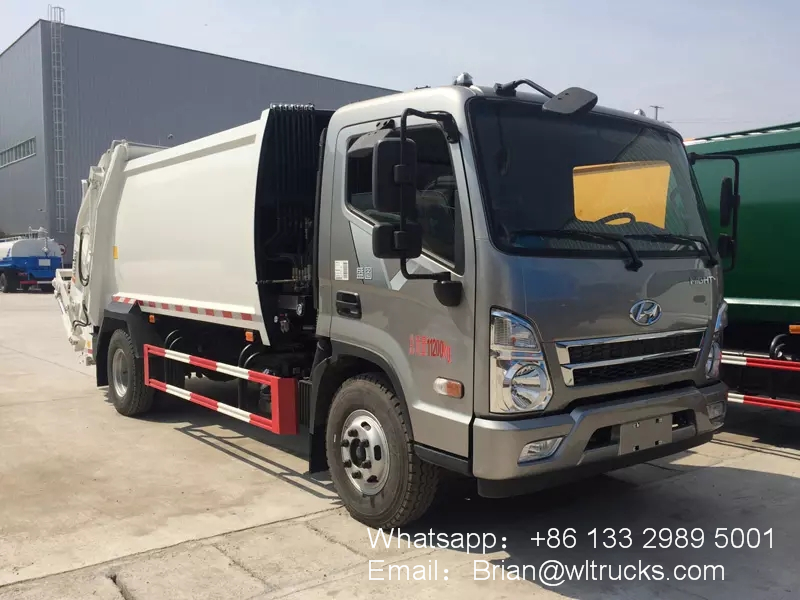

Hyundai 8cubic meters Garbage compactor truck Detailed Images:
Hyundai 8cubic meters Garbage compactor truck Structure diagram：
Hyundai 8cubic meters Garbage compactor truck Detail drawing:
Customizable garbage truck models
