6×4 Dongfeng 16m3 18m3 compactor garbage truck Product Description:
6×4 Dongfeng 16m3 18m3 compactor garbage truck Chassis configuration: 6 * 4 rear dual-axle drive, new wide body white cab, Yuchai 240 horsepower, Cummins 210 horsepower engine, Fast 8-speed gearbox, electric windows, original air conditioning, power steering, air brake 1,000 tires with spare tires.
6×4 Dongfeng 16m3 18m3 compactor garbage truck Bodywork configuration: Compressed volume 18 cubic meters, made by T420 special steel plate integral bending, equipped with Xiamen Yinhua hydraulic cylinder oil leakage replacement, Changyuan 63 + 20 double hydraulic pump with 3 + 2 double valve, Zhongmei multi-way valve, Siemens PLC control, electro-optic switch, 2 sewage collection boxes, 3 operation control boxes, with night light, equipped with two-way compression function, two-way hydraulic lock dripping.
6×4 Dongfeng 16m3 18m3 compactor garbage truck Optional configuration: optional double pump confluence + double valve control, optional hanging bucket rack, triangle bucket, fully sealed bucket, swing arm device, can hold 16-18 tons of garbage.
6×4 Dongfeng 16m3 18m3 compactor garbage truck Specifications:
| cabin | Driving type 6×4 | ||
| with A/C. Left/right Hand Drive. | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10090*2500*3700 | |
| Wheel base (mm) | 4350+1350mm | ||
| Weight in KGS | Tare Weight | 15000kg | |
| Front axles loading capacity | 5000kg | ||
| Rear axles loading capacity | 10000kg | ||
| Max. driving speed(km/h) | 95 | ||
| Engine | Brand | Cummins | |
| Horse Power(HP) | 245 HP | ||
| Emission standard | Euro V | ||
| Gearbox | 8 forwards &1 reverse | ||
| Clutch | Diaphragm spring clutch | ||
| Steering Gear | Power steering | ||
| Tire | 11.00R20 All radial tires with one spare, 11 pieces | ||
| Compression garbage box body system | |||
| Body Volume | 20m3 | ||
| Material Thickness | 5mm | ||
| Cycle Time of Filling(S) | 25-30s | ||
| Lifting Time of Filler(S) | 8-10 | ||
| Time of Discharging | 40s | ||
| Working Pressure(MPA) | 16 | ||
| Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank. | |||
6×4 Dongfeng 16m3 18m3 compactor garbage truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
6×4 Dongfeng 16m3 18m3 compactor garbage truck New craft:

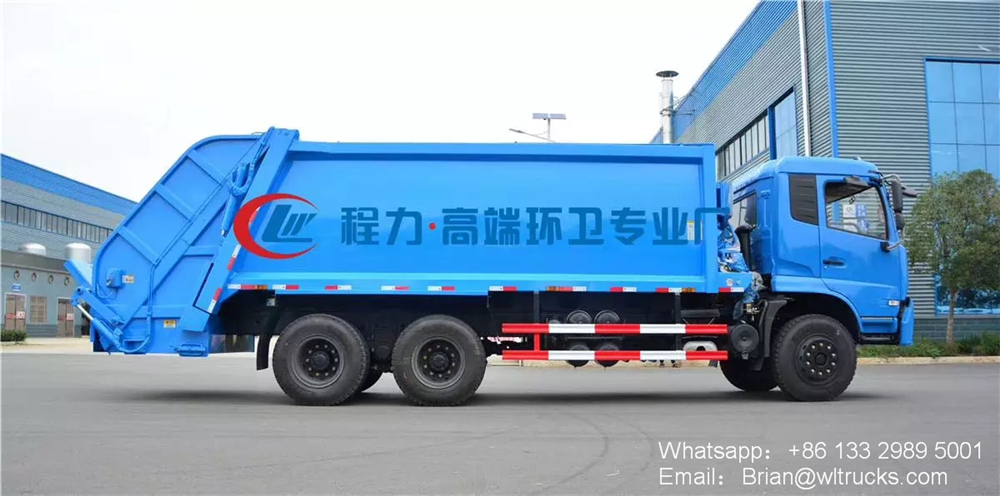

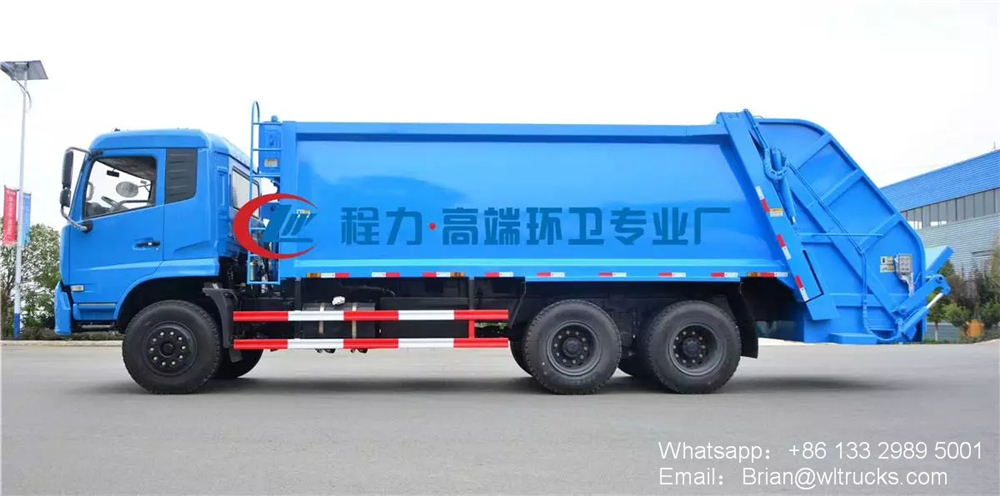

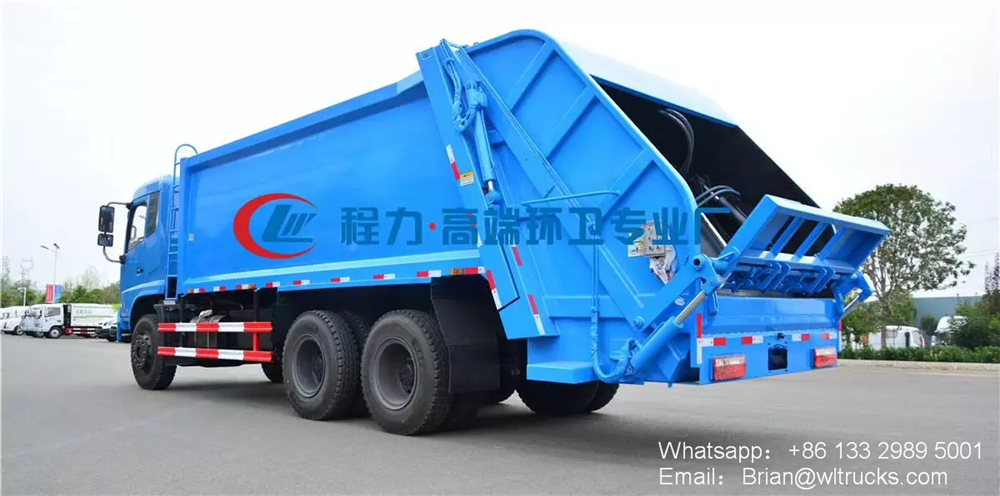

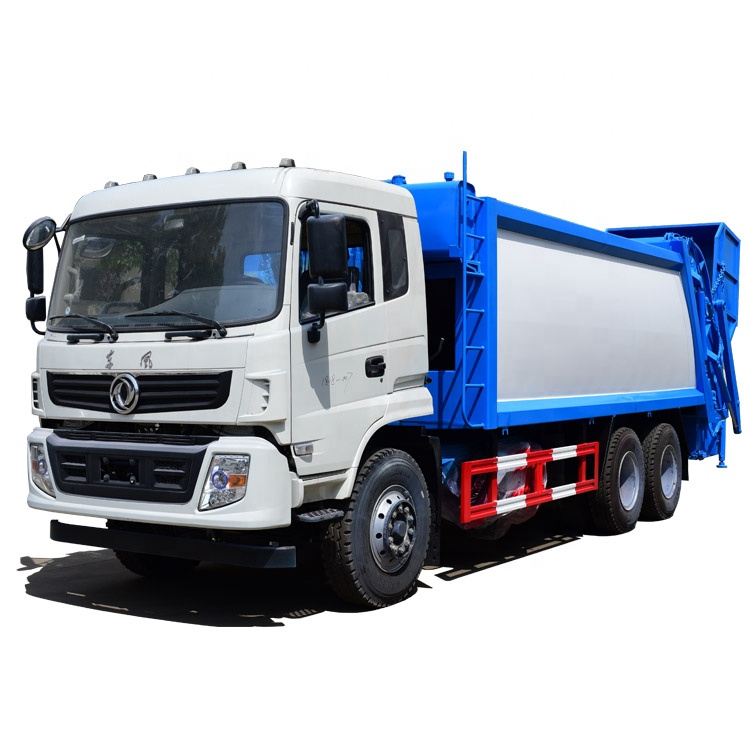

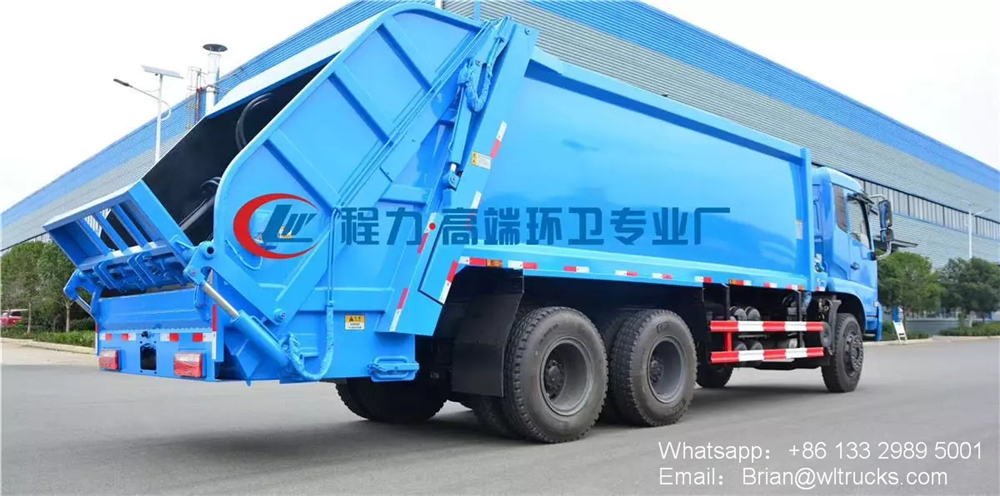

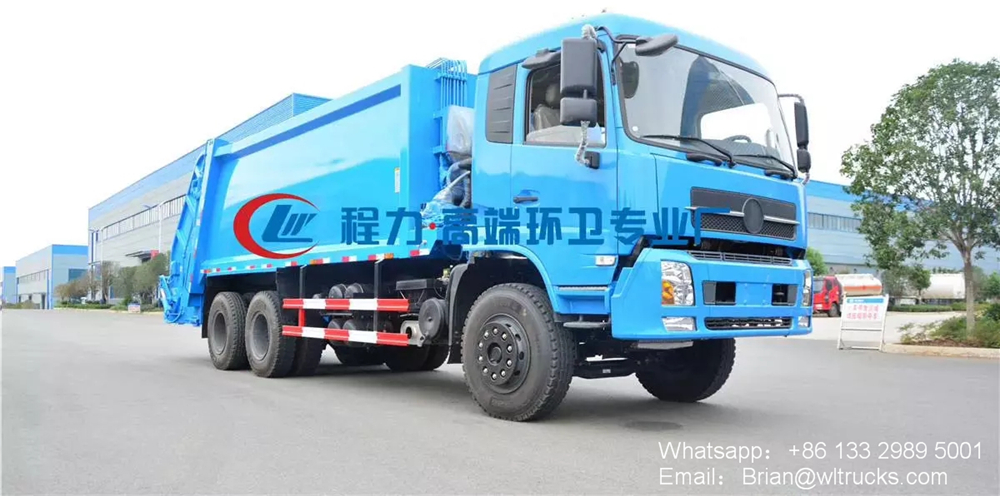

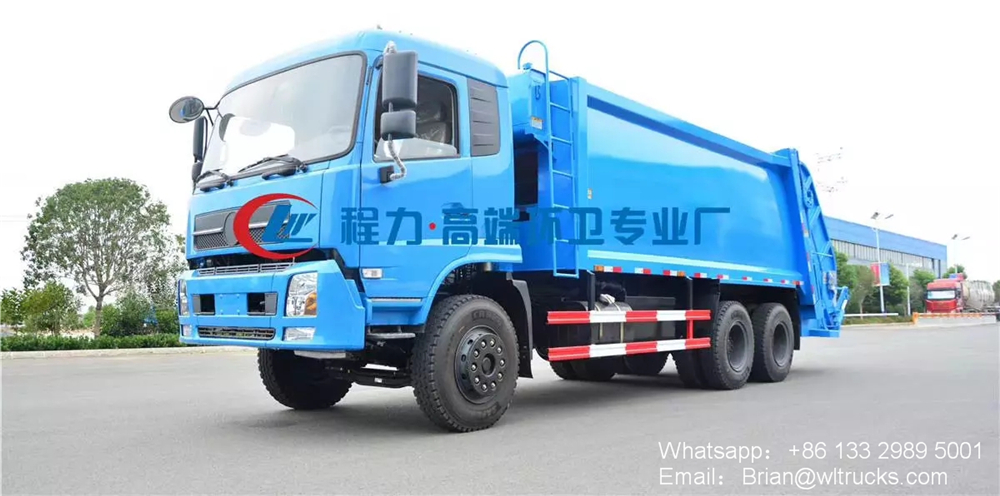

6×4 Dongfeng 16m3 18m3 compactor garbage truck Detailed Images:
6×4 Dongfeng 16m3 18m3 compactor garbage truck Structure diagram：
6×4 Dongfeng 16m3 18m3 compactor garbage truck Detail drawing:
Customizable garbage truck models
