Dongfeng 8000 liter Docking garbage truck Product Description:
Dongfeng 8000 liter Docking garbage truck Chassis configuration: using Dongfeng original EQ1070SJ3BDF model special chassis, white single-row cab, Chaochai 120 horsepower Euro three emission engine, strong power, Dongfeng 6-speed gearbox, 3800mm wheelbase, stronger bearing capacity, 7.50 nylon tires.
Dongfeng 8000 liter Docking garbage truck Top-loading configuration: It is composed of hydraulic mechanism composed of car body, discharge mechanism, oil pump, oil cylinder, control valve and so on. The material of the car body is high-quality carbon steel, the thickness of the carton: 3mm on the side plate, 4mm on the bottom, the volume of the car body: 8m³, the overall size: 5700 × 2000 × 2400mm, fully hydraulically driven during the working process, the double oil cylinder lifting self-unloading, the tail of the trash The door is hydraulically opened and closed, using high-quality hydraulic valves and hydraulic cylinders, with low failure rate and higher transmission efficiency!
Dongfeng 8000 liter Docking garbage truck Working principle: The operating system is completed by a hydraulic control system, and the control mode can be manual or electric start control. Double hydraulic lift is used to lift the garbage box vertically, and the compression box drain door is opened. At this time, the rear door of the garbage truck box is rotated upward to open. The rear door of the garbage truck is docked with the rear door of the compression box. Push it horizontally into the body of the garbage truck, close the rear door of the garbage truck after loading the garbage, and transport the garbage to the garbage disposal site for dumping.
Dongfeng 8000 liter Docking garbage truck Specifications:
| Classification | Item | Unit | Parameter |
| Vehicle | Overall dimensions | mm | 6780*2000*2560 |
| Curb weight | kg | 3550 | |
| Traction system | 4×2 | ||
| Max speed | km/h | 95 | |
| Chassis | Number of axles | 2 | |
| Wheel base | mm | 3800 | |
| Tire specification | 750-16 | ||
| Number of tires | 6 | ||
| F/R track base | mm | 1040 /1250 | |
| Engine | Engine model | CY4102-C3F | |
| Fuel type | Diesel | ||
| Power | kw | 88 | |
| Engine horse power | hp | 120 | |
| Displacement | ml | 3682 | |
| emission standard | Euro 3 | ||
| Instruction | 1. Garden tanks , the effective volume reaches 90% 2. Equipped with rubbish drum lifting system , the system has dustbin lock structure make sure that loading and unloading safe and reliable. 3. Equipped with hydraulic system and operating system. 4. The feature : high level of automation , reliable working , well sealed , bulk loading , easy control and good environmental protection. |
||
| Color &Painting | According to customer’s requirements | ||
Dongfeng 8000 liter Docking garbage truck Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
Dongfeng 8000 liter Docking garbage truck New craft:

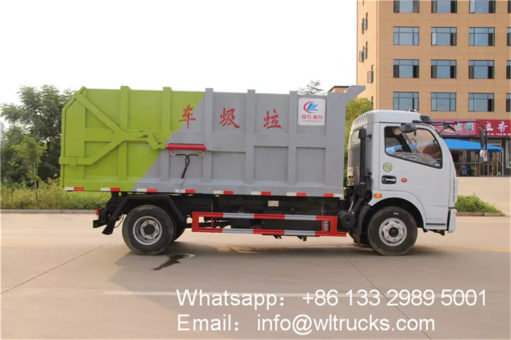

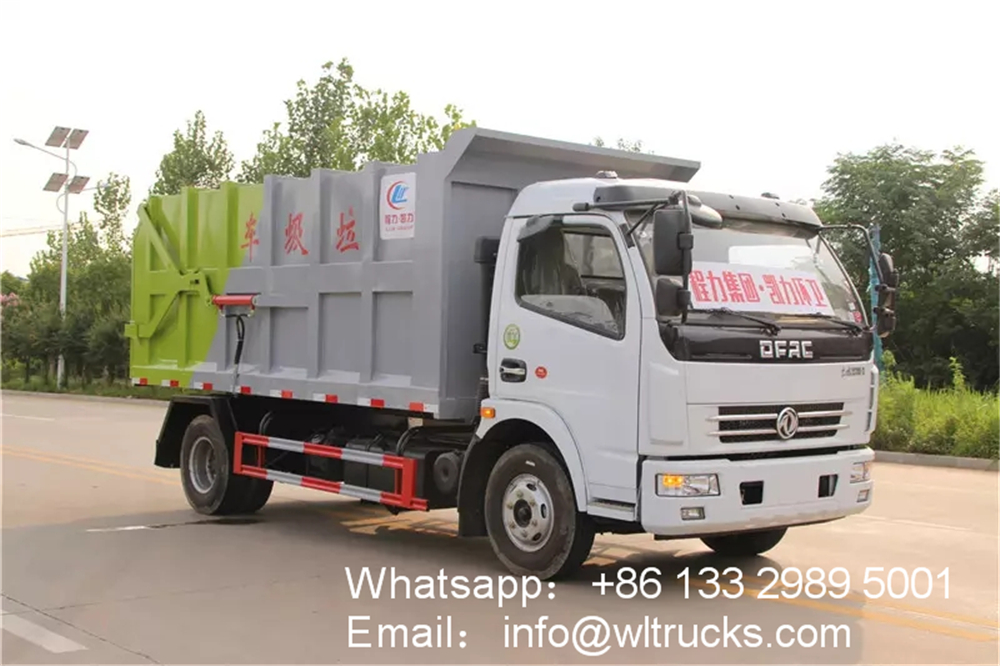

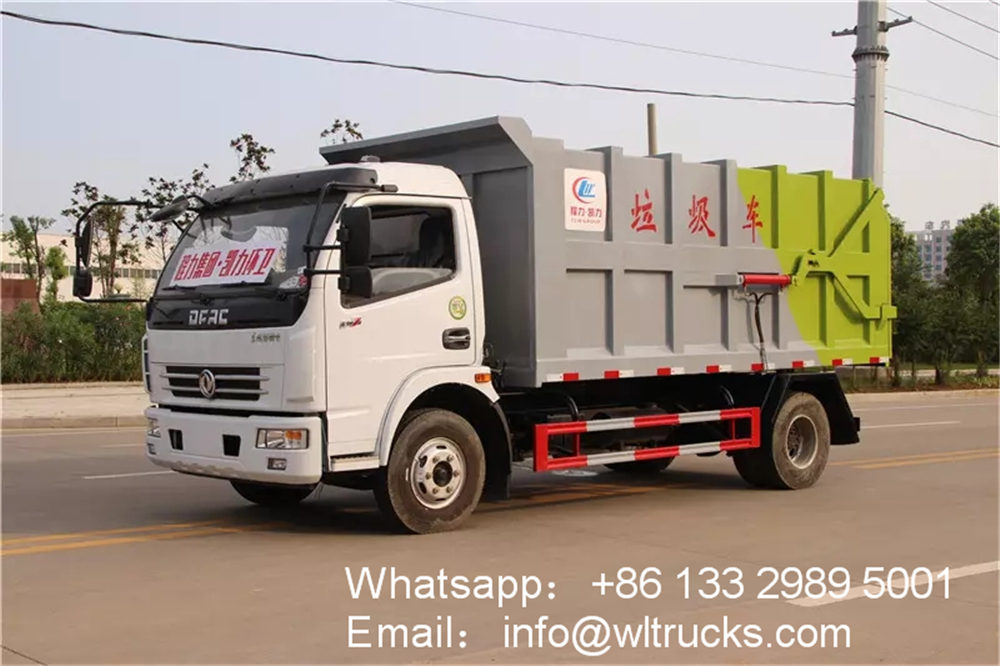

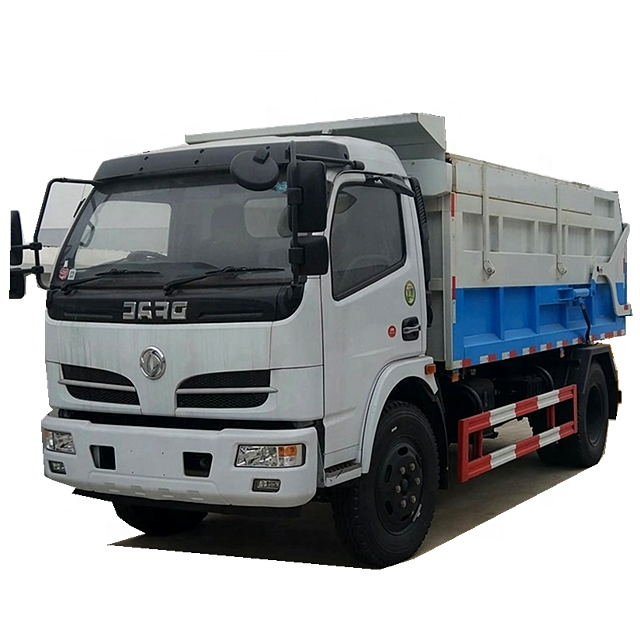

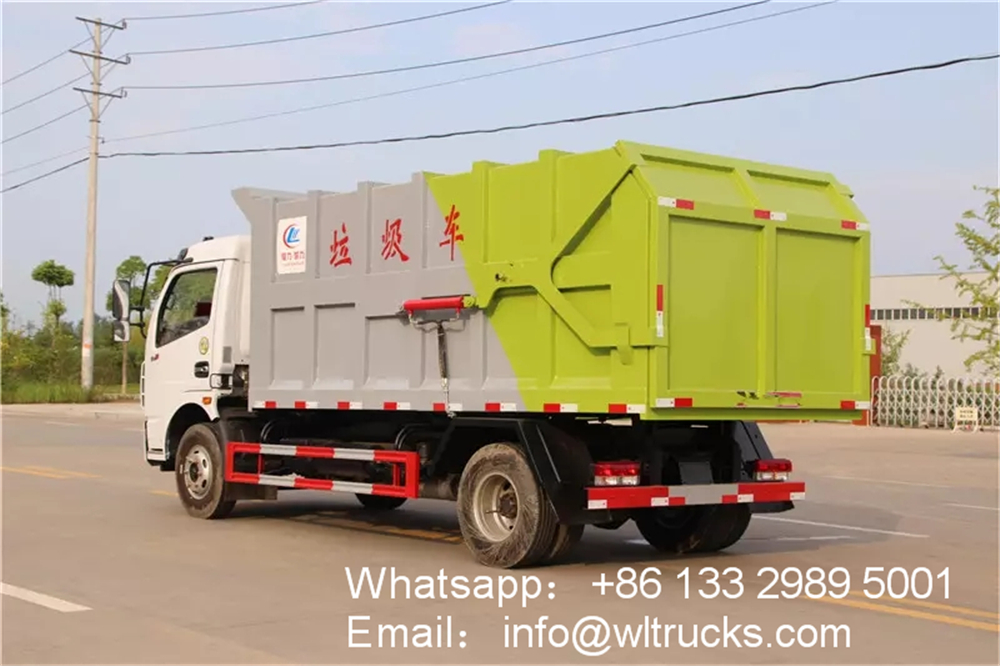

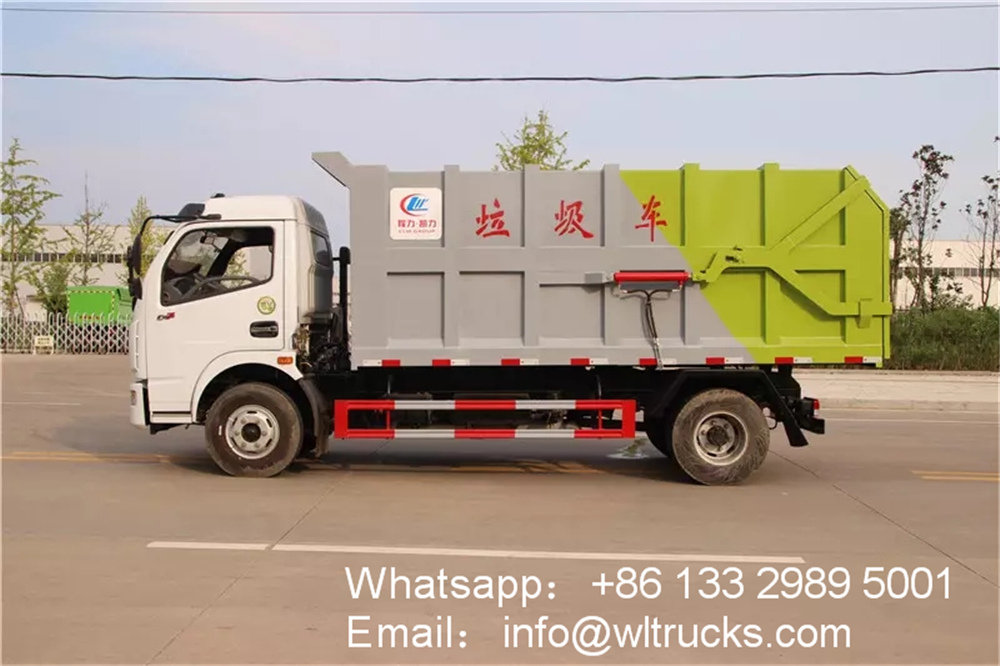

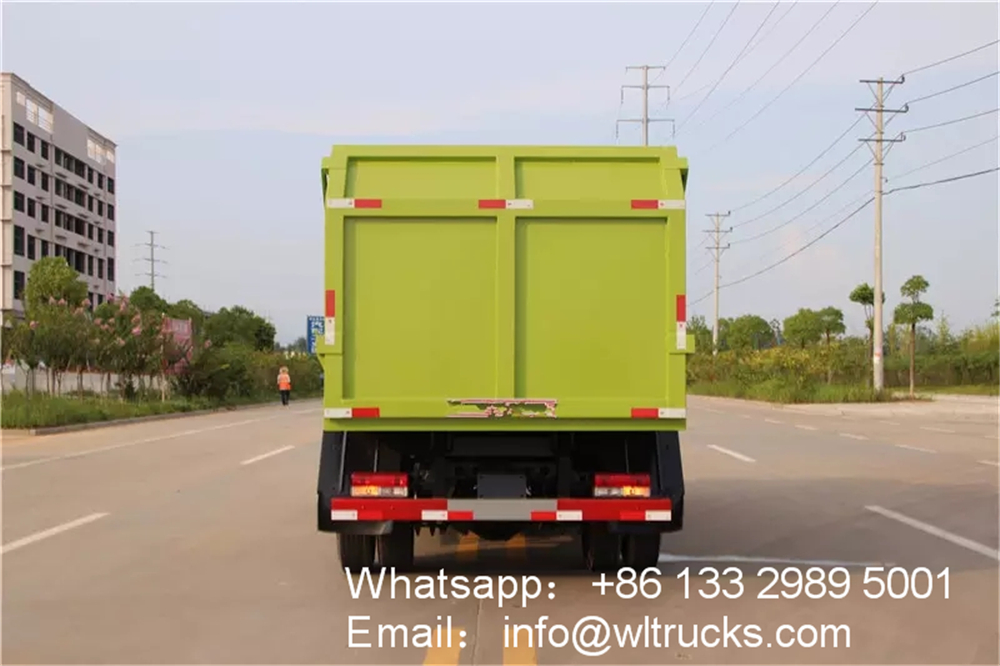

Dongfeng 8000 liter Docking garbage truck Detailed Images:
Dongfeng 8000 liter Docking garbage truck Structure diagram：
Dongfeng 8000 liter Docking garbage truck Detail drawing:
