ISUZU fvz 25000L fuel oil tank truck
ISUZU fvz 25000L fuel oil tank truck Specification:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| Product | ISUZU oil tanker truck | ||
| Chassis model | ISUZU CXA | ||
| Chassis parameters |
Overall dimensions | mm | 10415x2500x3340 |
| Gross weight | kg | 24500 | |
| Kerb weight | 11305 | ||
| Rated payload | 13200 | ||
| Suspension F/R | mm | 1410/2505 | |
| Wheel base | 5050+1450 | ||
| Drive type | 6*4 | ||
| Number of axles | 3 | ||
| Axle-load | Kg | 7500/18000 | |
| Number of Spring leafs | 13/13 | ||
| Tire specification | 12.00R20 | ||
| Number of Tires | 10+1 | ||
| Allowable passengers in cab | 3 | ||
| Engine | Engine model | WD615.34 | |
| Type of fuel | Diesel | ||
| Displacement/power | ml/hp | 9726/340 | |
| Max speed | Km/h | 90 | |
| Emission standard(TAS) | Euro 3 | ||
| Tank | 1.Effective cubage:20000L 2.Tank dimensions: 8500x1800x1500mm 3.Material: high quality carbon steel, stainless steel, glass steel or plastic steel |
||

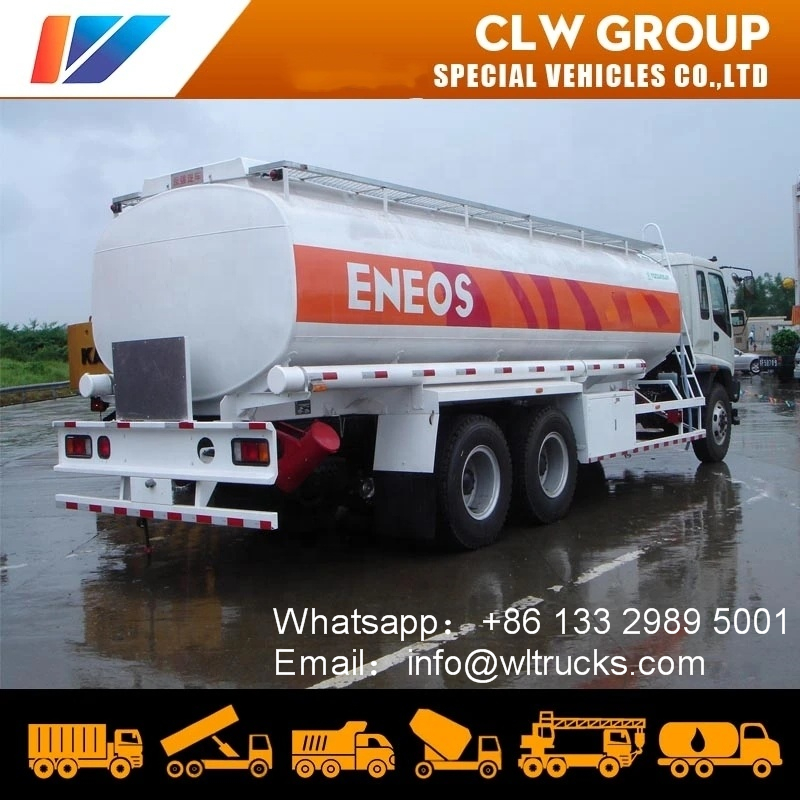

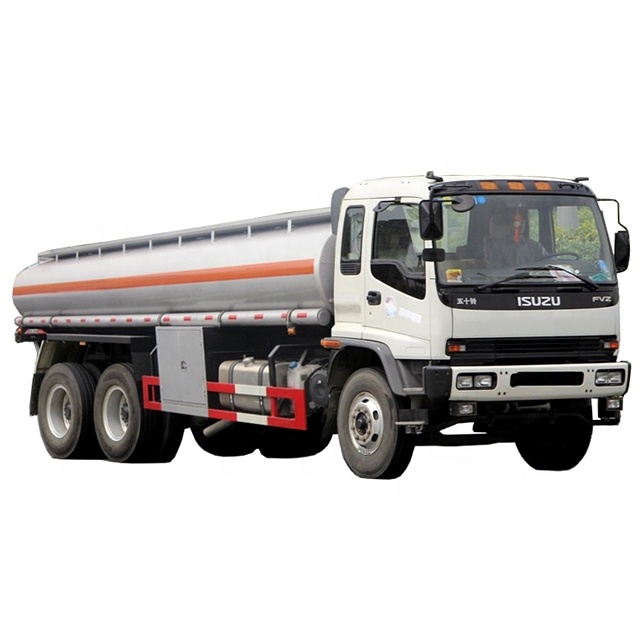

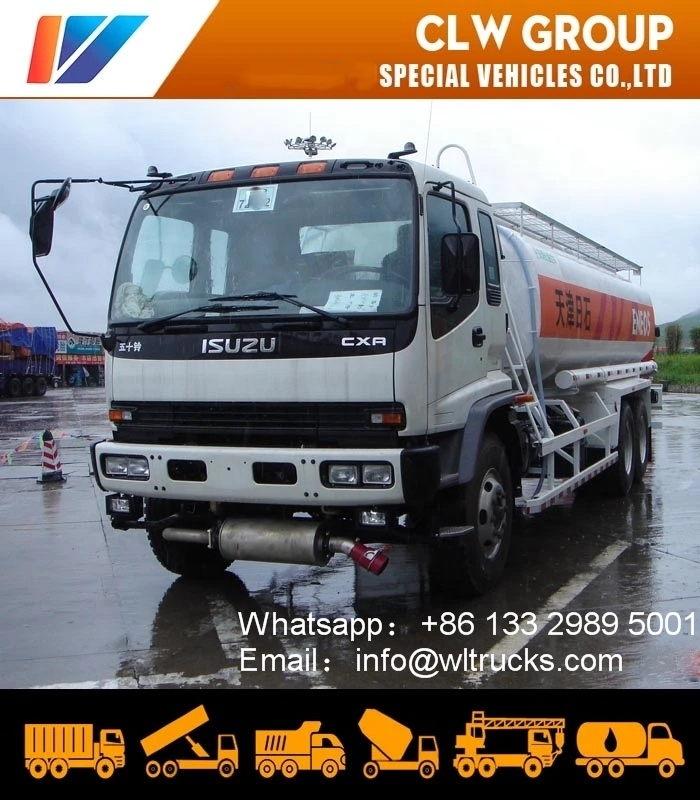

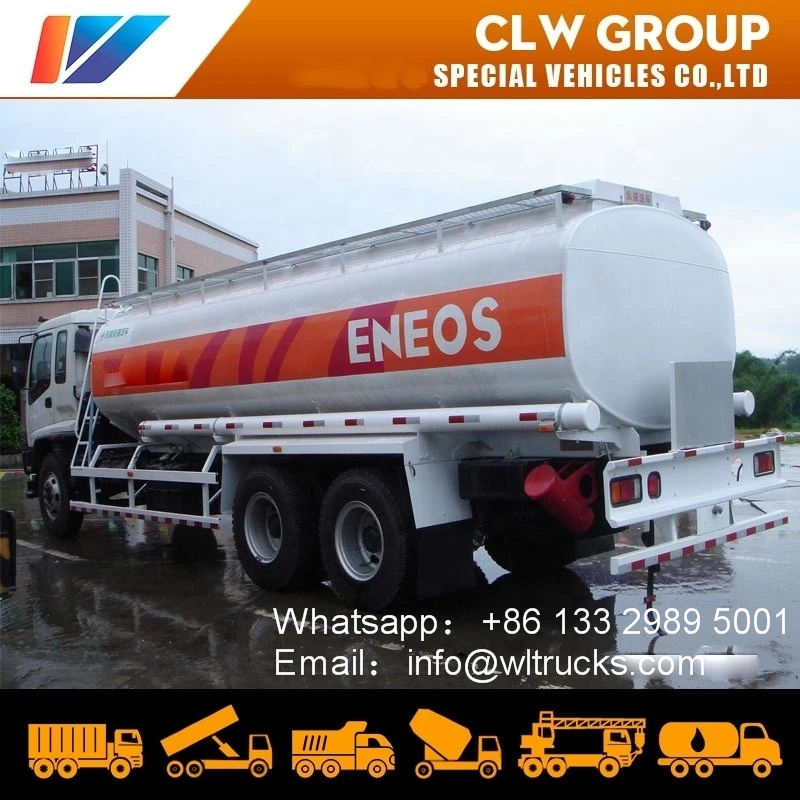

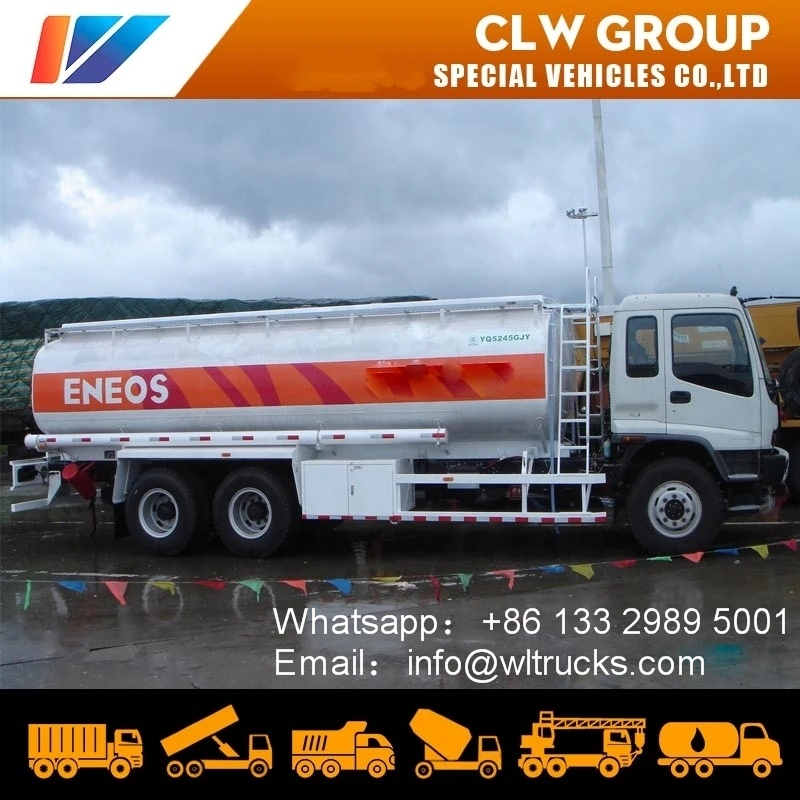

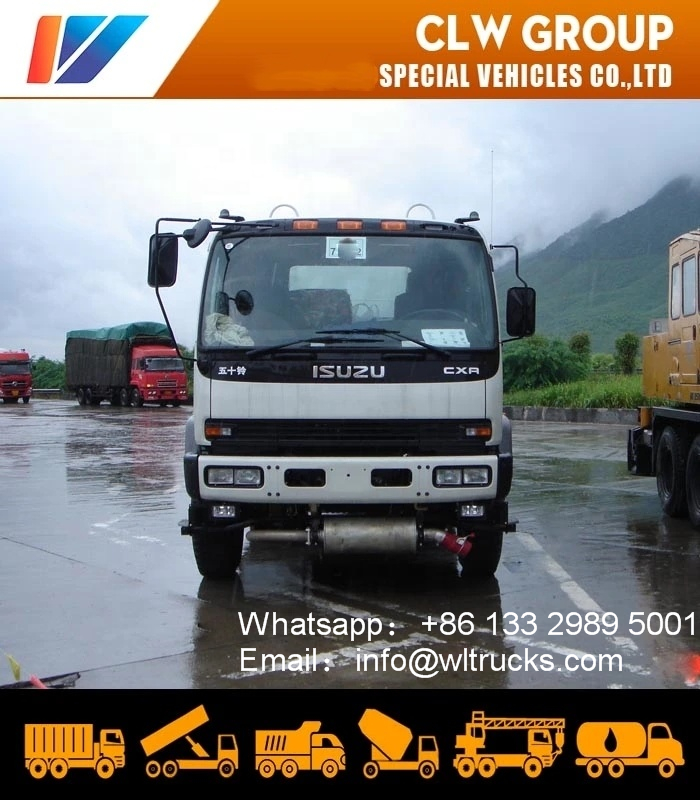

ISUZU fvz 25000L fuel oil tank truck Detailed image
