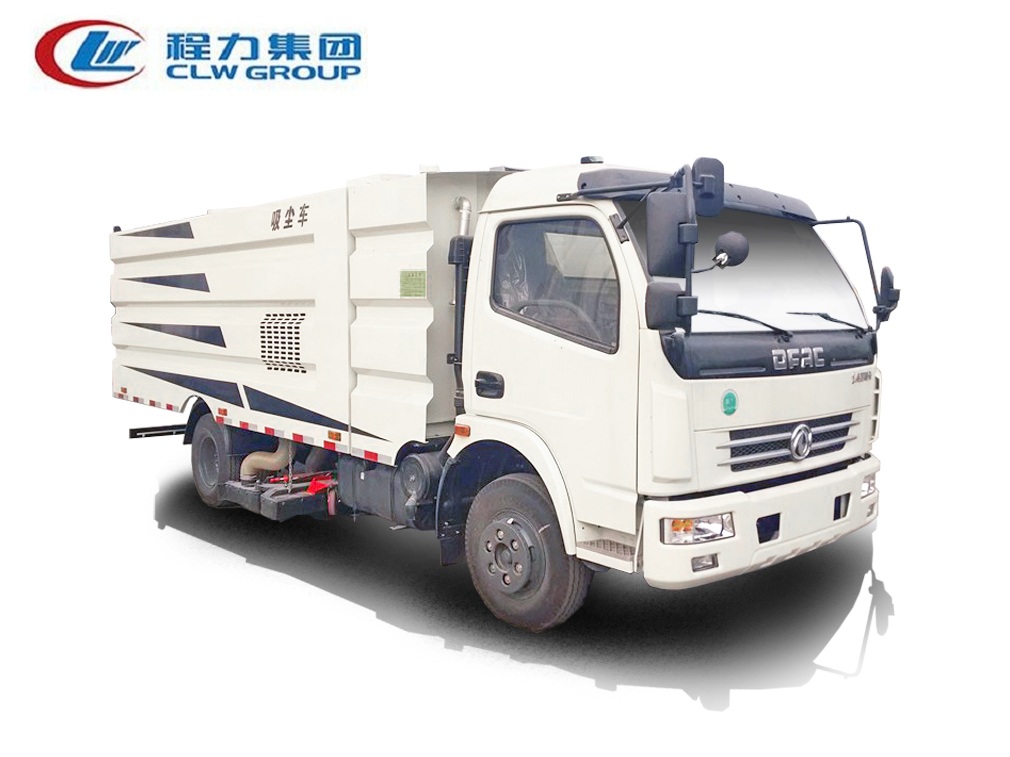

Dongfeng 8 ton Vacuum cleaner machine is modified with a truck chassis, equipped with auxiliary engines, fans, water tanks, garbage bins, central suction cups, working video probes, automatic pulse cleaning function, hydraulic system, special device electrical control system and auxiliary frame modification. Made.
Dongfeng 8 ton Vacuum cleaner machine Chassis configuration: using Dongfeng D7 Dali chassis, single-row white forward-turning cab, 3800mm wheelbase, Chaochai 120 horsepower diesel engine, Wanliyang 6-speed gearbox, 7.50 tires, air brake, direction boost, optional air conditioning .

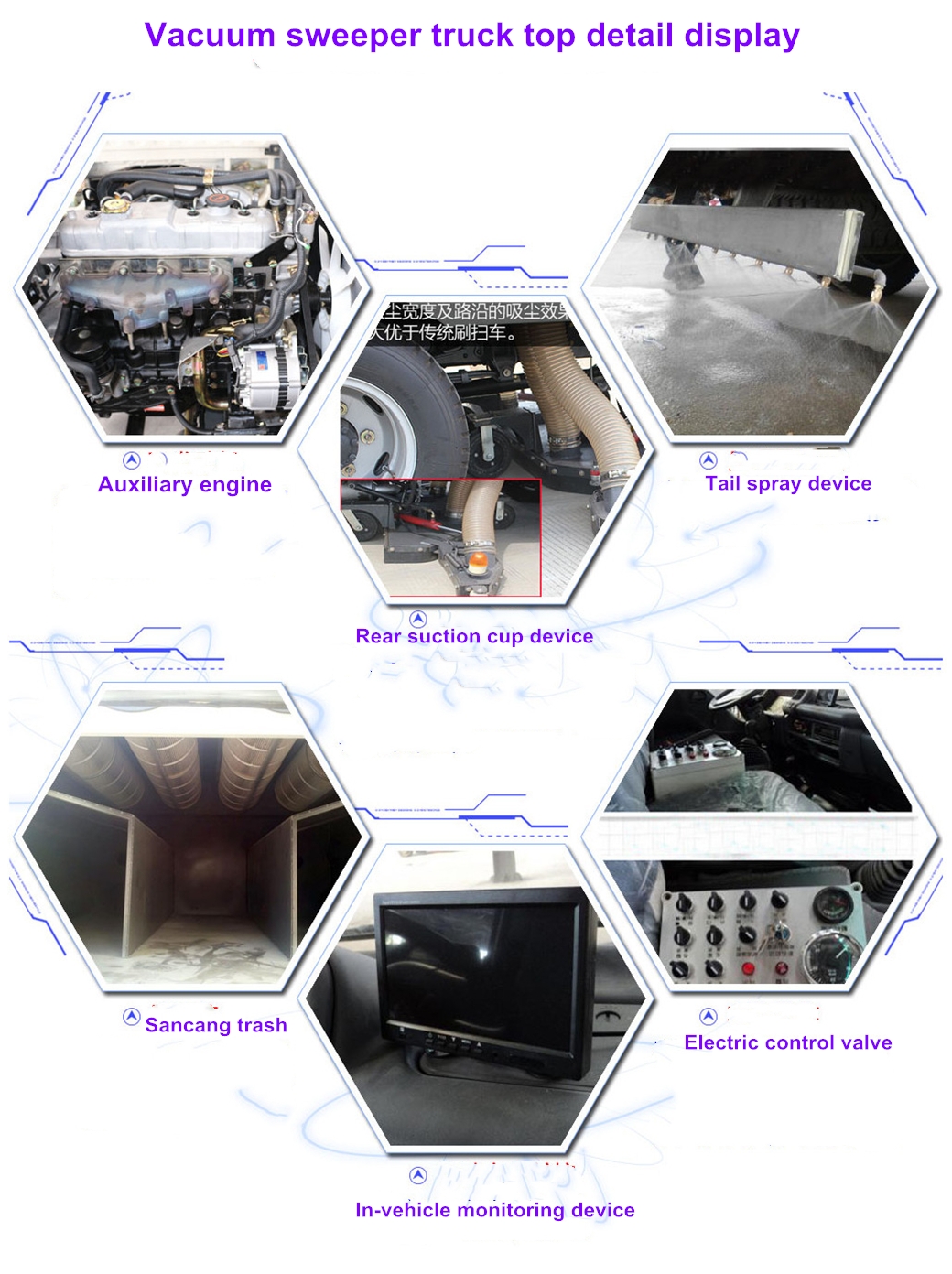

Dongfeng 8 ton Vacuum cleaner machine Bodywork configuration: 1.5 cubic water tank, 6 cubic stainless steel waste bin, center suction cup, JMC Isuzu auxiliary engine, Schneider control switch, Hyprus solenoid valve group, infinitely variable automatic clutch, maintenance-free centrifugal fan, stainless steel waste bin, high-precision waste Box filter system (up to 0.3 microns), imported pulse valve, PLC one-key intelligent control system, tail LED arrow light, manual pump emergency system, fog spray water wetting function at the rear of the vehicle. Optional front snow shovel and snow sweeper are optional.
| Chassis | |||||
| Drive Model | 4X2, Left hand drive | ||||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 7160*2200*2750 | |||
| Wheel base (mm) | 3800 | ||||
| Overhang (front/rear) (mm) | 1015/1815 | ||||
| Wheel track (front/rear) (mm) | 1504/1425 | ||||
| Approach/Departure angle(°) | 24/13 | ||||
| Weight in KGS | Curb Weight (kg) | 5260 | |||
| Front/Rear axle loading(kg) | 2200/5500 | ||||
| Max. driving speed(km/h) | 110 | ||||
| Engine | Brand | Chaochai | |||
| Horse Power(HP) | 156 | ||||
| Displacement (ml) | 3860 | ||||
| Emission standard | Euro 3 | ||||
| Gearbox | 6 forwards & 1 reverse | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Brakes | Air brake | ||||
| Tire | 7.50R16 tire , 6 + 1(spare tire) | ||||
| Upper & Equipment | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 6.0 cbm | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 1.5 cbm | ||||
| Operation detail | Max. Operation ability(m2/h) | 56000 | |||
| Max. Sucking dimension(mm) | 50 | ||||
| Auxiliary engine | Model | Chaochai Brand | |||
| Quantity(No.) | 1 | ||||
| Power(kw) | 57 | ||||
| Blower | Quantity(No.) | 1 | |||
| Brand | China famous brand | ||||
| Power(kw) | 18 | ||||
| Speed(r/min) | 2900 | ||||
| Vacuum cleaner | Main Vacuum cleaner | Quantity(No.) | 1 | ||
| Width(mm) | 1900 | ||||
| Side Vacuum cleaner | Quantity(No.) | 2 | |||
| Width(mm) | 600 | ||||
| Max. Working width(mm) | 3000 | ||||
| Sucking Nozzle wheel | Quantity(No.) | 4 | |||
| Height | Adjustable | ||||
| Remarks |
|
||||

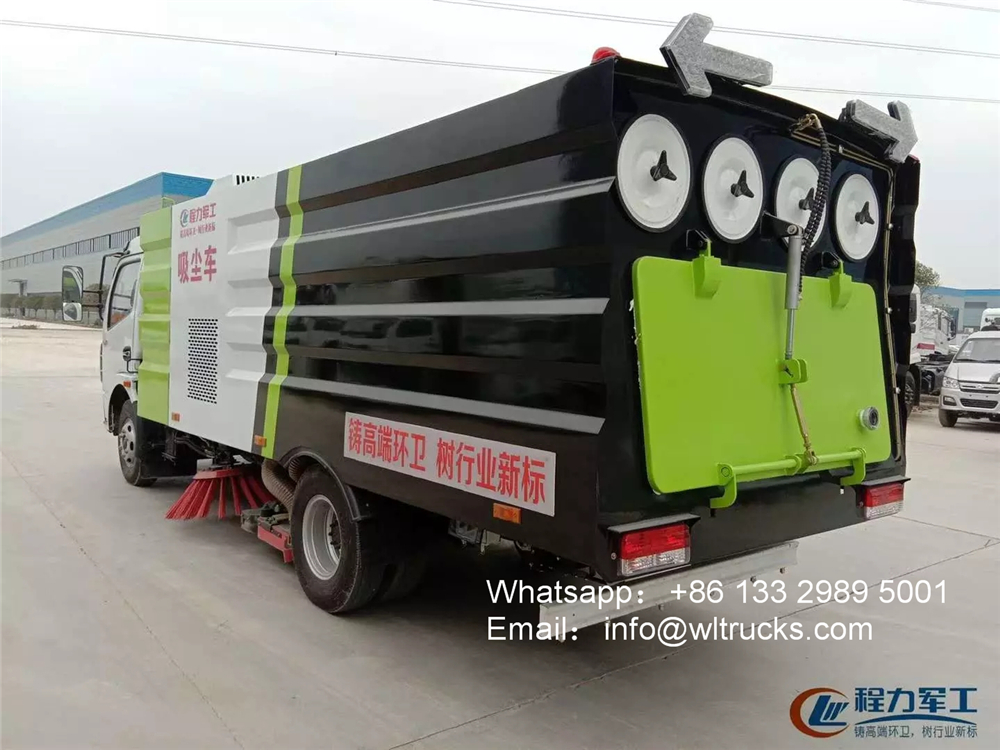

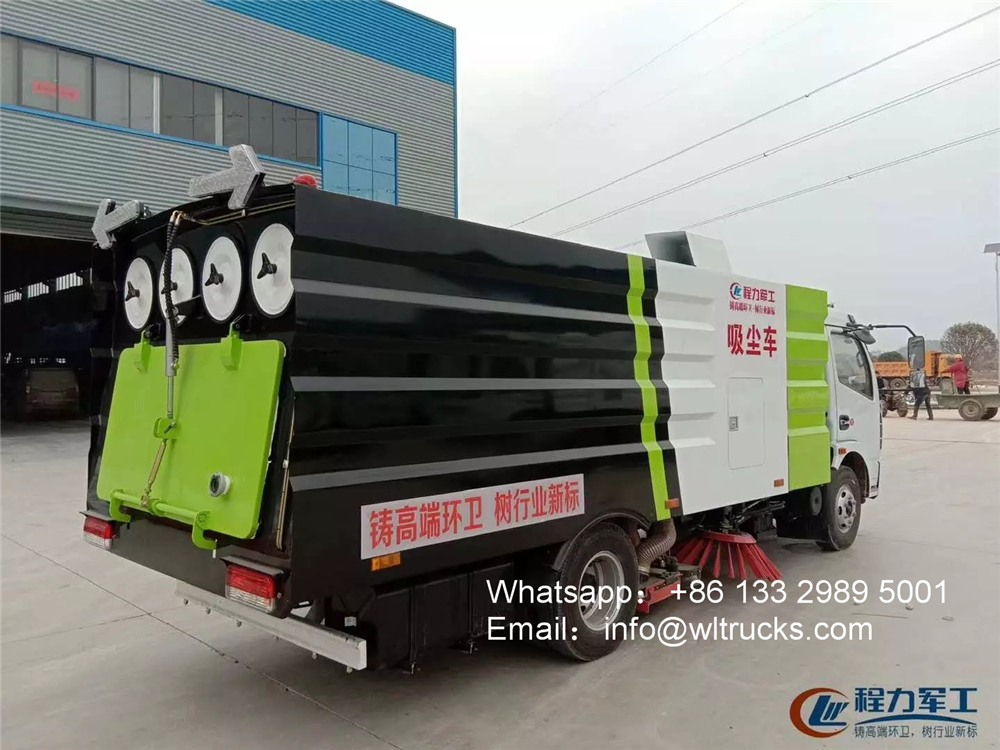

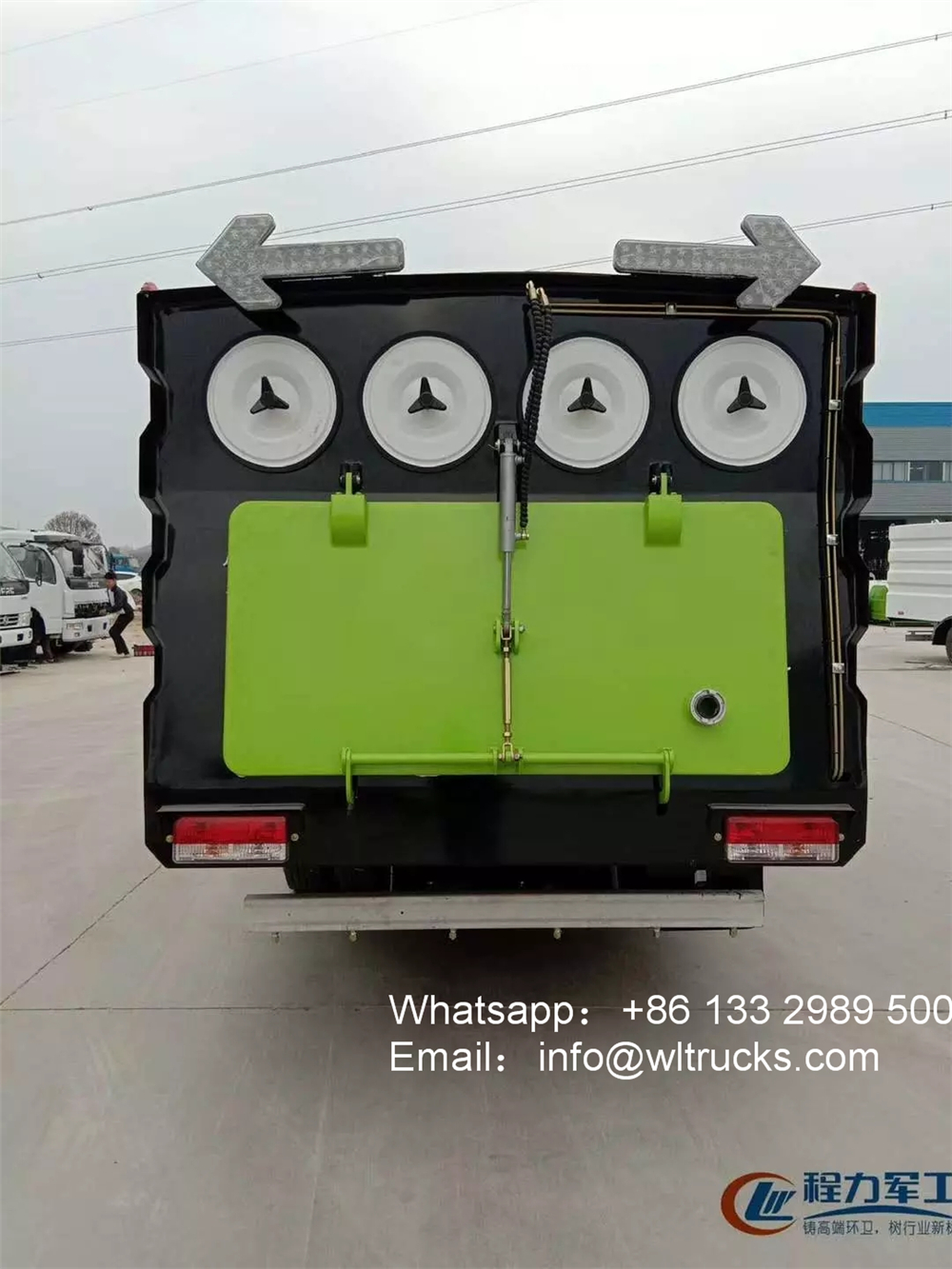

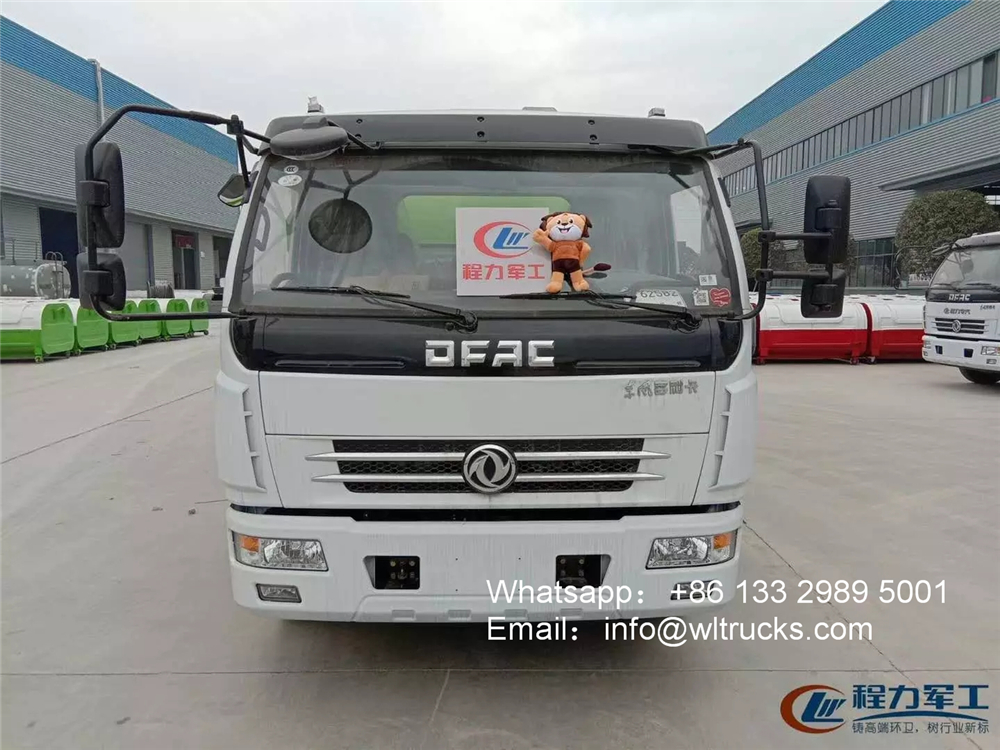

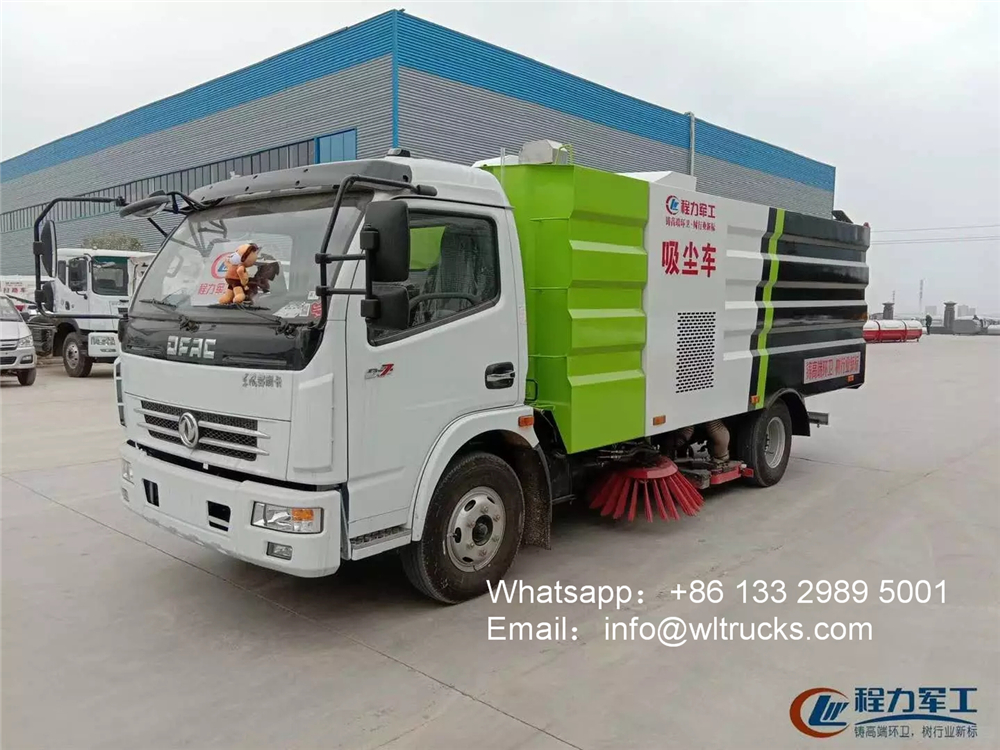

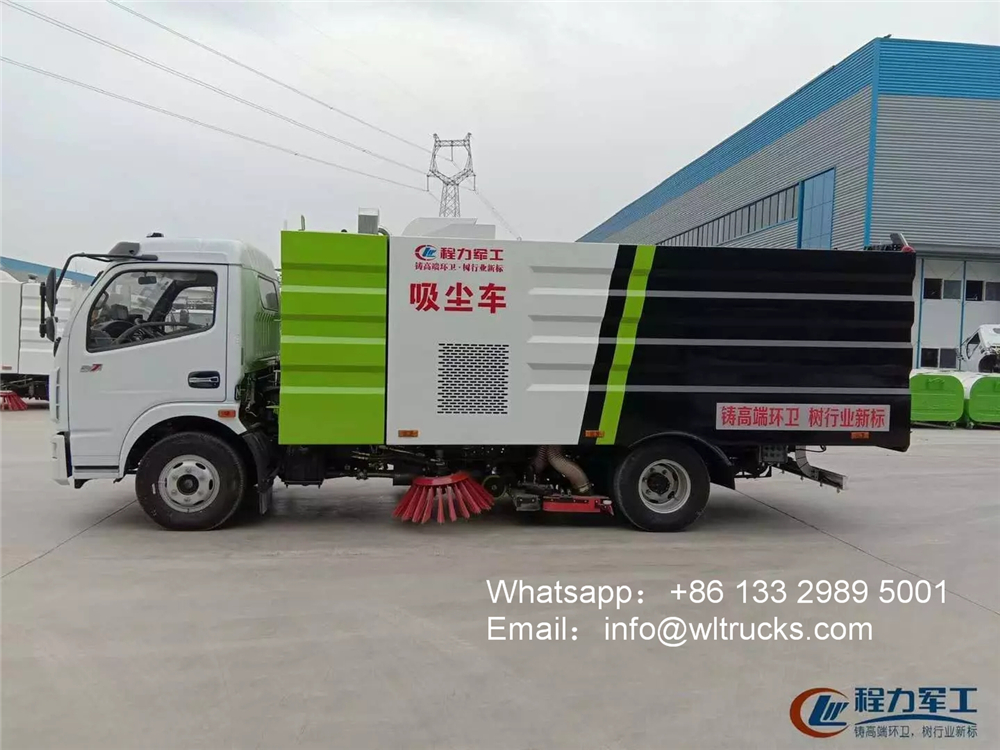

Dongfeng 8 ton Vacuum cleaner machine detailed image

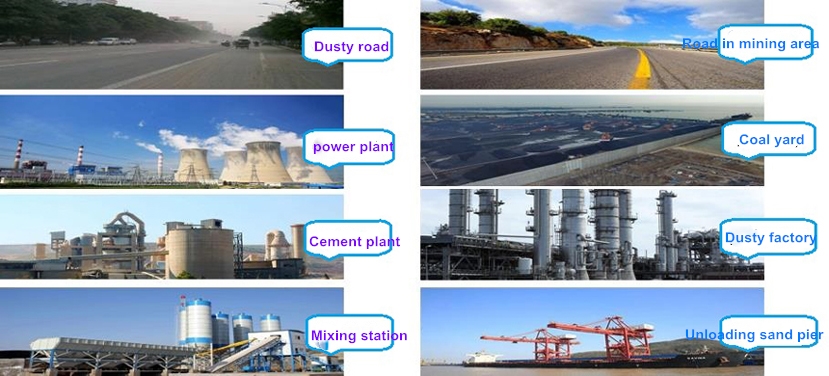

Applicable places for vacuum cleaners
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
