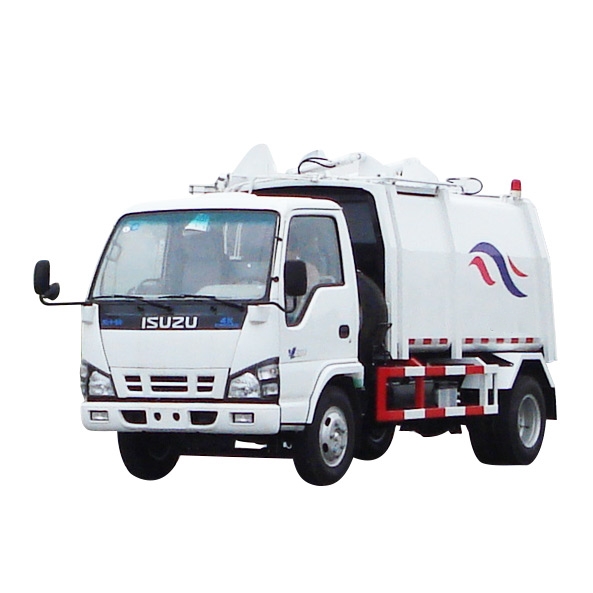

ISUZU 600P 8000 liter Food liquid waste trucks Product Description:
ISUZU 600P 8000 liter Food liquid waste trucks Chassis configuration: Isuzu white 600P chassis, Isuzu 120 horsepower engine, Isuzu 5-speed gearbox, 700R16 tires, oil brake, directional boost, 4.8 tons rear axle.
ISUZU 600P 8000 liter Food liquid waste trucks Top configuration: new box style, effective volume of 8 cubic meters, equipped with hydraulic bucket elevator, tailgate hydraulic locking to prevent sewage dripping, solid-liquid separation filter plate, liquid self-flow valve, solid push plate discharge, equipped with high pressure pump + mobile Clean the gun. Optional sealed twisting dragon unloading, stainless steel box, and good heating in the box.
ISUZU 600P 8000 liter Food liquid waste trucks Specifications:
| 【Vehicle technical parameters】 | |||||
| product name | Catering garbage truck | batch | 300 | ||
| Total mass (Kg) | 7300 | Rated load mass (Kg) | 2525 | ||
| Curb weight (Kg) | 4645 | Total mass of quasi-trailer (Kg) | |||
| Front passenger (person) | 2 | Rated passenger (person) | |||
| Dimensions (mm) | 6860 x 2198 x 2750 | ||||
| Cargo compartment size (mm) | xx | ||||
| Approach angle / departure angle (°) | 24/18 | Front / rear suspension (mm) | 1015/1485 | ||
| Axle load (Kg) | 2580/4720 | Maximum speed (Km / h) | 110 | ||
| Remarks | 1. The truck is used for the collection and transportation of kitchen waste. The main special devices are the car body, the lifting mechanism of the feeding mechanism and the push shovel. 2. The side protection adopts cold-formed steel / Q235, bolt connection, the rear protection is replaced by the body structure, and the lower edge is 450mm above the ground. The model of ABS and its controller is: APG3550500A4, and the manufacturer is: Zhejiang Asia-Pacific Mechanical and Electrical Co., Ltd. | ||||
| 【Other parameters of vehicle】 | |||||
| Chassis model | Brand name | ||||
| Number of axes | 2 | Number of tires | 6 | ||
| Wheelbase (mm) | 3360 | ||||
| Tire specifications | 7.00-16 14PR, 7.00R16 14PR | ||||
| Front track (mm) | 1504 | Rear track (mm) | 1425 | ||
| Fuel type | Diesel | Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
| 4KH1CN5HS | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 2999 | 88 | ||
ISUZU 600P 8000 liter Food liquid waste trucks Working parameter:
| 【Vehicle technical parameters】 | |||
| Tank volume (m3) | 3-12 cubic meters optional | Tank material | Carbon steel Q235, stainless steel 304 |
| Structure inside the tank | Dry-wet solid-liquid separation | Thickness of tank (mm) | 4-6mm |
| Unloading method | Self-unloading, pushing plate, twisting dragon | Feeding method | Hydraulic bucket flip |
| Tailgate leakproof | Thickened rubber + hydraulic lock | Bucket method | Chain lifting, lever lifting |
| Control position | Cab, right side of body | Hydraulic pressure (MPa) | 16 |
| control method | Manual + electric control, PLC automatic control | Hydraulic pump brand | Long source and large flow |
| Cleaning device | Hydraulic pump + plunger high pressure pump + 7 meter cleaning gun | Multi-way valve brand | Jiangsu Electromagnetic |
| safety devices | Rear door lock and rear cover switch interlock to prevent misoperation | Hydraulic cylinder brand | Yantai future |
| Optional configuration | Optional PLC one-button operation, optional 304 stainless steel box, optional sealed twisted dragon discharge, etc. Optional barrel weighing function, can count the number of barrels, single barrel weighing, set the company name of the barrel collection, GPS positioning of the barrel collection, data background upload, display screen cab monitoring and other functions. If customers have other unconventional requirements, they can organize technical solutions and customize production according to requirements. |
||

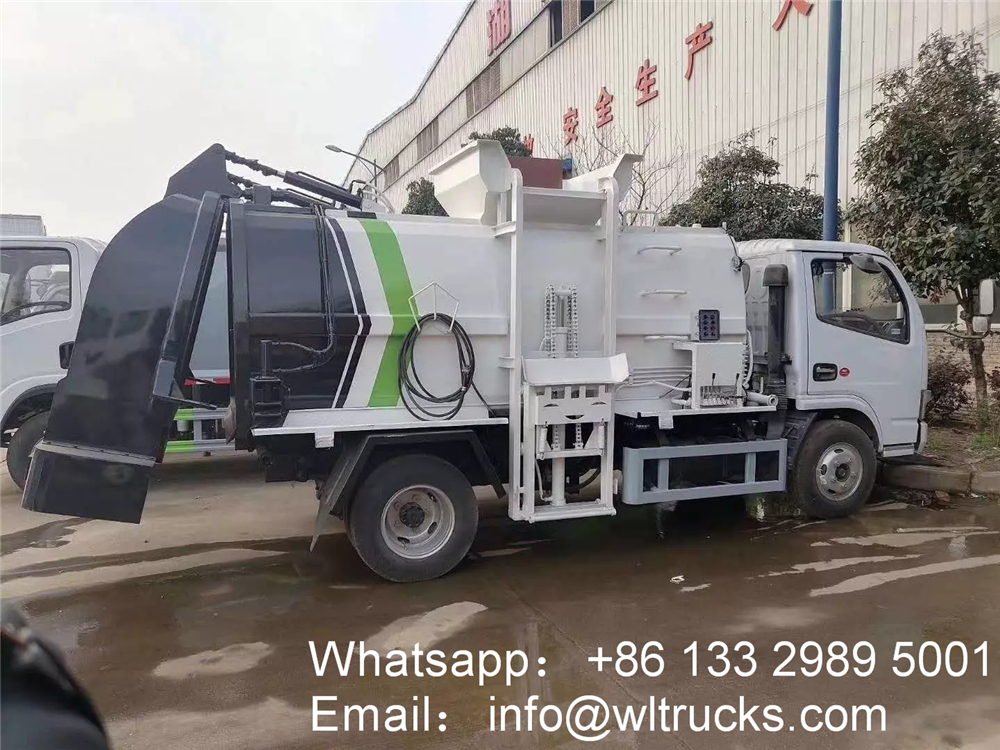

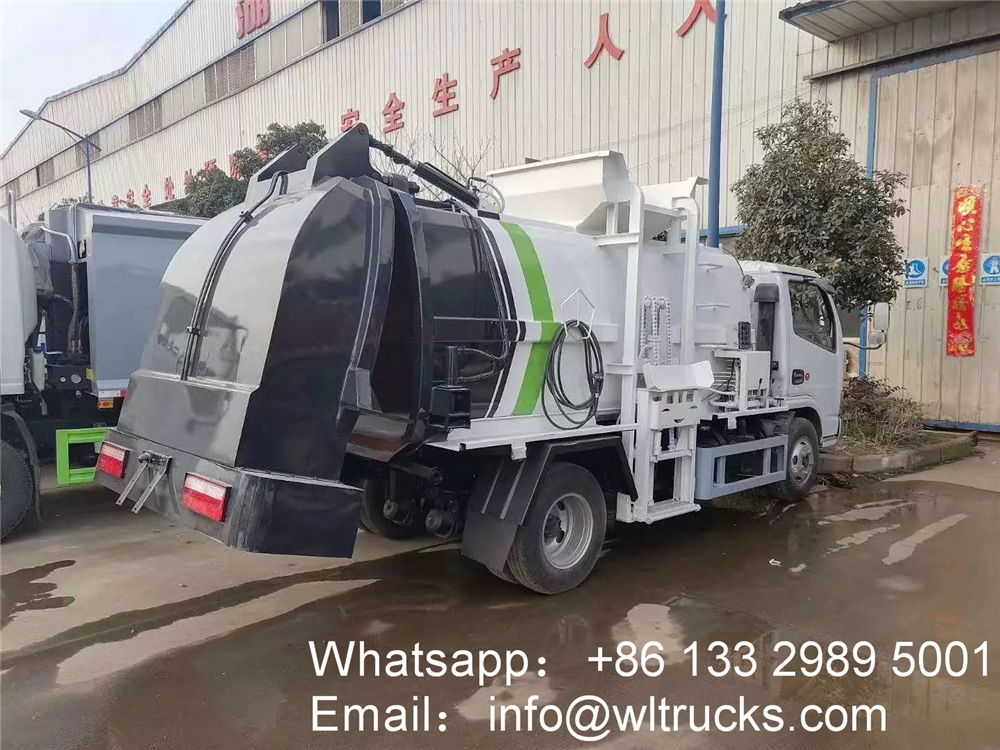

ISUZU 600P 8000 liter Food liquid waste trucks Operation display:

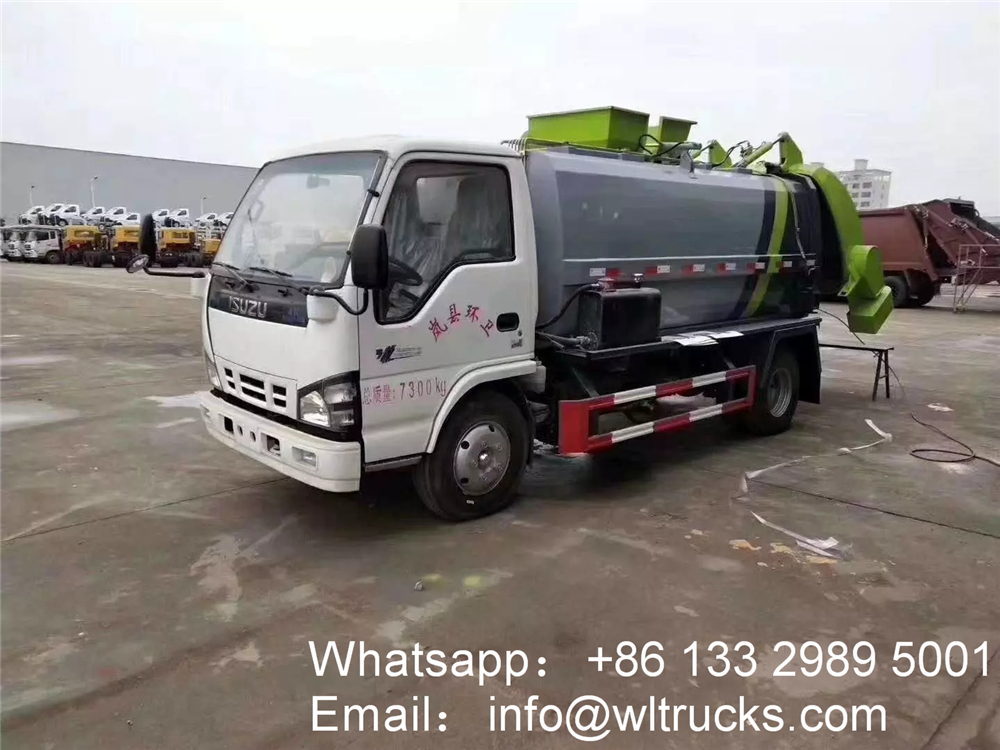

Kitchen garbage Truck Round tank process: cylindrical tank body with tie rod hoist, double cylinder hydraulic lifting and self-unloading at the bottom of the tank body, hydraulic opening and locking of the tank tail door + manual locking device, solid and liquid separation device inside At the end of the tank, a liquid self-flow valve, a liquid level window, a tool box and a hand washing device are installed.
ISUZU 600P 8000 liter Food liquid waste trucks New craft:
ISUZU 600P 8000 liter Food liquid waste trucks Optional configuration：

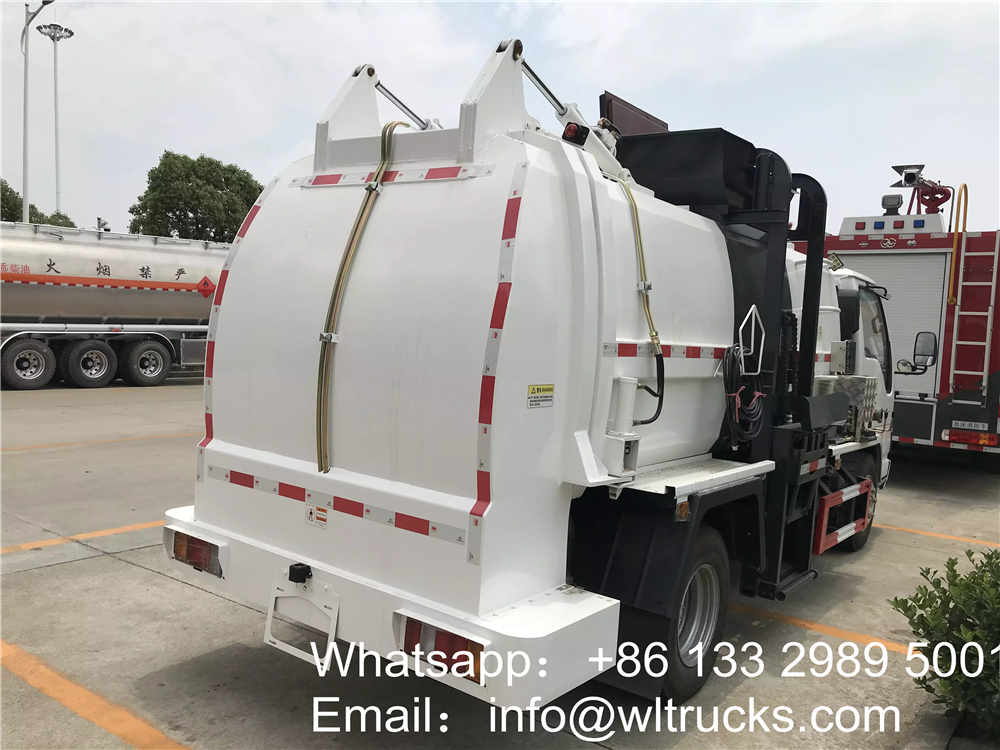

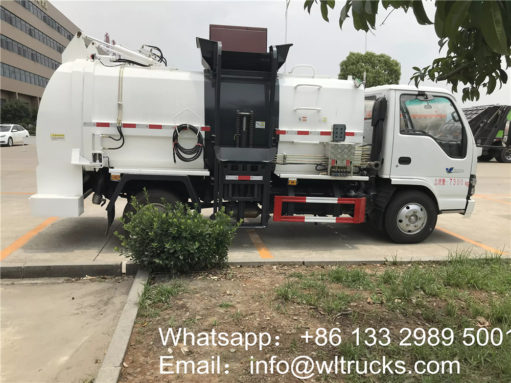

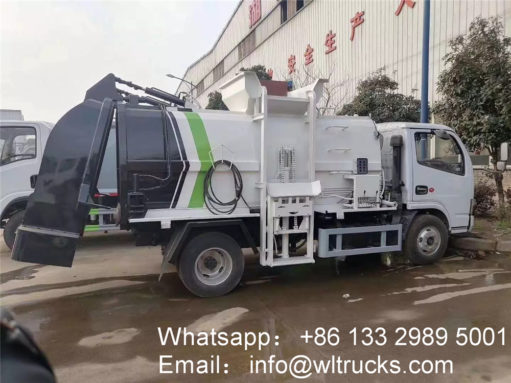

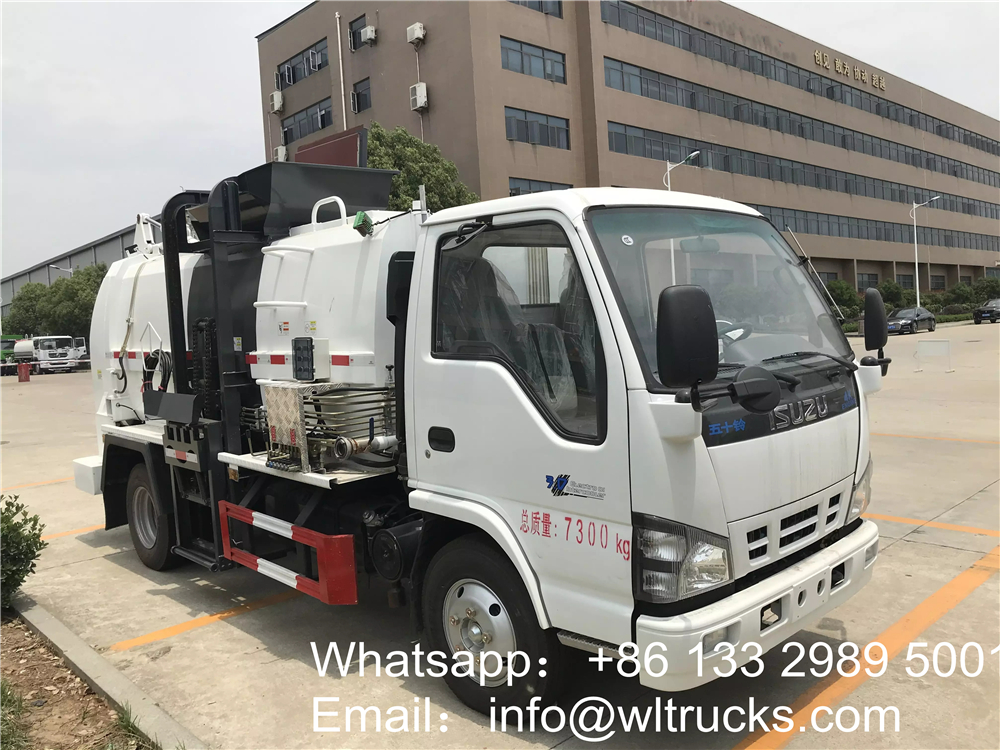

ISUZU 600P 8000 liter Food liquid waste trucks Detail drawing:
Customizable garbage truck models
