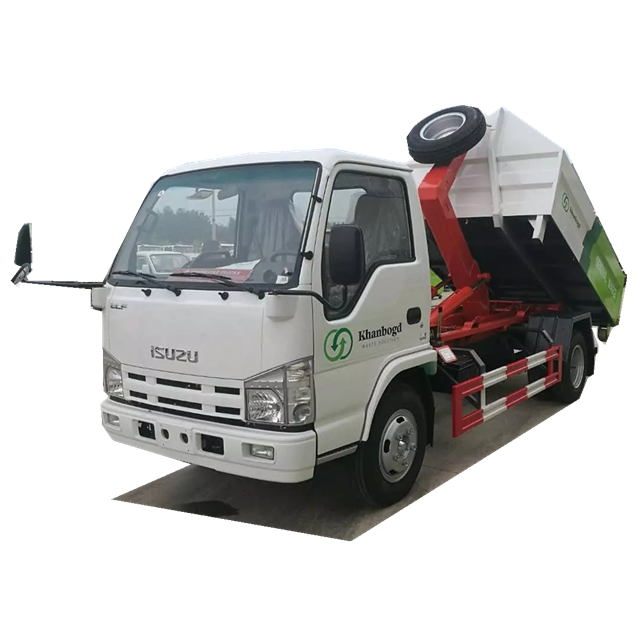

ISUZU elf 5000liters hook arm garbage truck Product Description:
ISUZU elf 5000liters hook arm garbage truck Chassis configuration: ELF 100P single-row driving cab, luxurious interior, Isuzu 98 horsepower engine, Isuzu five-speed gearbox, 3360mm wheelbase, 7.00 steel tires, ABS, dynamic rotation, 3.5T rear axle, air brake.
ISUZU elf 5000liters hook arm garbage truck Upper assembly road: the volume of the car body is 5 cubic meters, which is made of carbon steel plate, the interior is made of anti-rust, hydraulic pump, multi-way valve, the car can be unloaded, the cab can be operated, and other factories are standard. A set of pull arm hook loading system is adopted, and the pull arm hook swings through the expansion and contraction of the oil cylinder to complete the hook loading, hook unloading and unloading of the sealed garbage bin.
ISUZU elf 5000liters hook arm garbage truck Specifications:
| 【Vehicle technical parameters】 | |||||
| product name | Car detachable garbage truck | batch | 315 | ||
| Total mass (Kg) | 7300 | Rated load mass (Kg) | 4400 | ||
| Curb weight (Kg) | 2770 | Total mass of quasi-trailer (Kg) | |||
| Front passenger (person) | 2 | Rated passenger (person) | |||
| Dimensions (mm) | 5400 x 1880 x 2200 | ||||
| Cargo compartment size (mm) | xx | ||||
| Approach angle / departure angle (°) | 24/16 | Front / rear suspension (mm) | 1015/1025 | ||
| Axle load (Kg) | 2580/4720 | Maximum speed (Km / h) | 110 | ||
| Remarks | The side rear protection adopts Q235 material welding connection, the rear protection cross-sectional size (mm): 120 × 50, the rear height from the ground is 420mm. The model of ABS and its controller is: APG3550500A4, and the manufacturer is: Zhejiang Asia-Pacific Mechanical and Electrical Co., Ltd. | ||||
| 【Other parameters of vehicle】 | |||||
| Chassis model | QL1070A5HAY | Brand name | |||
| Number of axes | 2 | Number of tires | 6 | ||
| Wheelbase (mm) | 3360 | ||||
| Tire specifications | 7.00-16 14PR, 7.00R16 14PR | ||||
| Front track (mm) | 1504 | Rear track (mm) | 1425 | ||
| Fuel type | Diesel | Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
| 4KH1CN5HS | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 2999 | 76 | ||
ISUZU elf 5000liters hook arm garbage truck Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
4×2 JAC 3 ton small hook arm garbage truck New craft:
ISUZU elf 5000liters hook arm garbage truck Optional configuration:

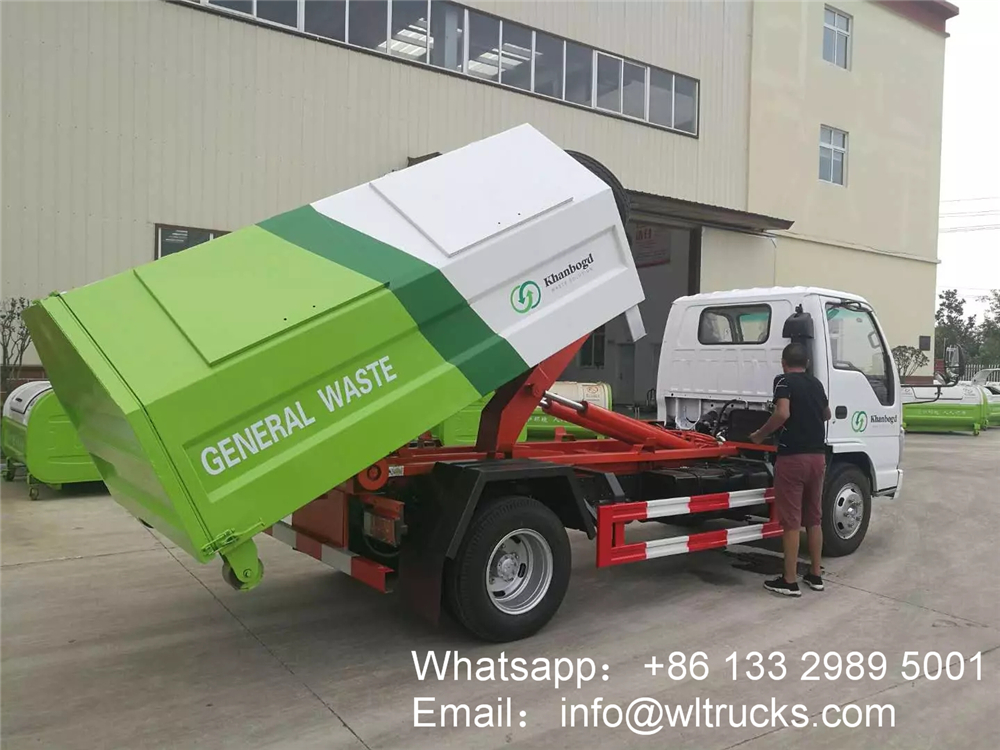

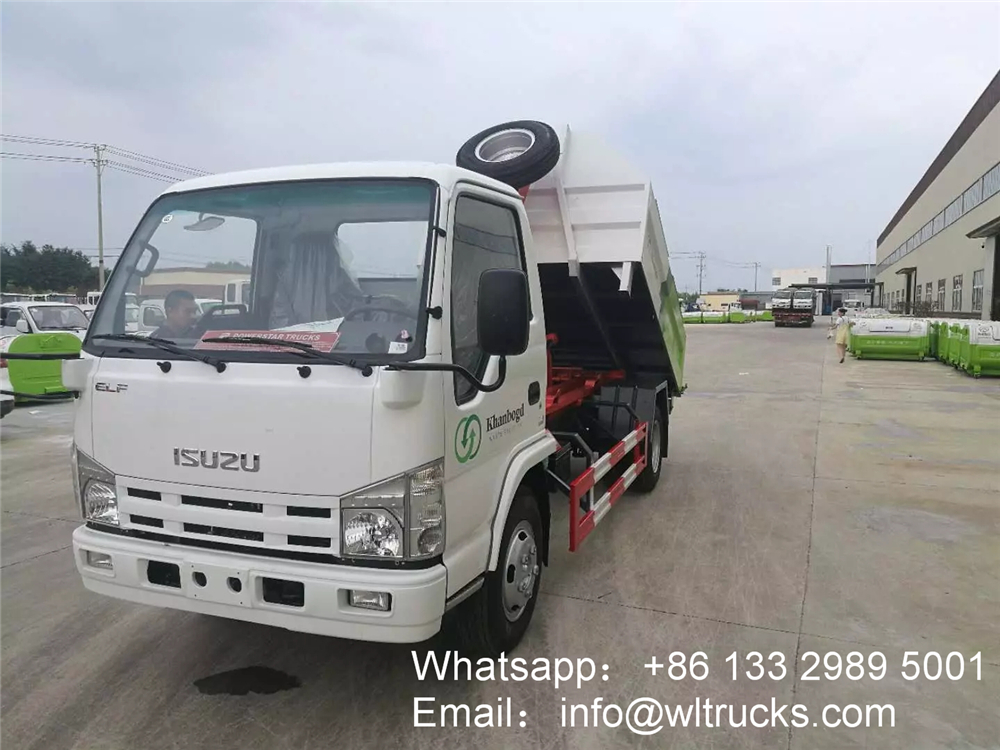

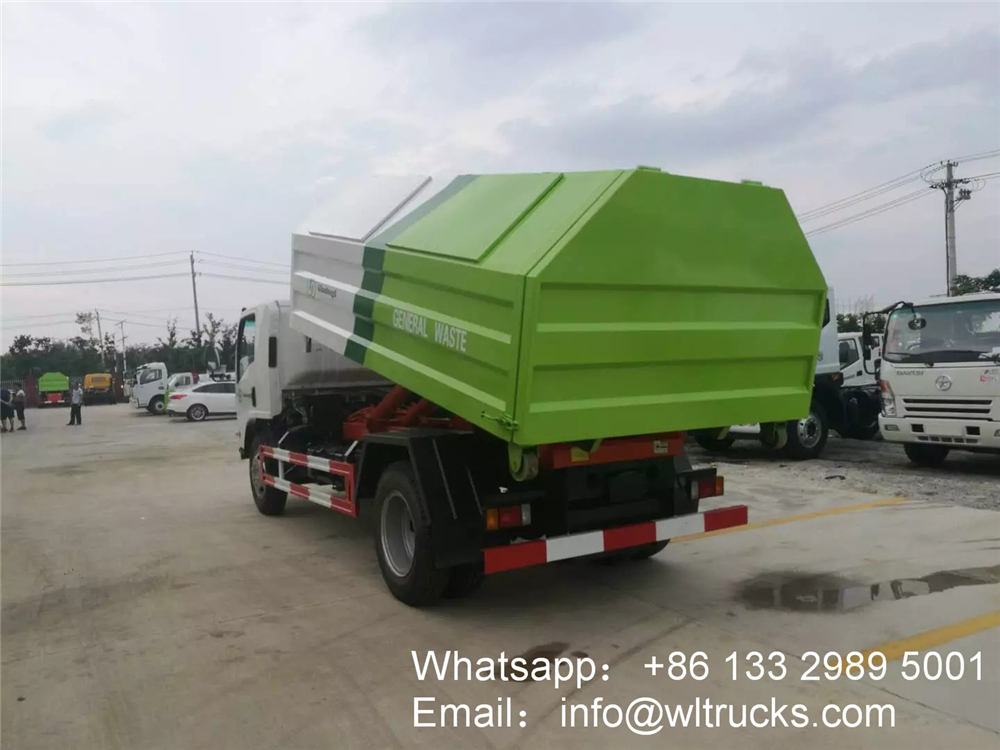

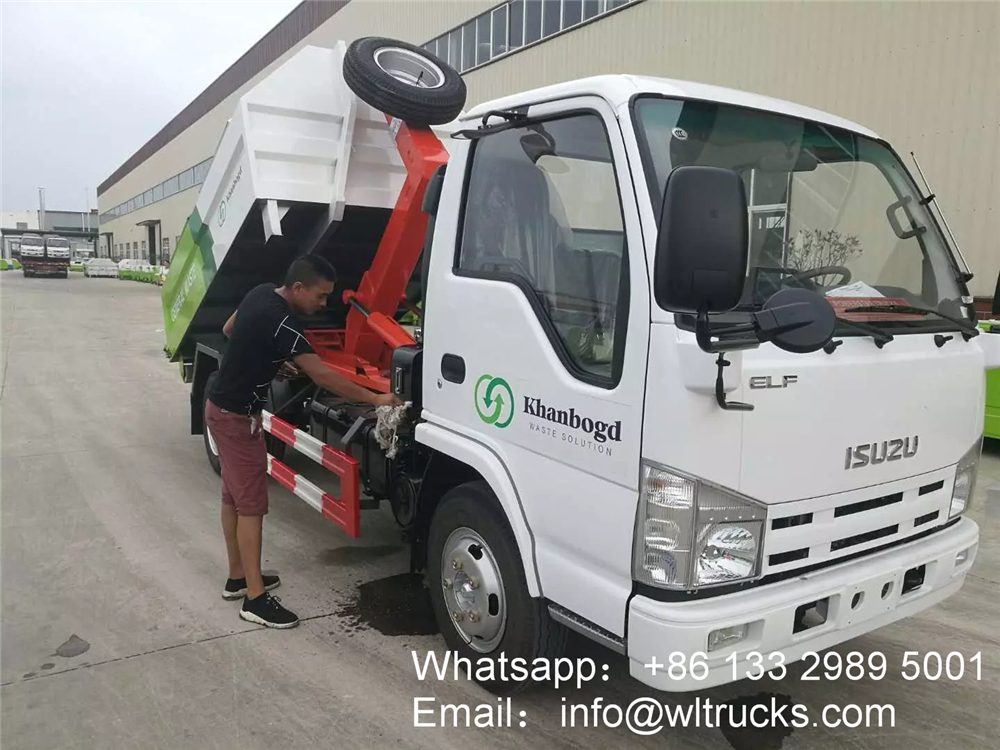

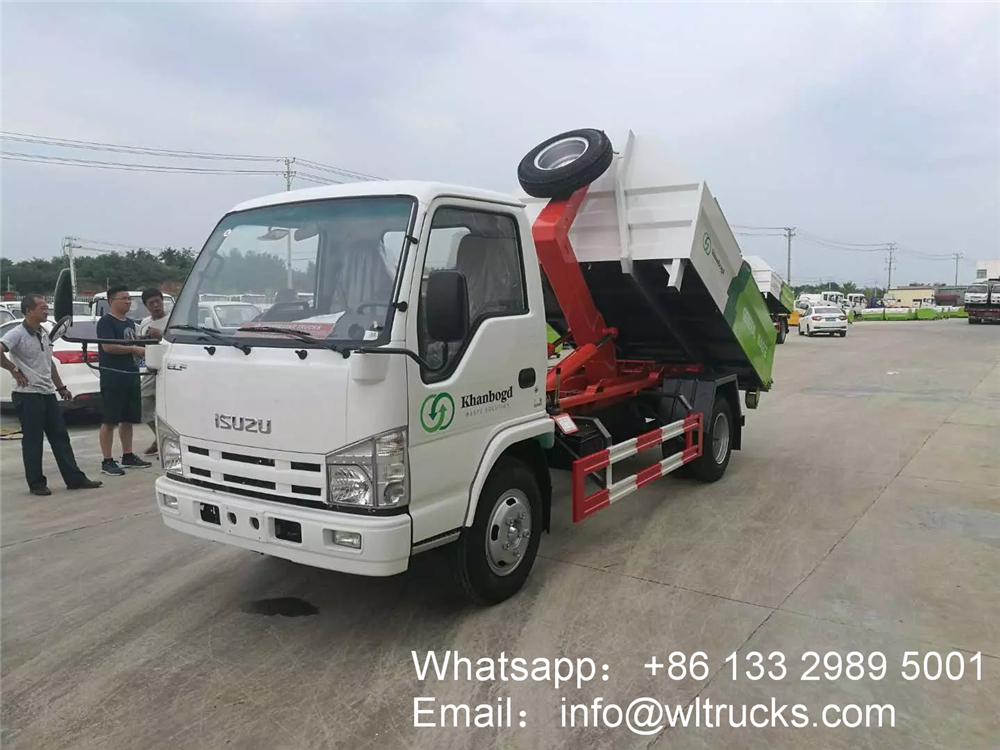

ISUZU elf 5000liters hook arm garbage truck detailed images:
ISUZU elf 5000liters hook arm garbage truck Structure diagram：
ISUZU elf 5000liters hook arm garbage truck Detail drawing:
