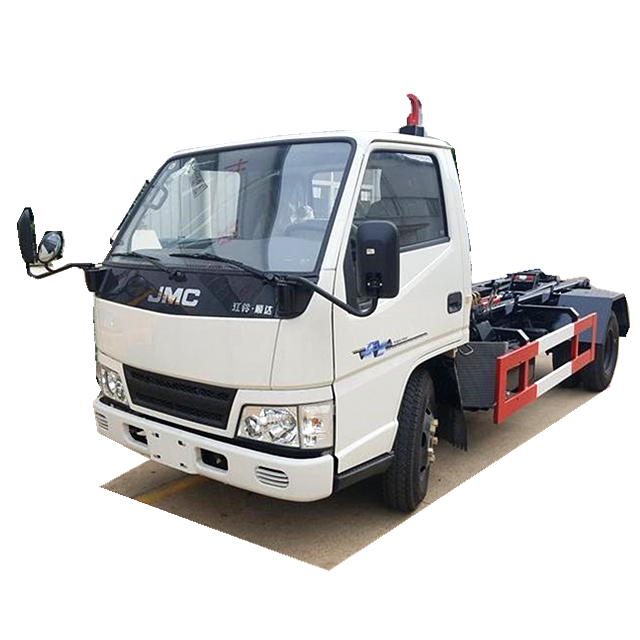

JMC 5 ton hook arm garbage truck Product Description:
JMC 5 ton hook arm garbage truck is equipped with Jiangling Isuzu 88-horsepower engine, chassis model: JX1041TG25, wheelbase 2800, 3360mm, displacement 2771ml, 7.00R16LT steel tire. Overall vehicle size: 5350, 4800 × 1950 × 2350, box size MM : 2800/3000 * 1600/1800 * 1250, total mass 4495, rated mass: 1480, curb weight 2885. With automatic loading and unloading of garbage bins, optional 4-6 cubic garbage bins, one truck can be equipped with multiple garbage bins, with self-unloading function.
JMC 5 ton hook arm garbage truck Specifications:
| 【Vehicle technical parameters】 | |||||
| product name | Car detachable garbage truck | batch | 289 | ||
| Total mass (Kg) | 4495 | Rated load mass (Kg) | 1480 | ||
| Curb weight (Kg) | 2885 | Total mass of quasi-trailer (Kg) | |||
| Front passenger (person) | 2 | Rated passenger (person) | |||
| Dimensions (mm) | 5350 x 1950 x 2350 | ||||
| Cargo compartment size (mm) | xx | ||||
| Approach angle / departure angle (°) | 27/17 | Front / rear suspension (mm) | 1065/925 | ||
| Axle load (Kg) | 1855/2640 | Maximum speed (Km / h) | 100 | ||
| Remarks | With the optional chassis cab. The side protection uses cold-formed steel / Q235-A, welded connection, and the rear protection uses cold-formed steel / Q235-A, welded connection, the cross-sectional size is 150 × 50, and the height above ground is 400mm. ABS system model: APG3550500A, ABS system manufacturer: Zhejiang Asia-Pacific Mechanical and Electrical Co., Ltd. The corresponding relationship between engine and fuel consumption value: JX493ZLQ5 / 11.9, JX493ZLQ5A / 10.8. | ||||
| 【Other parameters of vehicle】 | |||||
| Chassis model | JX1041TG25 | Brand name | |||
| Number of axes | 2 | Number of tires | 6 | ||
| Wheelbase (mm) | 3360 | ||||
| Tire specifications | 7.00R16LT 8PR | ||||
| Front track (mm) | 1385 | Rear track (mm) | 1425 | ||
| Fuel type | Diesel | Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
| JX493ZLQ5 | Jiangling Motors Co., Ltd. | 2771 | 85 | ||
JMC 5 ton hook arm garbage truck Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
4×2 JAC 3 ton small hook arm garbage truck New craft:
JMC 5 ton hook arm garbage truck Optional configuration:

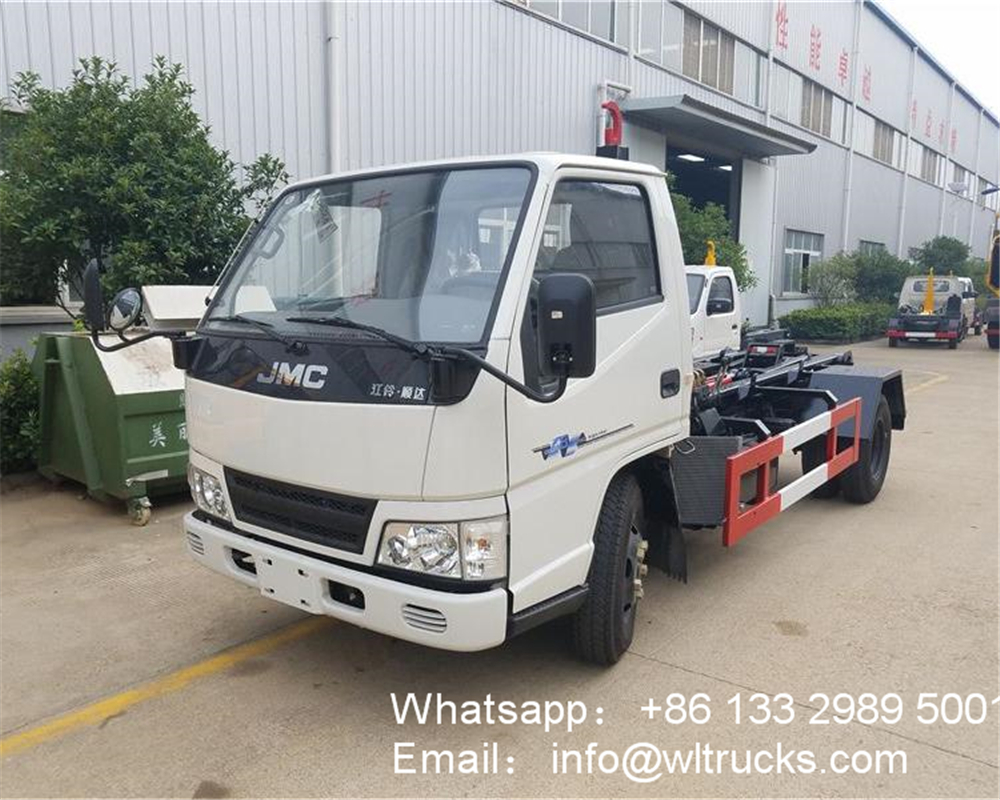

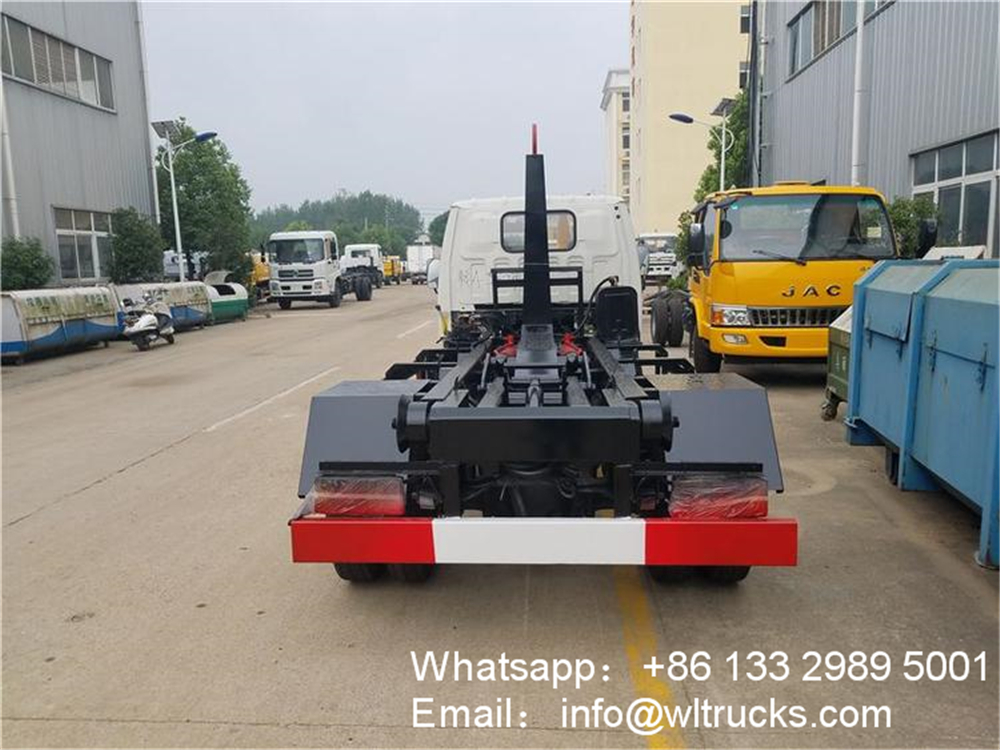

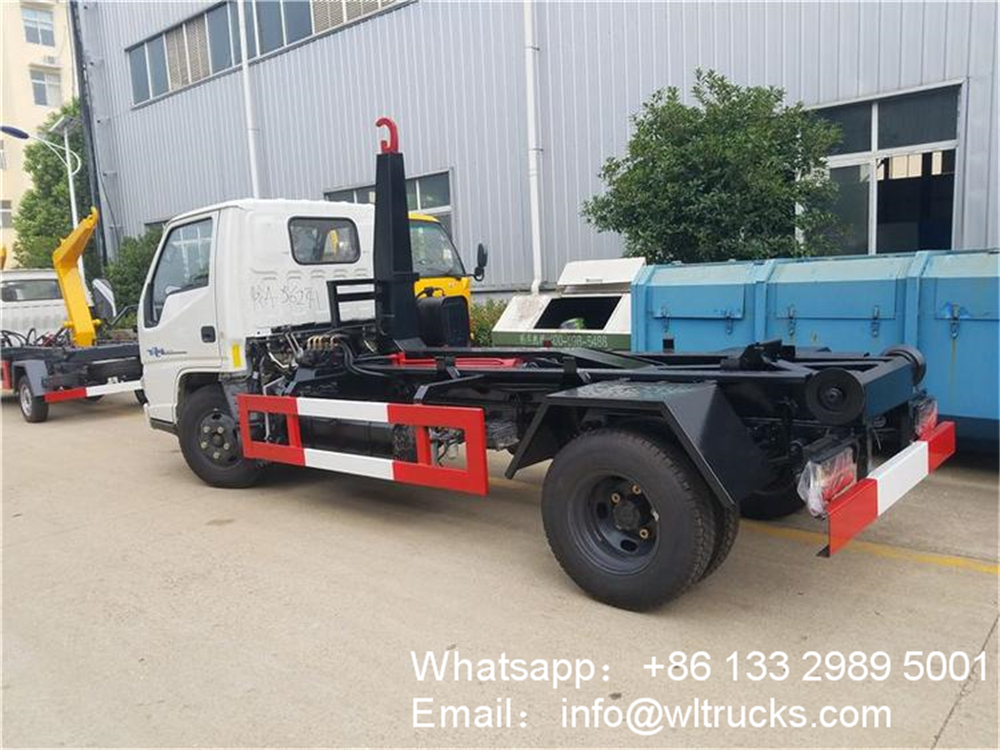

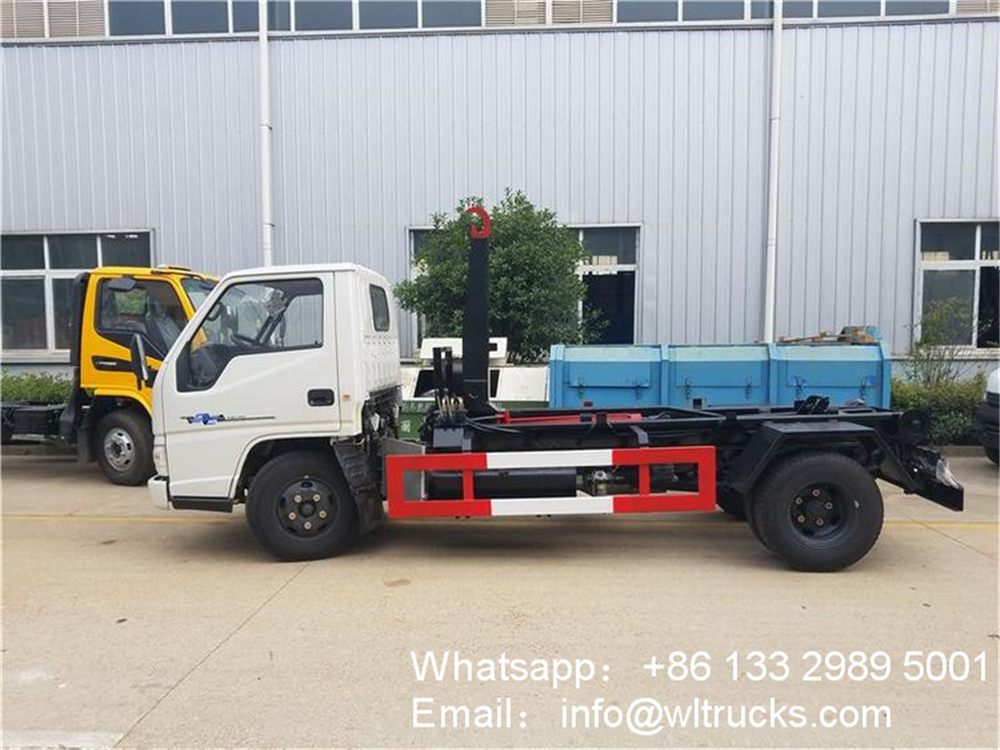

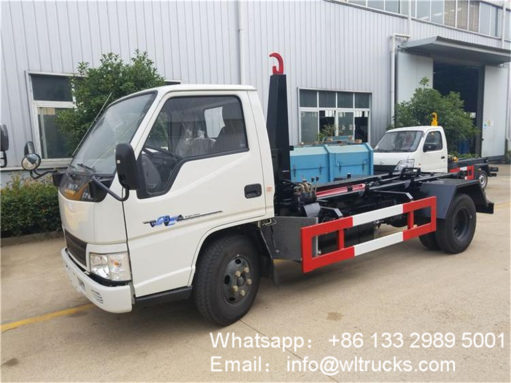

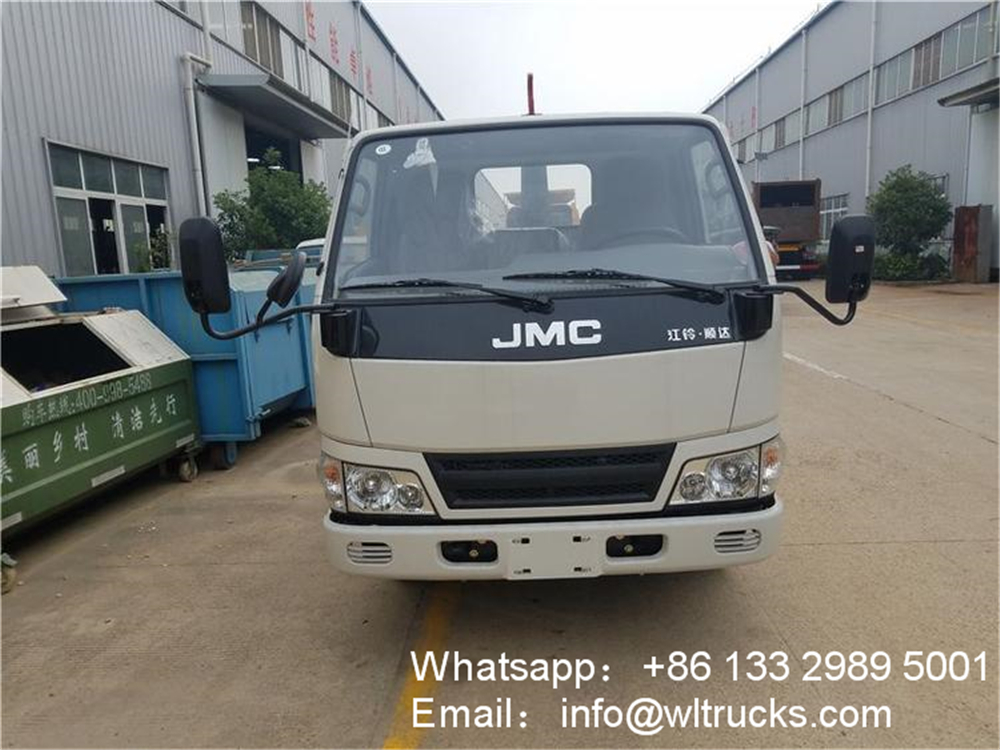

JMC 5 ton hook arm garbage truck detailed images:
JMC 5 ton hook arm garbage truck Structure diagram：
JMC 5 ton hook arm garbage truck Detail drawing:
