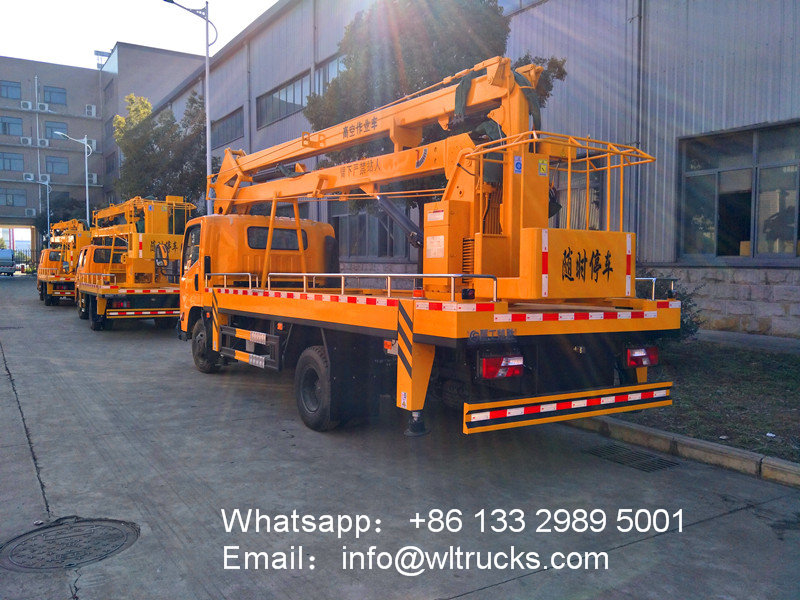

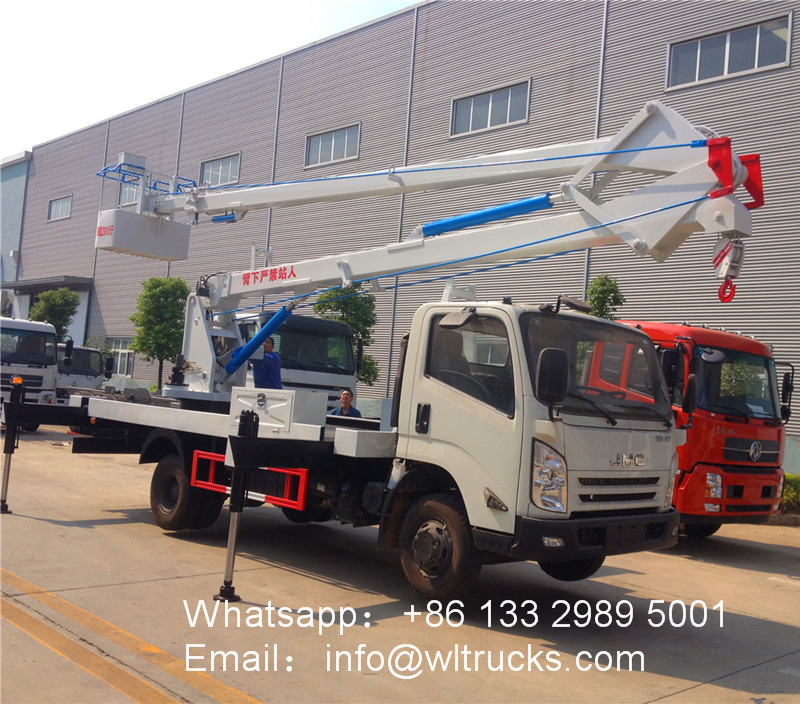

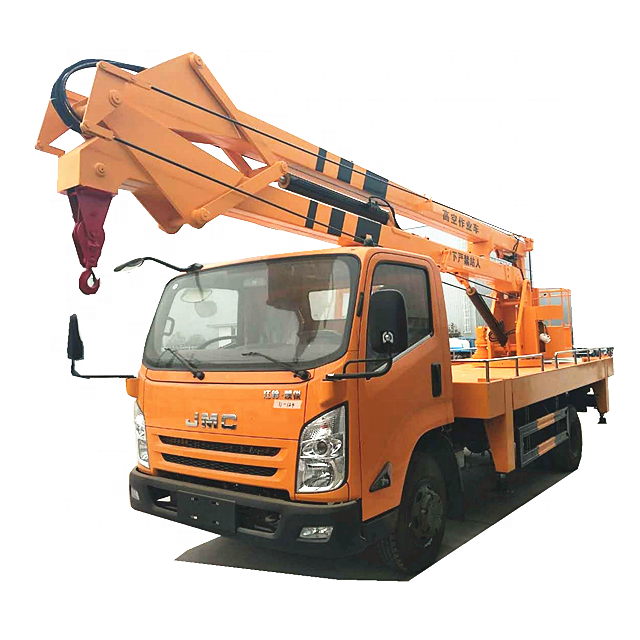

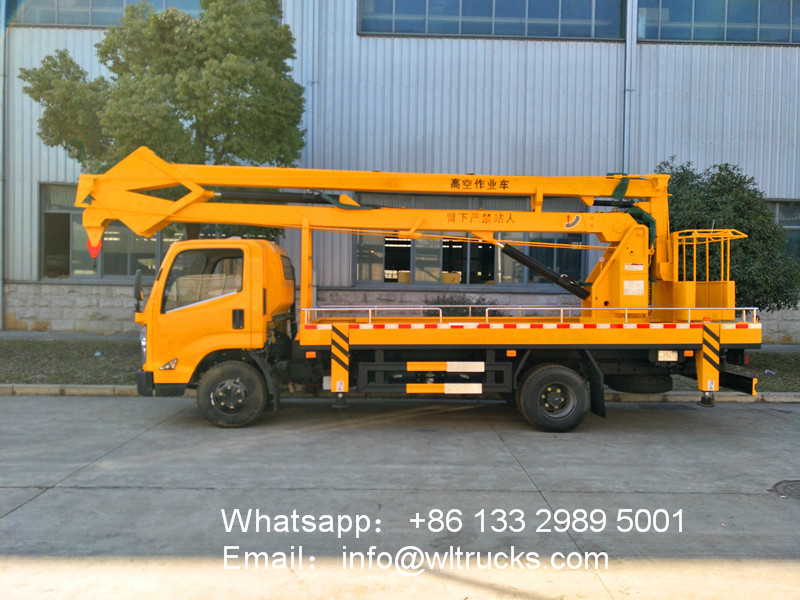

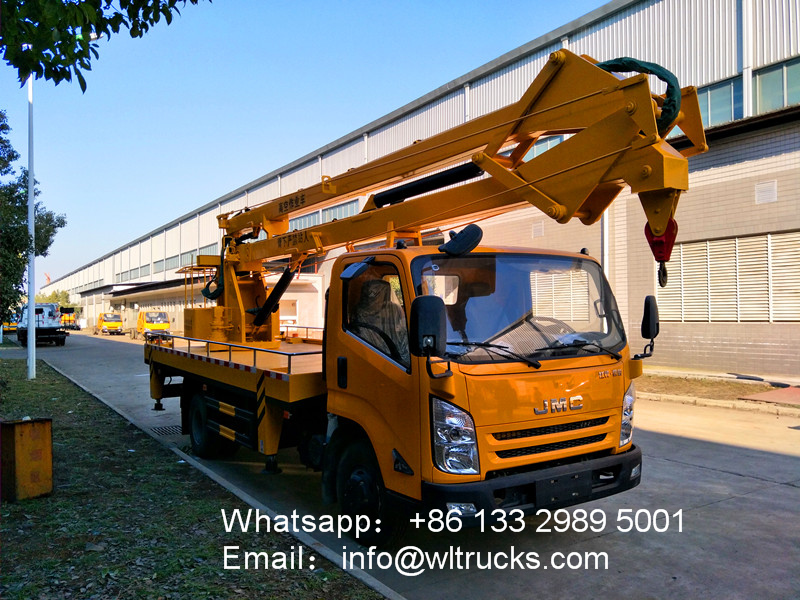

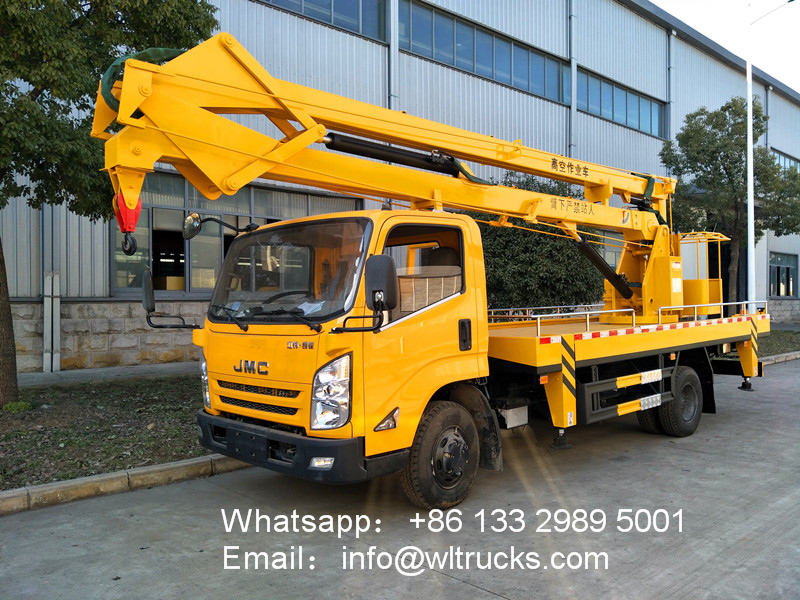

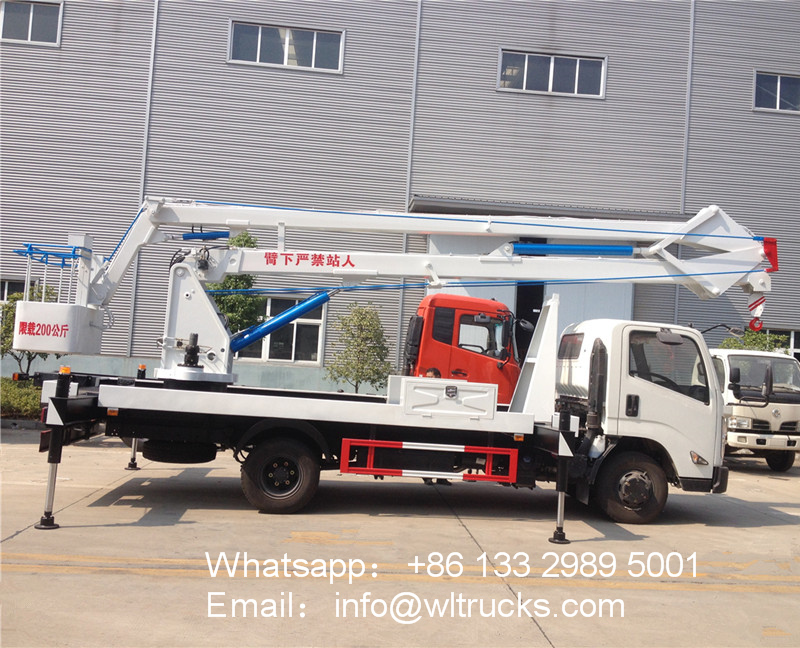

JMC 18m aerial working platform truck
JMC 18m aerial working platform truck Application area：
Aerial platform vehicles are widely used for installation, maintenance and ascending operations in industries such as municipal administration, electric power, street lights, advertising, communications, photography, gardens, shipbuilding, transportation, docks, airports and ports, rescue and rescue, large industrial and mining enterprises, etc.
Aerial platform truck are also known as: street light repair trucks, hydraulic lift trucks, ascending platform trucks. Our company specializes in the production of 6 meters, 10 meters, 12 meters, 13.5 meters, 14 meters, 16 meters, 18 meters, 20 meters, 22 meters, 24 meters , 28 meters, 32 meters, 38 meters, 45 meters aerial platform trucks, lift trucks, products are widely used in electric power, street lamps, municipal Aerial work areas such as gardens, communications, airports, shipbuilding, ship repair, transportation, advertising, photography, etc. According to the type, it is mainly divided into: vertical lift type (also known as scissor type) aerial work truck, folding arm type lift aerial work truck, self-propelled aerial work platform, telescopic boom type aerial work truck, and ladder truck.
JMC 18m aerial working platform truck specification:
|
Product name
|
JMC 18m truck mounted aerial boom and aerial platform light truck with basket
|
Chassis model
|
JX1083TK24
|
|
Lift height customization
|
18 meter
|
Total mass (kg)
|
7305
|
|
Engine horsepower
|
150Ph |
Rated load mass (Kg)
|
7110 |
|
Engine name
|
4KH1A
|
Emission Standards
|
Euro 4
|
|
Dimensions (MM)
|
7300×2000×3100
|
Fuel type
|
Diesel
|
|
Number of tires
|
6
|
Tire specifications
|
750-16
|
|
Wheelbase (MM)
|
3815
|
Maximum speed (km/h)
|
95
|
|
Front track
|
1506
|
Rear track
|
1530
|
|
Performance profile
|
The company’s aerial work vehicle series can accommodate more operators. Configuration work basket; with electric insulation device, subject to actual test, performance is reliable. Mainly used for high-altitude operations such as electrical line inspection, aerial work cleaning, and tree pruning. | ||
|
Dedicated configuration
|
1. Maximum working height: 10-16 meters, maximum working range: 6.5 meters
2. Adopting the international leading Jiangling high-end chassis and installing three-section folding arm hydraulic lifting special device
3. Environmental protection items to the national motor vehicle fifth stage emission standards (country V)
4. Adopting domestic and imported reversing valve and hydraulic cylinder, the commutation is stable, the operation is flexible and convenient, the hydraulic system realizes the interlocking of the upper and lower vehicles, the overload protection, and the cylinder is safely locked.
5. Turntable, work bucket double station operation
6. The boom has a compact structure, good maneuverability and large working range.
7. The legs and the working arm are interlocked, safe and reliable, preventing misoperation
8.H-type legs, large span, good stability, the legs can be independently telescopic, and can be linked, equipped with a leg flashing light, used for the leg profile during operation, emitting a light alarm signal
9. Waterproof switch has limit function, dangerous working condition alarm, superior safety performance
10. Optional 1 ton hook (hook telescopic 800-1000mm), hook maximum lifting mass 500kg
11. Optional automatic protection system to prevent misoperation
12. Optional emergency power source, ignition and flameout device
13. Optional electronic control system for electro-hydraulic proportional speed control, stepless speed regulation, smooth operation / electronic control system optional ground wireless remote control operating system
14. Optional 10, 11, 13, 14, and 16 meters series of aerial work.
|
||
JMC 18m aerial working platform truck Working parameter:
