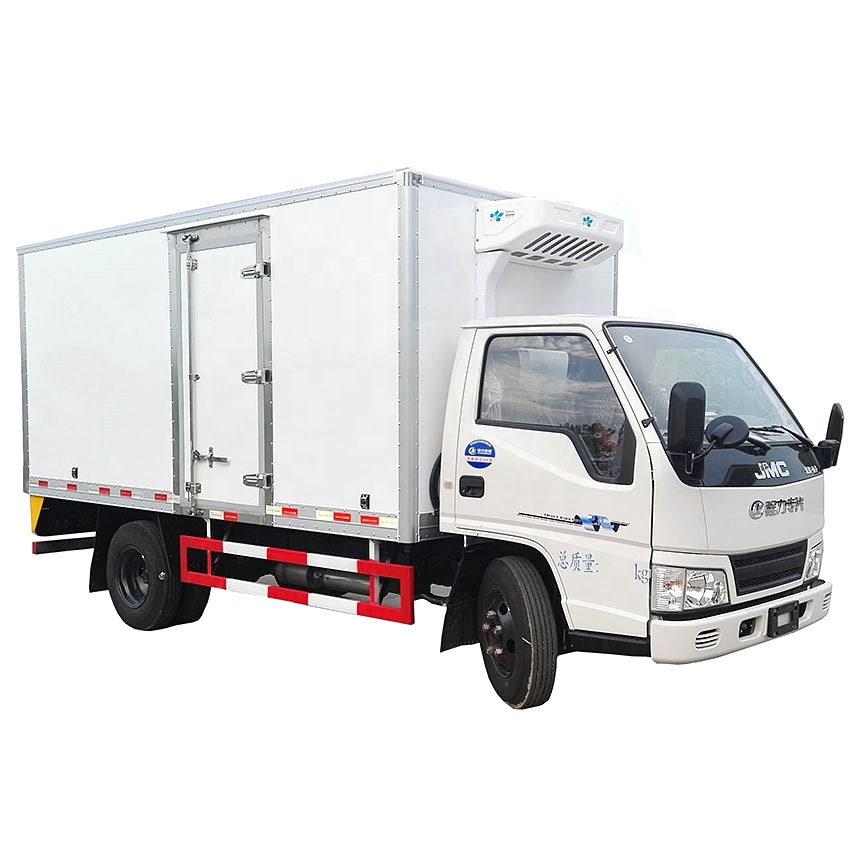

JMC 3 ton medical waste collection truck
chassis configuration: Jiangling’s new chassis, Jiangling’s 2.9 displacement 115 horsepower diesel engine, 5 speed gearbox, 700R16 steel tires, direction assist, front axle disc brake, speed limit device, ABS , box length 3.95 meters, box width 1.85 meters, box height 1.75 meters.
Optional configuration: self-unloading function of cabin, double-layer rear door insulation function.
JMC 3 ton medical waste collection truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
JMC 3 ton medical waste collection truck specification:
| 【Vehicle technical parameters】 | |||||
| product name | Medical waste transfer vehicle | batch | 328 | ||
| Total mass (Kg) | 4495 | Rated load mass (Kg) | 1365 | ||
| Curb weight (Kg) | 3000 | Total mass of quasi-trailer (Kg) | |||
| Front passenger (person) | 2 | Rated passenger (person) | |||
| Dimensions (mm) | 5995 x 1950 x 2860 | ||||
| Cargo compartment size (mm) | 3950 x 1850 x 1750 | ||||
| Approach angle/departure angle (°) | 20/15,17/15 | Front/rear suspension (mm) | 1075/1560 | ||
| Axle load (Kg) | 1895/2600 | Maximum speed (Km/h) | 80 | ||
| Remarks | The top of the car body is closed and cannot be opened; the name of the transport: infectious substances, diagnostic samples, hospital diagnostic waste, category number: 6.2, 6.2, 6.2. Protective material: Q235, connection method: the left and right side protections are welded to the frame, the rear protection is welded to the frame, the rear protection cross-sectional size (mm): 50×100, the rear protection height above ground (mm) :400. ABS system model: APG3550500A, ABS system manufacturer: Zhejiang Asia-Pacific Mechanical and Electrical Co., Ltd.; the declared value of the fuel consumption of the JX4D30B6H engine is 11.0L/100km. The front wheel of the car is equipped with disc brakes, front exhaust pipes, and speed limit devices Speed limit 80km/h; install driving recorder with satellite positioning function. Only radial tires are optional. | ||||
| 【Other parameters of vehicle】 | |||||
| Chassis model | JX1041TG26 | Brand name | |||
| Number of axes | 2 | Number of tires | 6 | ||
| Wheelbase (mm) | 3360 | ||||
| Tire specifications | 7.00R16LT 10PR, 7.00R16LT 8PR, 6.5R15LT 10PR, 6.5R16LT 10PR | ||||
| Front track (mm) | 1385,1400 | Rear track (mm) | 1425 | ||
| Fuel type | Diesel | Emission standard | GB3847-2005, GB17691-2018 National Ⅵ | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
| JX4D30B6H | Jiangling Motors Co., Ltd. | 2892 | 85 | ||
JMC 3 ton medical waste collection truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
JMC 3 ton medical waste collection truck New craft:
JMC 3 ton medical waste collection truck Optional configuration:

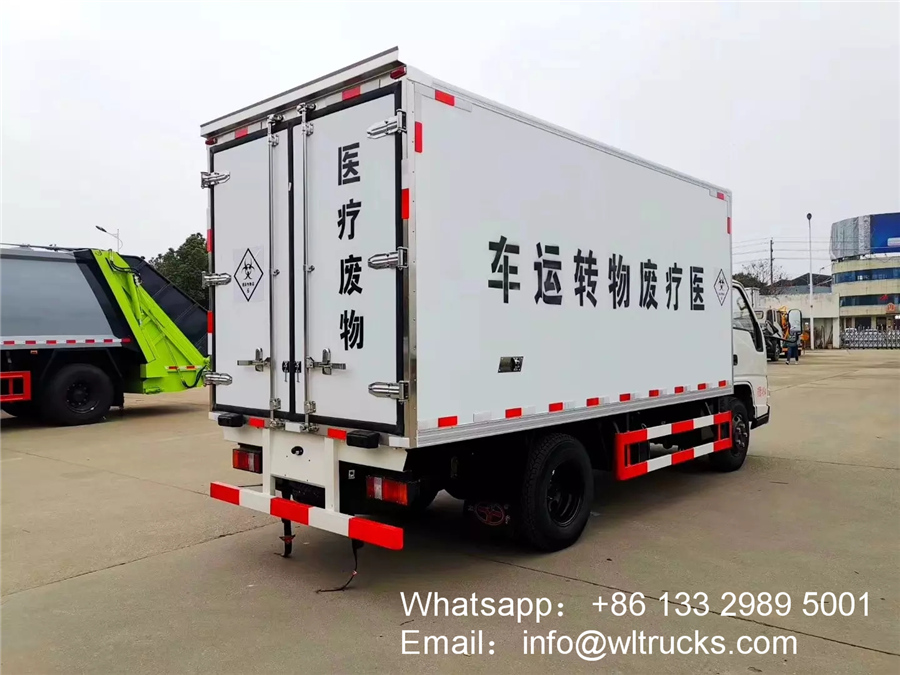

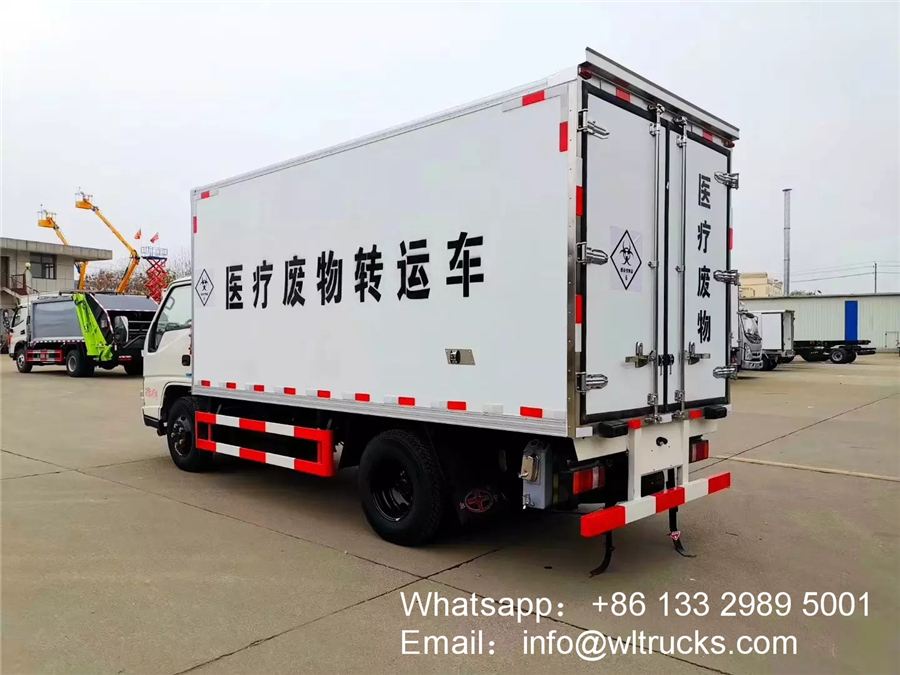

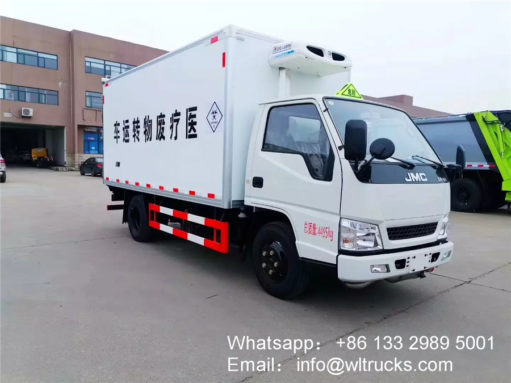

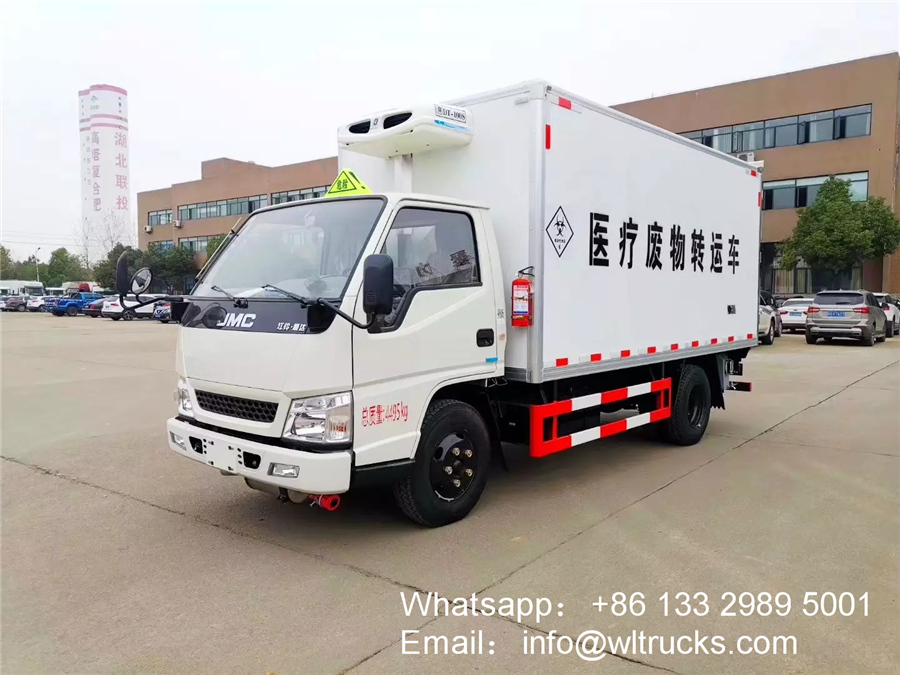

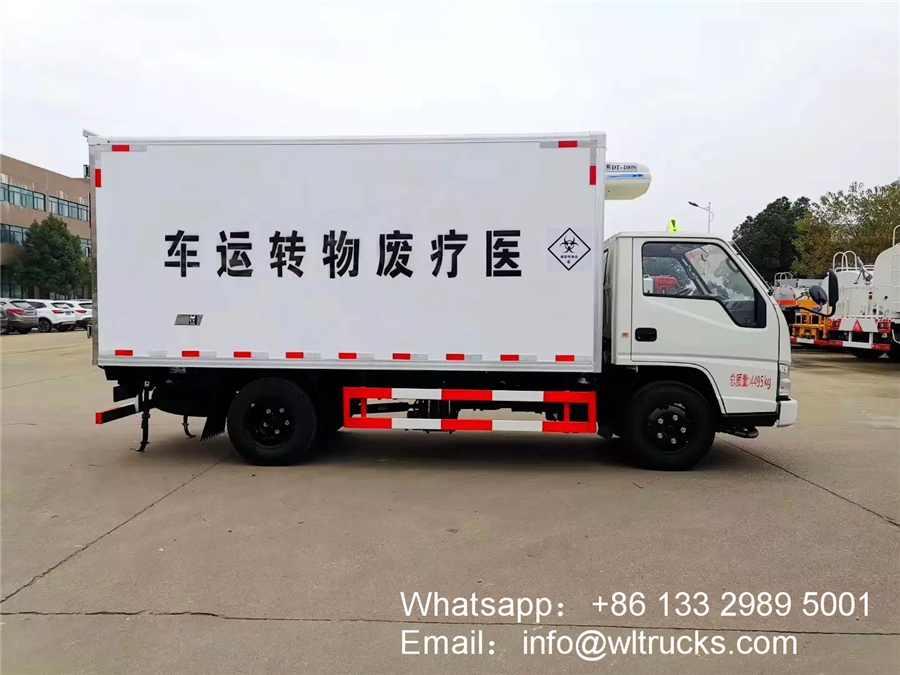

JMC 3 ton medical waste collection truck Bodywork details:

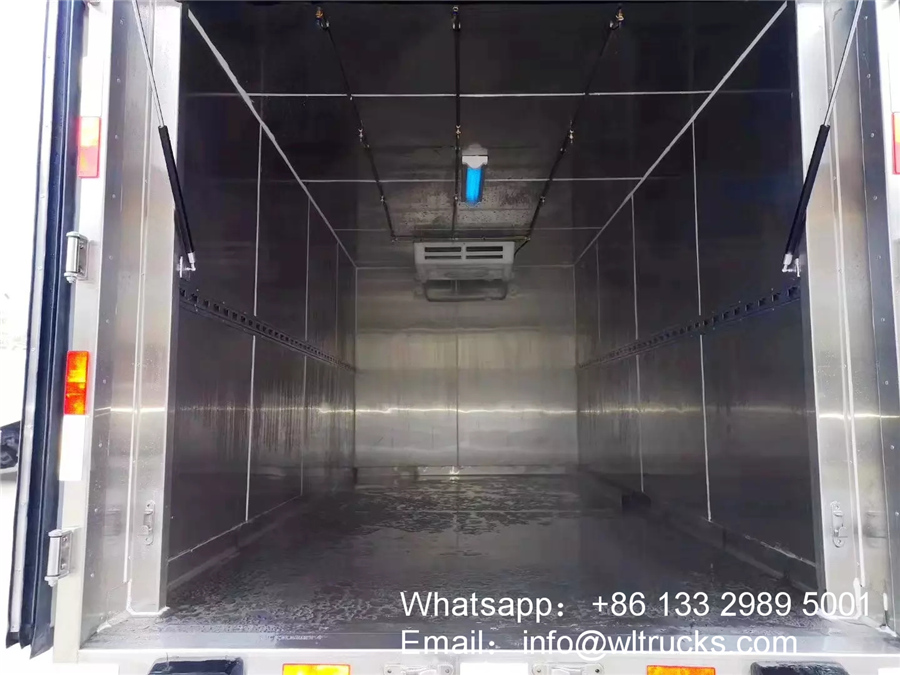

JMC 3 ton medical waste collection truck Internal details:
Forland TOANO 2 ton minibus refrigerated truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
