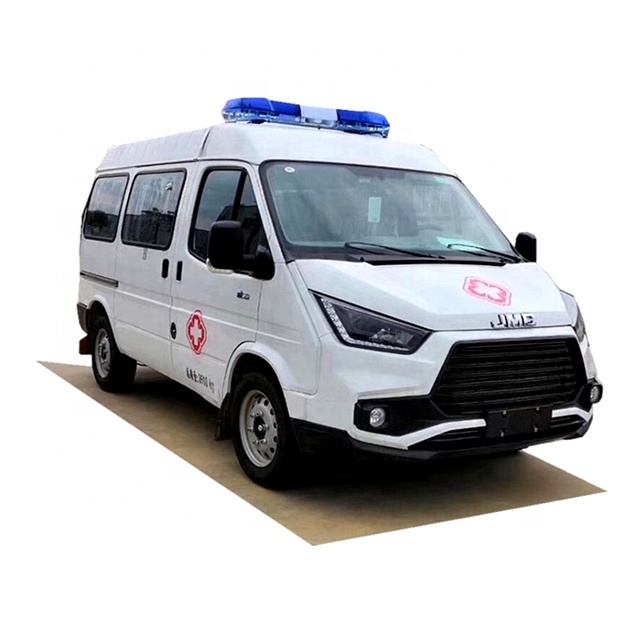

JMC Teshun Diesel Transport Ambulance vehicle
JMC Teshun modified the front shape on the basis of classic Transit, while hanging JMC brand LOGO, and the price is very close to the people. The new car’s quadrilateral headlights are very sharp and contain LED daytime running lights. Overall, the front face of the new car is very personal.
Equipment include one portable stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
specification:
| Main technical parameters of SZD5049XJHJ ambulance vehicle | |||
| Vehicle model | SZD5049XJHJ | Emission Standards | Eruo 5 |
| manufacturer | Suizhou Dongzheng Special Automobile Co., Ltd. | Fuel type | Diesel |
| Total quality | 3510 kg | Curb quality | 2100 kg |
| Number of passengers | 3-7 people | Maximum speed | 120 km/h |
| Front track | 1692 mm | Rear track | 1700 mm |
| Wheelbase | 2835 mm | Tire specifications | 215/70R15LT |
| Dimensions | 4744, 4944×1972×2435, 2245 mm | ||
| other | A flat roof is optional with the chassis, the height of the car is 2245mm. The rear pedal is optional, the length is 4944mm, and the corresponding rear suspension is 1083mm. The wheel cover is optional, the roof ventilating fan is optional, and the strobe light is equipped. It is equipped with a medical stretcher, oxygen bottle, and infusion clip. Holder and other special equipment. ABS system controller model: APG3550500G; ABS system controller manufacturer: Zhejiang Asia-Pacific Mechanical and Electrical Co., Ltd. | ||
| SZD5049XJHJ AmbulanceEngine parameters | |||
| engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
| JX493ZLQ5 | Jiangling Motors Co., Ltd. | 2771 | 85 |
Transport ambulance Configuration parameter:
| basic configuration | |||||
| 1 | Medical cabin air conditioner | 1 | |||
| 2 | Medical cabin heater | 1 | |||
| Circuits and electrical appliances | |||||
| Alarm and warning system | 1 | Long row of standard police lights, | 1 | ||
| 2 | 100W alarm and handheld control | 1 | |||
| Interior roof, interior, power supply | 3 | 500W power inverter | 1 | ||
| 4 | Medical cabin rocker control switch | 1 | |||
| 5 | 12V power port | 1 | |||
| 6 | 220V power port | 2 | |||
| 7 | Top LED lighting | 4 | |||
| 8 | Positive and negative ventilation fan | 1 | |||
| 9 | Long delay disinfection lamp | 1 | |||
| Oxygen circuit and oxygen | |||||
| Oxygen supply system | 1 | One 10-liter medical iron bottle and shock-absorbing clamp | 1 | ||
| 2 | One humidification bottle with oxygen pressure reducing valve, directly connected to the oxygen bottle | 1 | |||
| Medical cabin production | |||||
| Inside the medical cabin | 1 | Original car interior | 1 | ||
| 2 | Partition wall | 1 | |||
| 3 | Sliding window for partition wall | 1 | |||
| 4 | 1 medical cabinet behind the partition wall | 1 | |||
| 5 | Oxygen cylinder fixed beside the medicine cabinet | 1 | |||
| 6 | Wear-resistant non-slip blue medical floor leather | 1 | |||
| Seat | |||||
| Seat system | 1 | Independent left seat | 2 | ||
| 2 | Independent right seat | 2 | |||
| First aid | |||||
| medical system | 1 | Auto stretcher | 1 | ||
| 2 | Stretcher pad | 1 | |||
| 3 | 1 sliding infusion stand | 1 | |||
| 4 | 1KG fire extinguisher | 1 | |||
| Exterior | |||||
| Outside the vehicle | 1 | Black sun film on the left side of the medical cabin | 1 | ||
| 2 | Translucent matte film on right and rear | 1 | |||
| 3 | Cross marks on the left and right doors | 1 | |||

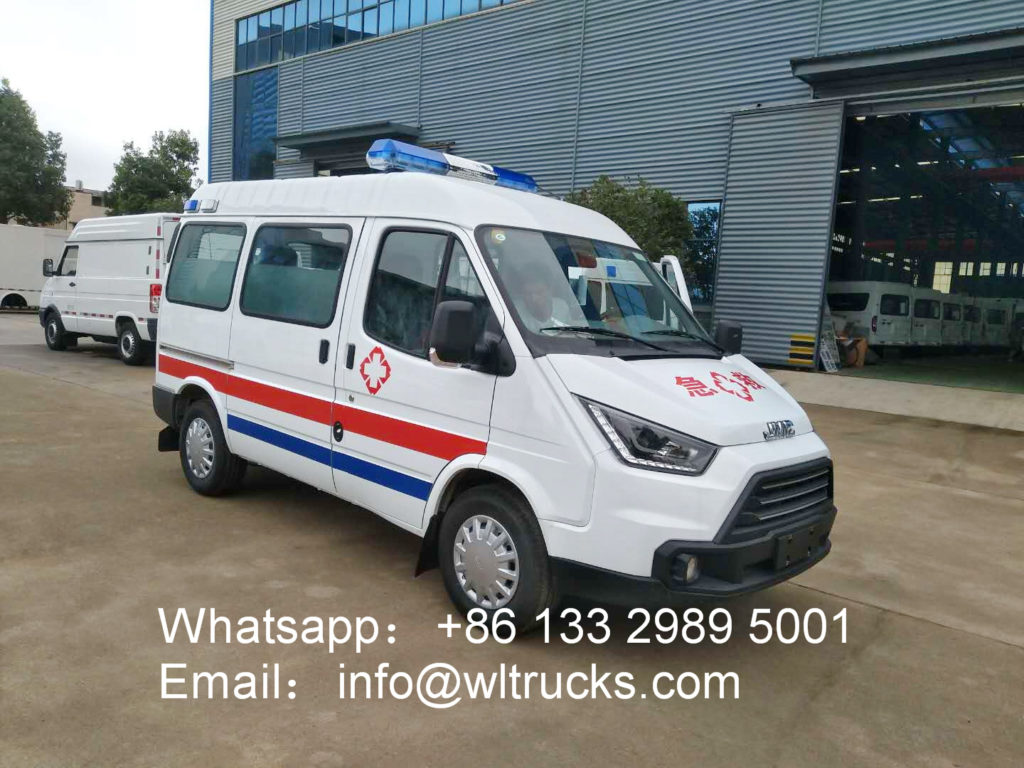

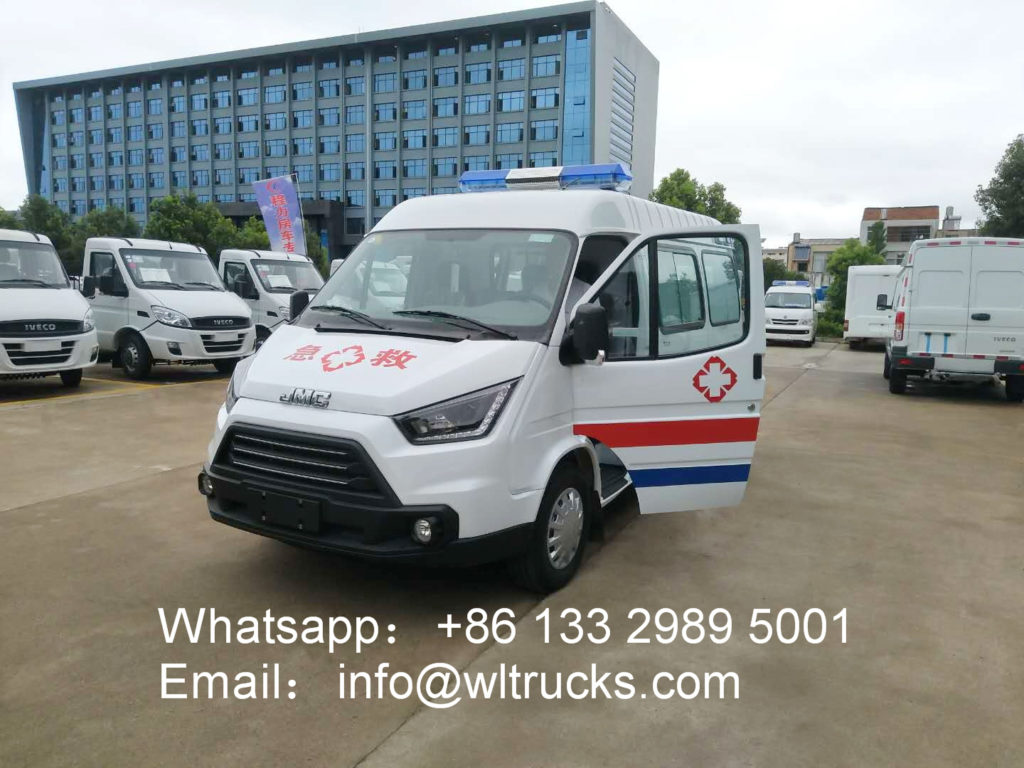

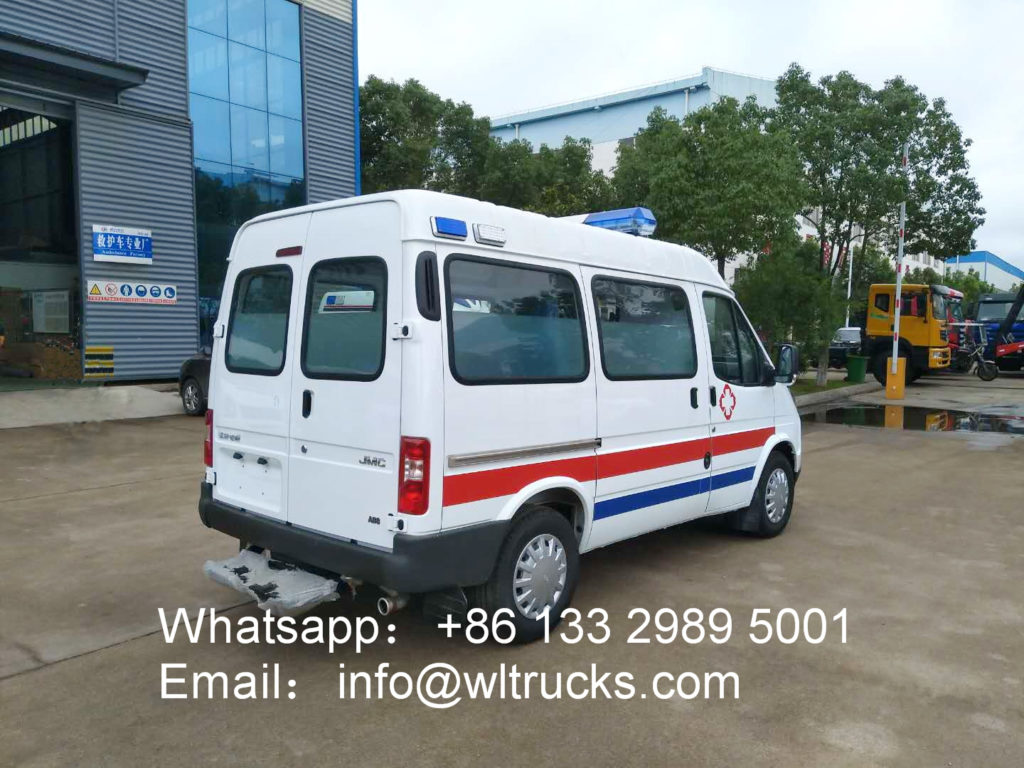

Ambulance car details:

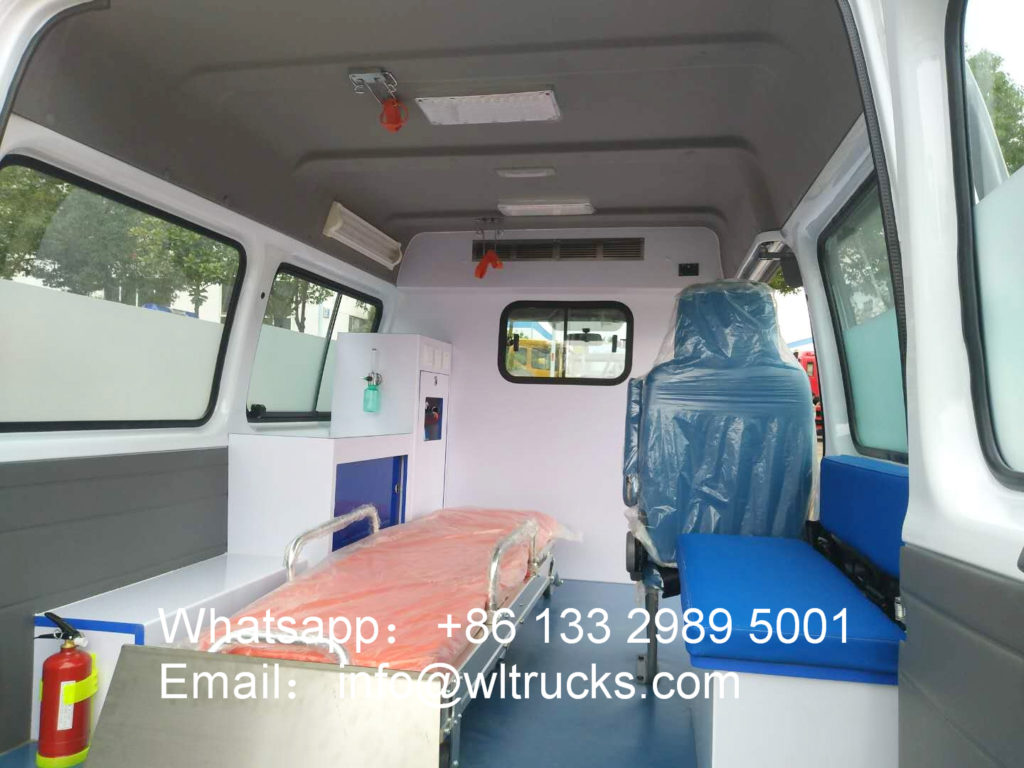

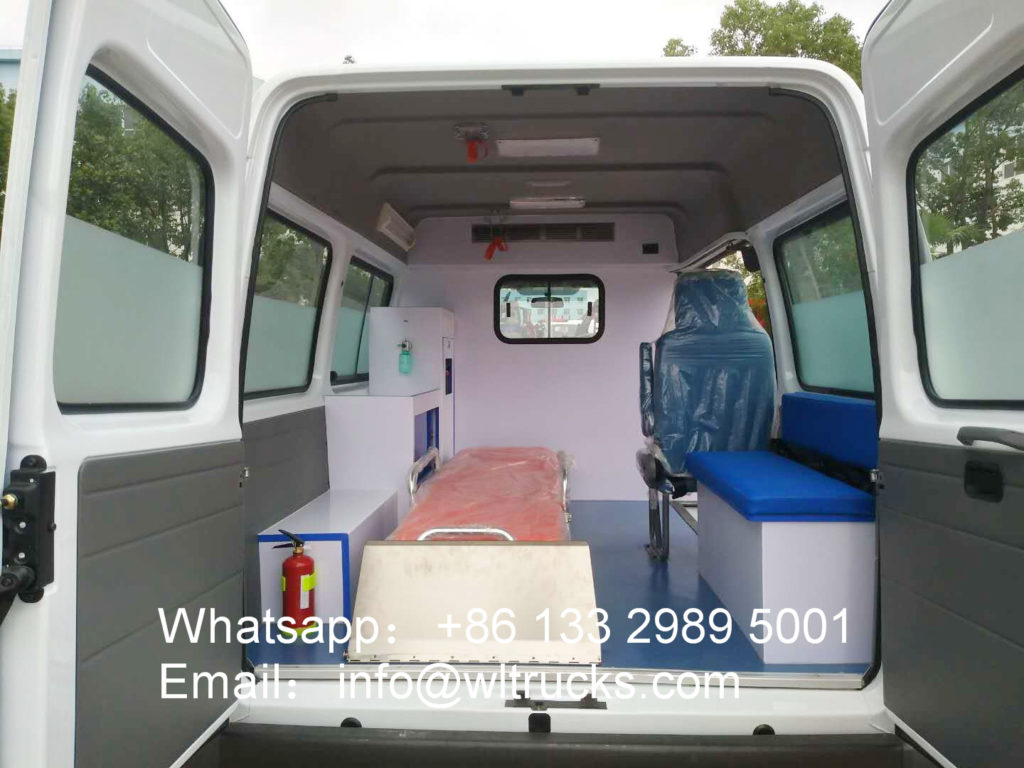

JMC Teshun Diesel Transport Ambulance vehicle equipment：
