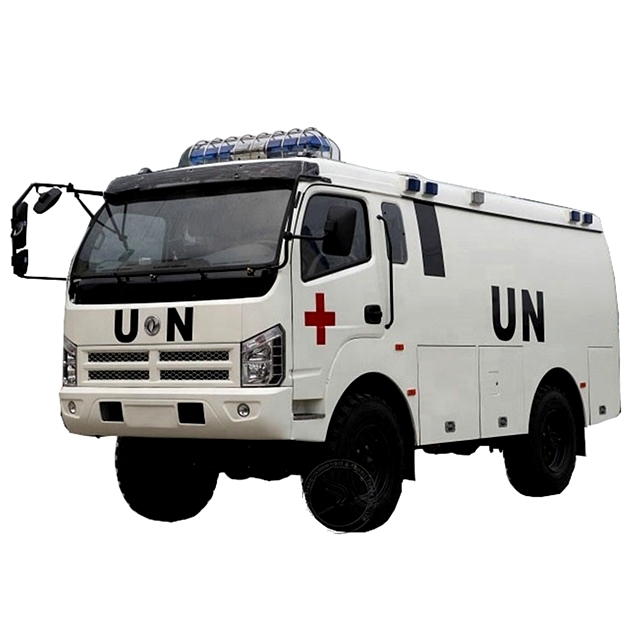

Dongfeng 4×4 diesel medical ambulance bus
Dongfeng 4×4 diesel medical ambulance bus Adopt Dongfeng 4WD Chassis Euro 3 Cummins 102KW engine, the size of the whole vehicle is 5980×2020×2890mm, the wheelbase is 3.3 meters, 2.8L displacement, 5-speed gearbox.
Equipment include one portable stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
specification:
| Drive Type | 4×4 ambulance |
| Chassis Dimensions (mm) | |
| Overall chassis length | 5980 |
| Cab width | 2020 |
| Cab height (unladen) | 2890 |
| Wheel base | 3100 |
| Vehicle weights (kg) | |
| G.V.W | 7200 |
| Chassis curb weight (theory) | 5300 |
| Engine | |
| Type | ISF2.8s4168 |
| Emission level | Euro III |
| Maximum power | 102KW/140HP |
| Number of cylinders | 4 |
| Displacement (lit) | 3.7 |
| Tyre | 305/80R20 |

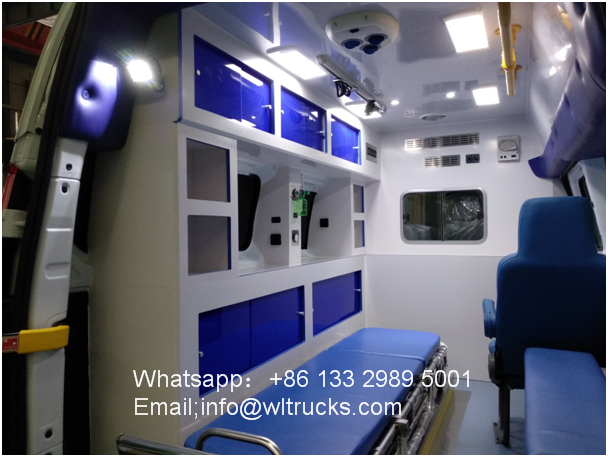

Ambulance medical cabin configuration diagram:
Intensive care ambulance configuration:
| basic configuration | ||||||
| 1 | High-power medical air-conditioning | 1 | ||||
| 2 | Medical cabin high-power heater | 1 | ||||
| Circuits and electrical appliances | ||||||
| Alarm and warning system | 1 | Long row of standard police lights | 1 | |||
| 2 | 100W alarm and handheld control | 1 | ||||
| 3 | Tail blue rectangular flash | 2 | ||||
| 4 | Blue rectangular flashing on the left and right sides | 2 | ||||
| 5 | White rectangular lights on the left and right sides | 2 | ||||
| In-car power system | 1 | 1000W positive spin wave inverter electrical system | 1 | |||
| 2 | Integrated circuit integrated control and protection system | 1 | ||||
| 3 | Medical switch integrated switch control panel | 1 | ||||
| 4 | Medical compartment national standard 220V power port | 3 | ||||
| 5 | Medical compartment national standard 12V power socket | 1 | ||||
| 6 | LED lighting on top of medical cabin | 4 | ||||
| 7 | Time delay function disinfection lamp installed in the medical cabin | 1 | ||||
| 8 | Medical cabin can be installed with positive and negative ventilation fans | 1 | ||||
| 9 | Intercom system before and after medical cabin installation | 1 | ||||
| Oxygen circuit and oxygen | ||||||
| Oxygen supply system | 1 | Two 10 liter medical oxygen cylinders and special shock-absorbing clamps | 2 | |||
| 2 | Hidden oxygen piping system | 1 | ||||
| 3 | Install two oxygen ports of national standard for medical cabin column | 2 | ||||
| 4 | 1 humidification bottle | 1 | ||||
| Medical cabin production | ||||||
| Inside the medical cabin | 1 | The polymer hardtop interior is easy to clean and disinfect | 1 | |||
| 2 | Polymer material special-shaped partition wall | 1 | ||||
| 3 | Transparent sliding observation window for partition wall | 1 | ||||
| 4 | Left upper walker board medical long hanging cabinet | 1 | ||||
| 5 | Walker Sheet Medical Device Cabinet, Central Left | 1 | ||||
| 6 | Walker sheet vertical oxygen cabinet on the left rear | 1 | ||||
| 7 | Install hidden safety embedded parts for the whole vehicle | 1 | ||||
| 8 | Medical cabin full set of blue anti-collision soft package wall | 1 | ||||
| 9 | Environment-friendly wear-resistant, non-slip blue medical floor and cushion | 1 | ||||
| Seat | ||||||
| Seat system | 1 | Reverse folding soft seat 1 | 1 | |||
| 2 | 1 forward-mounted independent backrest seat on the right side | 1 | ||||
| 3 | Right side 2 people long horizontal soft bag seat and seat belt | 1 | ||||
| First aid | ||||||
| medical system | 1 | Auto stretcher | 1 | |||
| 2 | Stretcher pad and guide plate | 1 | ||||
| 3 | 1 sliding infusion stand | 1 | ||||
| 4 | Fire extinguisher | 1 | ||||
| Exterior | ||||||
| Outside the vehicle | 1 | Black sun film on the left side of the medical cabin | 1 | |||
| 2 | Translucent matte film on right and rear | 1 | ||||
| 3 | Standard medical appearance customization | 1 | ||||
Transport ambulance configuration:
| basic configuration | |||||
| 1 | Medical cabin air conditioner | 1 | |||
| 2 | Medical cabin heater | 1 | |||
| Circuits and electrical appliances | |||||
| Alarm and warning system | 1 | Long row of standard police lights, | 1 | ||
| 2 | 100W alarm and handheld control | 1 | |||
| Interior roof, interior, power supply | 3 | 500W power inverter | 1 | ||
| 4 | Medical cabin rocker control switch | 1 | |||
| 5 | 12V power port | 1 | |||
| 6 | 220V power port | 2 | |||
| 7 | Top LED lighting | 4 | |||
| 8 | Positive and negative ventilation fan | 1 | |||
| 9 | Long delay disinfection lamp | 1 | |||
| Oxygen circuit and oxygen | |||||
| Oxygen supply system | 1 | One 10-liter medical iron bottle and shock-absorbing clamp | 1 | ||
| 2 | One humidification bottle with oxygen pressure reducing valve, directly connected to the oxygen bottle | 1 | |||
| Medical cabin production | |||||
| Inside the medical cabin | 1 | Original car interior | 1 | ||
| 2 | Partition wall | 1 | |||
| 3 | Sliding window for partition wall | 1 | |||
| 4 | 1 medical cabinet behind the partition wall | 1 | |||
| 5 | Oxygen cylinder fixed beside the medicine cabinet | 1 | |||
| 6 | Wear-resistant non-slip blue medical floor leather | 1 | |||
| Seat | |||||
| Seat system | 1 | Independent left seat | 2 | ||
| 2 | Independent right seat | 2 | |||
| First aid | |||||
| medical system | 1 | Auto stretcher | 1 | ||
| 2 | Stretcher pad | 1 | |||
| 3 | 1 sliding infusion stand | 1 | |||
| 4 | 1KG fire extinguisher | 1 | |||
| Exterior | |||||
| Outside the vehicle | 1 | Black sun film on the left side of the medical cabin | 1 | ||
| 2 | Translucent matte film on right and rear | 1 | |||
| 3 | Cross marks on the left and right doors | 1 | |||

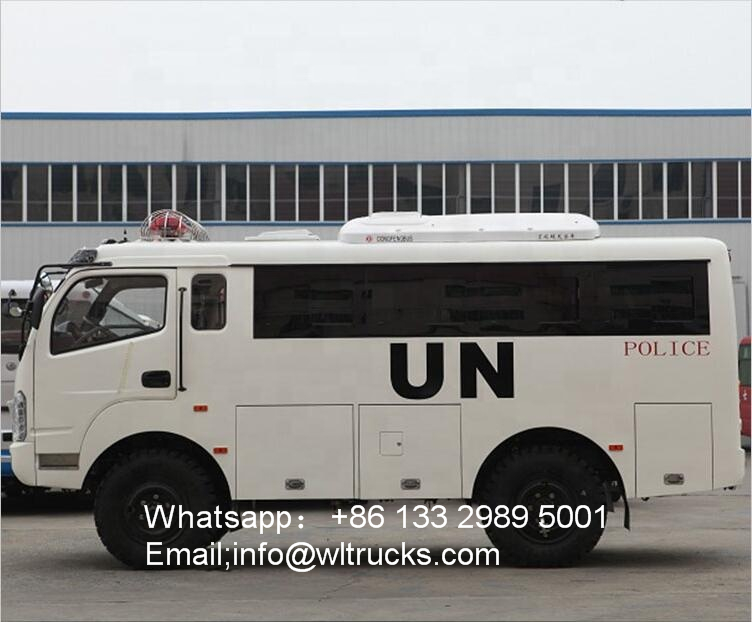

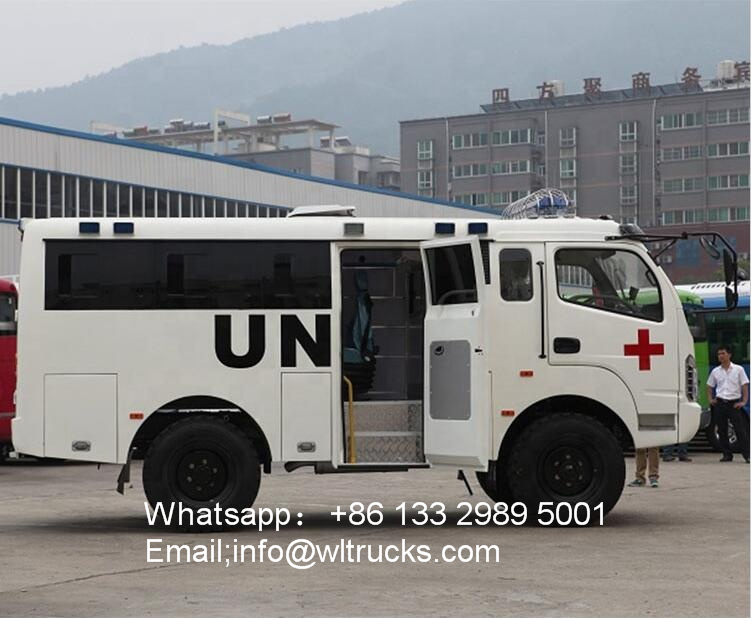

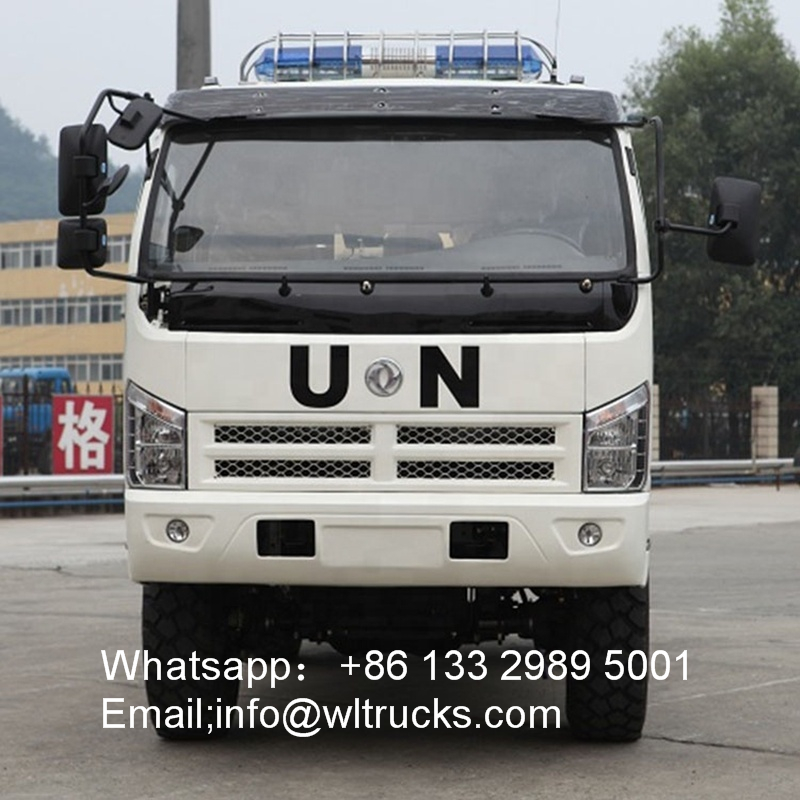

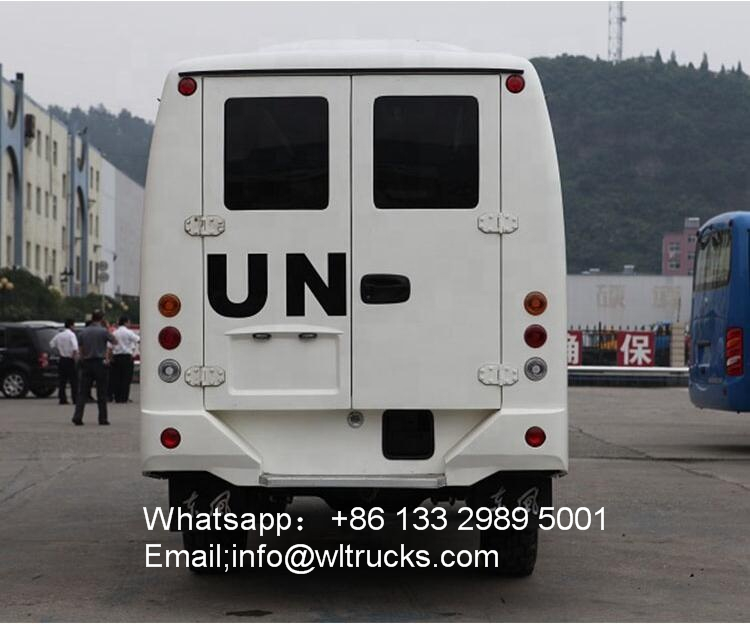

Ambulance car details:
Dongfeng 4×4 diesel medical ambulance bus equipment：
