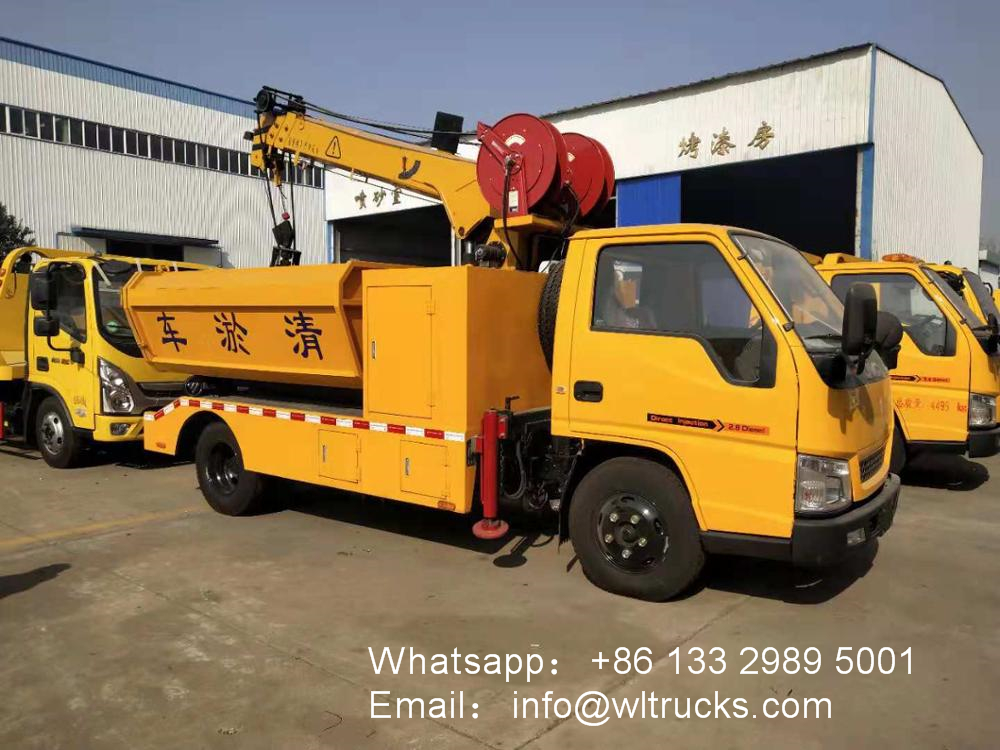

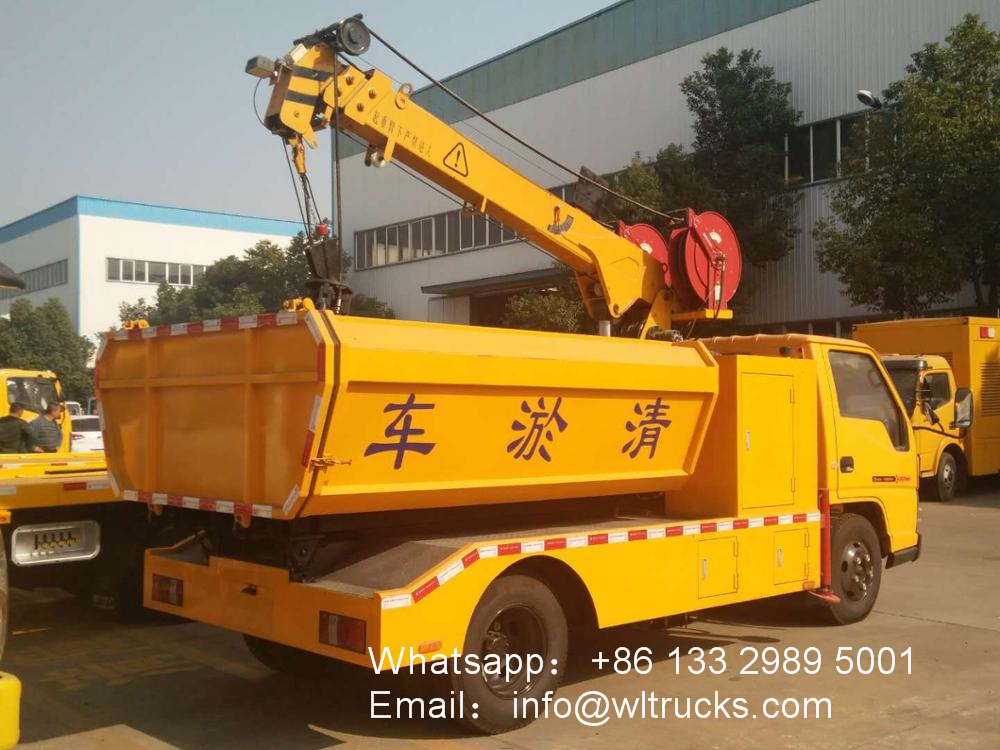

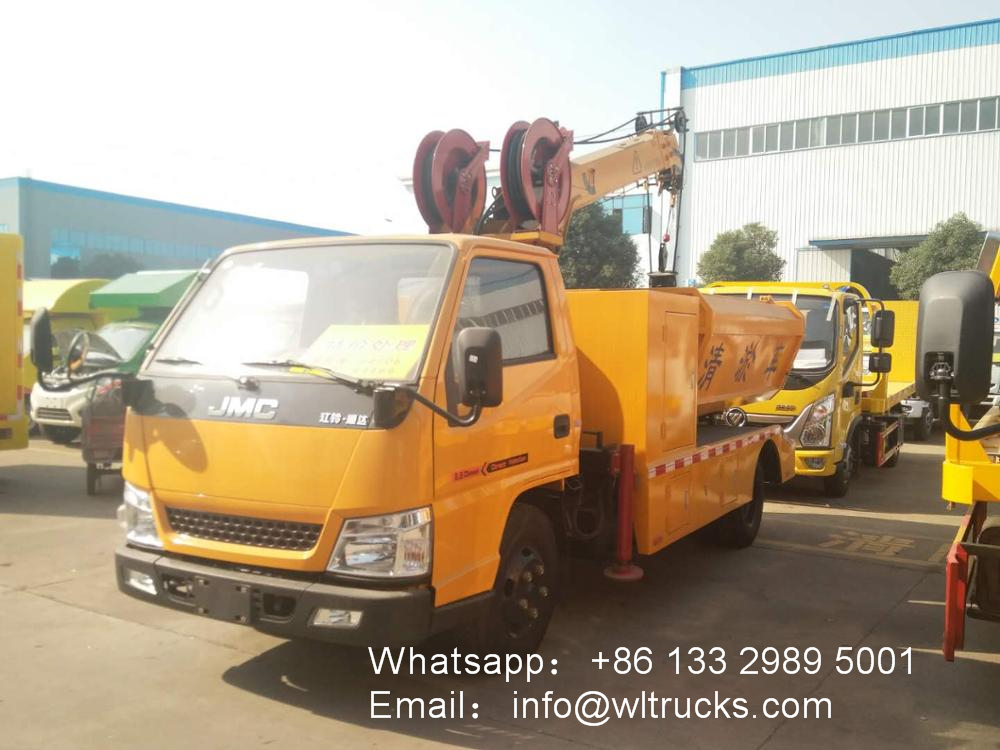

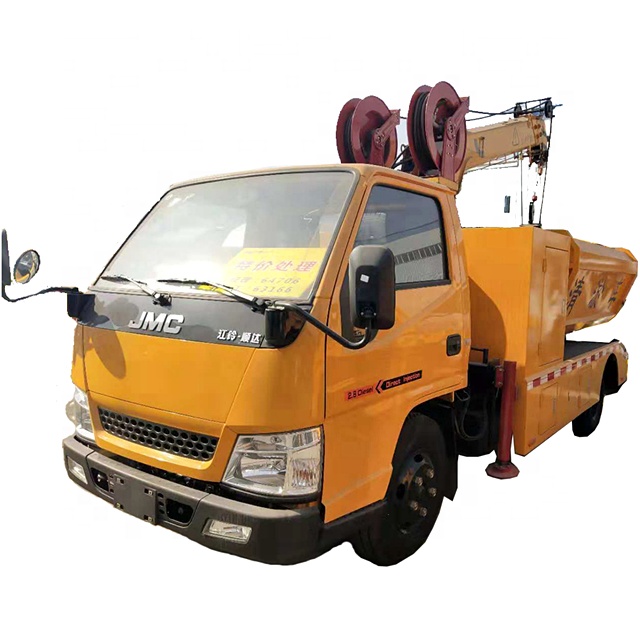

JMC 5 ton mud dredging truck and Sewer Dredge Desilting Truck Specification:
JMC 5 ton mud dredging truck and Sewer Dredge Desilting Truck Chassis configuration: JMC original chassis, Doric 3360 wheelbase, JMC 90 horsepower engine, five-speed gearbox, 700 steel tires.
JMC 5 ton mud dredging truck and Sewer Dredge Desilting Truck Bodywork configuration: rear of cargo compartment: adopts automatic opening function and is sealed with sealing strips. A wave board is designed around the cargo compartment to increase the volume of the compartment and prevent garbage from being thrown out of the road during transportation.

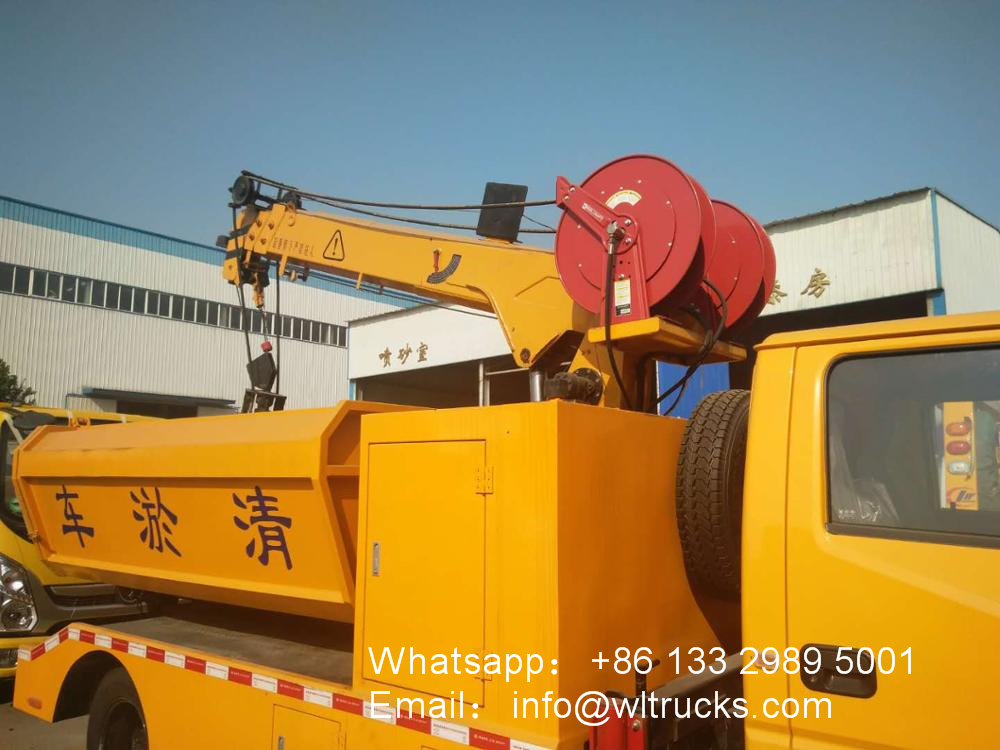

The vehicle is equipped with a two-petal slide Hydraulic manipulator, hydraulic pipe with steel wire, high pressure resistance, with multi-way valve with synchronous auxiliary function of steel wire rope, equipped with 150 liter water tank, 120 watt electric water pump, convenient for vehicle self-cleaning, manipulator descending depth 8/10 meters, operation mode: manual Two operation modes, wireless remote control, simple operation, safe and reliable, save time and effort, and high efficiency.
JMC 5 ton mud dredging truck and Sewer Dredge Desilting Truck Product features:
Strong adaptability: adapt to the cleaning of sediments in any harsh environment kiln and debris pool, oil tank, biogas tank, septic tank.
Large digging depth: the maximum digging of kiln garbage is 10 meters, the manipulator working range is 1000-1200, the volume is 0.075 cubic meters, and the dredging rate is 95%.
Large amount of self-unloading: the volume of the dredging truck compartment is 3.5 square meters, the U shape is bucket type, and the bottom is designed with a double-cylinder three-section hydraulic jack. It has a long service life and a large lifting angle. It can completely remove garbage when dumping.
Good structural performance: the slide-type manipulator runs without friction, with low energy consumption and long service life.
Operation mode: manual and wireless operation, it realizes simple engineering operation, safety and reliability, time and labor saving, and high efficiency.
The Chengliwei dredging truck is equipped with a two-petal hydraulic slide type manipulator, which can be replaced freely according to the excavation environment. The equipment is also suitable for urban and rural factories producing domestic garbage, mining pools, oil tanks, biogas tanks, septic tanks Cleaning of sludge, sand stones, bricks and other sediments.
JMC 5 ton mud dredging truck and Sewer Dredge Desilting Truck product description
Cheng Li grabs the dredging truck, also known as sludge dredging truck, silt grab truck, hydraulic grab bucket digging machine, Shujing dredging truck, sewer dredging truck.
It is mainly used for special construction vehicles for urban sewers to prevent and block dredging. It can directly excavate silt and debris in the sewer pipe to keep the sewer pipe unblocked. It can block the sludge and blockage in the pipe network of 200-800-1500mm pipe diameter. The objects are cleaned up by a dedicated digging device. When it is slightly blocked, it can be flushed and dredged by the self-contained high-pressure water system. The sludge tank self-cleans after self-unloading garbage. When heavy siltation is carried out, the stone can be cleaned out by the operation of the digging device, and the dredging rate is over 95%, which achieves the purpose of treating both the symptoms and the root causes.
JMC 5 ton mud dredging truck and Sewer Dredge Desilting Truck Product parameters
Top-loading configuration: The product fully realizes mechanization of underground operation, cleans up silt bricks and other debris in the underground pipe network, and is easy to operate, saves manpower and material efficiency, and greatly reduces the labor intensity of the municipal department to clear the pipeline. At the same time, 2-3 people can easily complete the workload of the original 30 people. The workers can reduce the risk of work without going down the well. The equipment can also be used for the cleaning of sediments in communities, factories, mining areas, septic tanks, biogas tanks, etc. jobs.

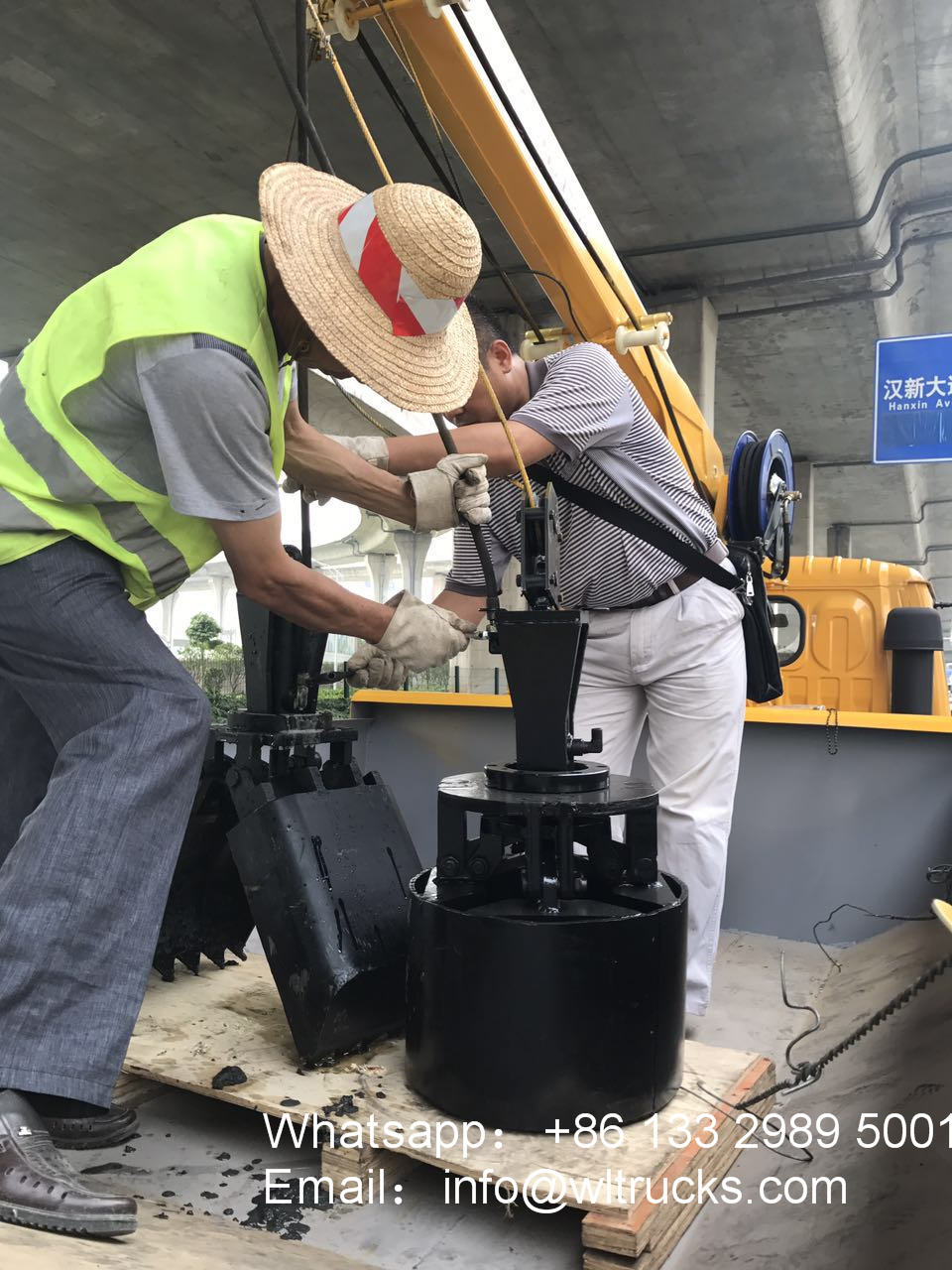

Special functions: 1 ton crane, double top self-unloading, rear door fixed slope type, boom length 2840-3740CM, working arm can rotate 180 degrees, with 2 grab hoppers, small grab hopper diameter 810mm, large grab hopper 1105mm.
The rear part of the dredging truck cargo compartment: fixed slope design, the vehicle is equipped with two- and four-valve slide hydraulic manipulators, hydraulic pipe with steel wire, high pressure resistance, wire rope synchronous auxiliary function, medium multi-way valve , equipped with 150 liter water tank 120 watt electric water pump is convenient for the vehicle to clean itself. The maneuvering depth is 8/10 meters. The operation mode is manual and wireless remote control. It is easy to operate, safe and reliable, saving time and effort, and high efficiency.
Cheng Li JMC single row dredging truck technical parameters
|
Serial number
|
Project name
|
Description
|
|
|
1
|
Vehicle
|
Chassis model
|
JX1040J3
|
|
Wheelbase
|
3360
|
||
|
Total mass
|
4495
|
||
|
Dimensions
|
5616X1970X2650
|
||
|
2
|
Engine
|
Emission Standards
|
Eruo5
|
|
Power
|
85KW
|
||
|
Fuel type
|
Diesel
|
||
|
3
|
Fully closed dirt
|
Volume
|
≥3.5
|
|
Self-unloading container size
|
2900X1950X600
|
||
|
Box material and thickness
|
Q235-A ≥3.8
|
||
|
Rear of the container
|
Designed with a fixed slope to ensure the use of leak-proof water in any season
|
||
|
4
|
Hang arm
|
Telescopic size
|
≥1700
|
|
Horizontal rotation angle
|
≥180°
|
||
|
Boom material
|
High strength steel
|
||
|
Boom radius
|
≥350mm
|
||
|
Vertical positioning
|
Upgrade 4220-4200
|
||
|
5
|
Mechanical hand
|
Types of
|
Two- and four-lobed slide hydraulic manipulator
|
|
Depth of depth
|
8-10 meters
|
||
|
6
|
Wash
|
Volume
|
150 liters
|
|
Features
|
Flushing work surface and car wash function
|
||
|
7
|
Hydraulic leg
|
Fixed
|
≥1970
|
JMC 5 ton mud dredging truck and Sewer Dredge Desilting Truck Product features:
1. Adaptability: It can be used to clean up the sediments in kiln wells and debris pools, oil pools, biogas tanks and septic tanks in any environment.
2. The depth of the excavation is large: the maximum can be dug up to the depth of 10 meters of kiln waste, the working range of the robot is 1000-1200 , the volume is 0.075 cubic meters, and the dredging rate is 95 %.
3. The self-unloading is large: the volume of the dredging car is 3.5 squares, the U shape is bucket type, and the bottom is designed with two cylinders and three-section hydraulic tops. The service life is long, the lifting angle is large, and the garbage can be unloaded completely during self-unloading.
4. Good structural performance: the slide-type manipulator runs without friction, has low energy consumption and long service life.
5. Operation mode: manual and wireless operation, which realizes simple operation, safe and reliable, saving time and labor, and high efficiency.
6. The Cheng Liwei dredging vehicle is equipped with two- and four-valve hydraulic slide-type manipulators, which can be freely replaced according to the excavation environment. The equipment is also suitable for urban and rural factories to produce domestic garbage, mine pools, oil pools, biogas pools, septic tanks. Cleaning of sludge, sand stones, bricks and other sediments in the well.
JMC 5 ton mud dredging truck and Sewer Dredge Desilting Truck Working parameter
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
