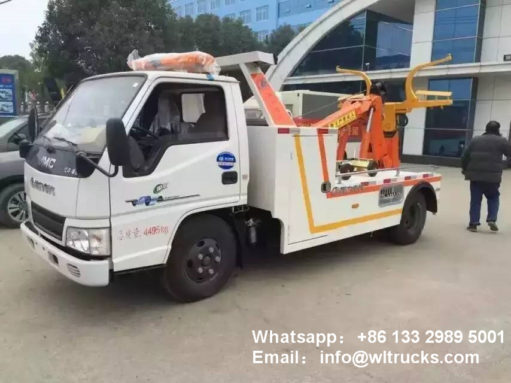

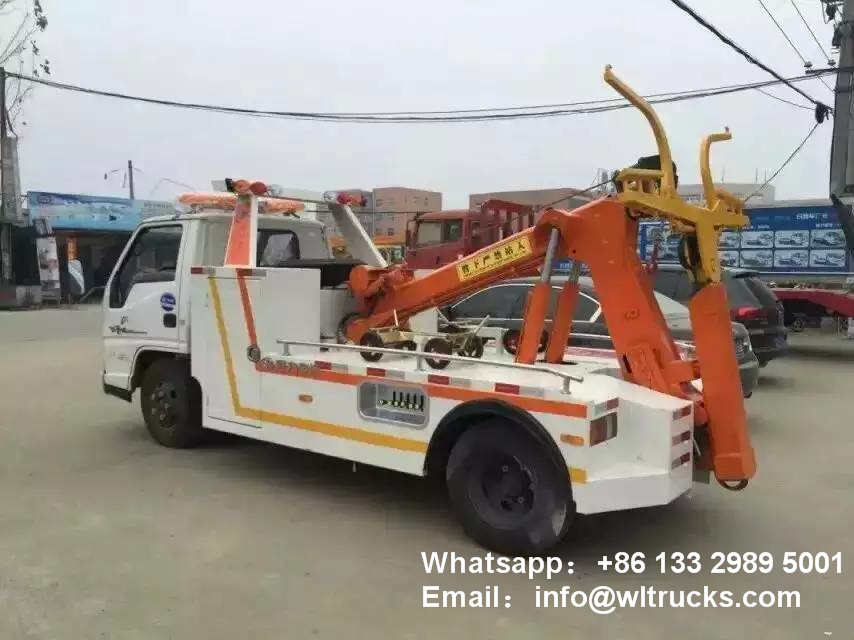

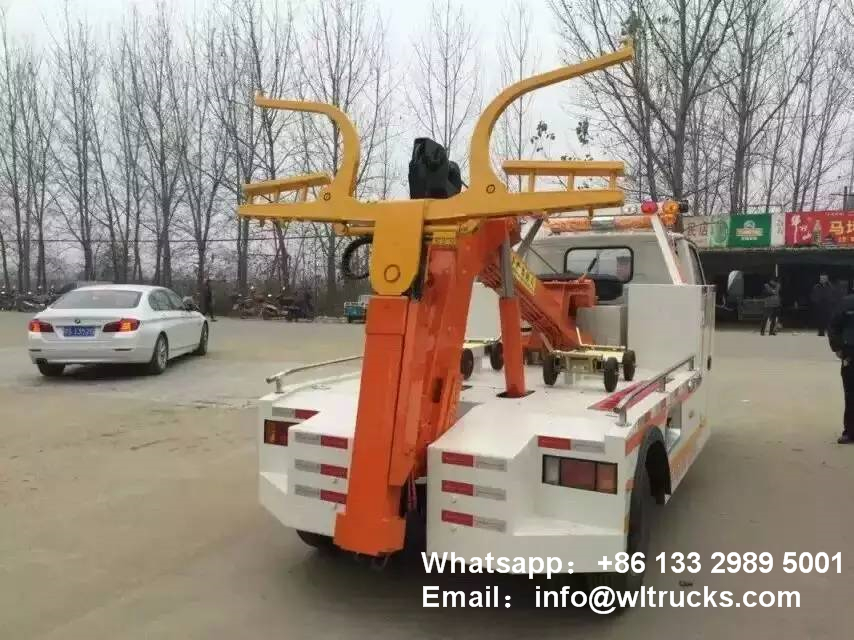

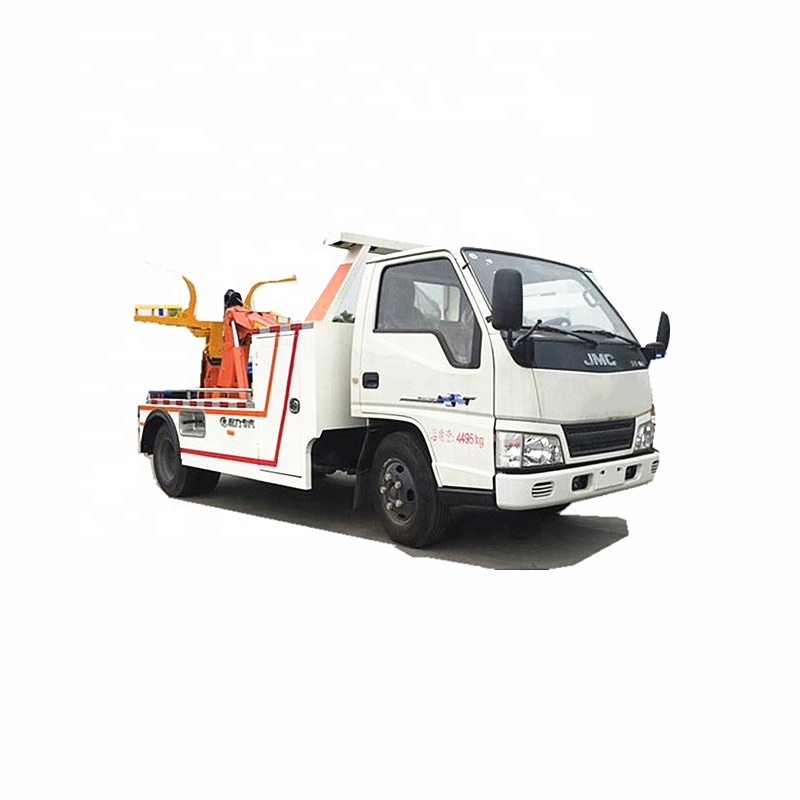

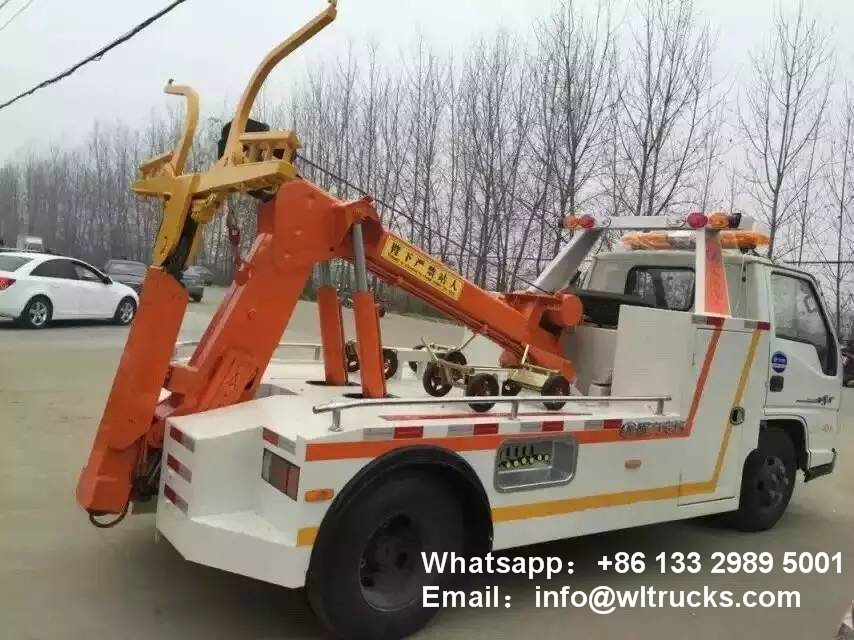

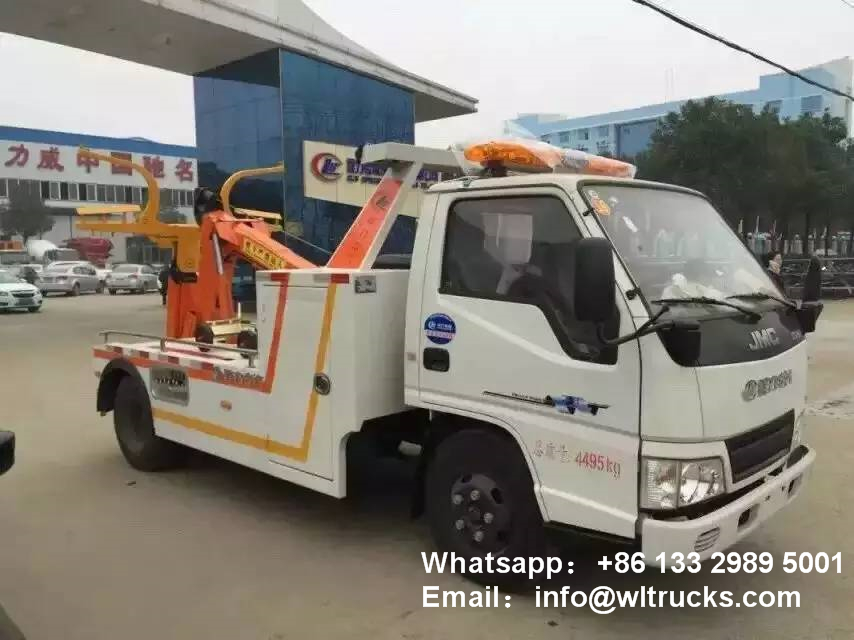

JMC small 3 ton Towing wrecker truck
JMC small 3 ton Towing wrecker truck Chassis configuration：
Using Jiangling chassis, the single-row cab can be turned forward, Jiangxi Isuzu 90 horsepower engine, 5-speed gearbox, wheelbase 3360mm, 7.00R16 steel tires, oil brake.
JMC small 3 ton Towing wrecker truck Bodywork configuration：
3-ton conjoined bodywork, equipped with 4-ton hydraulic winch, imported hydraulic system, double-sided linkage operation, 25-meter steel wire rope, one set of tools, 4 straps, 3 rear working lights, 1 auxiliary light assembly 1 set of trachea assembly with 1 yellow long row of police lights.
JMC small 3 ton Towing wrecker truck specification:
|
Vehicle technical parameters
|
|||
|
product name
|
China JMC 3 ton small recovery rescue truck emergency tow truck
|
Dimensions
|
5.5 x2.05×2.5 meters
|
|
Total mass
|
4.495 tons
|
Curb quality
|
4.1 tons
|
|
Hoisting specification
|
3 tons
|
Tops
|
3 tons
|
|
Chassis technical parameters
|
|||
|
Chassis name
|
Jiangling
|
Chassis model
|
JX1041TG25
|
|
Number of axes
|
2
|
Number of tires
|
7 (including spare tire)
|
|
Wheelbase
|
3.36 meters
|
Tire specifications
|
7.00R16
|
|
Gearbox
|
5 files
|
Rear axle
|
2.5 tons
|
|
Fuel type
|
Diesel
|
brake
|
Oil brake
|
|
Emission basis
|
GB17691-2005 country V, GB3847-2005
|
||
|
engine model
|
Engine manufacturer
|
Displacement (ml)
|
horsepower
|
|
JX493ZLQ5
|
Jiangling Company
|
2771
|
115 horsepower
|
|
Top basic configuration
|
|||
|
The standard configuration
|
3 tons of tops, 3 tons of winches, imported hydraulic system, 25 meters of steel wire rope, a pair of auxiliary wheel trolleys, a pair of 7-fork, a pair of square sleeves, 4 sets of straps, chain hooks, two work lights, yellow electronics Engineering warning lights, a set of vehicle tools.
|
||
|
Optional configuration
|
Can be equipped with automatic clamping device, fork, fork, LED long row flashing lights
|
||
JMC small 3 ton Towing wrecker truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
