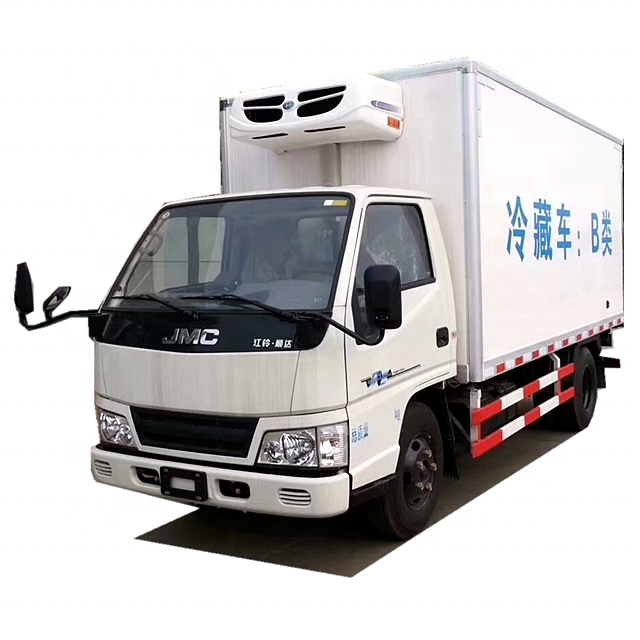

JMC 3 ton refrigerated container truck
Adopt Jiangling new cab, Isuzu 90 horsepower engine, 1.5 tons front axle, 3 tons rear axle, 5-speed gearbox, exhaust brake, oil brake, 7.00R16 tires. Cargo box size: 4150*1750*1750, inside and outside glass fiber reinforced plastic box, 8CM thick polyurethane insulation layer, stainless steel door lock, with double rear door, with -5 to -18 degree unit.
Optional configuration: stainless steel ventilation slot, meat hook, guide rail, non-slip aluminum pattern plate can be installed in the refrigerator, and side doors can be added.
Optional configuration: stainless steel ventilation slot, meat hook, guide rail, non-slip aluminum pattern plate can be installed in the refrigerator, and side doors can be added.
JMC 3 ton refrigerated container truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
JMC 3 ton refrigerated container truck specification:
|
Item
|
Parameter
|
|
Production name
|
JMC 4-5 tons refrigerator truck
|
|
Vehicle model
|
CLW5040XLCJ4
|
|
Engine
|
Engine model: JX493ZLQ4
|
|
Engine manufacturer: Jiangling Motors Co., LTD
|
|
|
Exhaust: 2771ml
|
|
|
Power: 80kw
|
|
|
Chassis model
|
JX1040TGB24
|
|
Tire
|
Tire specification: 7.00R16LT 8PR
|
|
Number of tire: 6
|
|
|
Axle
|
Number of axles: 2
|
|
Axle-load: 1725/2770
|
|
|
Wheel base(mm): 3360
|
|
|
Traction system
|
4*2
|
|
Fact cubage(m3)
|
12-13
|
|
GVW(kg)
|
4495
|
|
Curb weight(kg)
|
2870
|
|
Overall dimensions(mm)
|
5995×1950×2900
|
|
Upper box body size(mm)
|
4150×1750×1750
|
|
F / R track base(mm)
|
1385/1425
|
|
F/R overhang(mm)
|
1015/1620
|
|
Approach / departure angle(°)
|
27/14
|
|
Max speed(Km/h)
|
90
|
|
Equipment and Function
|
Chassis & preservation box body–standard material is glass fiber reinforced plastic, 8mm polyurethane insulation layer, Standard back open door and refrigeration unit;
Function: transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables (fresh transporter) vaccine and drug transporter (vaccine truck), etc |
|
Refrigerated Unit
|
-18 degrees
|
|
Product cycle
|
15-20 days
|
|
Warranty
|
12 months, from the date of supply
|
JMC 3 ton refrigerated container truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
JMC 3 ton refrigerated container truck New craft:
JMC 3 ton refrigerated container truck Optional configuration:
JMC 3 ton refrigerated container truck Bodywork details:
JMC 3 ton refrigerated container truck Internal details:
Chengli 1ton to 40ton refrigerator truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
