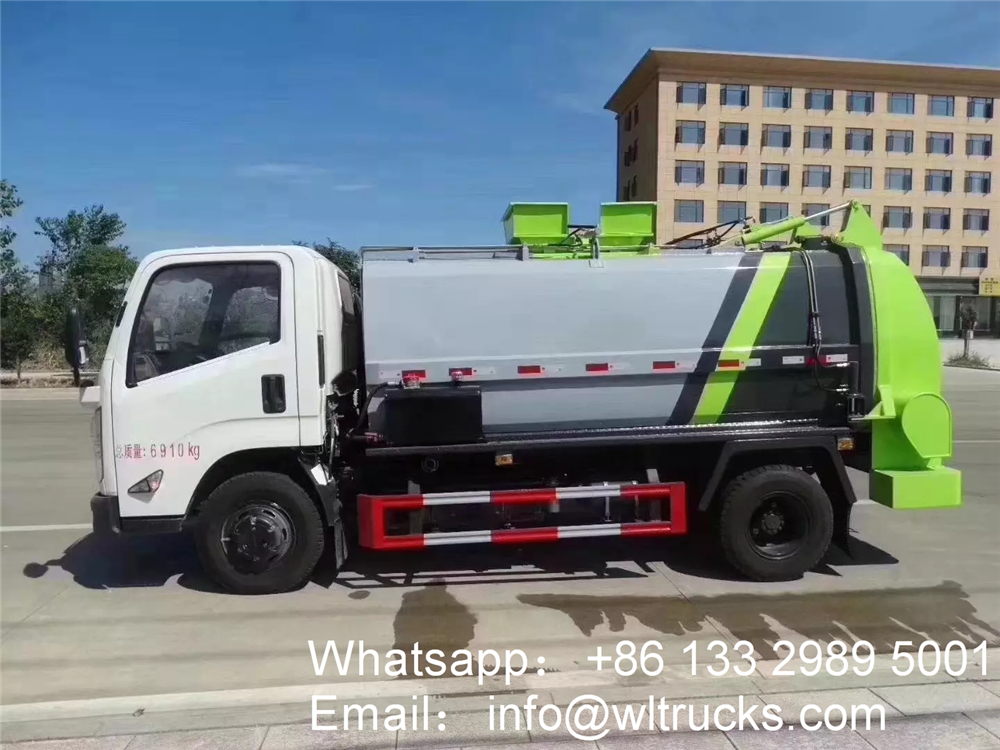

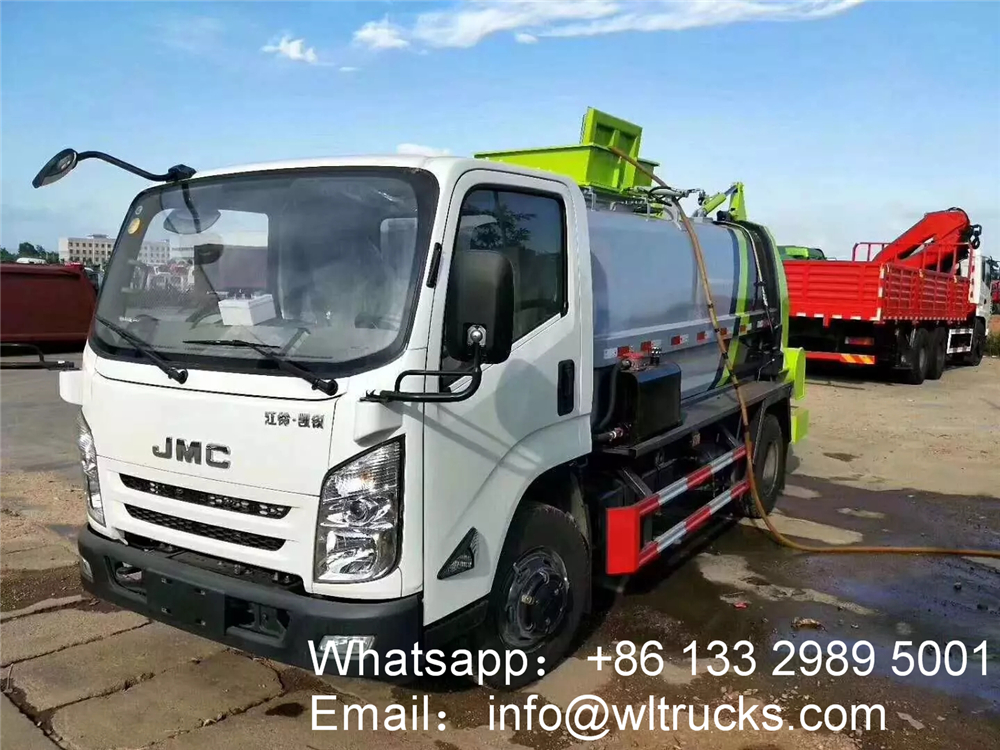

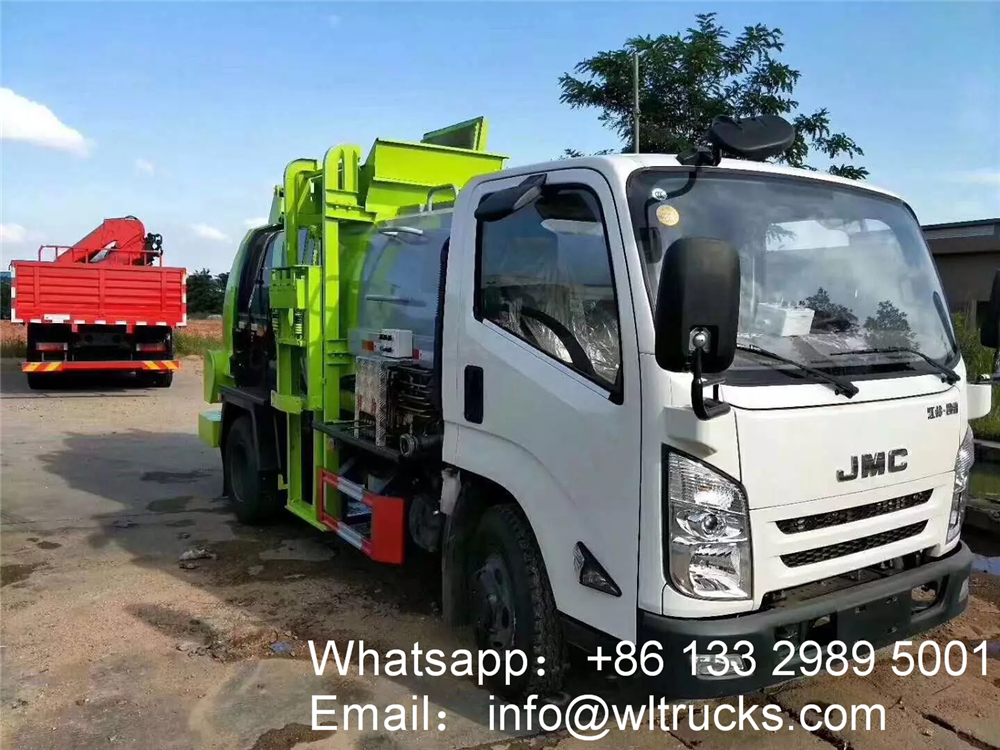

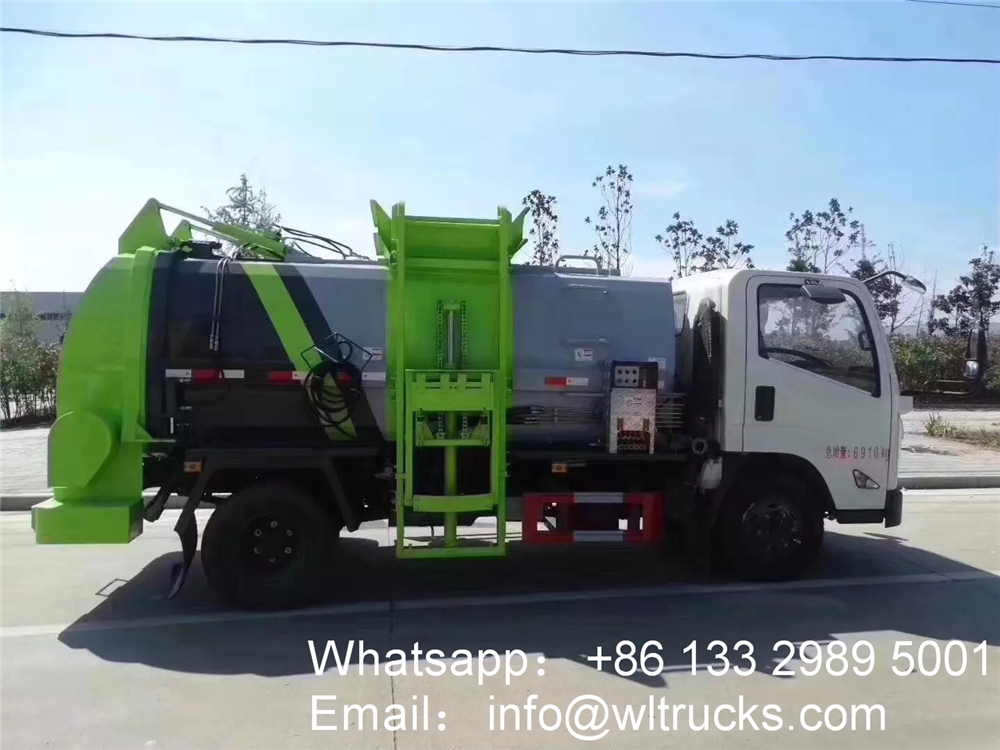

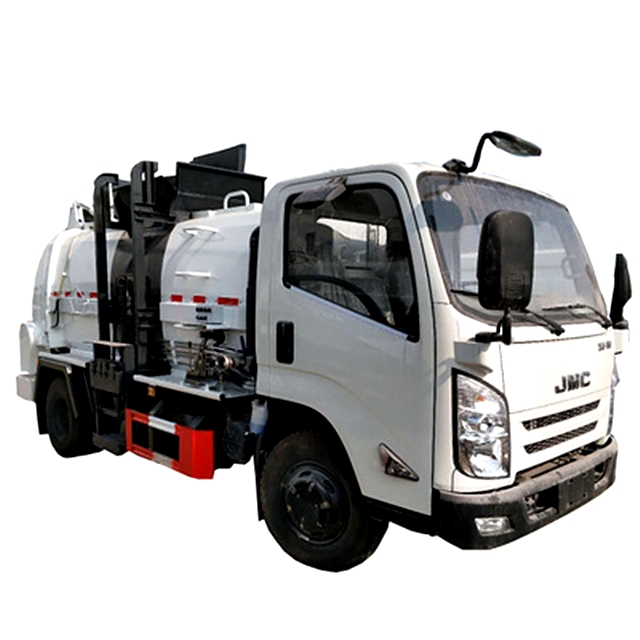

JMC 8000 liter waste water garbage truck Product Description:
JMC 8000 liter waste water garbage truck Chassis configuration: Jiangling original chassis, new Kai Rui wide-body cab, Jiangling Isuzu 152 horsepower diesel engine, 6-speed gearbox, 700R16 steel tire belt spare tire, oil brake, with automatic brake adjustment function.
JMC 8000 liter waste water garbage truck Bodywork configuration: new style box process, effective volume of 8 cubic meters, equipped with hydraulic bucket lifting mechanism on the right side of the car body, can hang up to the national standard 240 litre garbage bin, complete the bucket dumping operation by hydraulic pressure, and the tailgate is hydraulically opened and locked. To ensure that there is no leakage of water, there is a hydraulic push plate inside the box, which can be loaded with garbage and discharged, with a solid-liquid separation device, a standard hydraulic motor with a high-pressure plunger pump, and a mobile high-pressure cleaning gun.
Optional enclosed auger unloading device, optional stainless steel box, optional heating device in the tank.
JMC 8000 liter waste water garbage truck Specifications:
|
Dimensions (mm)
|
6970*2200*2860
|
Product Name:
|
Kitchen garbage truck
|
|
Total mass (Kg):
|
5000
|
Tank volume (m3):
|
8
|
|
Number of cabs (person):
|
3
|
Number of axes:
|
2
|
|
Wheelbase (mm):
|
3815
|
Maximum speed (Km/h):
|
90
|
|
Displacement:
|
3900ml
|
Tire:
|
6+1
|
|
orsepower:
|
112KW
|
Tire specifications:
|
7.5-R16
|
|
Standard configuration
|
Car body material: high quality carbon steel, side thickness: 3mm; bottom thickness: 4mm
Anti-corrosion treatment with epoxy resin;Sealed structure
|
||
|
Optional configuration
|
You can choose the internal compression function of the cabinet;
Can choose 120L and 240L iron bucket lifting frame Can choose the rear door hydraulic opening |
||
|
Garbage tipping over; working cycle time:
|
less than 25S
|
||
|
Suitable for
|
ational municipal sanitation agency;
Property community Factory and mining enterprise; City street |
||
JMC 8000 liter waste water garbage truck Working parameter:
| 【Vehicle technical parameters】 | |||
| Tank volume (m3) | 3-12 cubic meters optional | Tank material | Carbon steel Q235, stainless steel 304 |
| Structure inside the tank | Dry-wet solid-liquid separation | Thickness of tank (mm) | 4-6mm |
| Unloading method | Self-unloading, pushing plate, twisting dragon | Feeding method | Hydraulic bucket flip |
| Tailgate leakproof | Thickened rubber + hydraulic lock | Bucket method | Chain lifting, lever lifting |
| Control position | Cab, right side of body | Hydraulic pressure (MPa) | 16 |
| control method | Manual + electric control, PLC automatic control | Hydraulic pump brand | Long source and large flow |
| Cleaning device | Hydraulic pump + plunger high pressure pump + 7 meter cleaning gun | Multi-way valve brand | Jiangsu Electromagnetic |
| safety devices | Rear door lock and rear cover switch interlock to prevent misoperation | Hydraulic cylinder brand | Yantai future |
| Optional configuration | Optional PLC one-button operation, optional 304 stainless steel box, optional sealed twisted dragon discharge, etc. Optional barrel weighing function, can count the number of barrels, single barrel weighing, set the company name of the barrel collection, GPS positioning of the barrel collection, data background upload, display screen cab monitoring and other functions. If customers have other unconventional requirements, they can organize technical solutions and customize production according to requirements. |
||

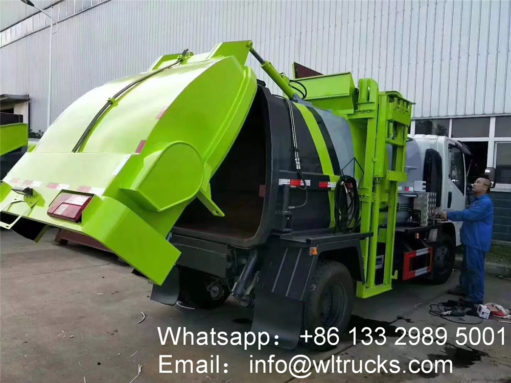

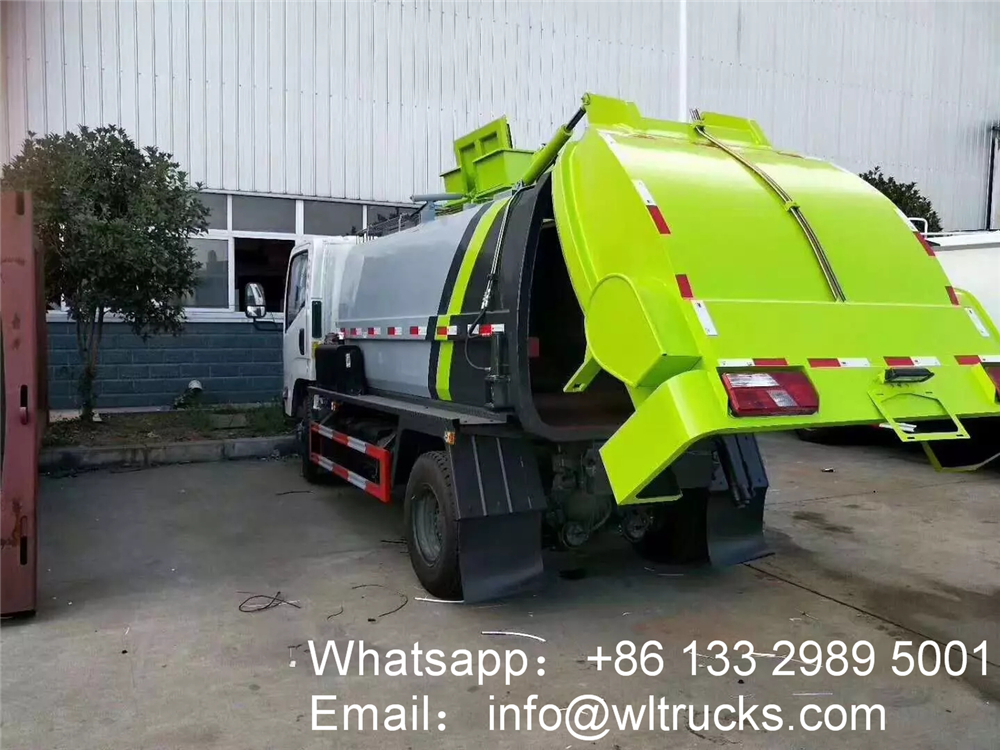

JMC 8000 liter waste water garbage truck Operation display:
Kitchen garbage Truck Round tank process: cylindrical tank body with tie rod hoist, double cylinder hydraulic lifting and self-unloading at the bottom of the tank body, hydraulic opening and locking of the tank tail door + manual locking device, solid and liquid separation device inside At the end of the tank, a liquid self-flow valve, a liquid level window, a tool box and a hand washing device are installed.
JMC 8000 liter waste water garbage truck New craft:
JMC 8000 liter waste water garbage truck Optional configuration：
JMC 8000 liter waste water garbage truck Detail drawing:
Customizable garbage truck models
