Japanese ISUZU brand 5 ton Animal carcass harmless collection transfer truck
Chassis configuration: Isuzu elf 100P cab, Euro Isuzu 98 horsepower engine, 5-speed gearbox, 4 tons rear axle, 700-16 tires, original air conditioner.
Bodywork configuration: cabinet size: 4150×1750×1750mm, equipped with double rear doors, standard -15 degree refrigeration unit, inner stainless steel, outer glass fiber reinforced plastic, 8CM thick polyurethane insulation layer, stainless steel door lock, double door. Install spray disinfection, waste liquid collection box, ultraviolet disinfection.

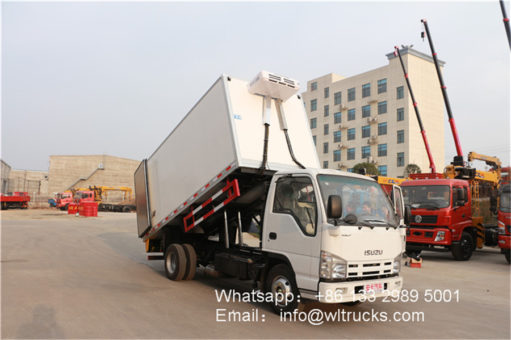

Optional configuration: optional wireless remote control electric hoist, car body self-unloading function, double-layer rear door insulation function.
Japanese ISUZU brand 5 ton Animal carcass harmless collection transfer truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Japanese ISUZU brand 5 ton Animal carcass harmless collection transfer truck specification:
| Vehicle name: | ISUZU animal harmless collection truck | Vehicle model: | CLW5042XLCJ5 | |
| Emission Standards: | National Five Emissions | Chassis model: | QL10TG25 | |
| Environmental Notice: | Environmentally friendly | Dimensions: | 5995*1950*2900(mm) | |
| Fuel type: | Diesel | Cargo size (mm): | 4150*1750*1750 (mm) | |
| Total mass: (kg) | 4495 | Tire specifications | 6.00-15LT 10PR | |
| Curb weight: (kg) | 1525 | Rated passengers: | 2 people, including driver | |
| Wheelbase: (mm) | 3360 | Maximum speed: | 90 (km/h) | |
| Engine: | i-suzu | Power: | 70KW | |
| Displacement: (ml) | 3000 | Engine manufacturer: | Qingling Motor Co., Ltd. | |
Japanese ISUZU brand 5 ton Animal carcass harmless collection transfer truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Japanese ISUZU brand 5 ton Animal carcass harmless collection transfer truck New craft:
Japanese ISUZU brand 5 ton Animal carcass harmless collection transfer truck Optional configuration:

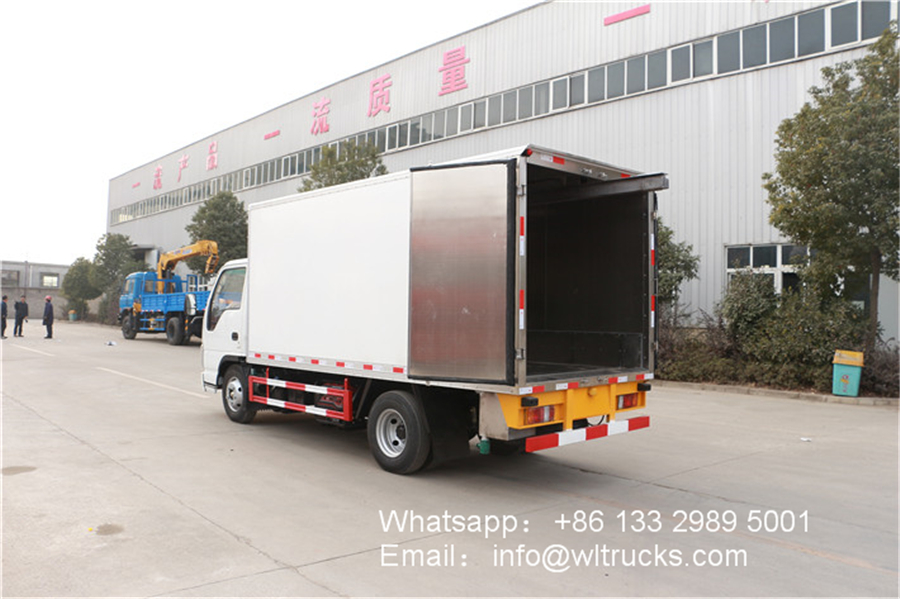

Japanese ISUZU brand 5 ton Animal carcass harmless collection transfer truck Bodywork details:

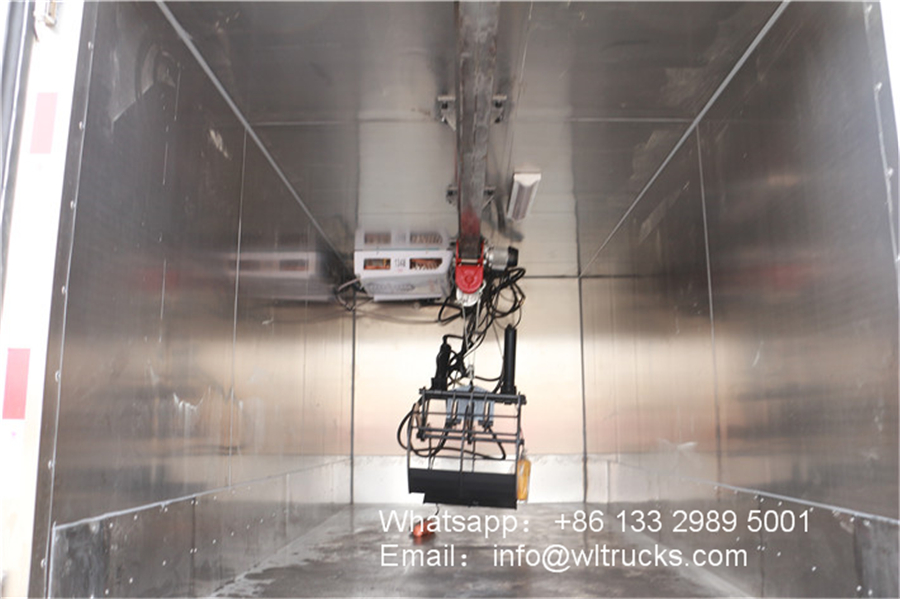

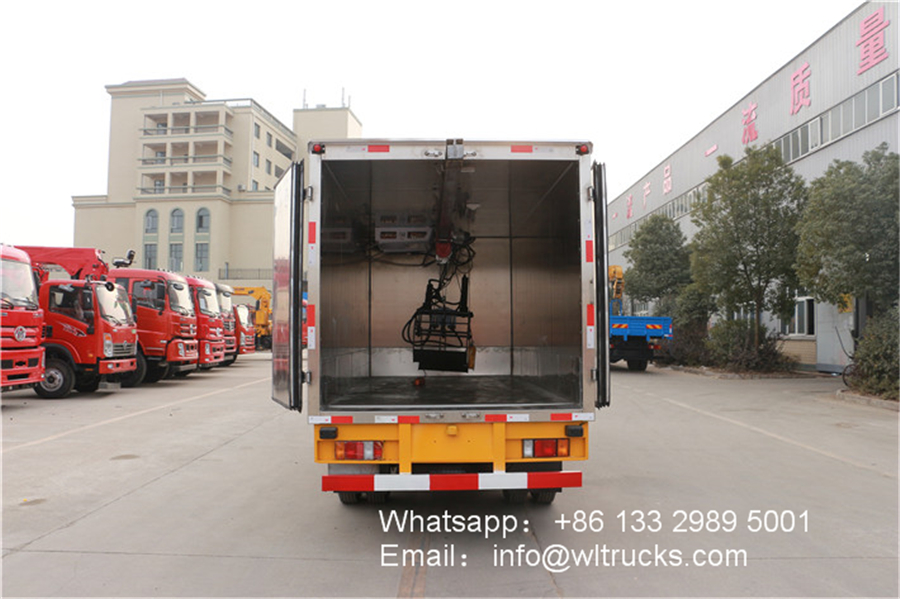

Japanese ISUZU brand 5 ton Animal carcass harmless collection transfer truck Internal details:
Forland TOANO 2 ton minibus refrigerated truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
