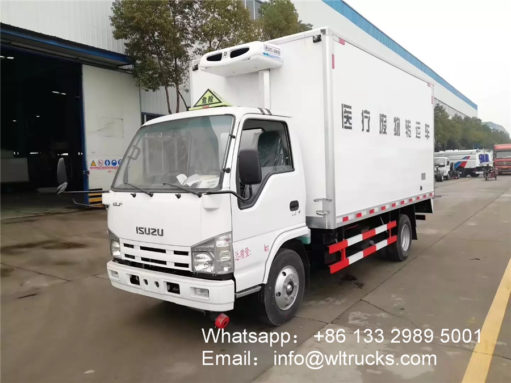

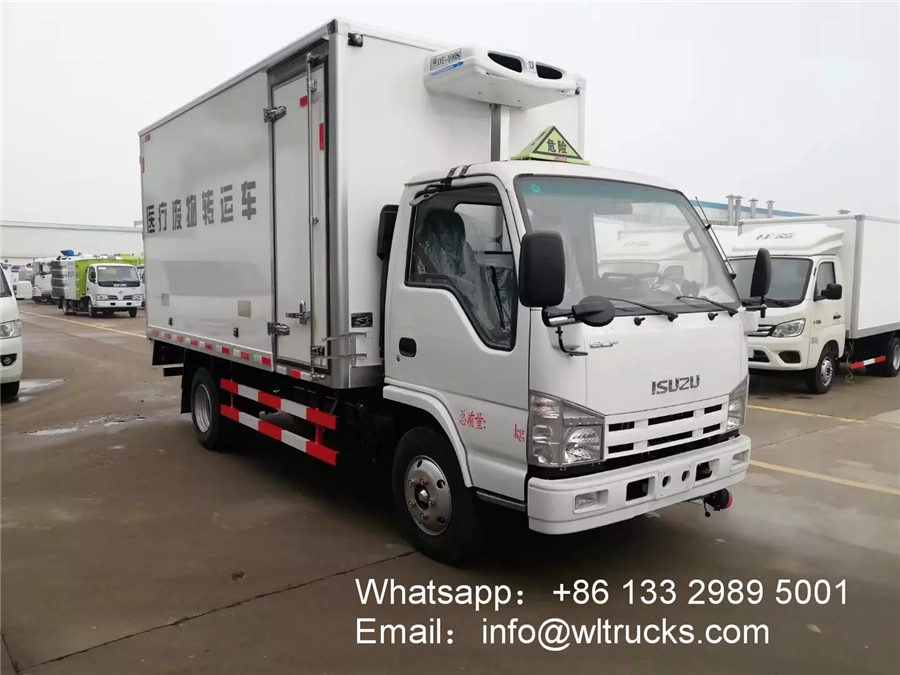

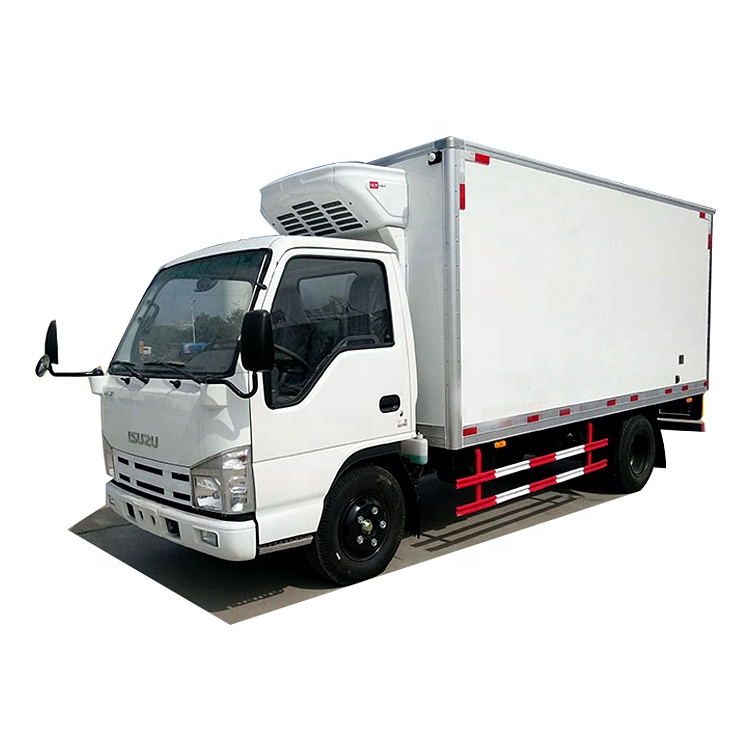

ISUZU elf 3 ton medical waste transit truck
Chassis configuration: Qingling Isuzu chassis, wheelbase 3360mm, Isuzu 4-cylinder 4KH1CN5LS 98 horsepower engine, Isuzu 5-speed gearbox, 700R16 steel tire belt spare tire, direction assist, oil Brakes, original air-conditioning in the cab, ABS, speed limiter, front-axle disc brakes, front exhaust pipe. box length 4.18 meters, box width 1.98 meters, box height 2 meters.
Optional configuration: self-unloading function of cabin, double-layer rear door insulation function, -5 degree to -18 degree refrigeration unit.side door.
ISUZU elf 3 ton medical waste transit truck products advantages.
1. Introduction of special technology and manufacture of vacuum adsorption equipment, good thermal insulation effect and high flatness.
2. The car body adopts the integral skeleton “sandwich” board bonding process, which is resistant to impact, corrosion and aging
3. The bottom plate adopts integral cast-in-situ glass fiber reinforced plastic, which has good thermal insulation and high overall strength; the bottom plate of the cabin is equipped with a ventilation slot, which is convenient for the cold air flow to the whole vehicle and maintain the temperature inside the cabin.
4. Refrigeration units have well-known domestic and imported units, with simple structure, convenient operation, reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
ISUZU elf 3 ton medical waste transit truck specification:
| 【Vehicle technical parameters】 | |||||
| product name | Medical waste transfer vehicle | batch | 328 | ||
| Total mass (Kg) | 4495 | Rated load mass (Kg) | 1355,1195 | ||
| Curb weight (Kg) | 3010,3170 | Total mass of quasi-trailer (Kg) | |||
| Front passenger (person) | 2 | Rated passenger (person) | |||
| Dimensions (mm) | 5995 x 2100, 2140 x 2990, 3110 | ||||
| Cargo compartment size (mm) | 4010,4180 x 1900,1980 x 1800,2000 | ||||
| Approach angle/departure angle (°) | 20/14 | Front/rear suspension (mm) | 1015/1620 | ||
| Axle load (Kg) | 1805/2690 | Maximum speed (Km/h) | 80 | ||
| Remarks | 1. The top of the car body is closed and cannot be opened; 2. The width of the vehicle is 2100mm when the side door is not installed, and the side door style is optional; 2. ABS model: APG3550500A4, manufacturer: Zhejiang Asia-Pacific Electromechanical Co., Ltd.; 3. Side Protective device material: Q235, connection method: welding connection; rear lower protective device material: Q235, connection method: welding connection, cross-sectional size: 100mm×50mm, height above ground: 480mm; 4.4KH1CN5LS engine fuel consumption value is 12.60L/100km; 5. Install the speed limit device, the maximum speed is 80km/h, install the front exhaust pipe, install the disc brakes on the front wheels, only use radial tires. Install the driving recorder with satellite positioning function; Car, used to transport infectious substances, category item number 6.2; 7. When the external size (mm) is 3110, the corresponding internal size of the cargo box is 4180/1980/2000, and the curb weight is 3170kg. | ||||
| 【Other parameters of vehicle】 | |||||
| Chassis model | QL1045A6HAY | Brand name | |||
| Number of axes | 2 | Number of tires | 6 | ||
| Wheelbase (mm) | 3360 | ||||
| Tire specifications | 7.00R16 8PR | ||||
| Front track (mm) | 1504 | Rear track (mm) | 1525 | ||
| Fuel type | Diesel | Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | Power (Kw) | ||
| 4KH1CN5LS | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 2999 | 72 | ||
ISUZU elf 3 ton medical waste transit truck Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
ISUZU elf 3 ton medical waste transit truck New craft:
ISUZU elf 3 ton medical waste transit truck Optional configuration:

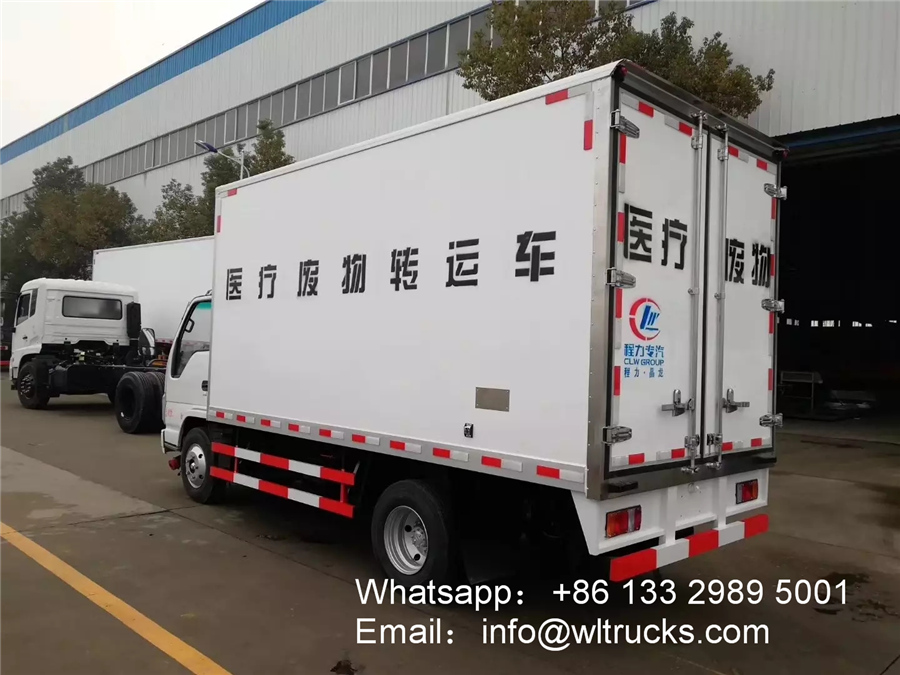

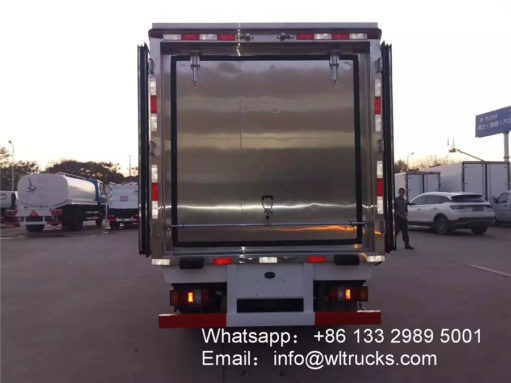

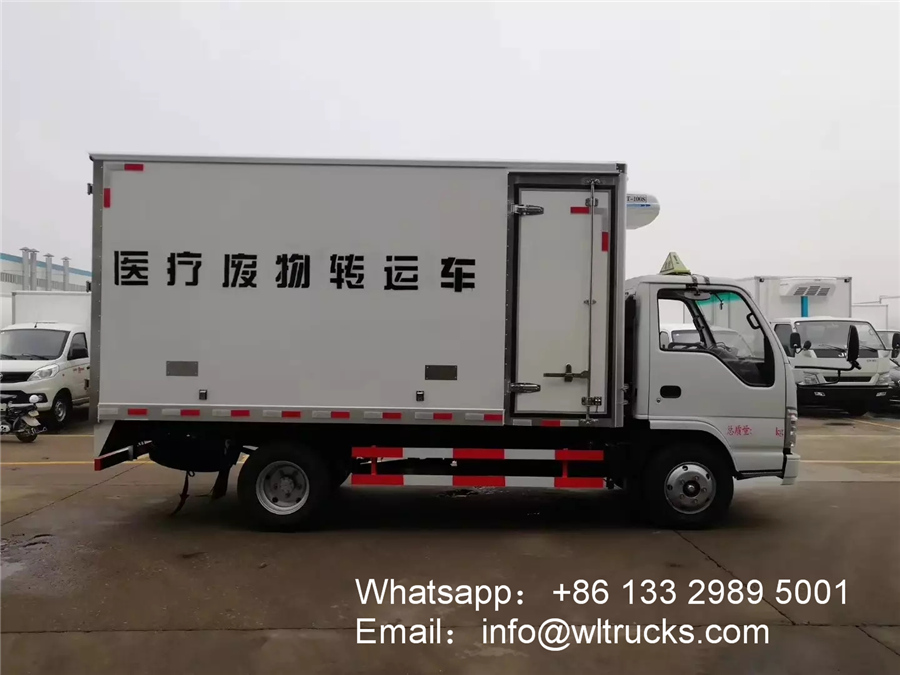

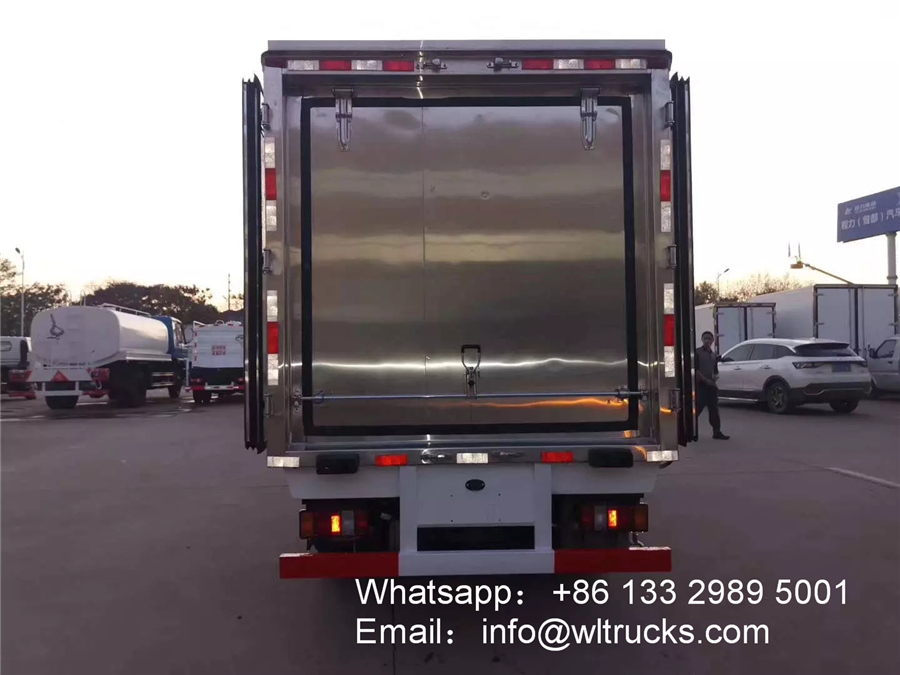

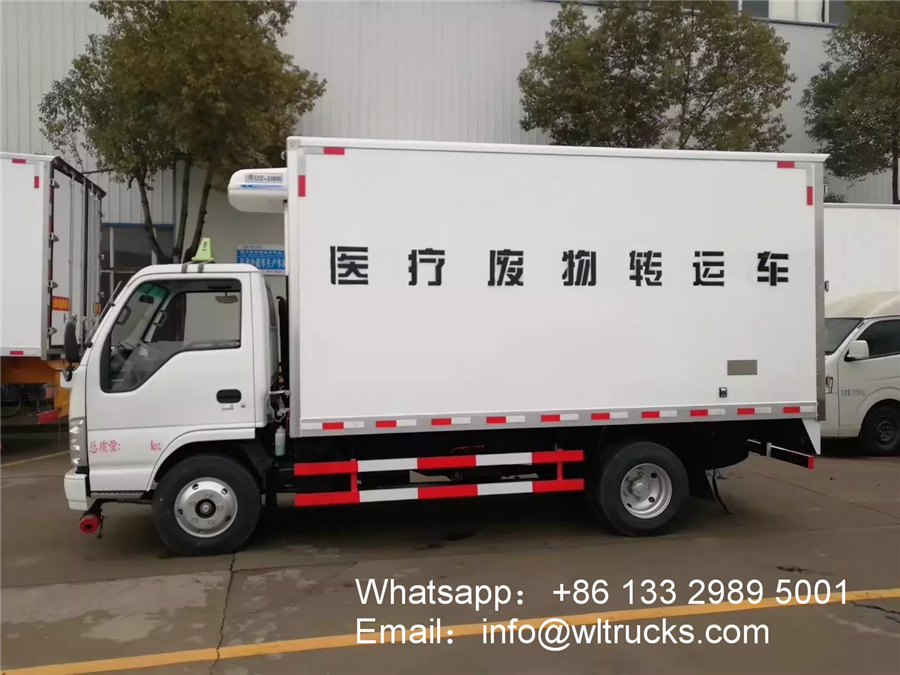

ISUZU elf 3 ton medical waste transit truck Bodywork details:
ISUZU elf 3 ton medical waste transit truck Internal details:
Forland TOANO 2 ton minibus refrigerated truck product Display:
Our Services:
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers’ trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20’GP OR 40’GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
