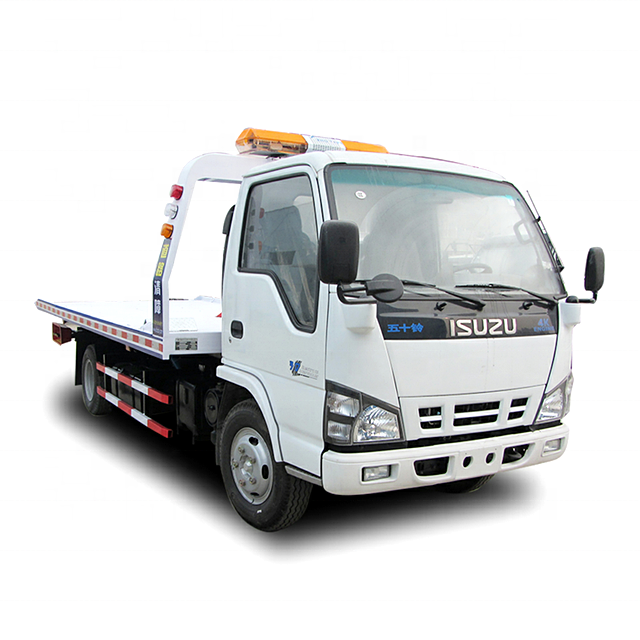

ISUZU 5 ton tow truck wrecker
ISUZU 5 ton tow truck wrecker Chassis configuration：
Adopt Qingling Isuzu 600p series chassis, single-row cab, bridge car interior, Isuzu 120 horsepower engine, 5-speed gearbox, wheelbase 3815mm, 2.5 tons front axle, 4.8 tons rear axle, 7.50 original steel tire, original abs, with directional boost, oil brake, original air conditioner.
ISUZU 5 ton tow truck wrecker Bodywork configuration：
The truck has a length of 5.6 meters and a width of 2.33 meters. The flat can use a new type of disposable stamping plate or 4 thick old pattern plates. The load capacity of the flat plate is 5 tons. 4 tons of tops, 4 tons of hydraulic winches, 25 meters of steel wire rope, double-sided linkage operation, pair of auxiliary wheel trolleys, pair of 7-character forks, one set of onboard tools, 4 straps, two work lights, with yellow long Row of LED electronic warning lights.
ISUZU 5 ton tow truck wrecker specification:
| General Technical Parameters | |||
| Overall Dimension | 7450x2350x2440 (mm) | ||
| Gross Vehicle Weight | 8275kg | ||
| Curb Weight | 5110kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | isuzu | |
| Cabin | Row and half, left Hand Driving | ||
| Engine | Model | 4hk1-tcg40, 4 Cylinders | |
| Power | 88KW/120HP | ||
| Emission Standard | EURO IV or EURO V | ||
| Displacement | 3856mL | ||
| Fuel Type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 4T/7T | ||
| Wheel Base | 3815(mm) or 3360mm | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | Air Brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 110(km/h) | ||
| Superstructure | |||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 4000 (kg) | ||
| Length of Steel Cable | 21 (m) | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Fork 1 set 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Bangdage 4 sets 6. chain hook |
||
ISUZU 5 ton tow truck wrecker Advantage:

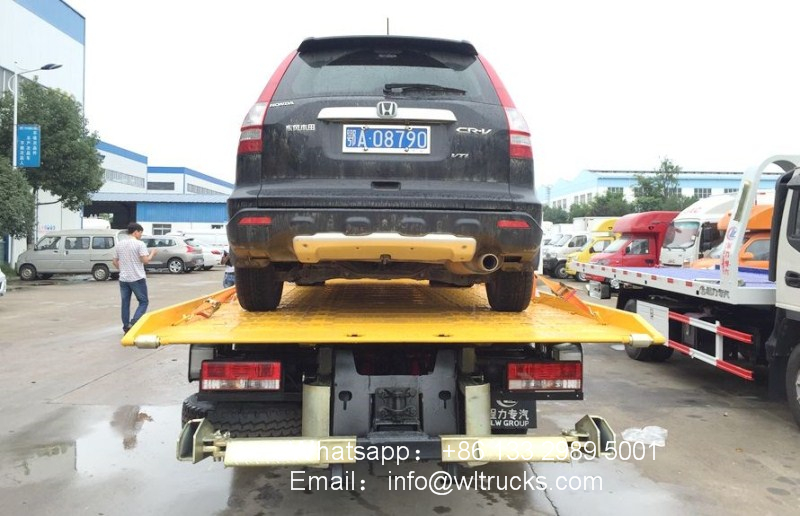

The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.

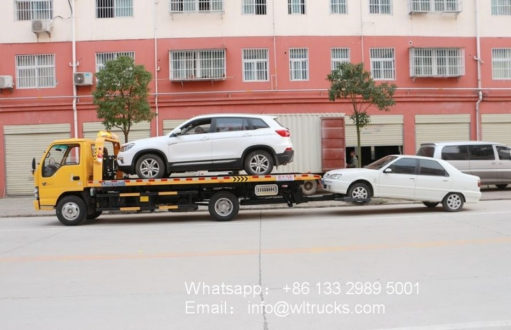

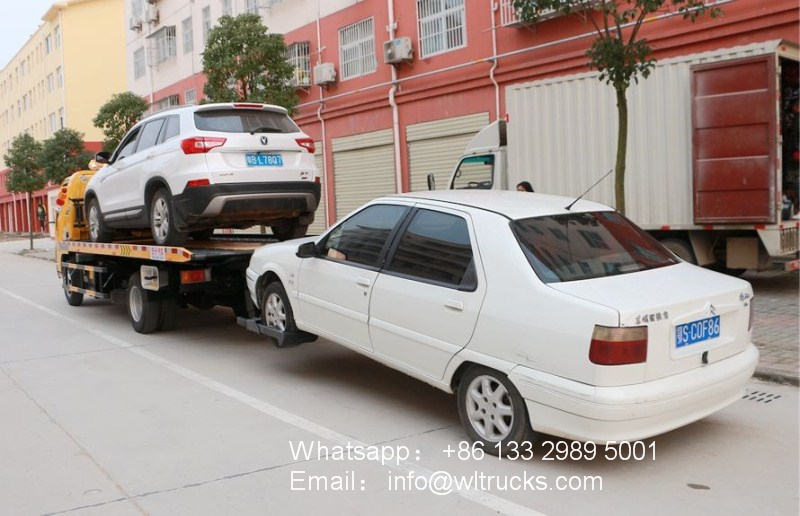

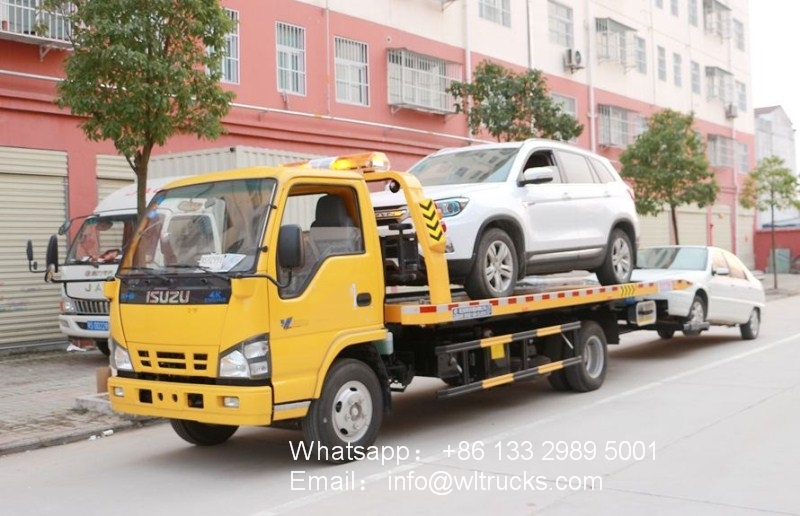

It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
