ISUZU ftr 8ton 10ton truck mounted crane

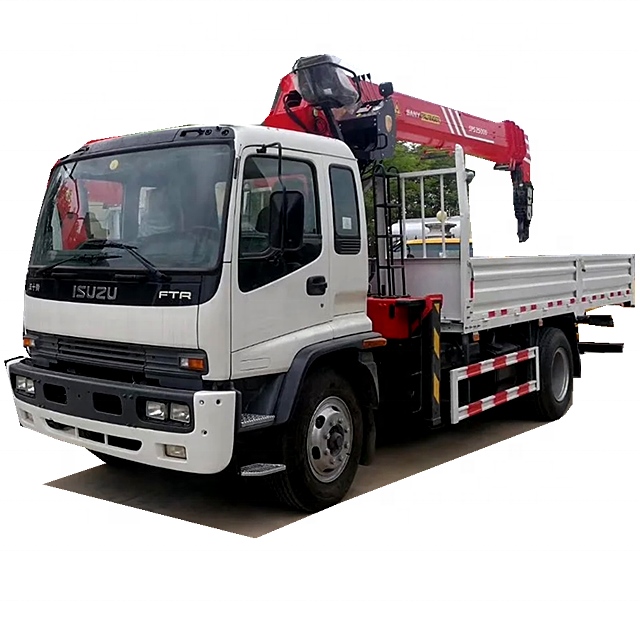

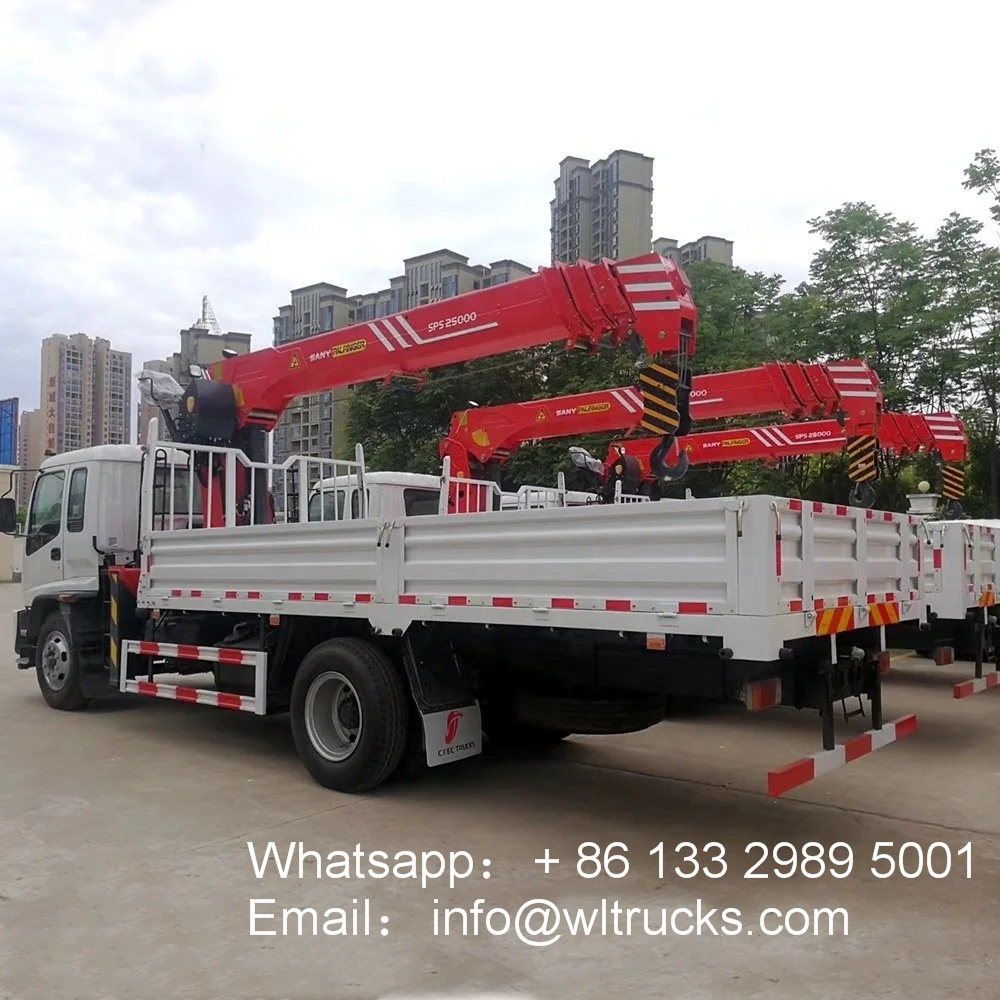

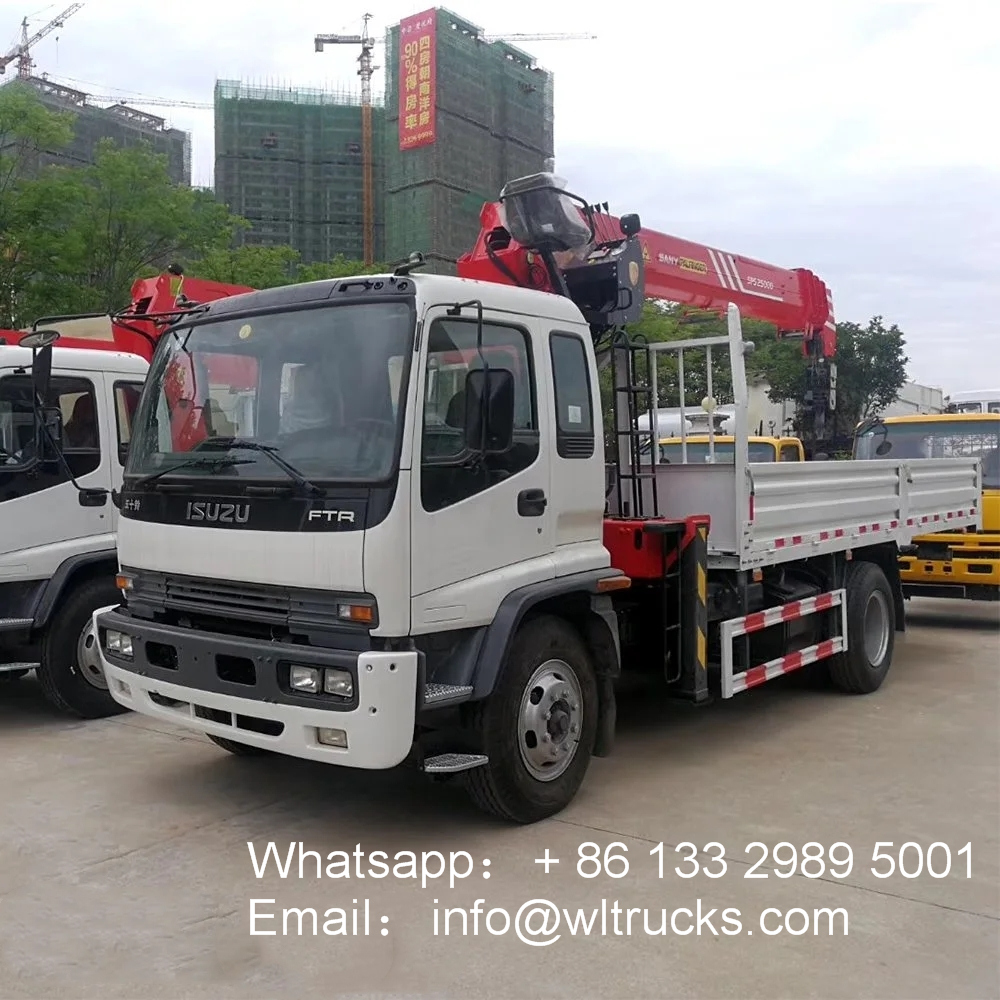

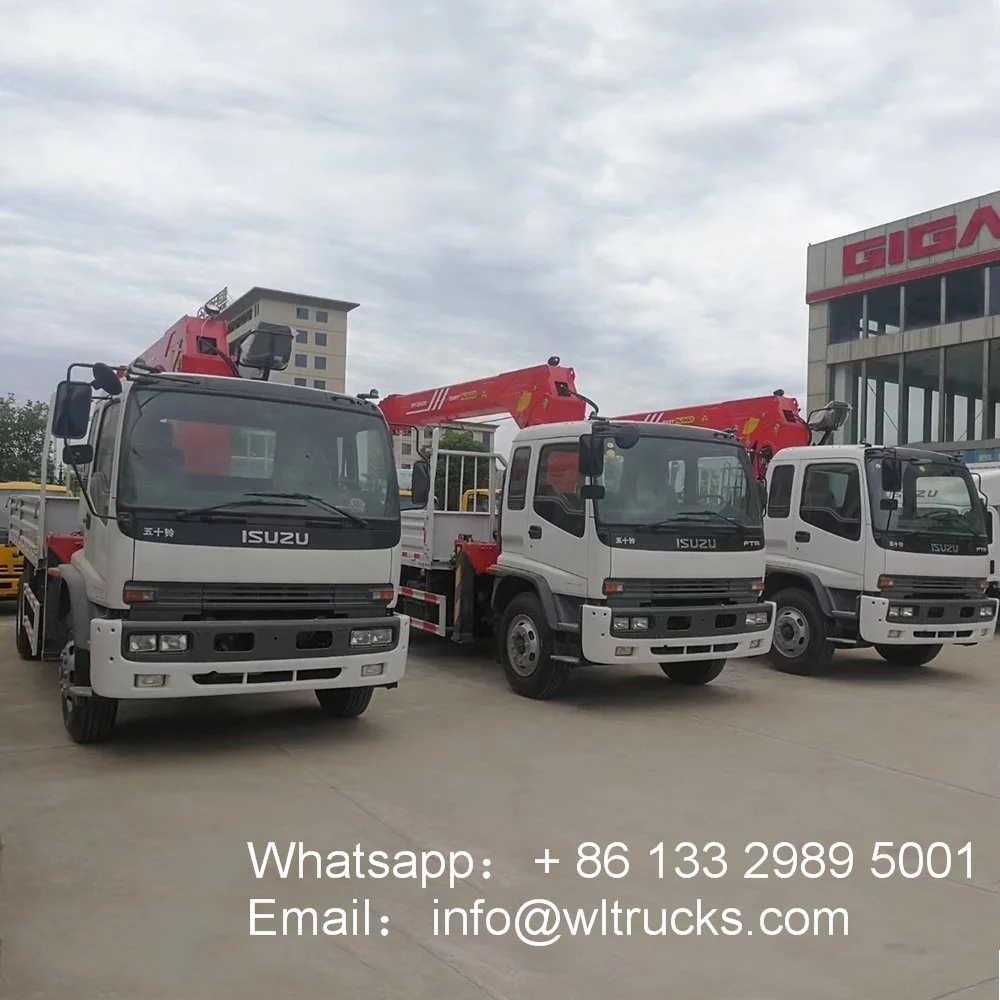

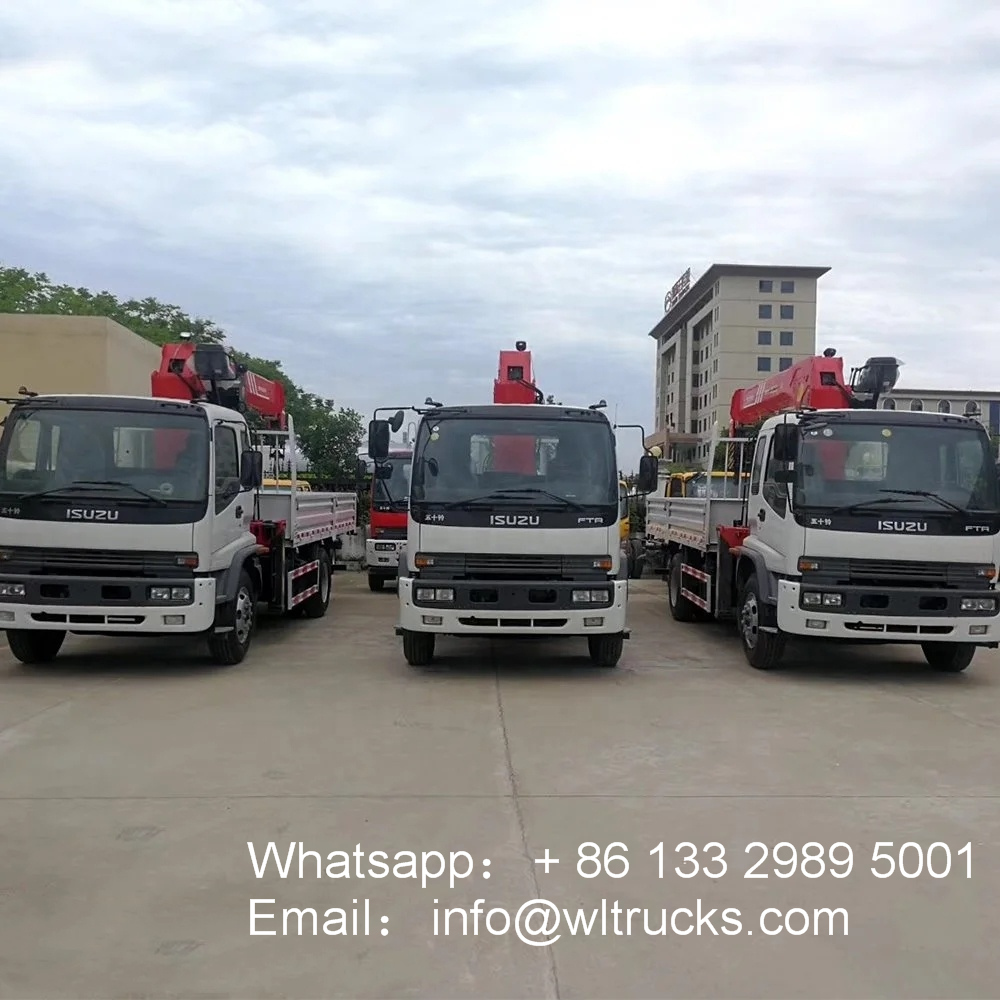

ISUZU ftr 8ton 10ton truck mounted crane Adopt Isuzu FTR single-row flat roof cab, Isuzu 190 horsepower engine, six-speed gearbox, 13 tons rear axle, 1000 tires, wheelbase 5000mm, standard cargo box can be manufactured 5 meters, manual expansion or hydraulic retractable cargo box , The rear can be equipped with ladders, dump trucks, aerial work and other multi-function trucks.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
ISUZU ftr 8ton 10ton truck mounted crane specification:
| TRUCK MOUNTED CRANE | ||
| Item | Descriptions | Specifications and types |
| General | Truck Brand | CLW(our brand) |
| Chassis Brand | ISUZU | |
| Approx. Dimension | 8995*2350*3210 mm | |
| GVW./Kerb Wt. | 8495/ 7925kg | |
| Cab | Cab Capacity | 2 persons’ seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 4X2,left hand drive |
| Fuel Type | Diesel | |
| Power | 190hp | |
| Emission Standard | EURO IV | |
| Brake | Air Brake | |
| Wheelbase/No.of axle | 5000mm / 2 | |
| Tyre Specfication | 1000R20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Automative metallic paint | |
| Cargo box | Cargo body dimension | 5000*1950*600 mm |
| Crane | Max Lifting Capacity | 8000kg |
| Crane Weight | 500kg | |
| Rotation Angle | 360 all rotation | |
| Installation Space | 850-1150mm | |
| Structure & Function | Telescopic/Articulated boom crane loading weight:2T,3.2T,4T,5T,6.3T,8T, 10T,12T,14T,16T,20T 25T or others Truck Cargo length: 3m-13m. Crane Brand optional: XCMG, ZOOMLION, CLW, SANY or others. Crane Installation Site: Rear or Middle part |
|
ISUZU ftr 8ton 10ton truck mounted crane Working parameter:
