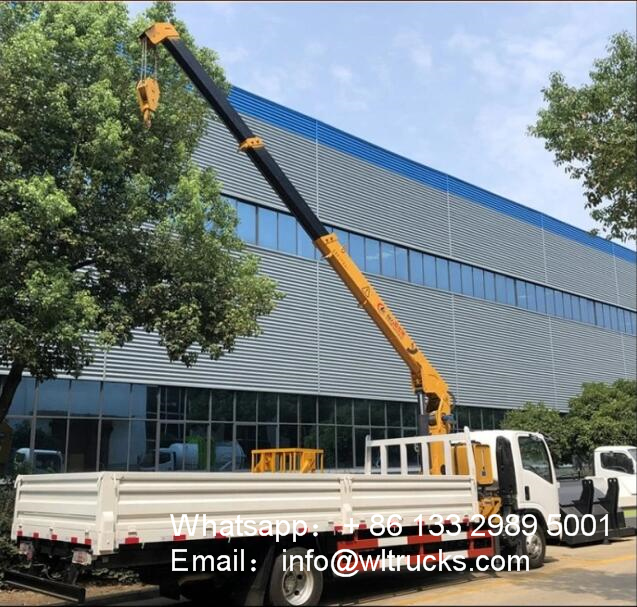

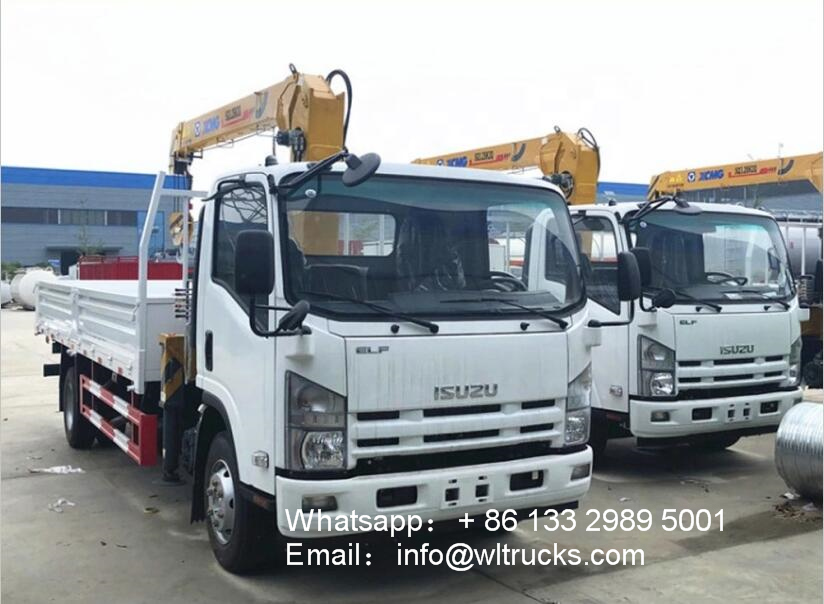

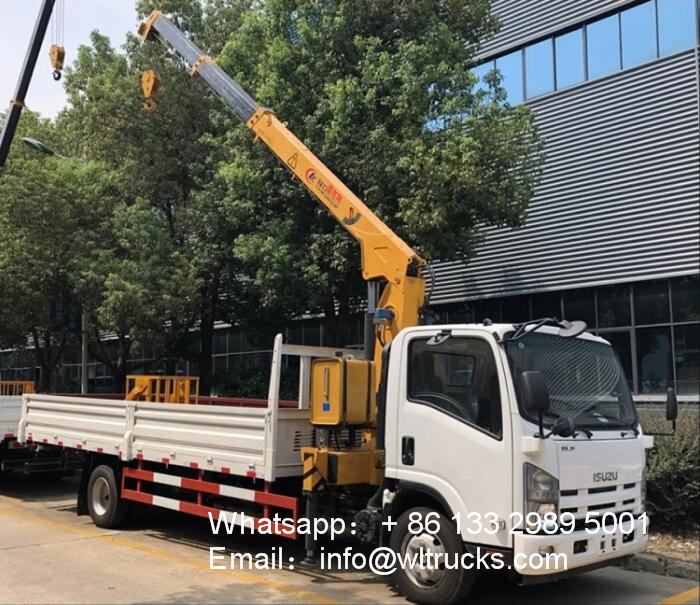

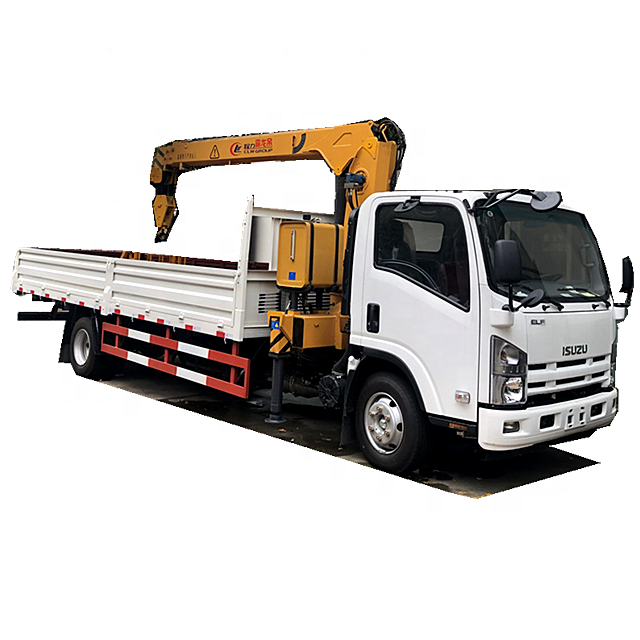

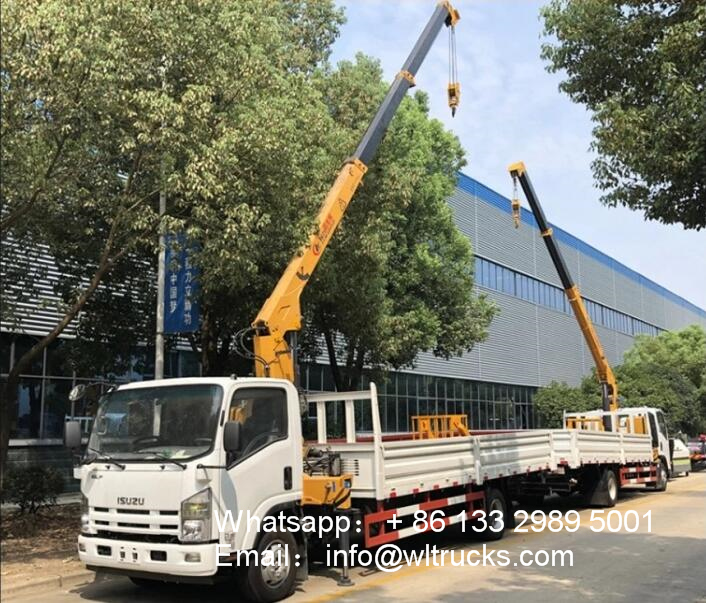

ISUZU elf 5ton truck with crane
ISUZU elf 5ton truck with crane Adopt Isuzu ELF single-row flat-roof cab, Isuzu 120 horsepower engine, 6-speed gearbox, 5-ton reinforced cast rear axle, 750 steel tires for the whole car, wheelbase 3800mm, cargo box standard can be made 4 meters, optional manual expansion Or hydraulic telescopic cargo box, the rear can be equipped with ladders, pull excavator, multi-function vehicle.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
ISUZU elf 5ton truck with crane specification:
| TRUCK MOUNTED CRANE | ||
| Item | Descriptions | Specifications and types |
| General | Truck Brand | CLW(our brand) |
| Chassis Brand | ISUZU | |
| Approx. Dimension | 6995*2150*2810 mm | |
| GVW./Kerb Wt. | 4495/ 2925kg | |
| Cab | Cab Capacity | 2 persons’ seat |
| Air Conditioner | Air Conditioner is optional | |
| Chassis | Drive Type | 4X2,left hand drive |
| Fuel Type | Diesel | |
| Power | 98hp | |
| Emission Standard | EURO IV | |
| Brake | Air Brake | |
| Wheelbase/No.of axle | 3360mm / 2 | |
| Tyre Specfication | 7.00-16 8PR,7.00R16 8PR | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Automative metallic paint | |
| Cargo box | Cargo body dimension | 3600*1880*400 mm |
| Crane | Max Lifting Capacity | 4000kg |
| Crane Weight | 500kg | |
| Rotation Angle | 360 all rotation | |
| Installation Space | 850-1150mm | |
| Structure & Function | Telescopic/Articulated boom crane loading weight:2T,3.2T,4T,5T,6.3T,8T, 10T,12T,14T,16T,20T 25T or others Truck Cargo length: 3m-13m. Crane Brand optional: XCMG, ZOOMLION, CLW, SANY or others. Crane Installation Site: Rear or Middle part |
|
ISUZU elf 5ton truck with crane Working parameter:
