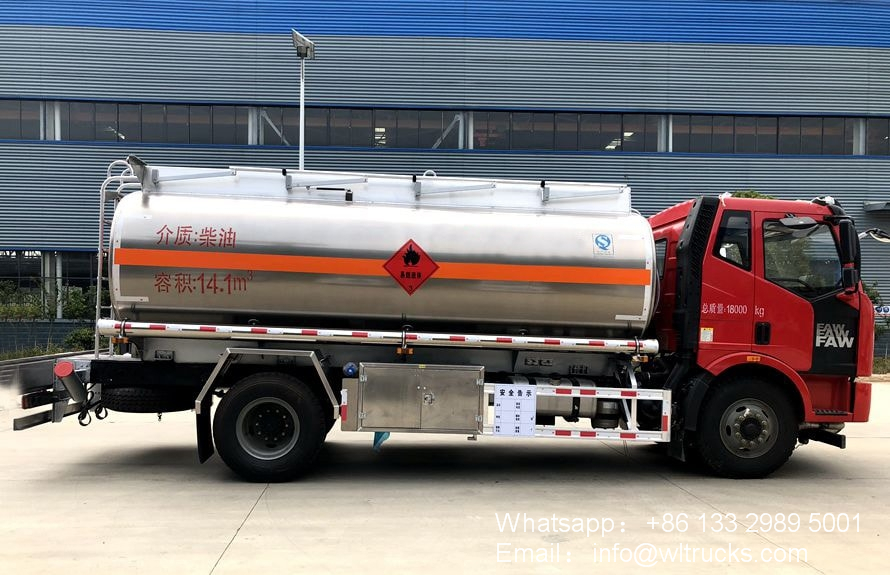

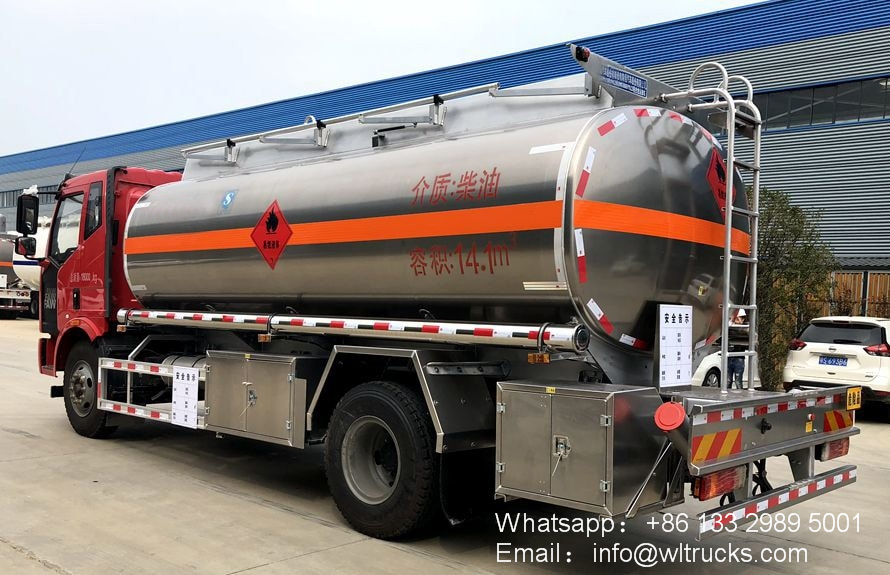

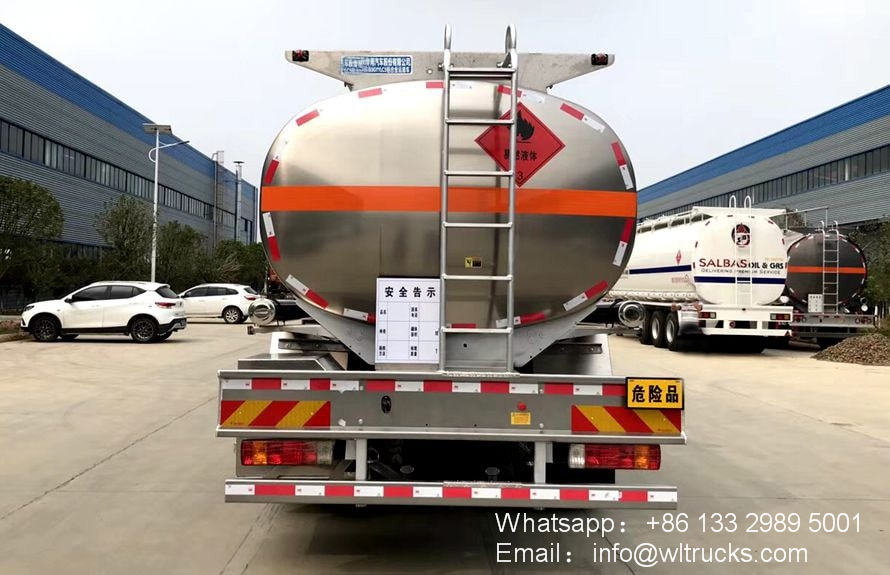

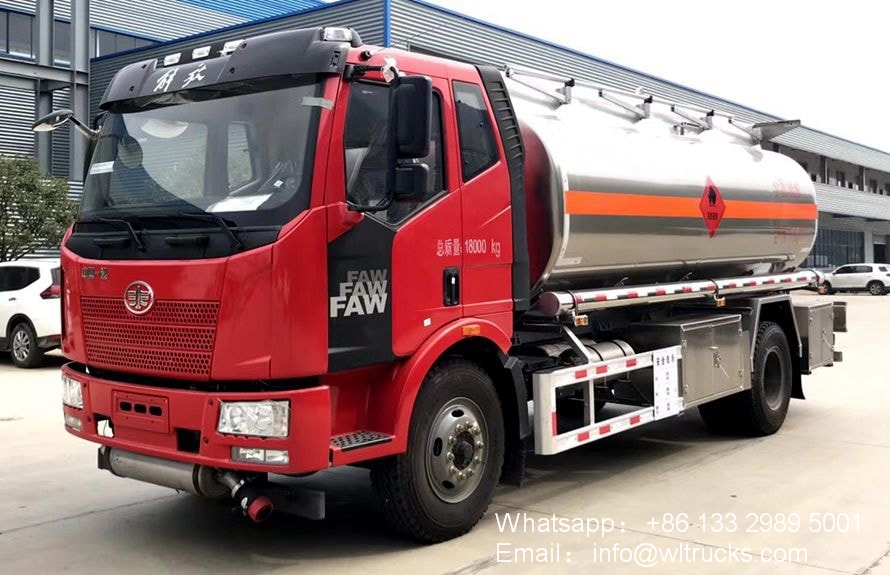

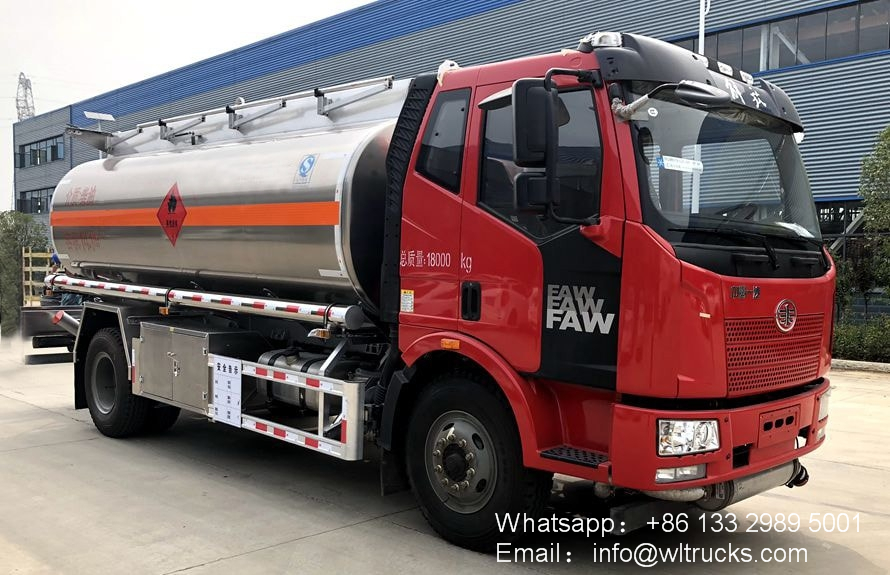

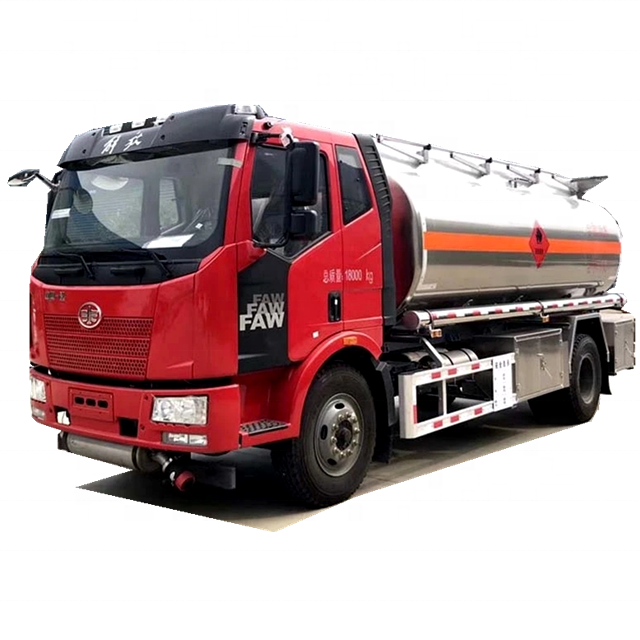

FAW 16000 liter Aluminum alloy fuel tanker truck
FAW 16000 liter Aluminum alloy fuel tanker truck uses a special chassis for dangerous goods, a semi-luxury cab, Dachai 180 horsepower engine, National Five emission standards, FAW 6-speed gearbox, 378 rear axle, 10.00 steel tires for the whole car, with original air conditioning , Directional boost, ABS, air brake brake system, brake belt with automatic adjustment arm, headlight adjustment function, anti-splash device, front disc and rear drum, with speed limit device.
FAW 16000 liter Aluminum alloy fuel tanker truck cylinder body is made of 6mm thick 5083 aluminum alloy sheet, one-time forming, truly seamless forming, safety guardrail, pattern walkway. One tool box and one water tank, two oil pipes of equal length, and the rest are standard.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| Vehicle Description | ||
| Overall dimensions | 8450*2500*3200mm | |
| GVW | 18000kg | |
| Curb weight | 6650 kg | |
| Chassis brand | FAW | |
| Traction type | 4*2 | |
| Tanker Description | ||
| Tank capacity | 14 cbm | |
| Tanker material | Aluminum alloy | |
| Thickness | Tanker body | 6mm |
| End cover | 6mm | |
| Tanker shape | Ellipse | |
| Tanker compartment | 1 compartment (optional: several compartment) | |
| Standard configuration | 1 set manhole . | |
| Equipped with double discharge valve and valve box. | ||
| Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. | ||
| Electrostatic conducting tape and double fire extinguishers. | ||
| Optional | Tanker material: aluminum alloy; stainless steel | |
| Chinese standard configuration is available, or other world famous fuel configuration. | ||
| over flow probe system, vapor recovery system, bottom valve, API adaptors. | ||
| Emergency bottom valve and foldable aluminum handrail. | ||
| Others: fuel pump, refueling dispenser, flow meter,dipstick, etc. | ||
| Chassis Description | ||
| Cab | 3 Passenger , with air-conditioner. | |
| Wheelbase | 4700 mm | |
| Tire specification | 10.00R20 | |
| Tire quantity | 6+1 units | |
| Engine | Emission level | Euro 5 |
| Brand | Famous Brand | |
| Horse power | 180 HP | |
| Gear box | Number of gears | 6 forward gears& 1 reverse |
| Brake system | Oil brake | |
| Axle | Front | 6000kg |
| Rear | 9000 kg | |
| Suspension | Leaf springs | |
| Fuel tanker | Type | Steel tanker, with lockable cap |
