products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

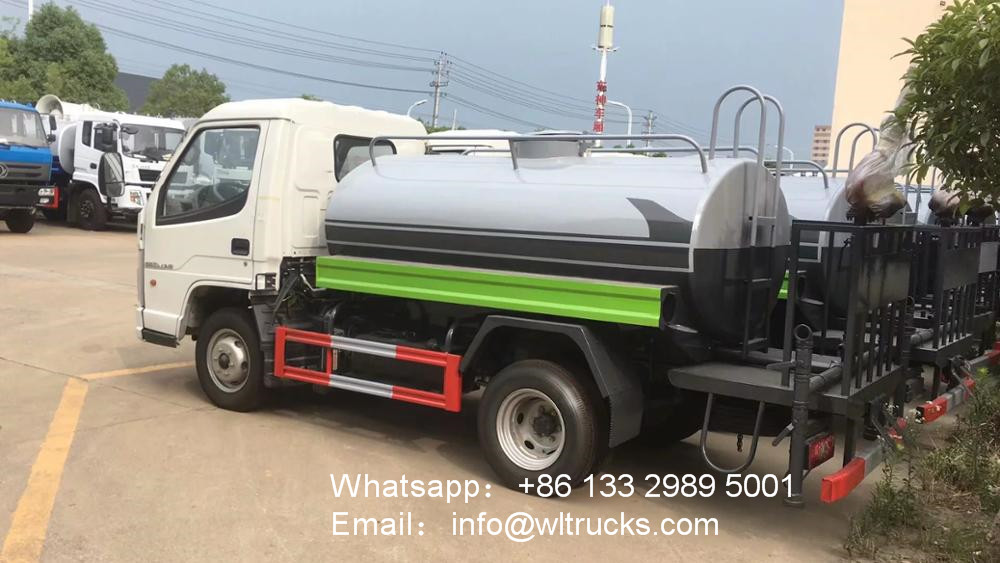

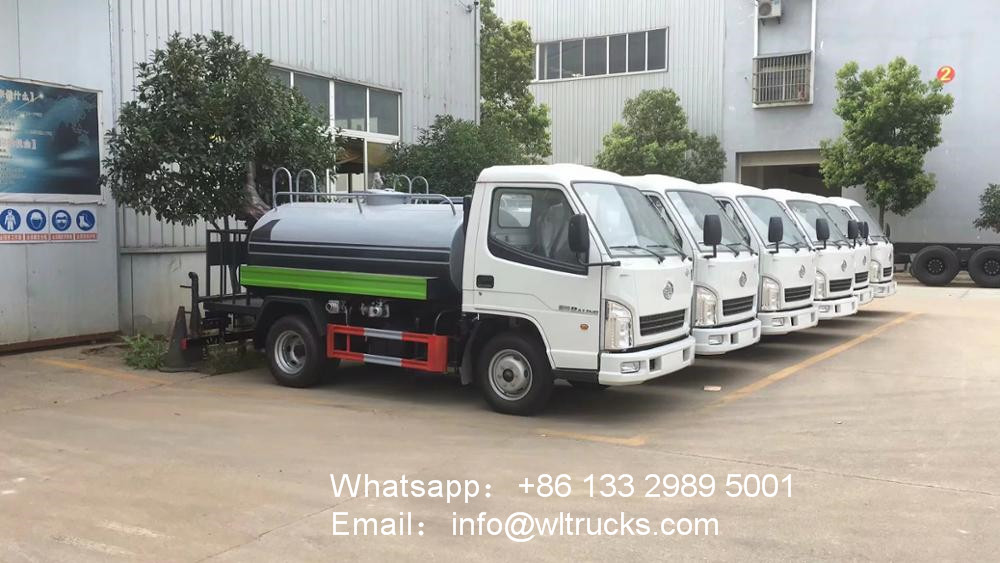

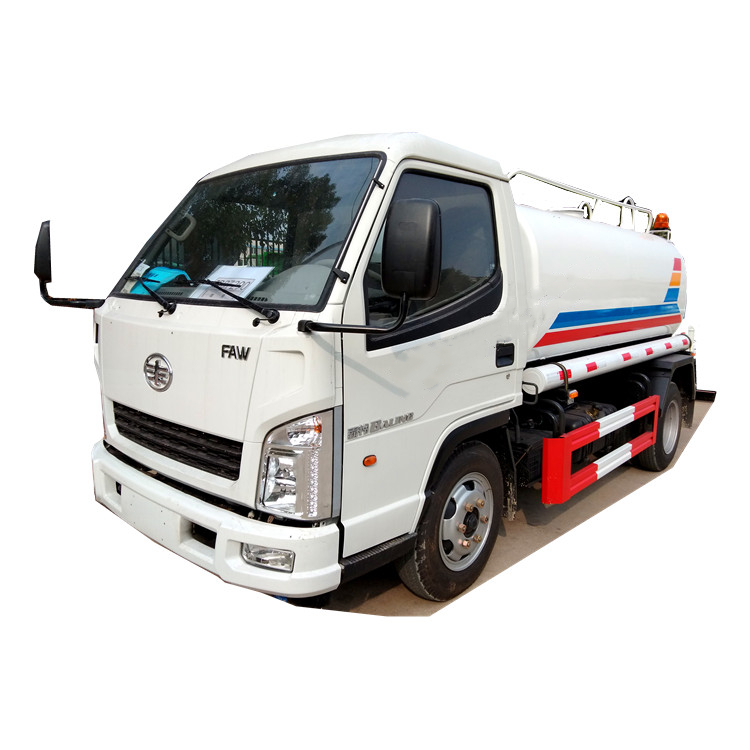

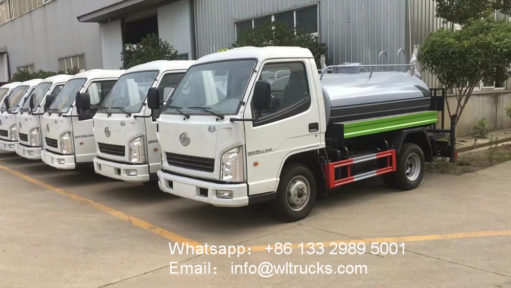

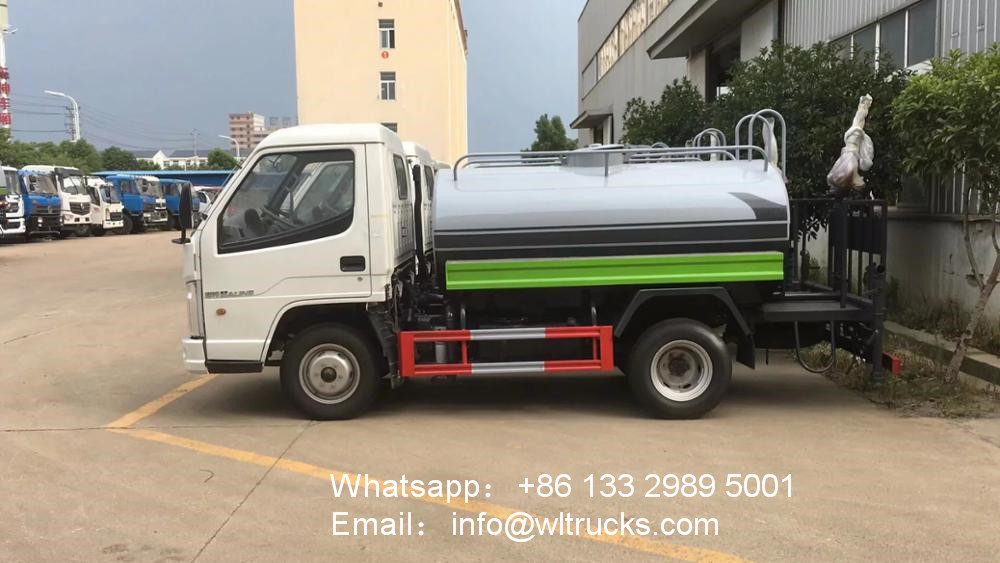

FAW 3000L 3m3 water Spray truck Specification:
| GVW3900kg Driving Type 4×2 | ||||
| Model |
CLW5040GSSCA |
|||
| Cab |
One row cab, tilted |
|||
| Engine(Hp) |
78 |
|||
| Power(Kw) |
59 |
|||
| Wheelbase |
2600 |
|||
| Front/Rear Suspension |
1090/1560 |
|||
| Steering |
optional |
|||
| Approach/departure angle |
18/12 |
|||
| Wheels & tire |
6.0-15 |
|||
| Tire number |
6+1 |
|||
| Tank Dimensions(mm) |
2800×1220×1000 |
|||
| Cubage (m3) |
2 |
|||
| Steel thickness of tank(mm) |
4 |
|||
| RHD or LHD |
optional |
|||
| Overall Dimensions(mm) |
5250×1700×2170 |
|||
| Curb weight (Kg) |
2060 |
|||
| Engine | Model |
4DW93-78E5 |
||
| Horsepower |
78 |
|||
| Maximum output Kw |
59 |
|||
| Maximum torque N.m |
210 |
|||
| Type |
4 cylinders, in-line,4-stroke ,turbo inter-cooling, diesel engine |
|||
| Displacement |
2.540L |
|||
| FAW Wuxi diesel engine brand, Euro 5 | ||||
| Driving passenger | 2,3 | |||
| Transmission |
5 speed forward and one reverse, manual |
|||
| Front Axle | 1.5T | |||
| Rear Axle | 3T | |||
| Brake System | air brake
exhaust brake |
|||
| Color and LOGO | customized | |||
| Electric system | 24V | |||
| Tank material | Carbon steel, stainless steel, aluminum, etc. alloy, etc. | |||
| Sprinkling width | 14m each side | Suction height | 7m | |
| Standard configuration | carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder. | |||
| Optional configuration | Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights | |||
| Delivery date | Within 20 days after receipt advance | |||
| Packing |
Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. |
|||
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
