products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

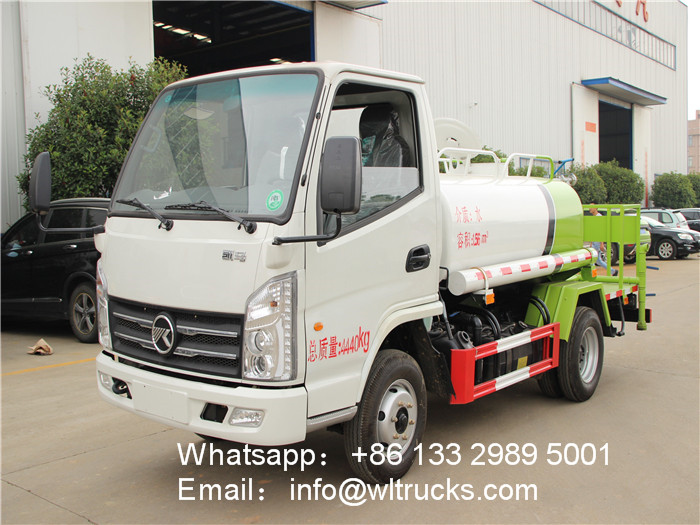

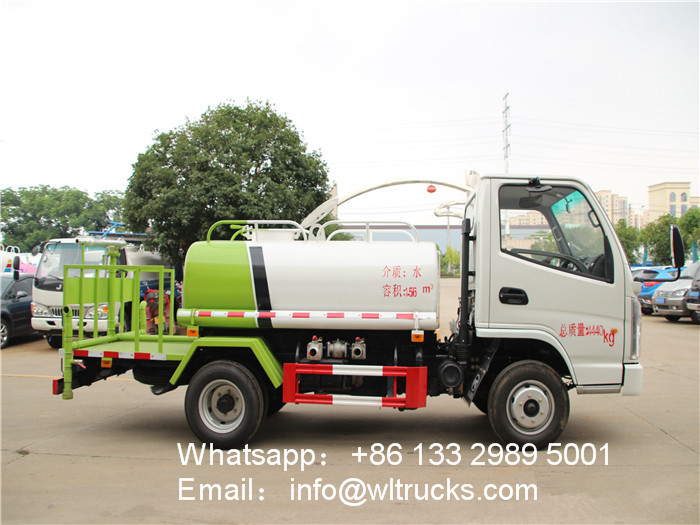

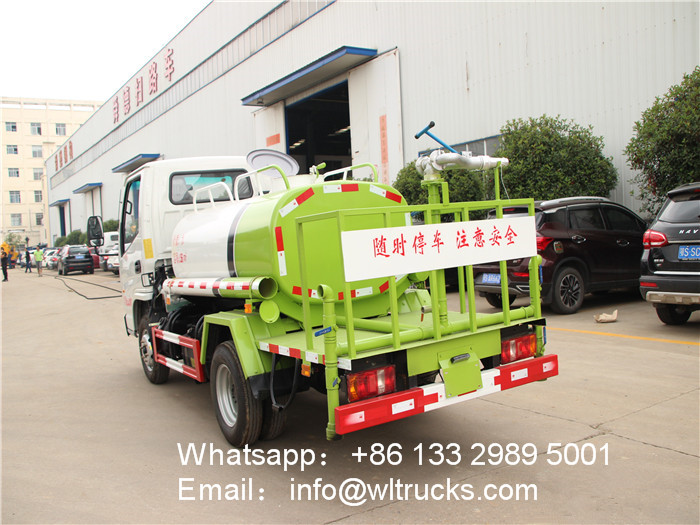

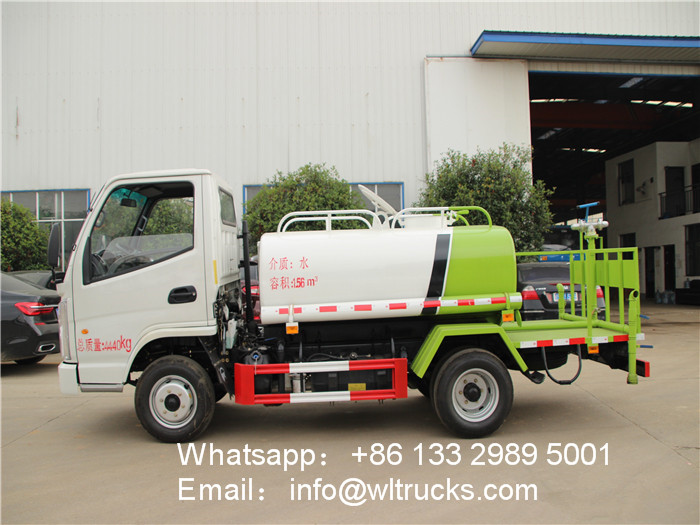

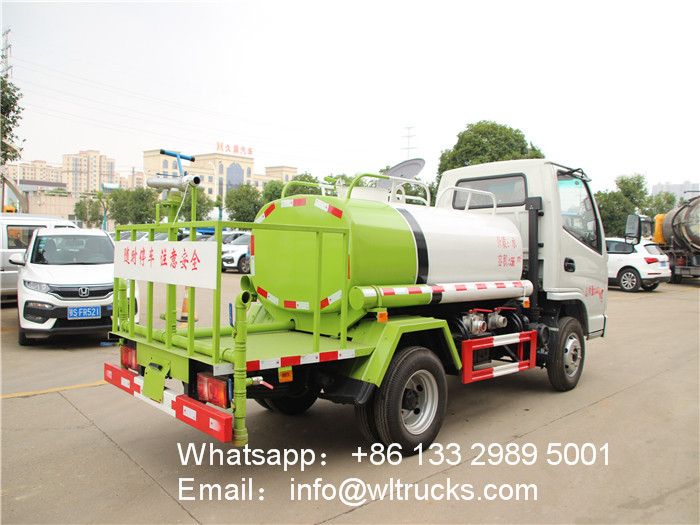

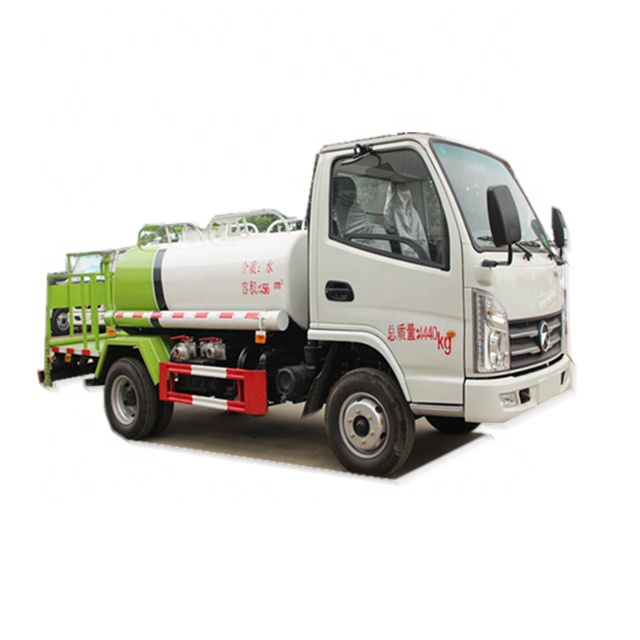

KAMA 3 ton small water bowser truck Specification:
|
Vehicle technical parameters |
|||
| Tank volume | 3 cubic meters (tons) | Sprinkling width | 15 meters |
| Water cannon head | 30 meters | Vertical suction | 7 meters |
| Pump flow | 20 cubic meters / hour | Pump head | 90 meters |
| Total mass | 4385/kg | Load quality | 2180/kg |
| Curb quality | 2075/kg | Dimensions | 5.4 × 1.9 × 2.3 |
| Tank size | 2.6 × 1. 4 × 0.8 | Number of passengers | 2 people) |
| Chassis technical parameters | |||
| Chassis name | Kama | Chassis model | KMC1041 |
| Number of axes | 2 | Number of tires | 7 (including spare tire) |
| Wheelbase (mm) | 2800 | Tire specifications | 6.50-16 |
| Gearbox | 5 files | Front and rear bridge | 1.8/3 tons |
| Fuel type | Diesel | brake | Oil brake |
| Emission Standards | GB17691-2005 country V , GB3847-2005 | ||
| engine | Engine company | Displacement (ml) | horsepower |
| YCD4N |
FAW Xichai
|
2788 | 87 |
| Top basic configuration | |||
| The standard configuration | Kama 3 tons sprinkler tank material is thick 4mm WISCO high quality sheet, sprinkler pump, sprinkler cannon, work platform, power take-off, front punch, back sprinkler, universal nozzle, gravity valve, filter, distribution valve, nozzle With self-priming self-discharging function. | ||
| Optional configuration | Kama 3 ton sprinklers can be equipped with anti-corrosion rust, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves and other advanced facilities to meet different user needs. | ||
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
