products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.

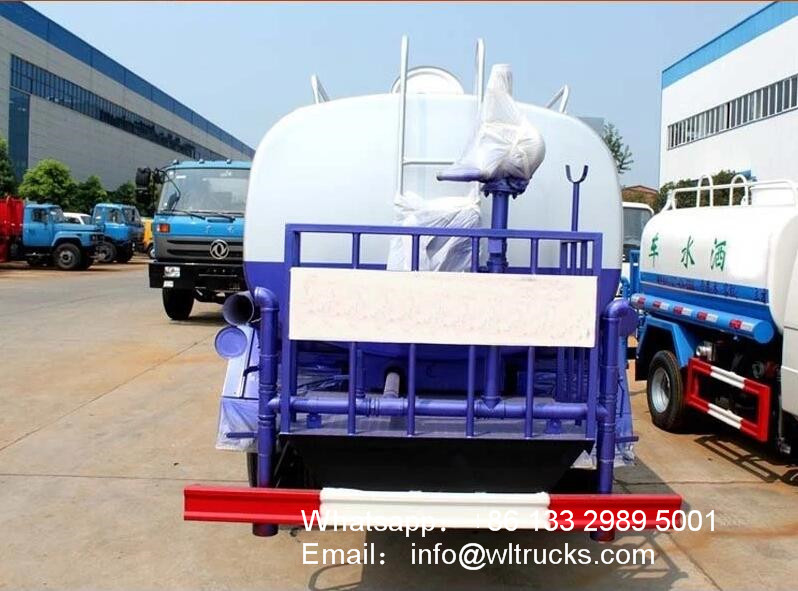

3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.

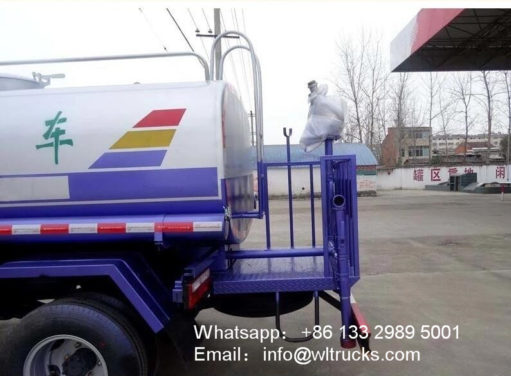

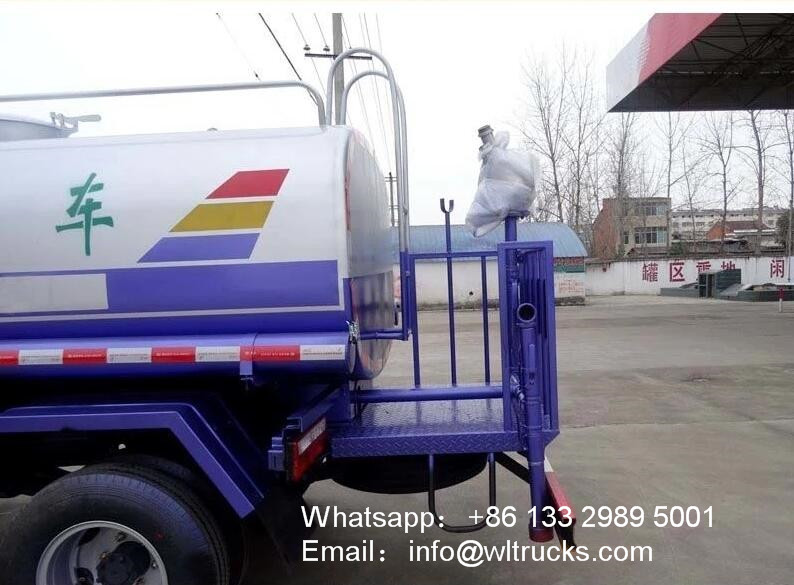

4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

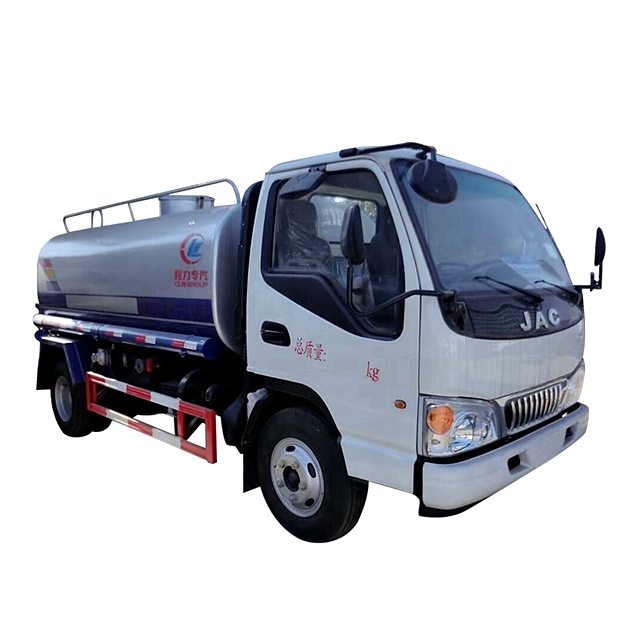

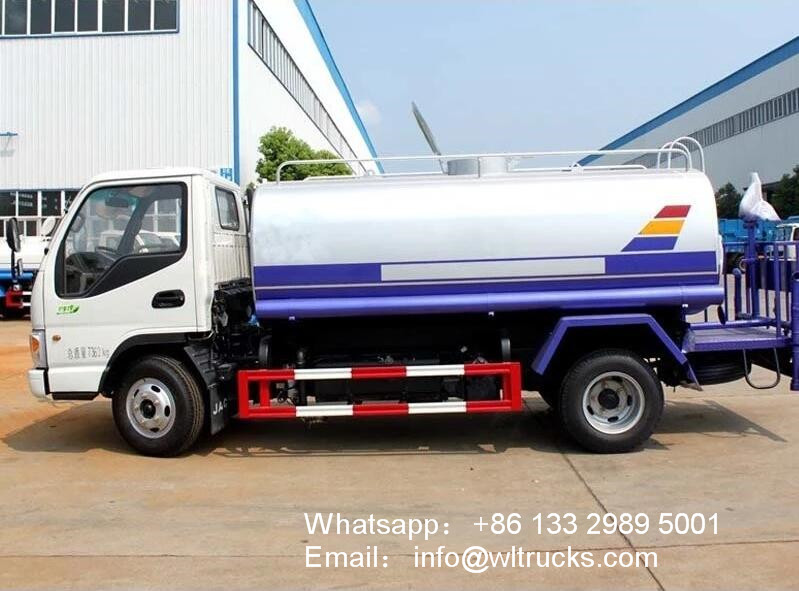

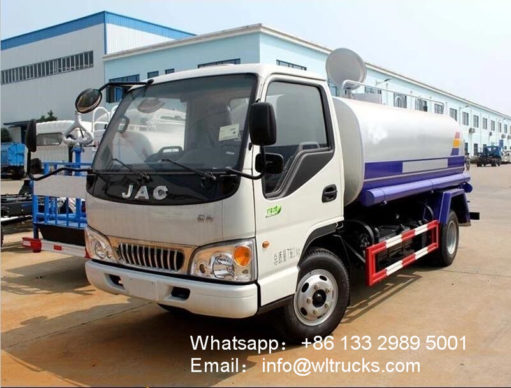

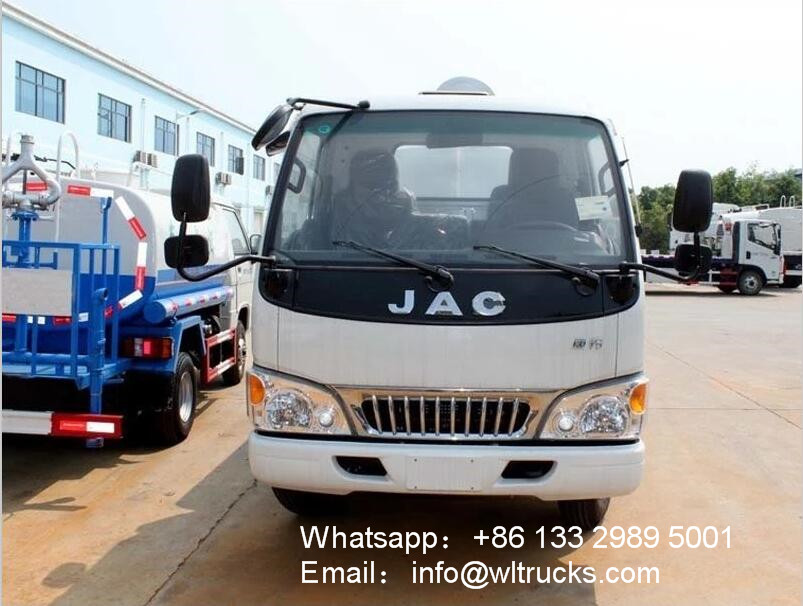

JAC 5m3 water tanker truck Specification:
| Condition | New condition/Left hand drive/4×2 | ||
| Chassis | Brand | JAC | |
| Curb weight(kg) | 3380 kg | ||
| Loading weight(kg) | 3850 kg | ||
| Gross weight(kg) | 7360 kg | ||
| Wheelbase(mm) | 3950 mm | ||
| Dimensions(mm) | 6000*1900*2300 mm | ||
| Front Loading Capacity (Ton) | 1.8 | ||
| Rear Loading Capacity (Ton) | 3.5 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 7.00-16 | ||
| Transmission | Manual type,5 Forwards and 1 reverse | ||
| Cabin | Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||
| Engine | Brand | Chaochai | |
| Fuel type | Diesel | ||
| Power(kw) | 85 kw | ||
| Horsepower(HP) | 116 | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 2 | ||
| Upper | |||
| Water tank | Capacity(cbm/tons) | 5/5 | |
| Tank Dimension(mm) | 3400*1600*1100 | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 4 | ||
| Water pump | China local brand | ||
| Suction Height | 7M | ||
| Function | 1, Front Side Rear Sprinkling width≥14m | ||
| 2, Water cannon range≥28m | |||
| Remarks | 1. AM/FM radio | ||
| 2. 2pcs water hose. | |||
| 3. Color is optional | |||
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
