products details:
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2.Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
3.Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
4. Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

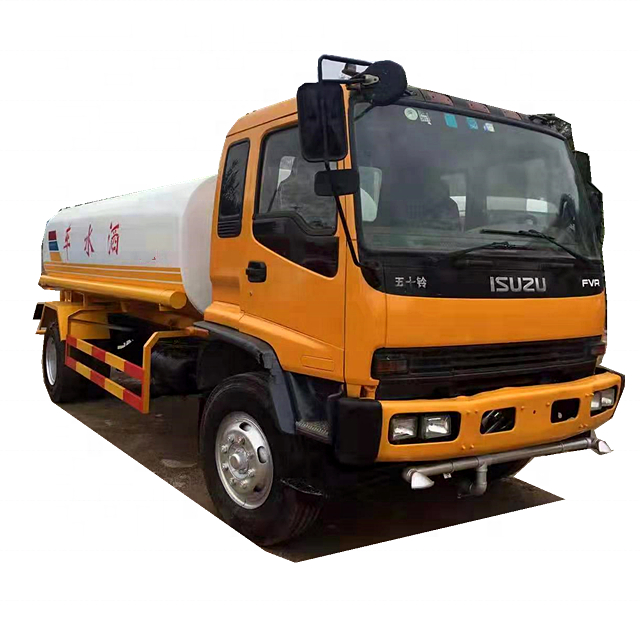

ISUZU fvr 15000liters water tank truck Specification:
| Brand | ISUZU |
| Model | QLG5163GSS |
| Curb weight | 15000kg |
| Overall dimension | 8400mmX2400mmX3200mm |
| Gross weight | 19000kg |
| Tank volume | 15cbm |
| Compartment | Single |
| Tank material | Q235b carbon steel |
| Tank body | 5mm thickness |
| Seal head | 5mm thickness |
| Clapboard | 5mm thickness |
| Ball valve | 2.5 inch |
| Manhole | 1pc standard |
| Sprinkle water pump | 45 type |
| Water sprinkling form | Front spray,rear sprinkle,with upper sprinkler gun. |
| Water pressure | 0.4mpa |
| Chassis brand | Dongfeng/JAC/FAW(optional) |
| Drive type | Left/right hand drive optional |
| Drive wheel | 4×2 |
| Transmission | Manual,5 speed forward with 1 reverse |
| Axle | 2pcs |
| Tire | 1000-20/7pcs((include 1 spare tire) |
| Cab | 2 or 3 passengers |
| Front/rear tread | 1750mm/1586mm |
| Front/rear suspension | 1180mm/1920mm |
| Wheelbase | 3800mm |
| Approach/departure angle | 22°/15° |
| Leaf spring number | 8/10+7 |
| Engine | Commins/Yuchai/Chaochai(optional) |
| Emission | Euro 2/3/4 |
| Horse power | 150hp |
| Braking system | With ABS system |
| Max speed | 90Km/h |
| Fuel type | Diesel |
| Electrical system | 24 voltage,7 wire harness. |
| Light | LED type |
| Painting | With shot blasting and 4 layers painting,color is optional. |
| Remark |
The above mentioned data is for your reference only.
The detailed specification will be subject to our final confirmation.
|
water truck New craft:
Optional configuration:
water spray truck Inspection Training:
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
Free Parts:
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
sprinkler truck Factory Advantage:
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
Export Documents:
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
water Spray truck Shipping:
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
Bulk order case:
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
